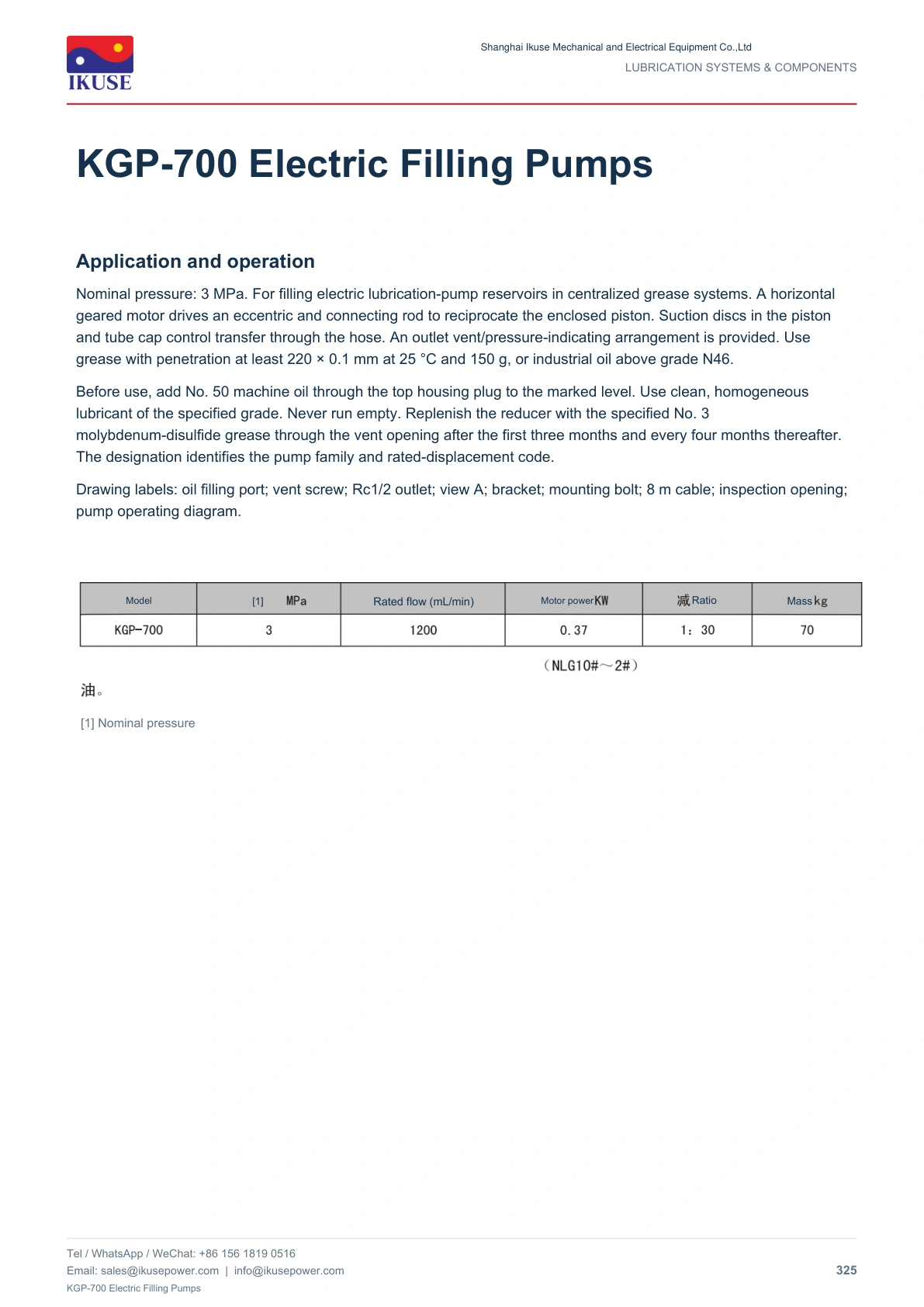

Overview
Nominal pressure: 3 MPa. For filling electric lubrication-pump reservoirs in centralized grease systems. A horizontal geared motor drives an eccentric and connecting rod to reciprocate the enclosed piston. Suction discs in the piston and tube cap control transfer through the hose. An outlet vent/pressure-indicating arrangement is provided. Use grease with penetration at least 220 × 0.1 mm at 25 °C and 150 g, or industrial oil above grade N46.
Selection and operation
Use grease with a penetration of at least 220 (0.1 mm, 25°C, 150 g), or industrial oil with a viscosity grade above N46. Lubricate the drive as instructed before starting. Keep the lubricant clean and do not run the pump without lubricant.
Technical documentation

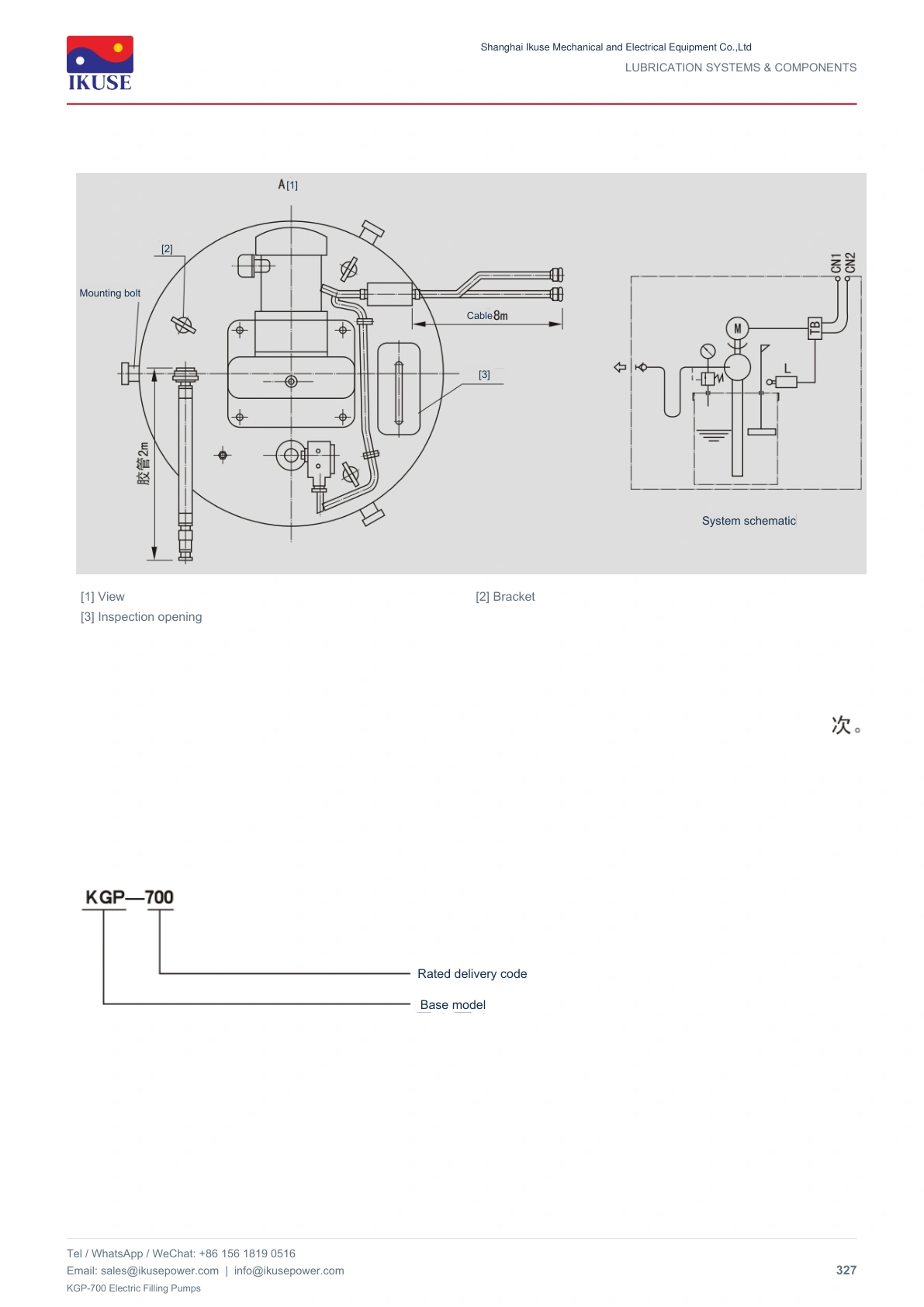

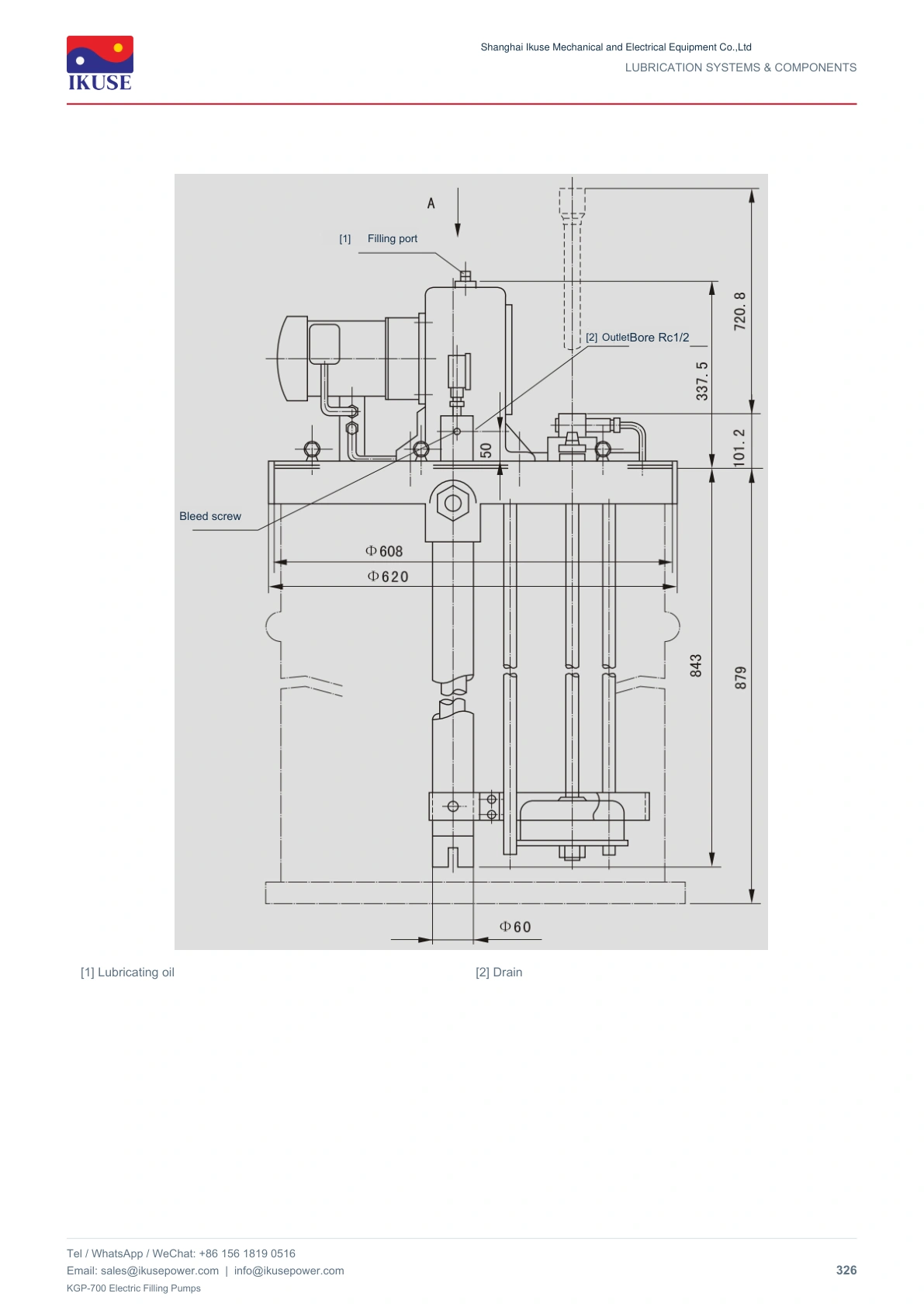

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
