Overview

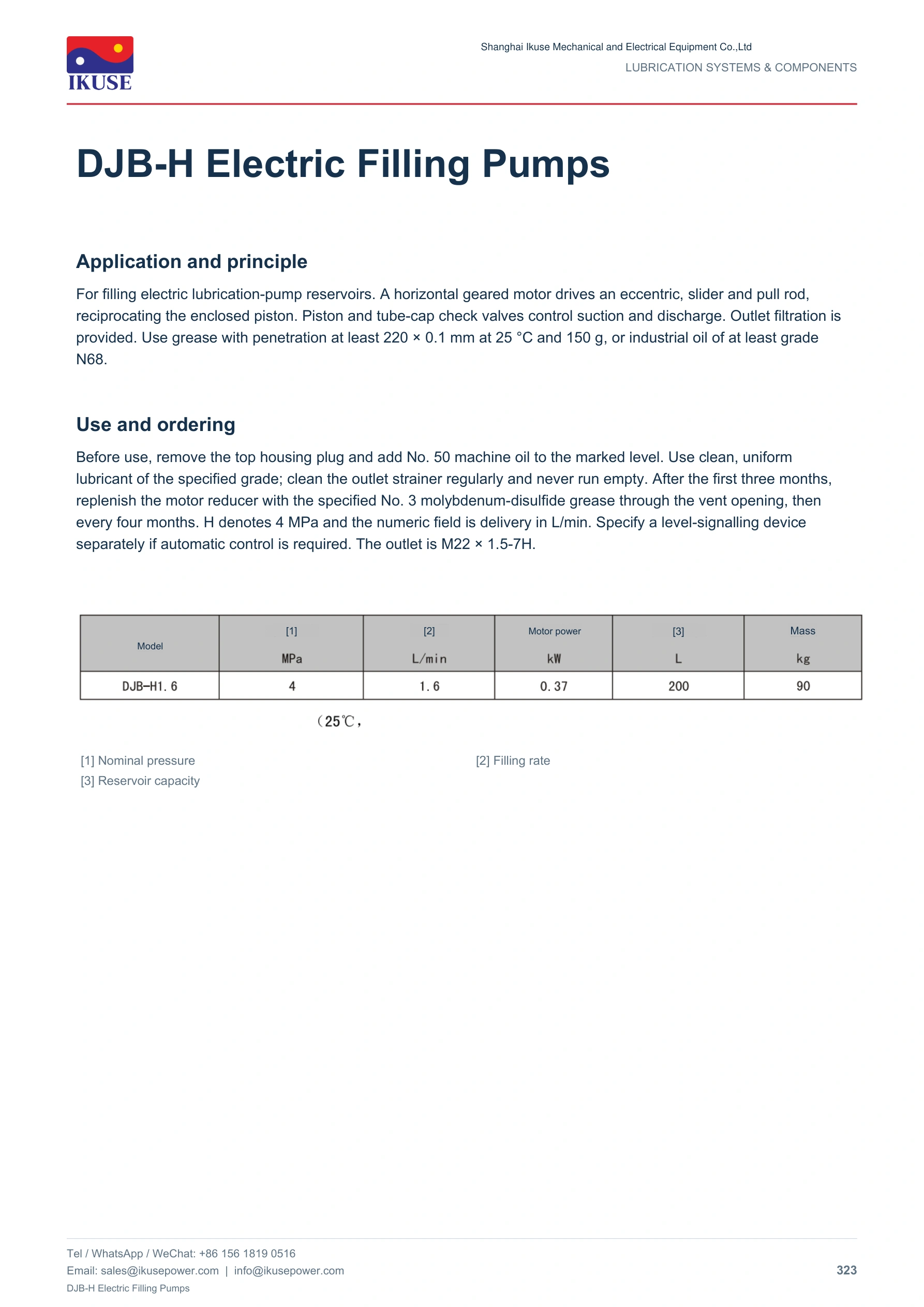

For filling electric lubrication-pump reservoirs. A horizontal geared motor drives an eccentric, slider and pull rod, reciprocating the enclosed piston. Piston and tube-cap check valves control suction and discharge. Outlet filtration is provided. Use grease with penetration at least 220 × 0.1 mm at 25 °C and 150 g, or industrial oil of at least grade N68.
Selection and operation
Use grease with a penetration of at least 220 (0.1 mm, 25°C, 150 g), or industrial oil with a viscosity grade of N68 or higher. Use a clean, homogeneous lubricant and clean the outlet filter regularly. Automatic replenishment requires a separate level sensor.
Technical documentation
Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
