Overview

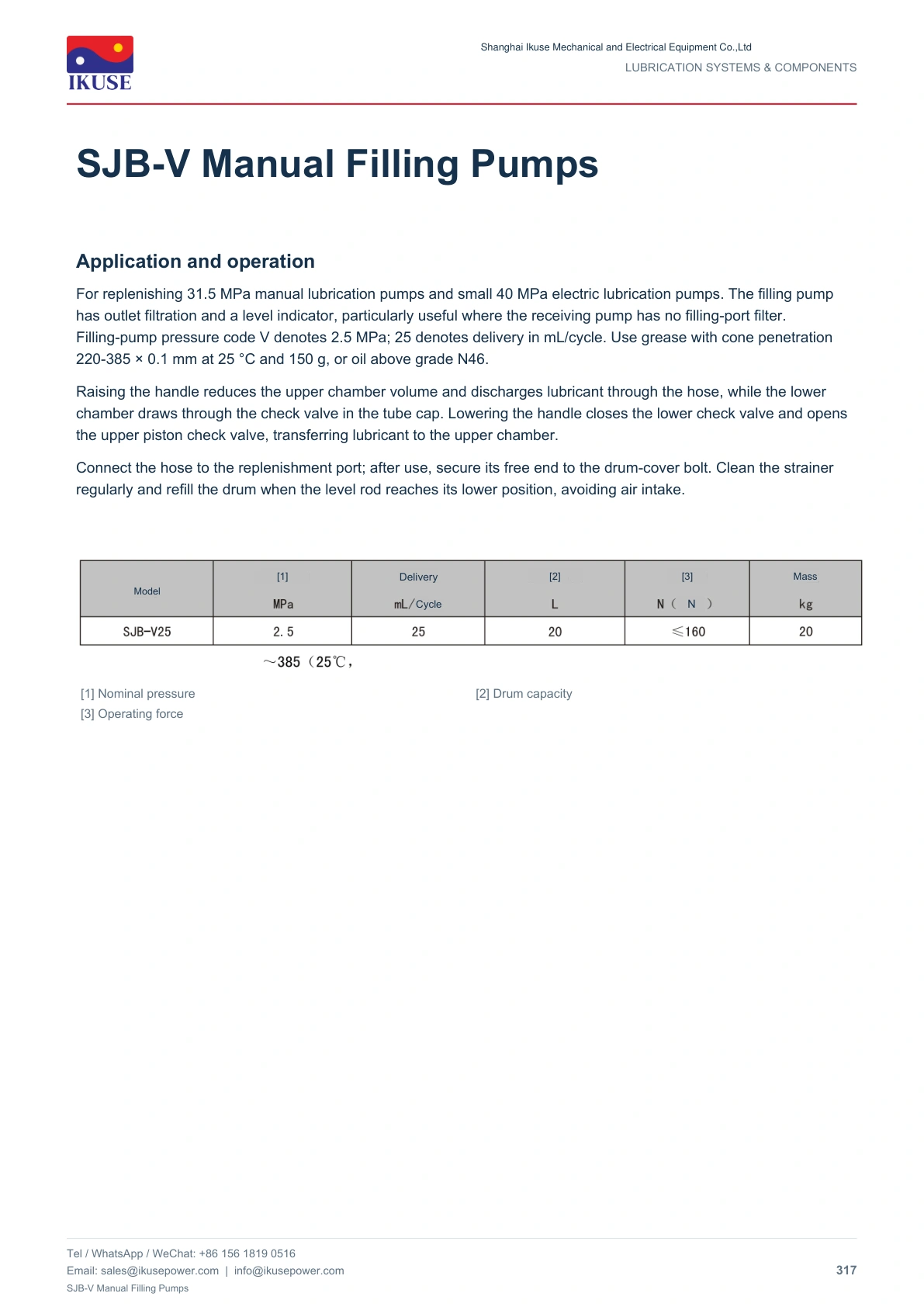

For replenishing 31.5 MPa manual lubrication pumps and small 40 MPa electric lubrication pumps. The filling pump has outlet filtration and a level indicator, particularly useful where the receiving pump has no filling-port filter. Filling-pump pressure code V denotes 2.5 MPa; 25 denotes delivery in mL/cycle. Use grease with cone penetration 220-385 × 0.1 mm at 25 °C and 150 g, or oil above grade N46.
Selection and operation
The filling pump has a nominal pressure of 2.5 MPa. Use grease with a penetration of 220–385 (0.1 mm, 25°C, 150 g), or industrial oil with a viscosity grade above N46.
Technical documentation

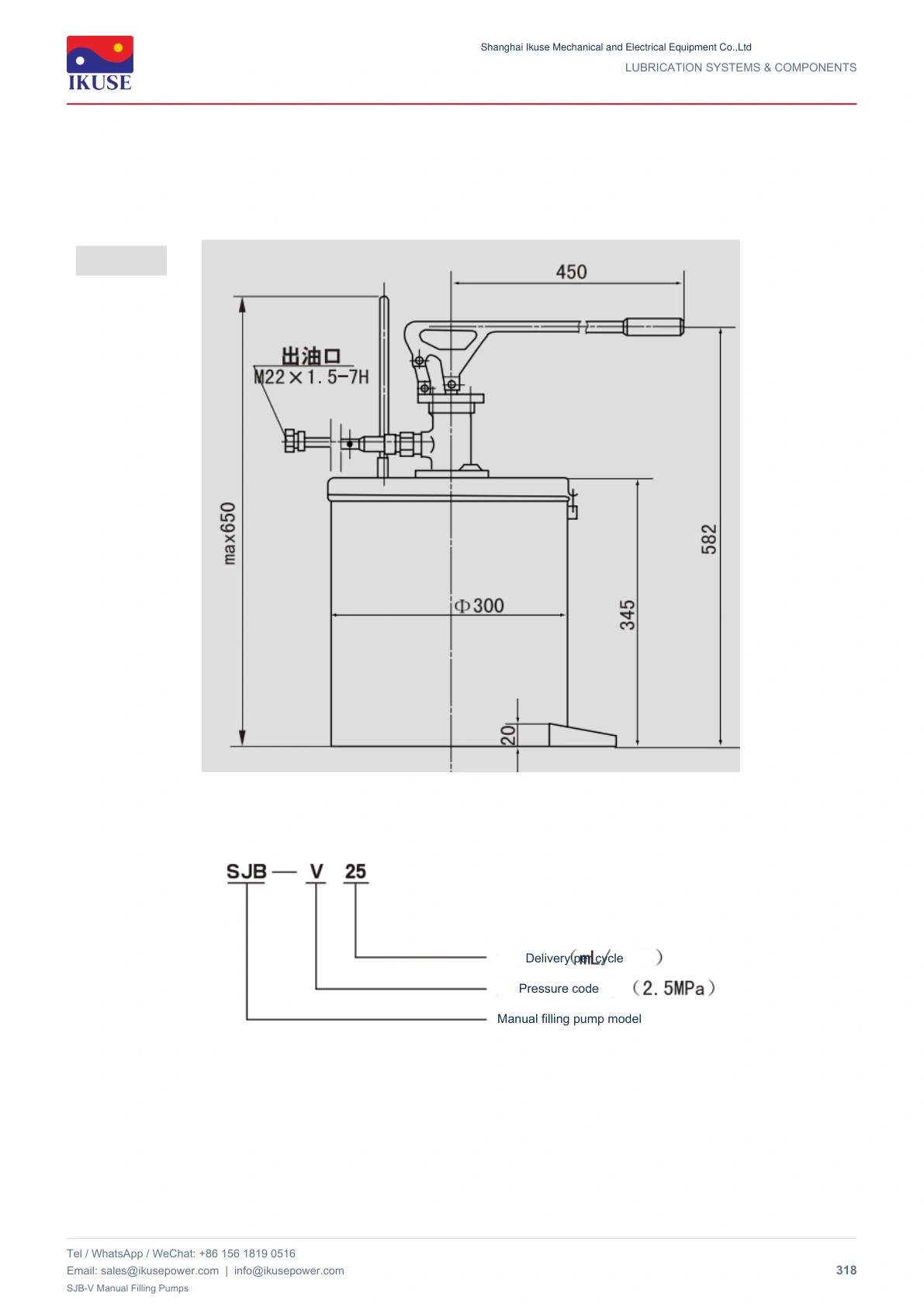

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
