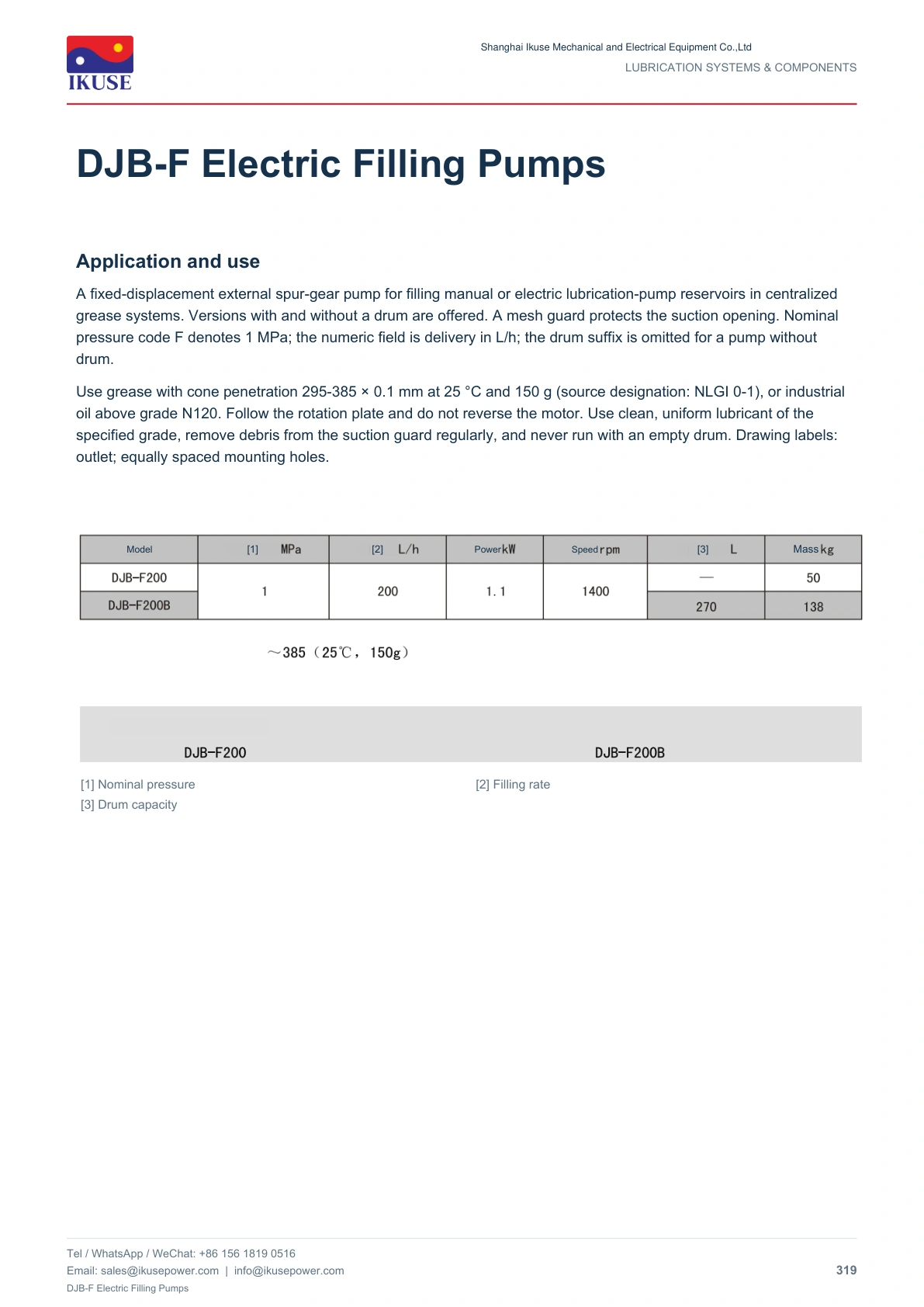

Overview
A fixed-displacement external spur-gear pump for filling manual or electric lubrication-pump reservoirs in centralized grease systems. Versions with and without a drum are offered. A mesh guard protects the suction opening. Nominal pressure code F denotes 1 MPa; the numeric field is delivery in L/h; the drum suffix is omitted for a pump without drum.
Selection and operation
Use grease with a penetration of 295–385 (0.1 mm, 25°C, 150 g), or industrial oil with a viscosity grade above N120. Connect for the marked direction of rotation, use clean lubricant and regularly clean the suction strainer.
Technical documentation

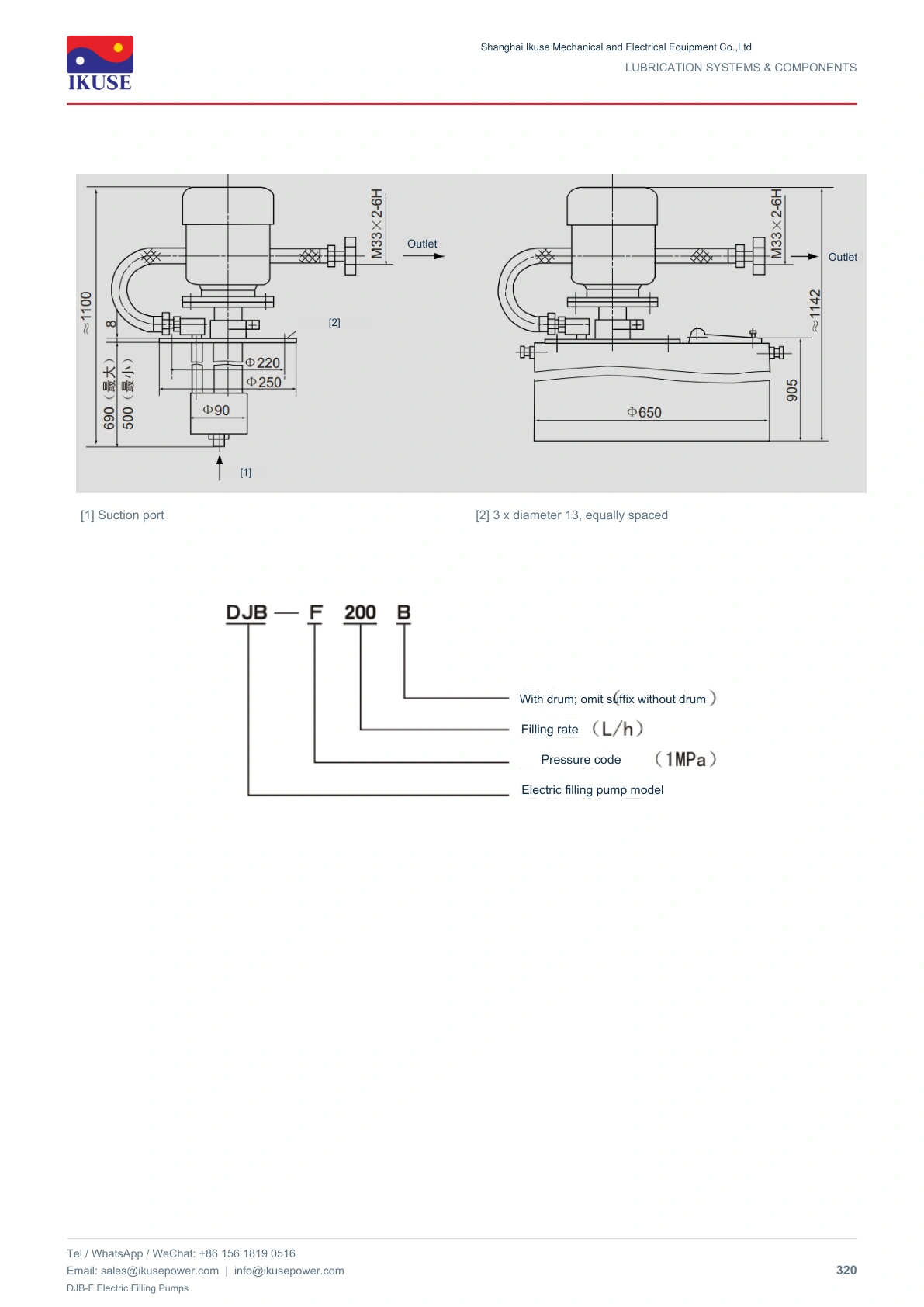

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
