Overview
Connects mechanisms such as a gearbox and a drum. Check torque and radial load for the corresponding construction.
Construction and maintenance

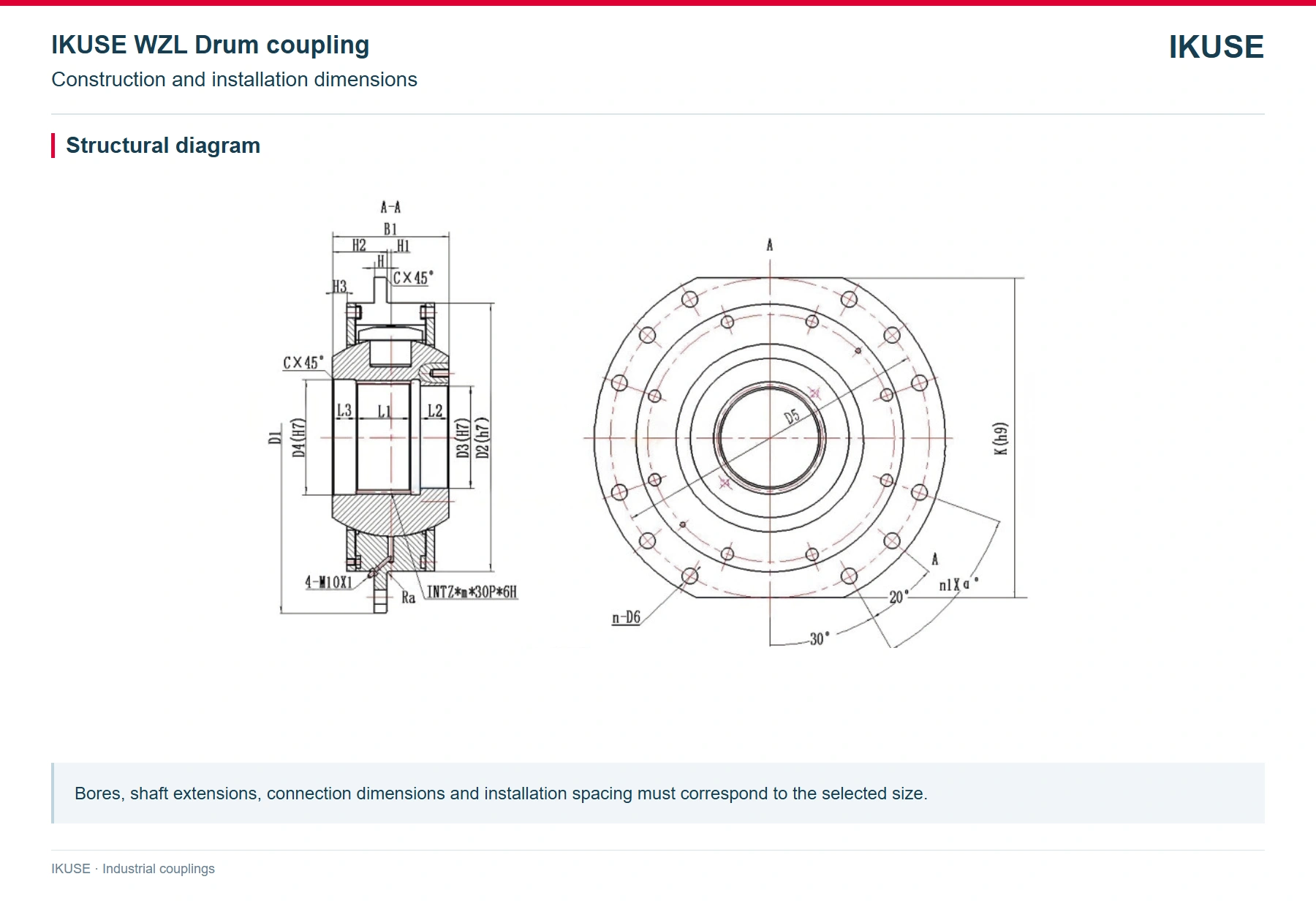

Check the drum flange, shaft-end connection, installation space and access for lubrication and maintenance.
Technical specifications

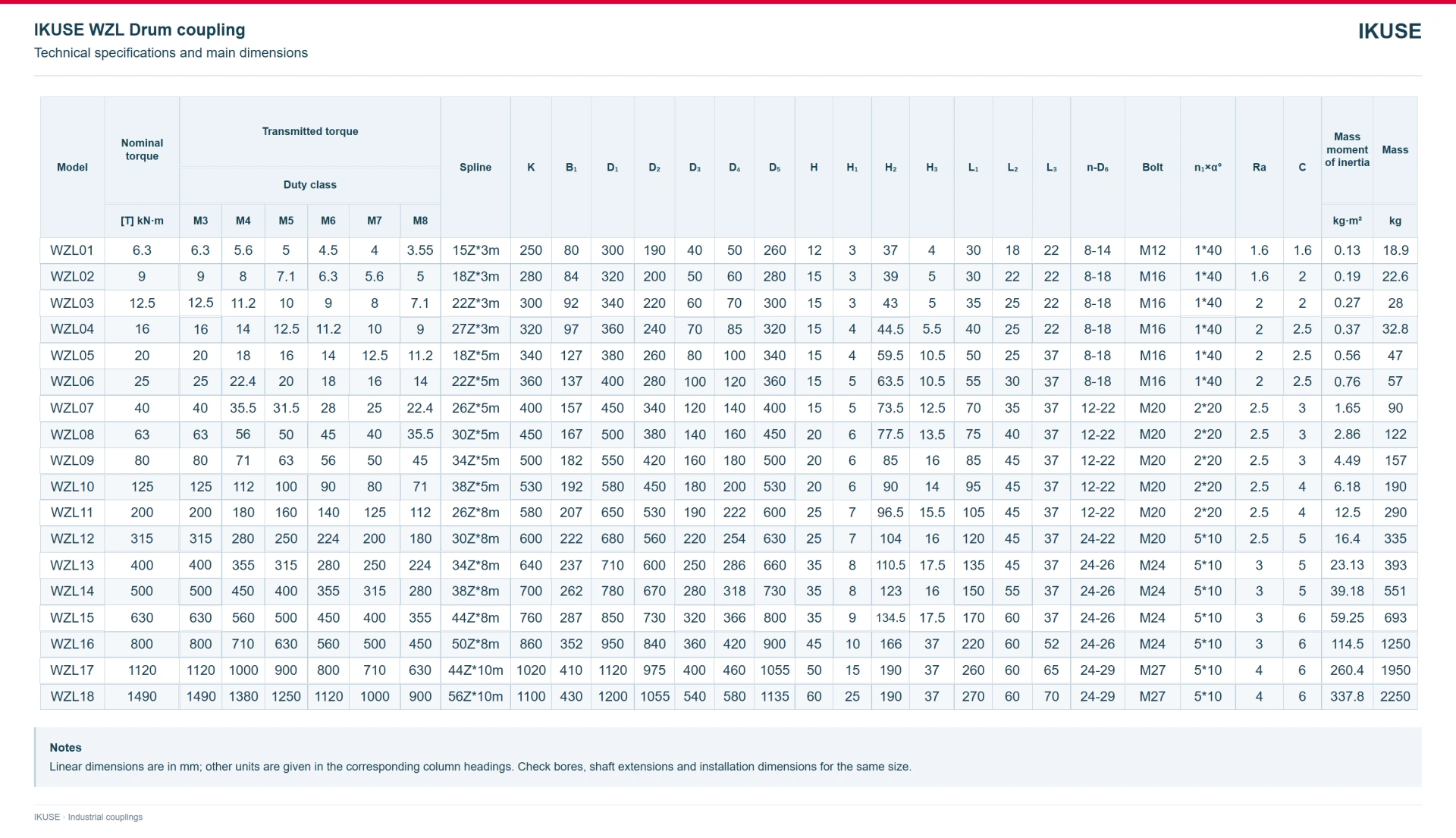

WZL01–WZL18; nominal torque 6.3–1490 kN·m. Select the transmitted torque for duty class M3–M8 and check the spline, drum flange and installation dimensions.
Ordering information
Specify the selected model, duty class, operating torque, radial load, spline specification, drum connection dimensions and installation conditions.
