IKUSE Circulating Oil Lubrication Systems

Circulating lubrication units combine oil storage, pumping, filtration, cooling, heating and monitoring for machinery. Select by oil flow, pressure, viscosity and equipment operating conditions.

IKUSE XYZ-G Oil Lubrication Units
IKUSE XYZ-G Oil Lubrication Units image 1
IKUSE XYZ-G Oil Lubrication Units image 2

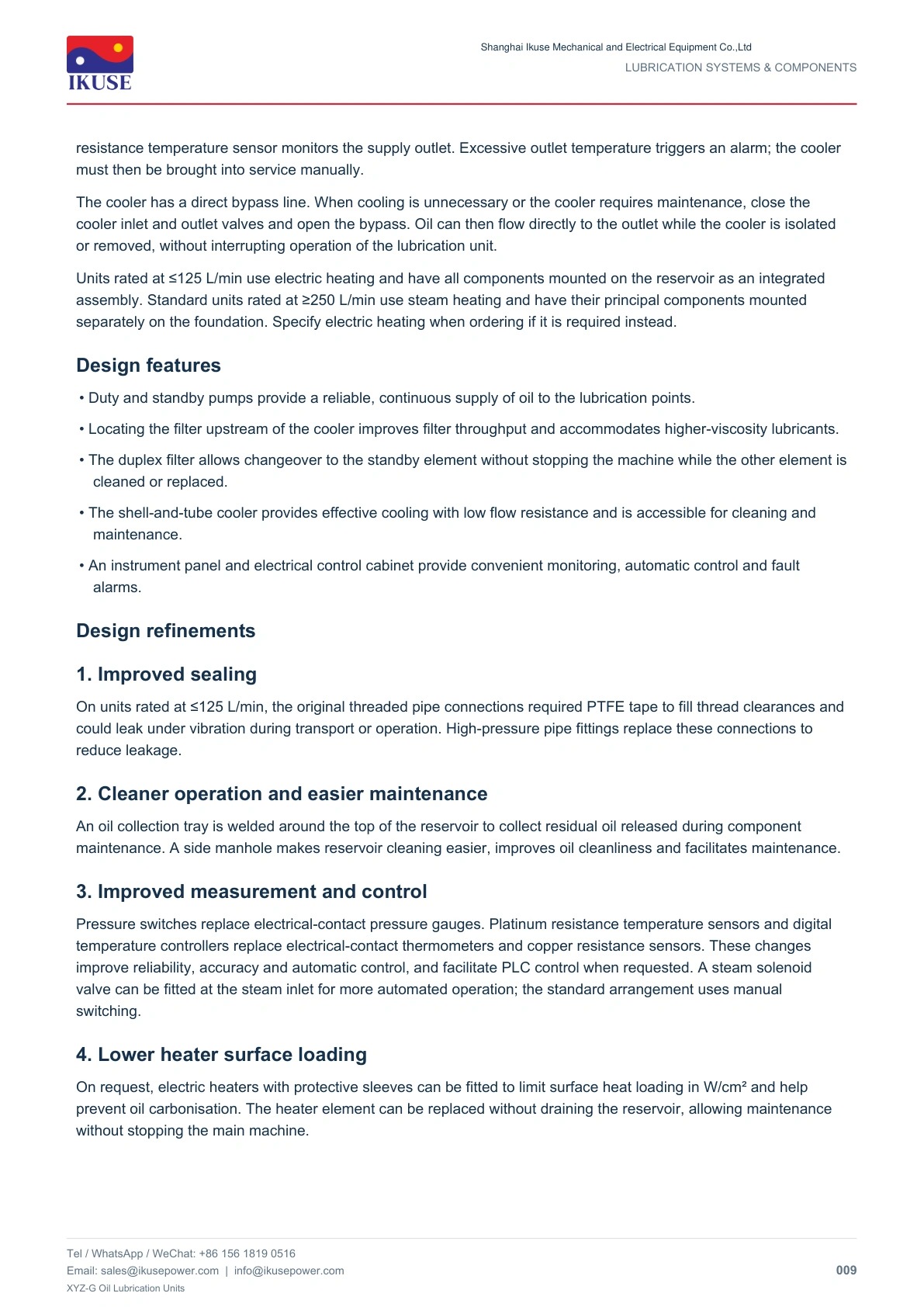

IKUSE XYZ-G Oil Lubrication Units image 3
IKUSE XYZ-G Oil Lubrication Units image 4
IKUSE XYZ-G Oil Lubrication Units image 5
IKUSE XYZ-G Oil Lubrication Units image 6
IKUSE XYZ-G Oil Lubrication Units image 7
IKUSE XYZ-G Oil Lubrication Units image 8
IKUSE XYZ-G Oil Lubrication Units image 9
IKUSE XYZ-G Oil Lubrication Units image 10
IKUSE XYZ-G Oil Lubrication Units image 11
IKUSE XYZ-G Oil Lubrication Units image 12
IKUSE XYZ-G Oil Lubrication Units image 13
IKUSE XYZ-G Oil Lubrication Units image 14

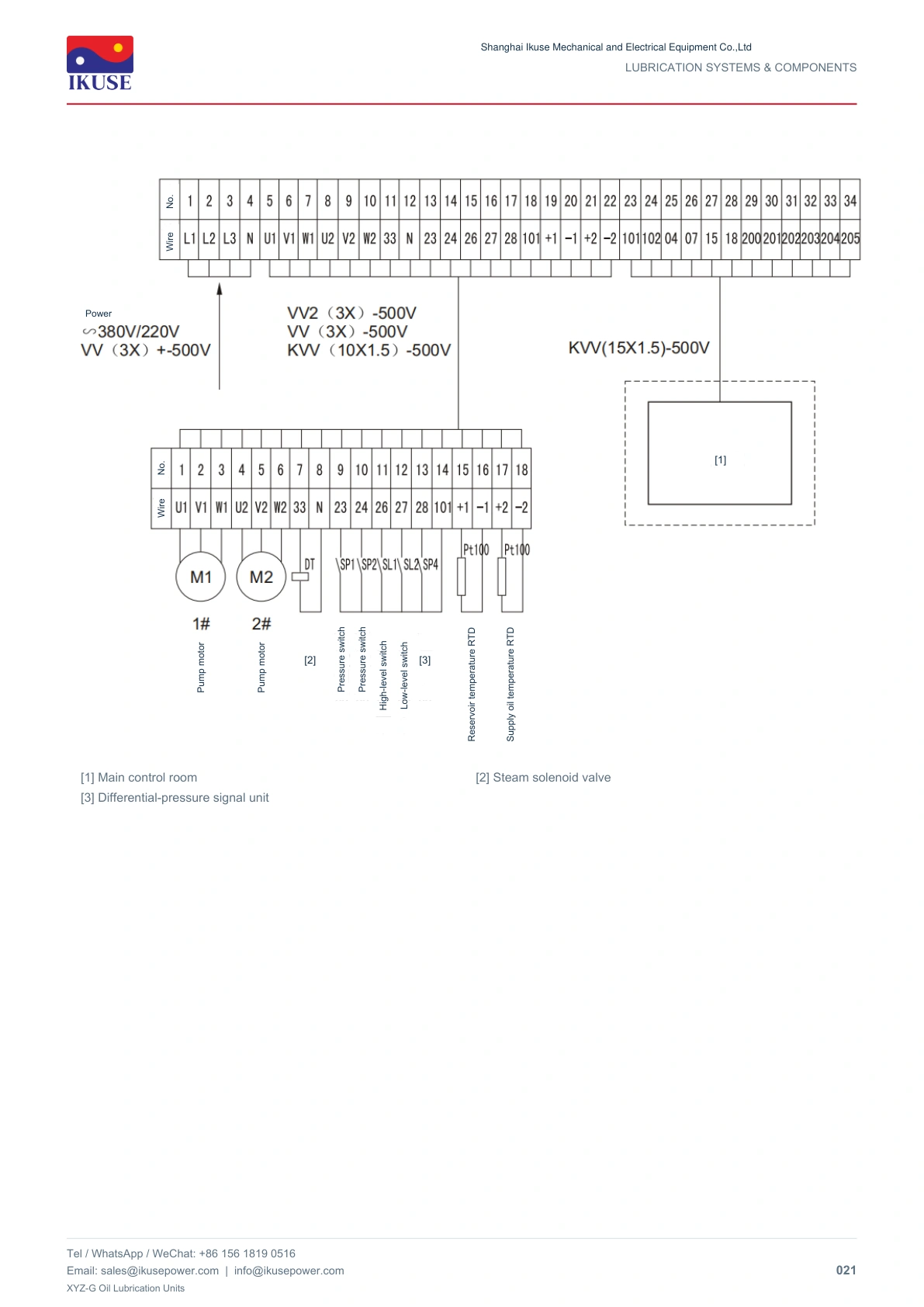

IKUSE XYZ-G Oil Lubrication Units image 15
IKUSE XYZ-G Oil Lubrication Units image 16
IKUSE XYZ-G Oil Lubrication Units image 17

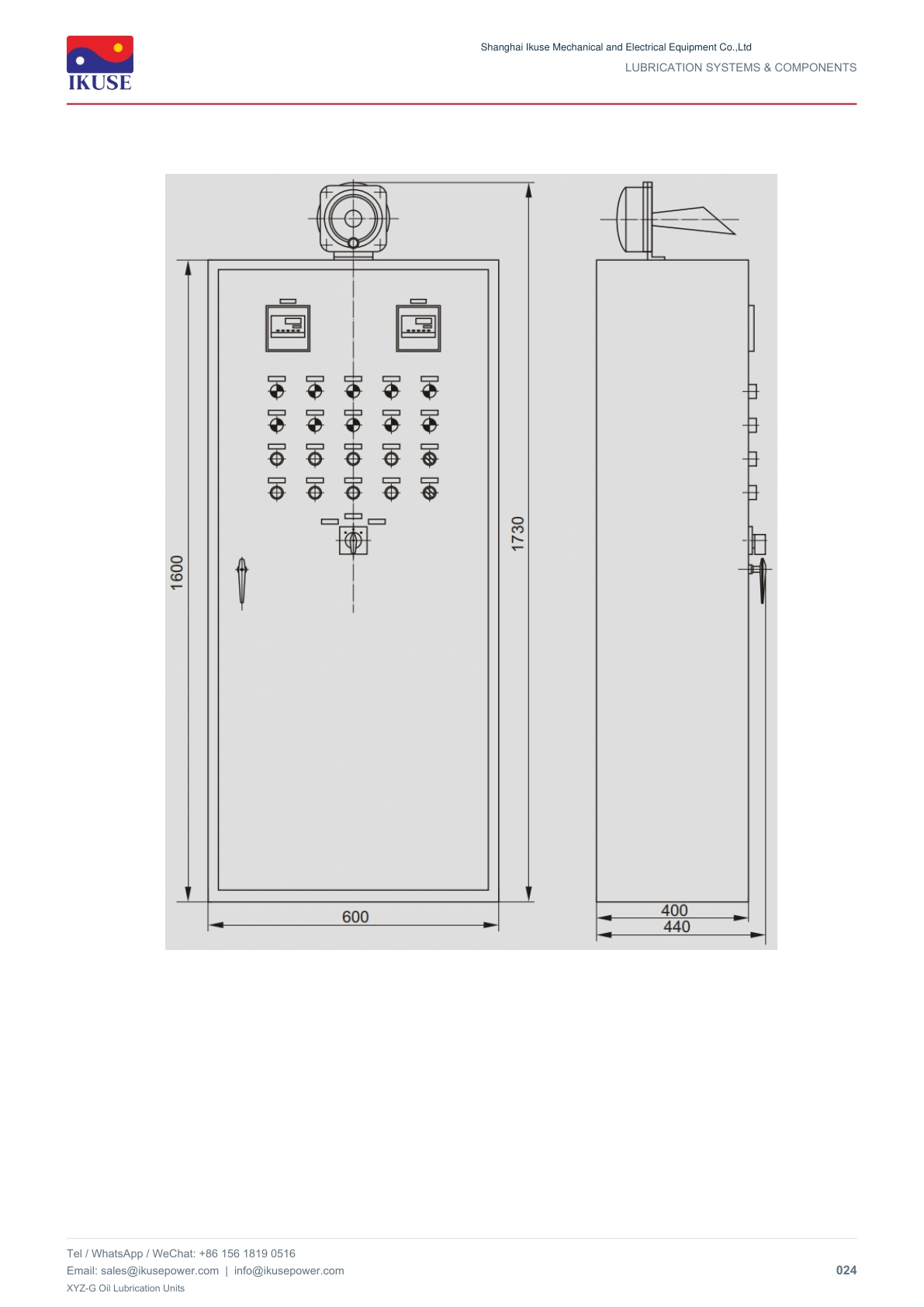

IKUSE XYZ-G Oil Lubrication Units image 18
IKUSE XYZ-G Oil Lubrication Units image 19
IKUSE XYZ-G Oil Lubrication Units image 20
Circulating Oil Lubrication Units

IKUSE XYZ-G Oil Lubrication Units

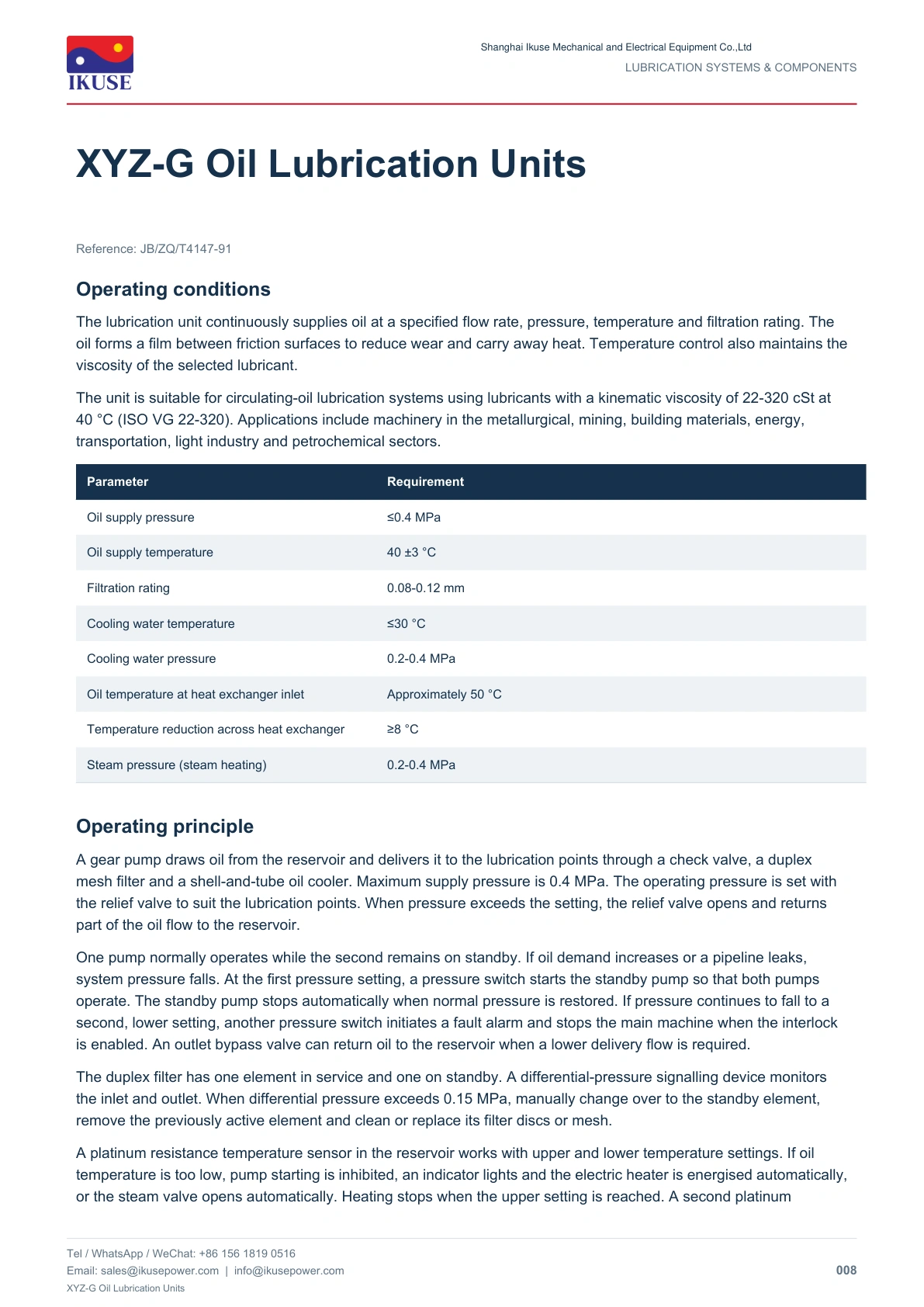

The lubrication unit continuously supplies oil at a specified flow rate, pressure, temperature and filtration rating. The oil forms a film between friction surfaces to reduce wear and carry away heat. Temperature control also maintains the viscosity of the selected lubricant.

xyz-oil-lubrication-station lubrication IKUSE
Price Price on request Submit requirements for a customized quote
Illustration Illustrative view of a compact unit; refer to the technical drawings for the specific configuration.
Product type Oil lubrication unit
Product series XYZ-G
Filtration rating 0.08～0.12 mm
Nominal flow rate 6～1000 L/min
Unit configuration Integrated or separate type, depending on flow rating
Phone Consultation
Service Hotline +86 156 1819 0516

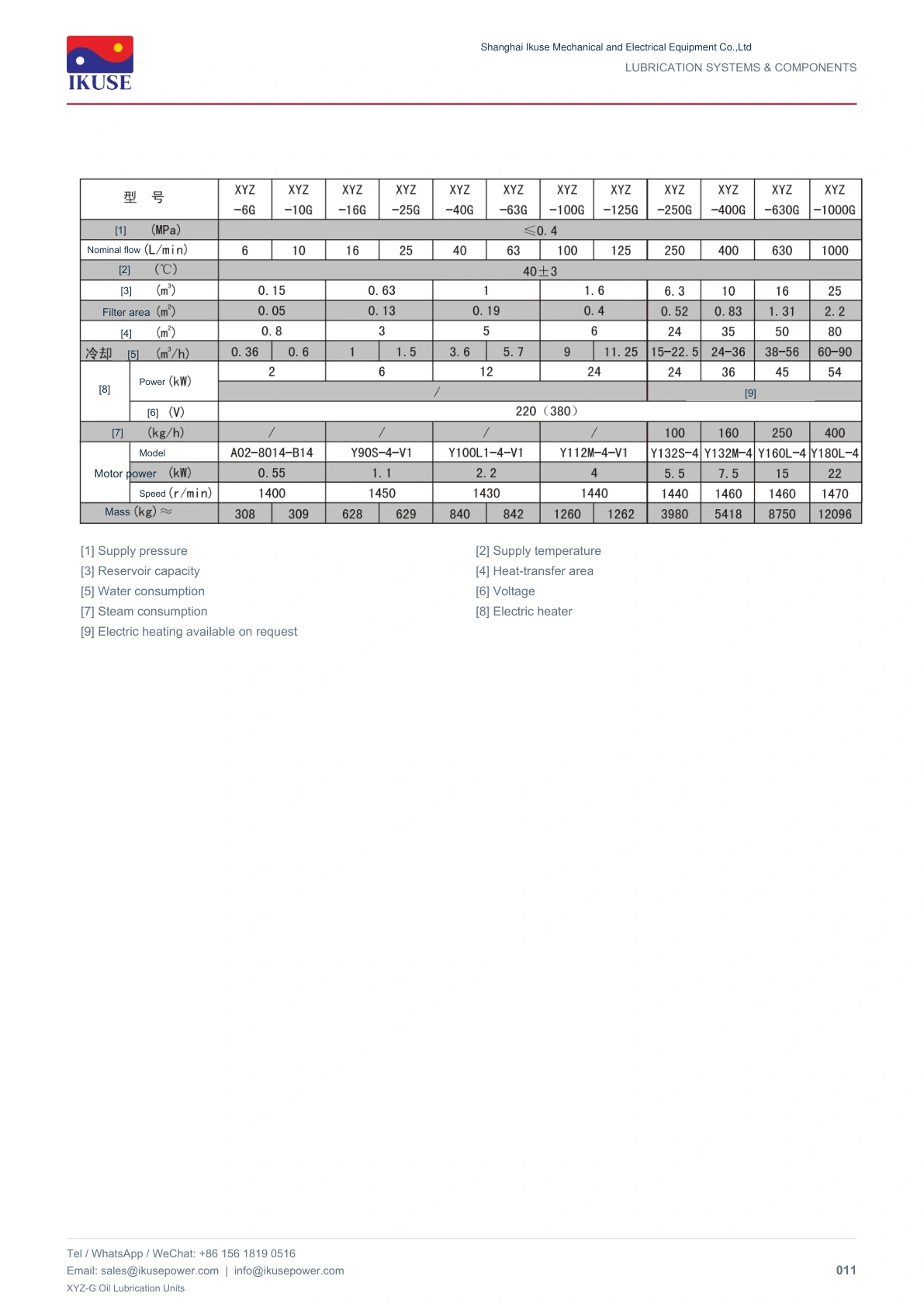

Technical Parameters

Technical Specifications

Illustration Illustrative view of a compact unit; refer to the technical drawings for the specific configuration.
Product type Oil lubrication unit
Product series XYZ-G
Filtration rating 0.08～0.12 mm
Nominal flow rate 6～1000 L/min
Unit configuration Integrated or separate type, depending on flow rating
Oil supply pressure ≤0.4 MPa
Oil supply temperature 40±3 ℃
Applicable oil viscosity 22～320 mm²/s(40 ℃)

Product Details

Product Details

Overview

The lubrication unit continuously supplies oil at a specified flow rate, pressure, temperature and filtration rating. The oil forms a film between friction surfaces to reduce wear and carry away heat. Temperature control also maintains the viscosity of the selected lubricant.

Technical documentation

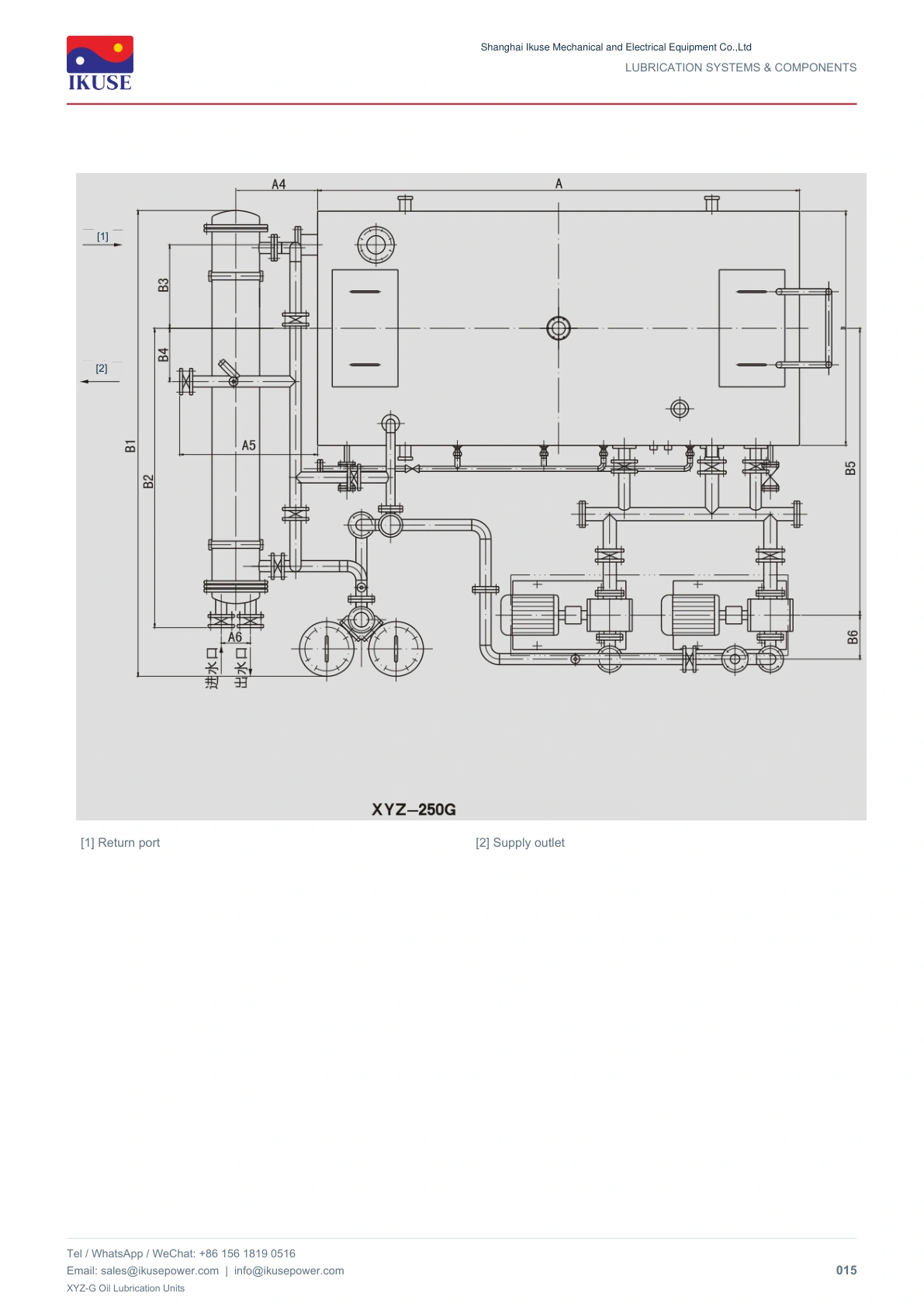

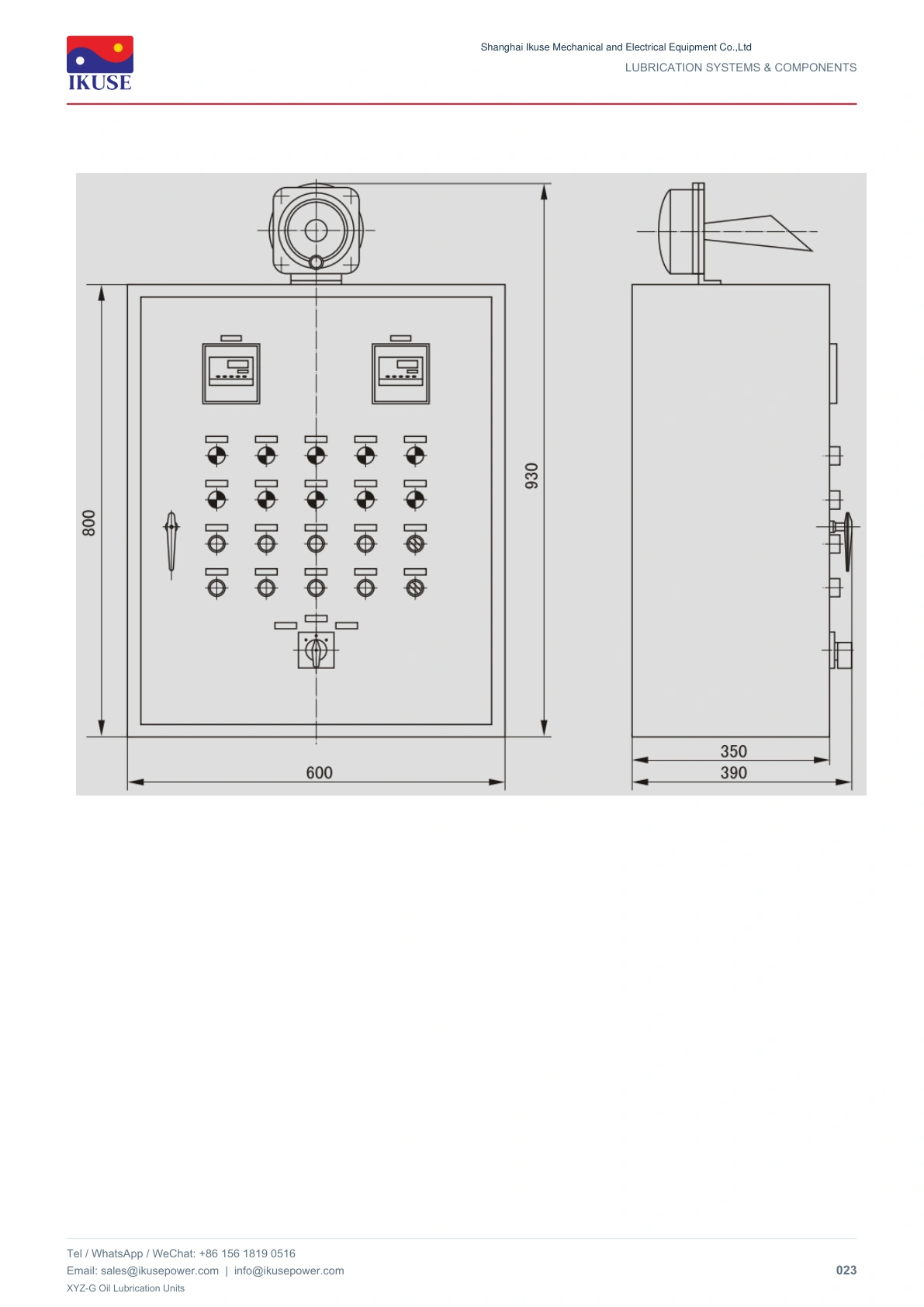

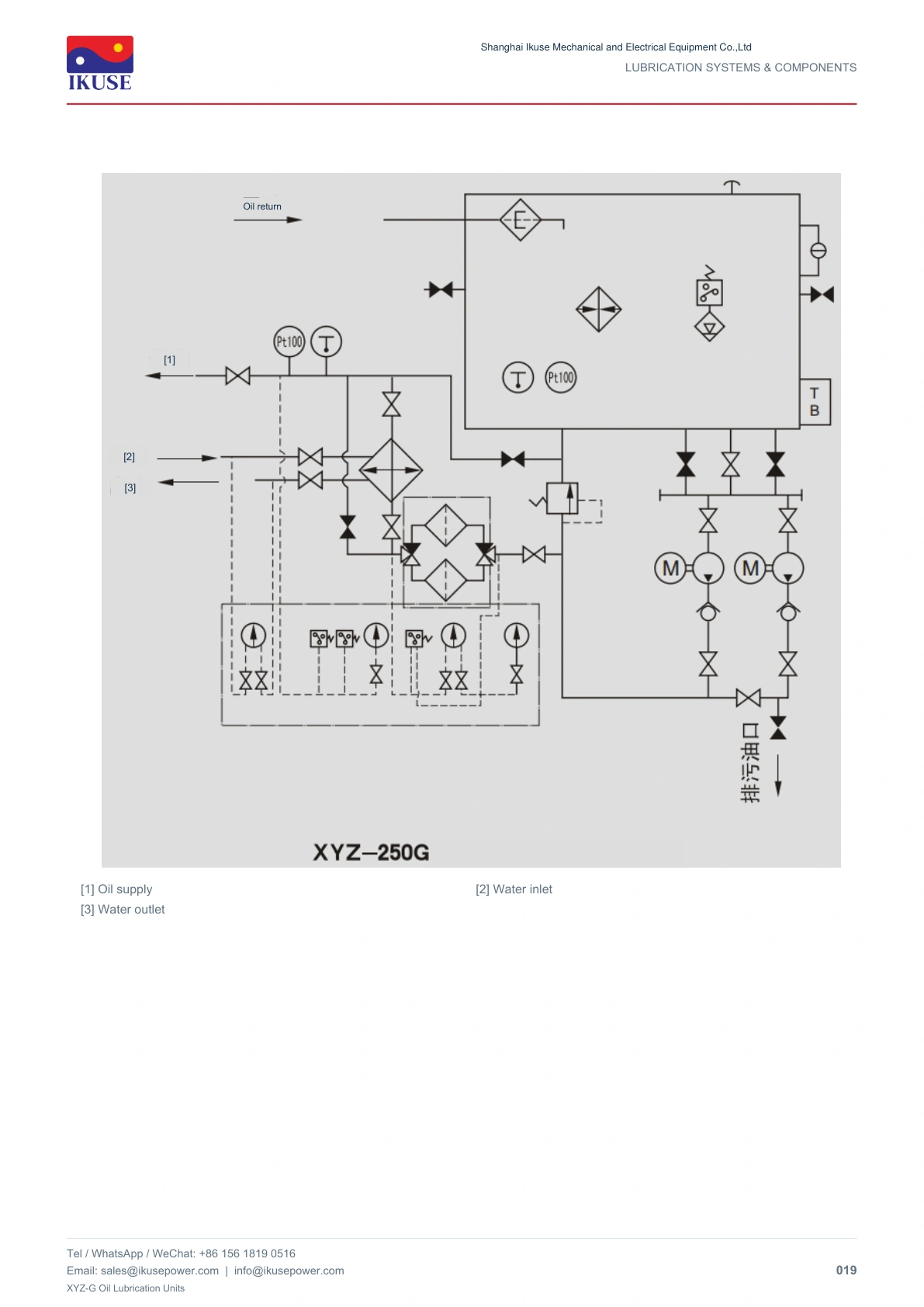

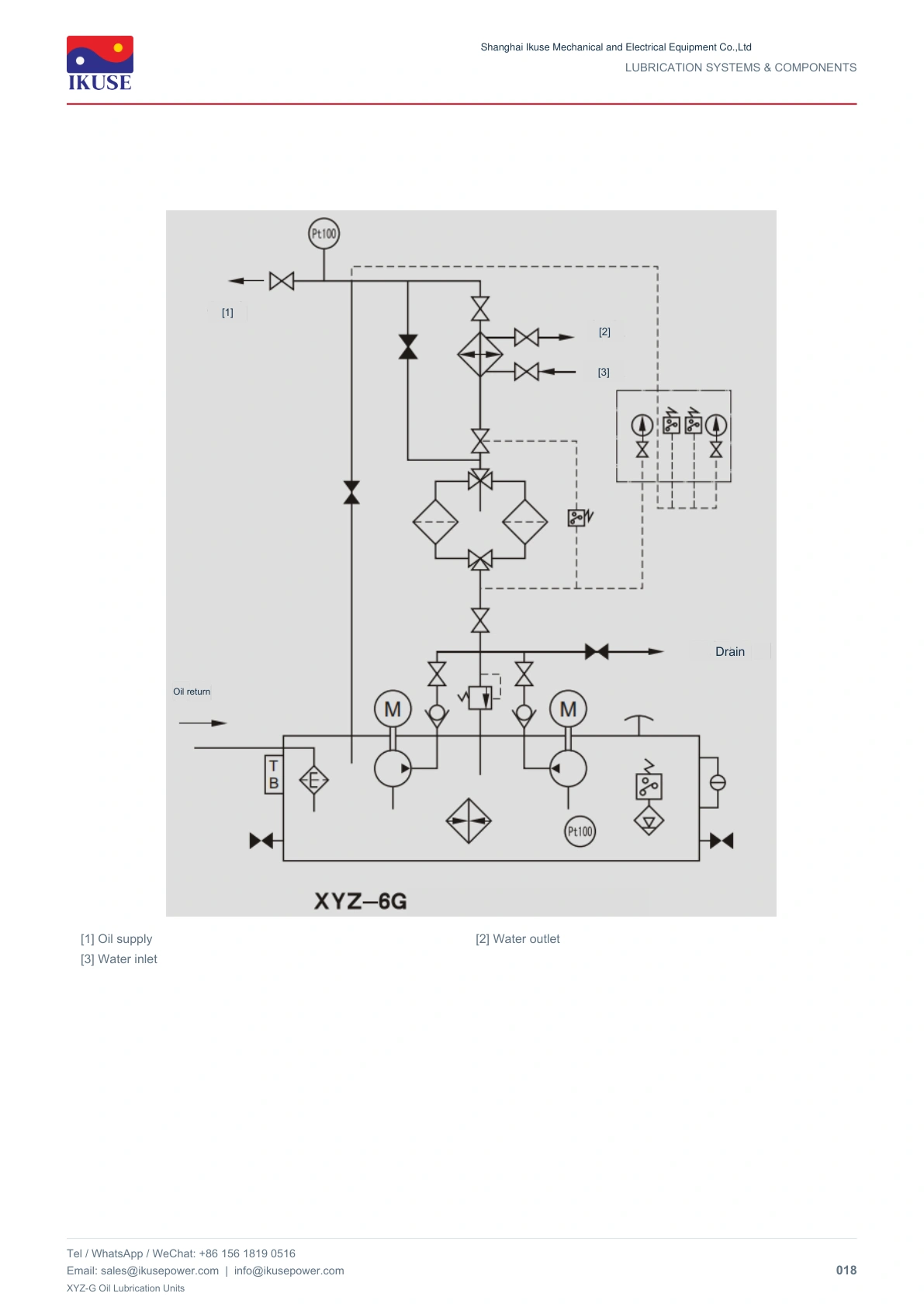

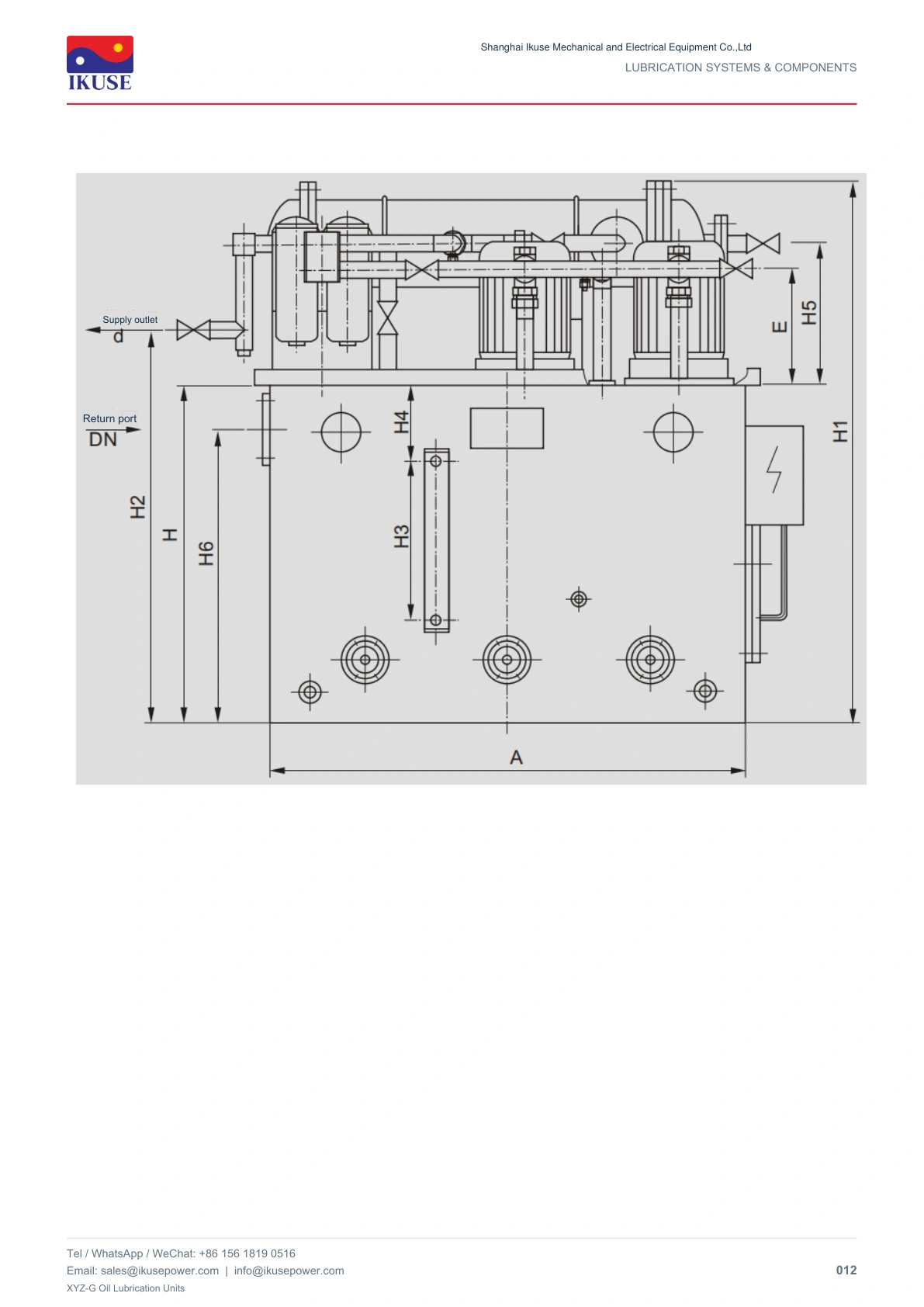

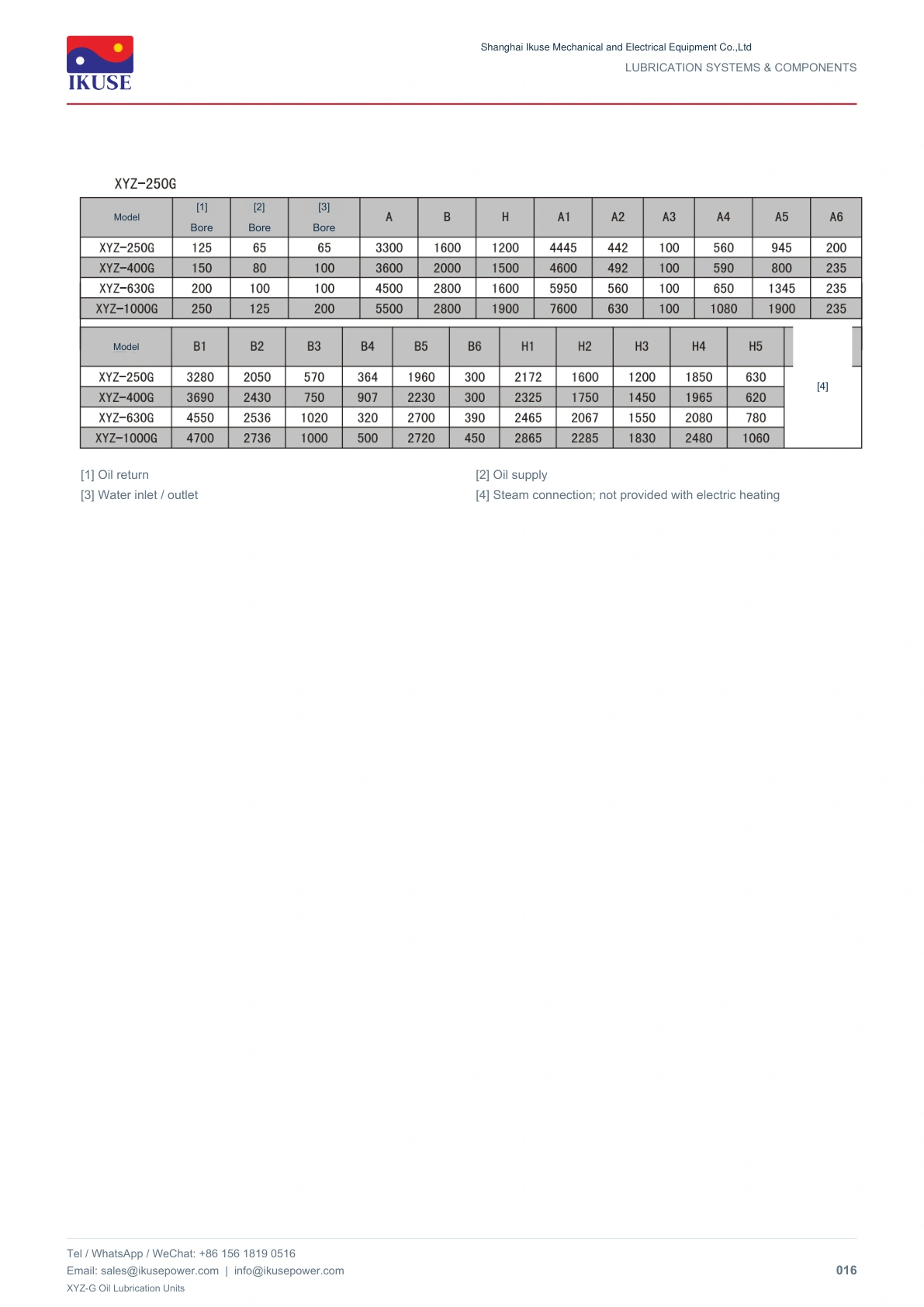

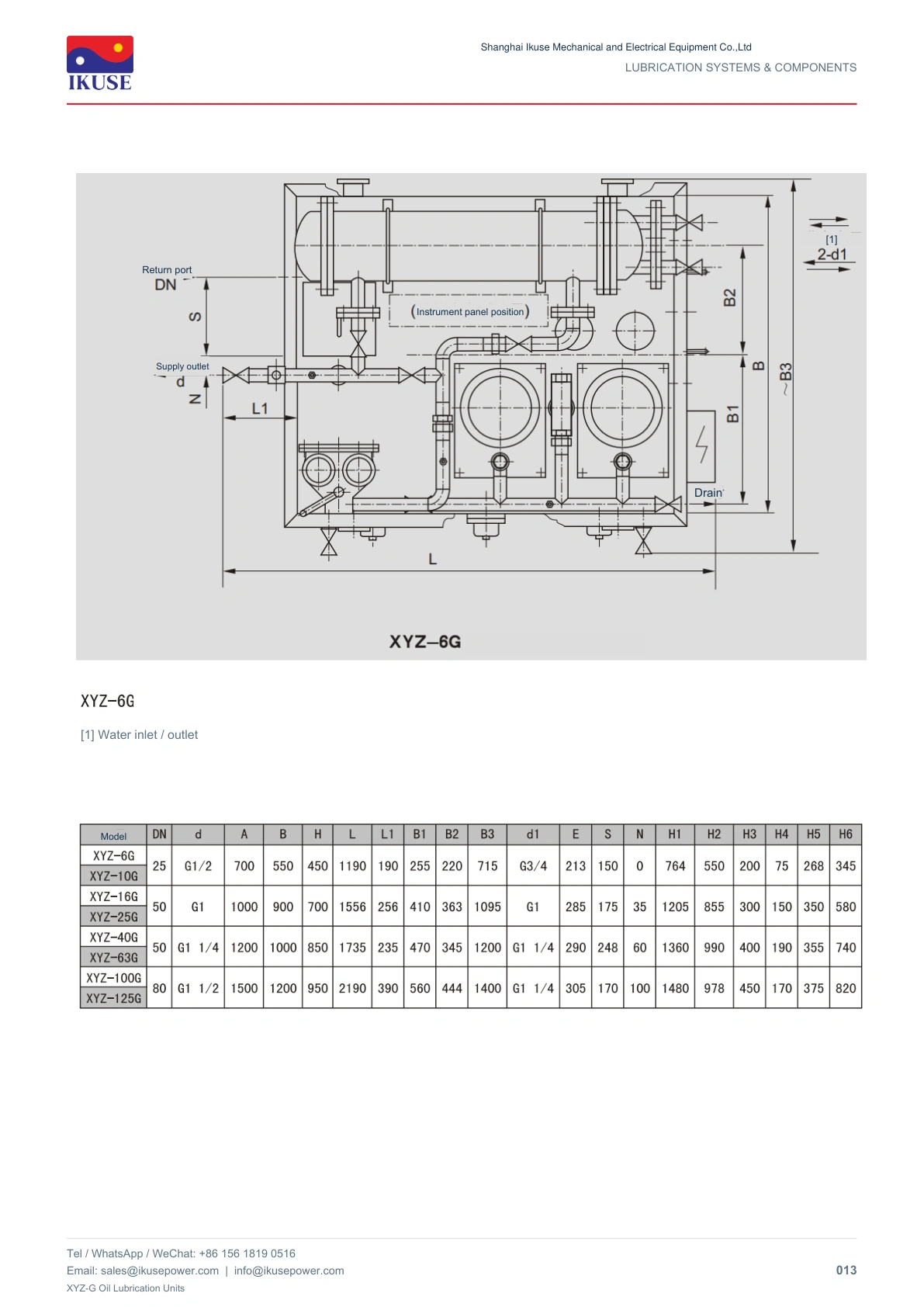

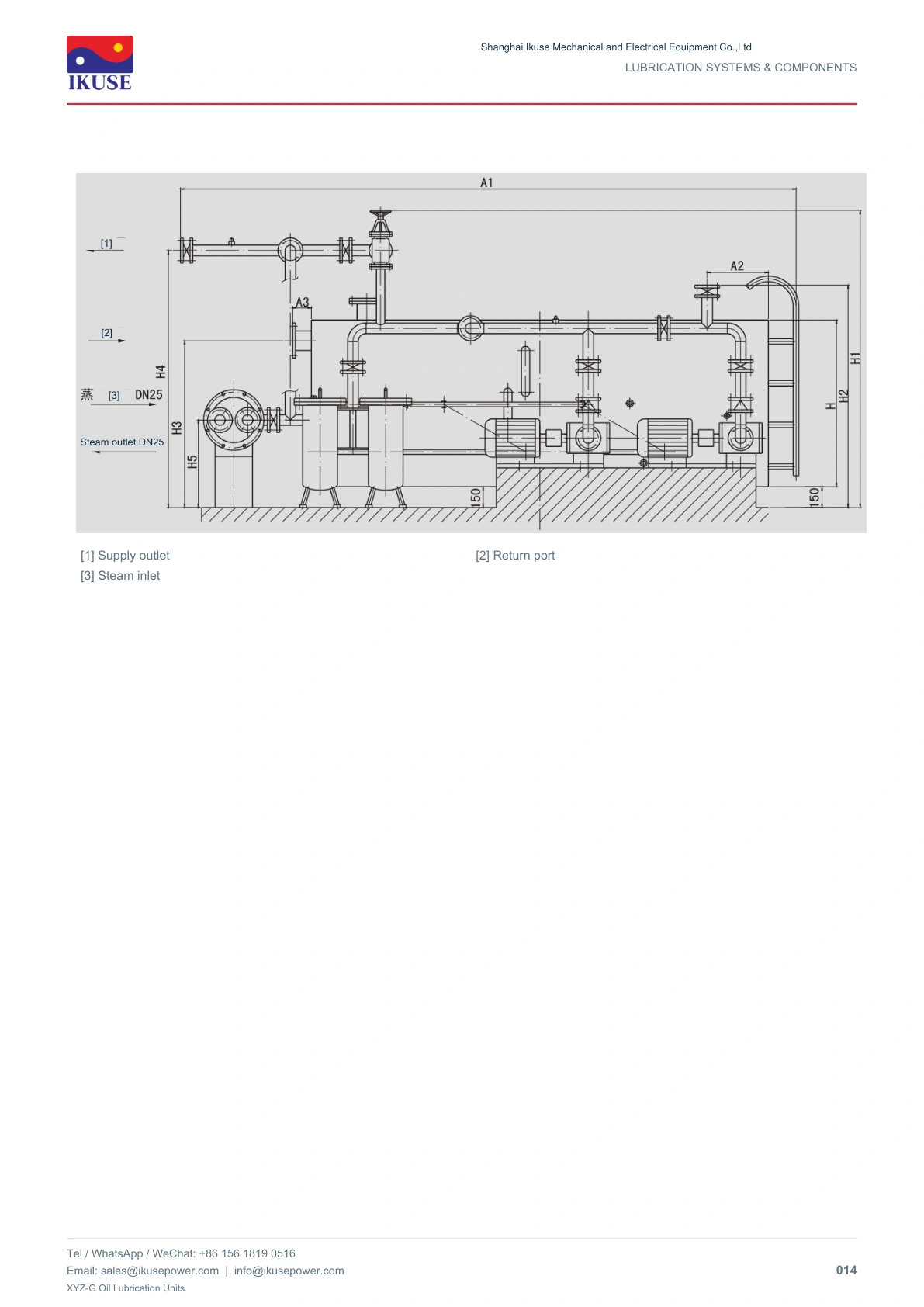

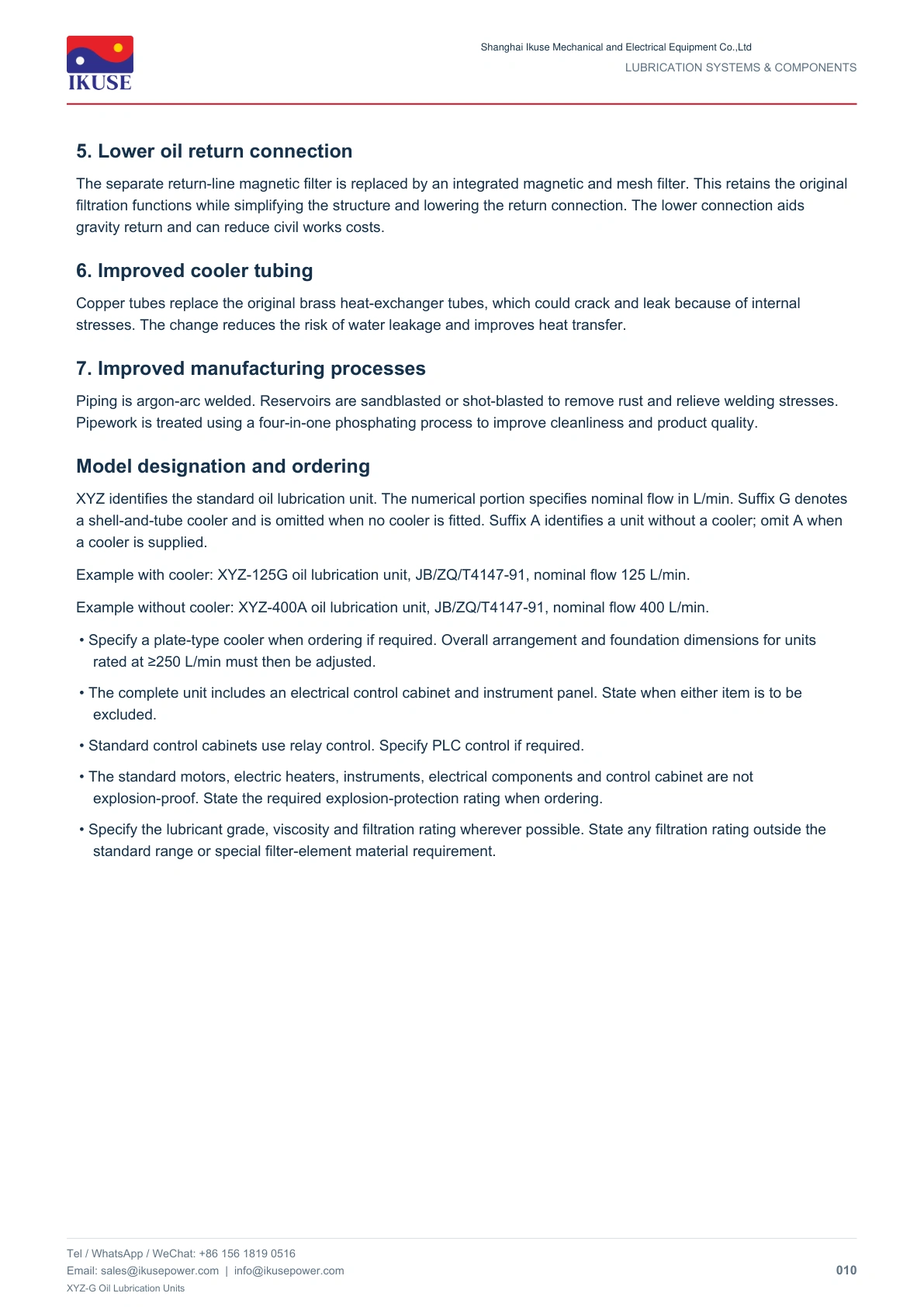

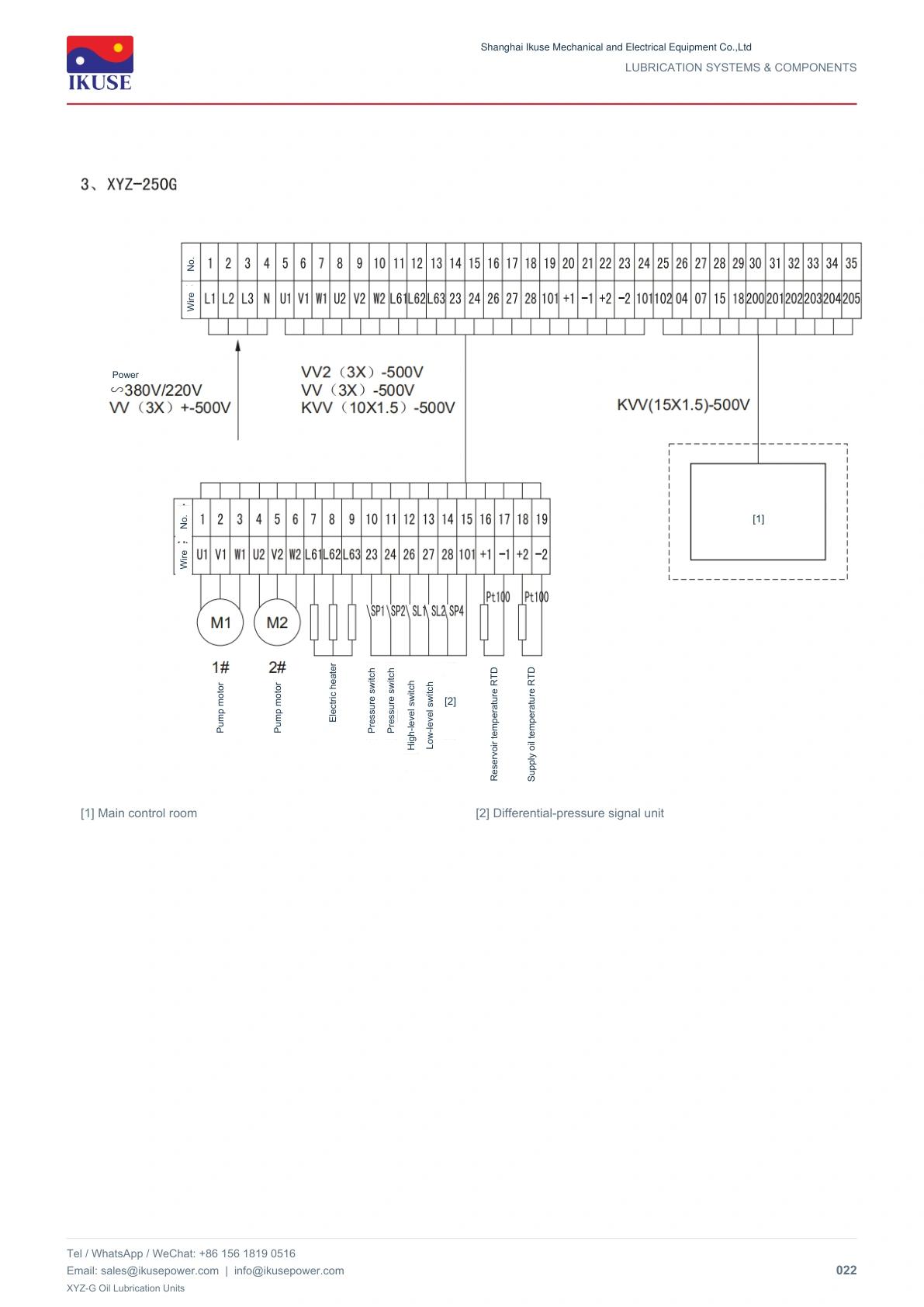

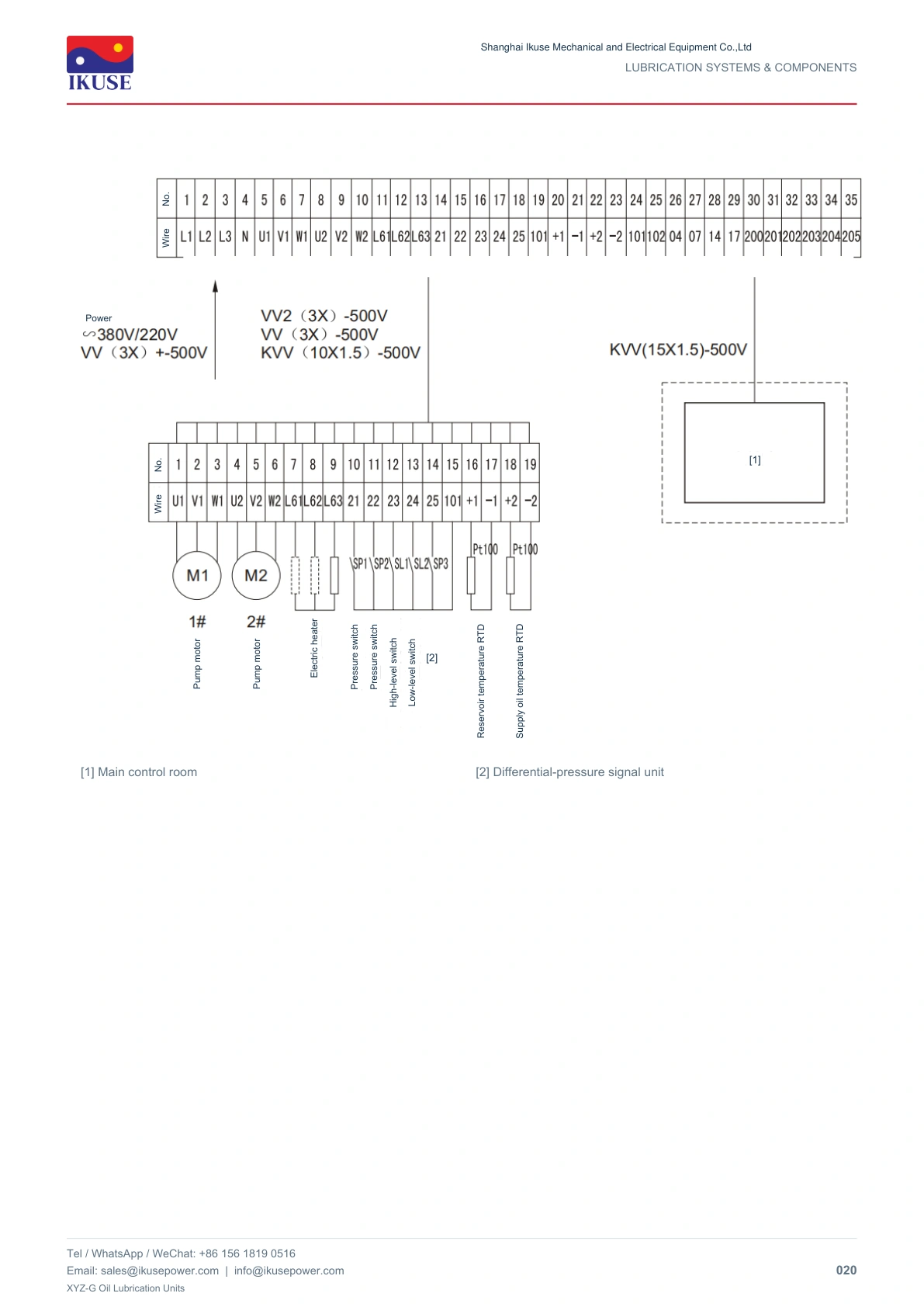

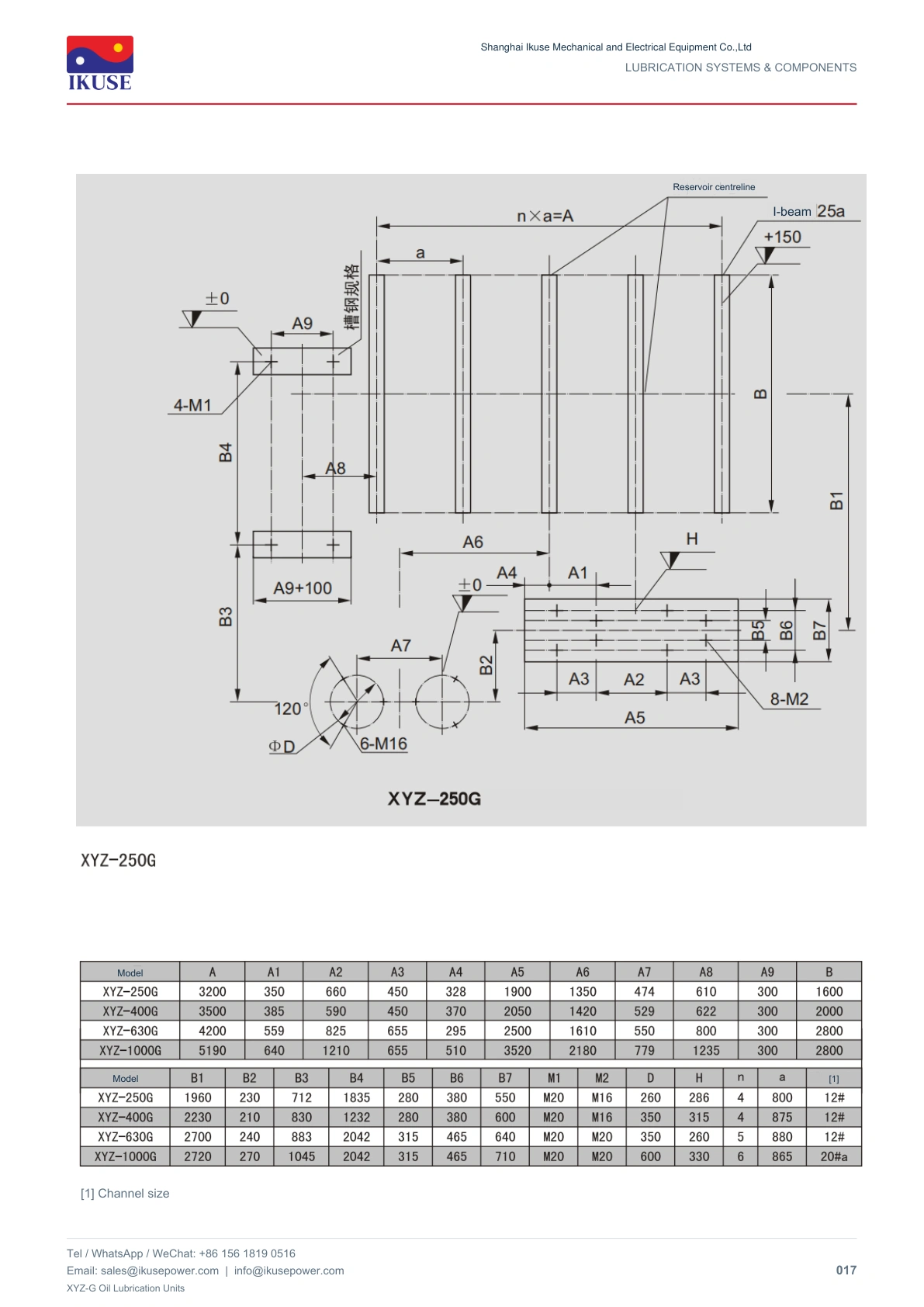

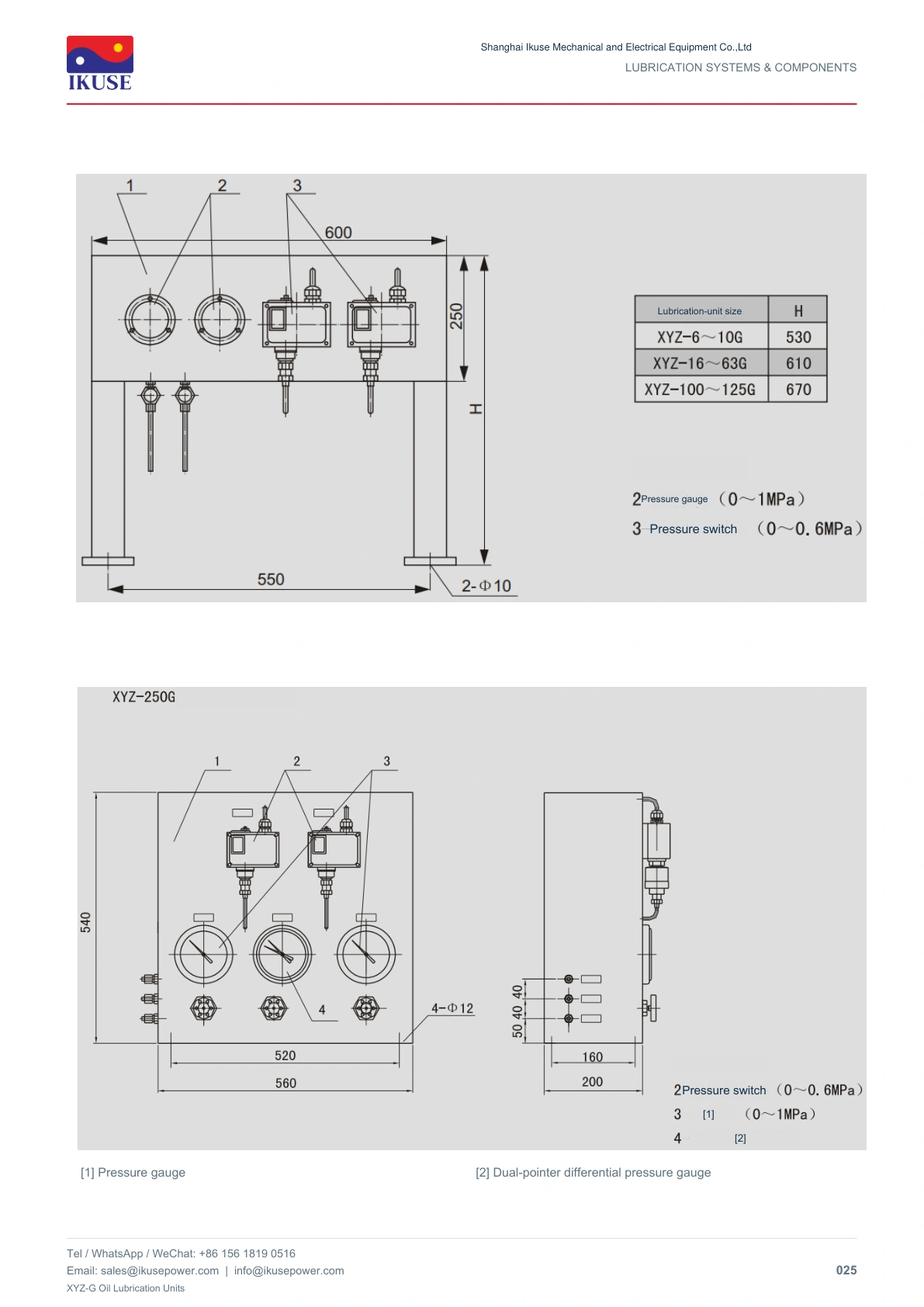

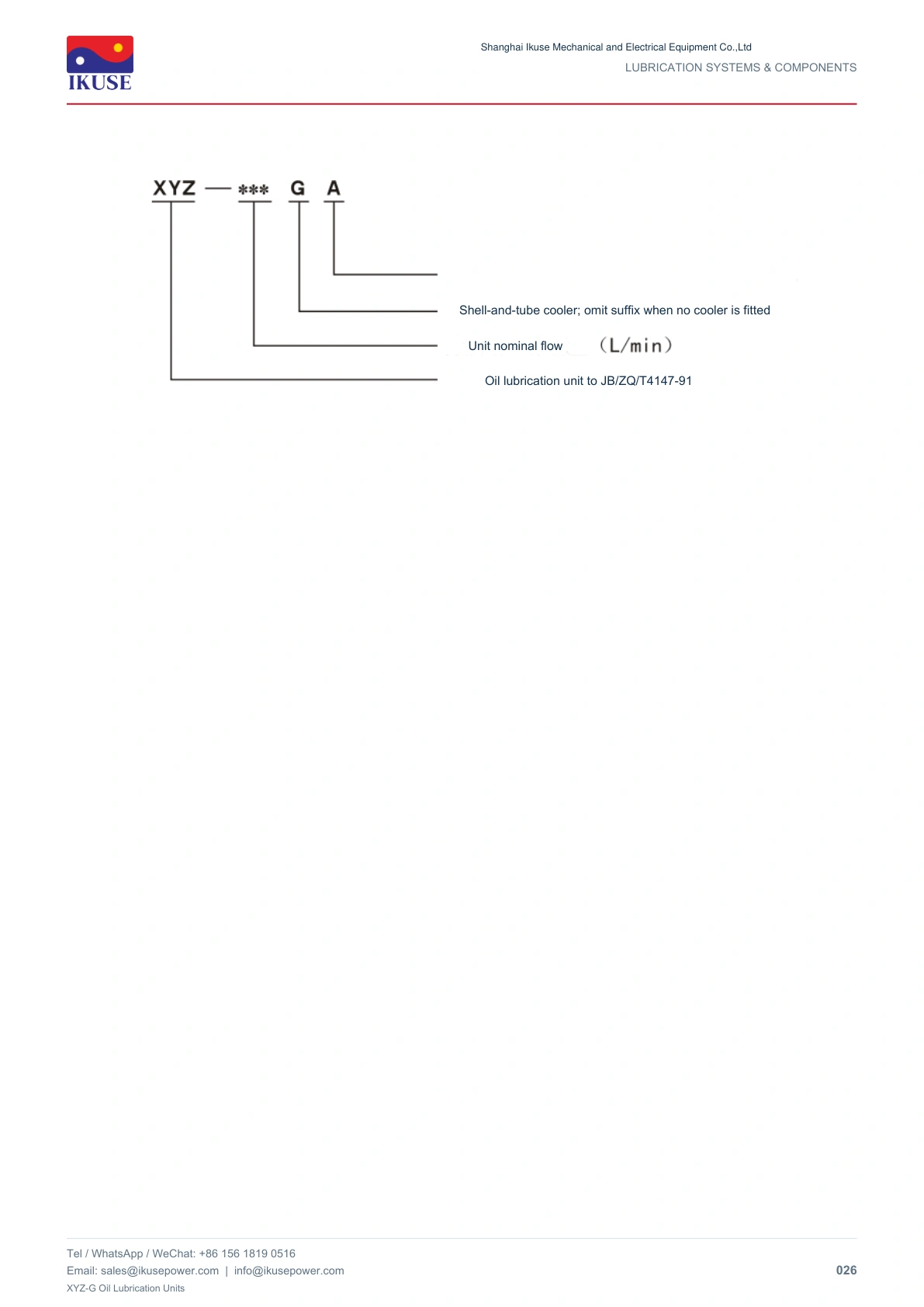

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
