Overview
Combines a crowned-tooth gear connection and a brake wheel for drives equipped with a brake.

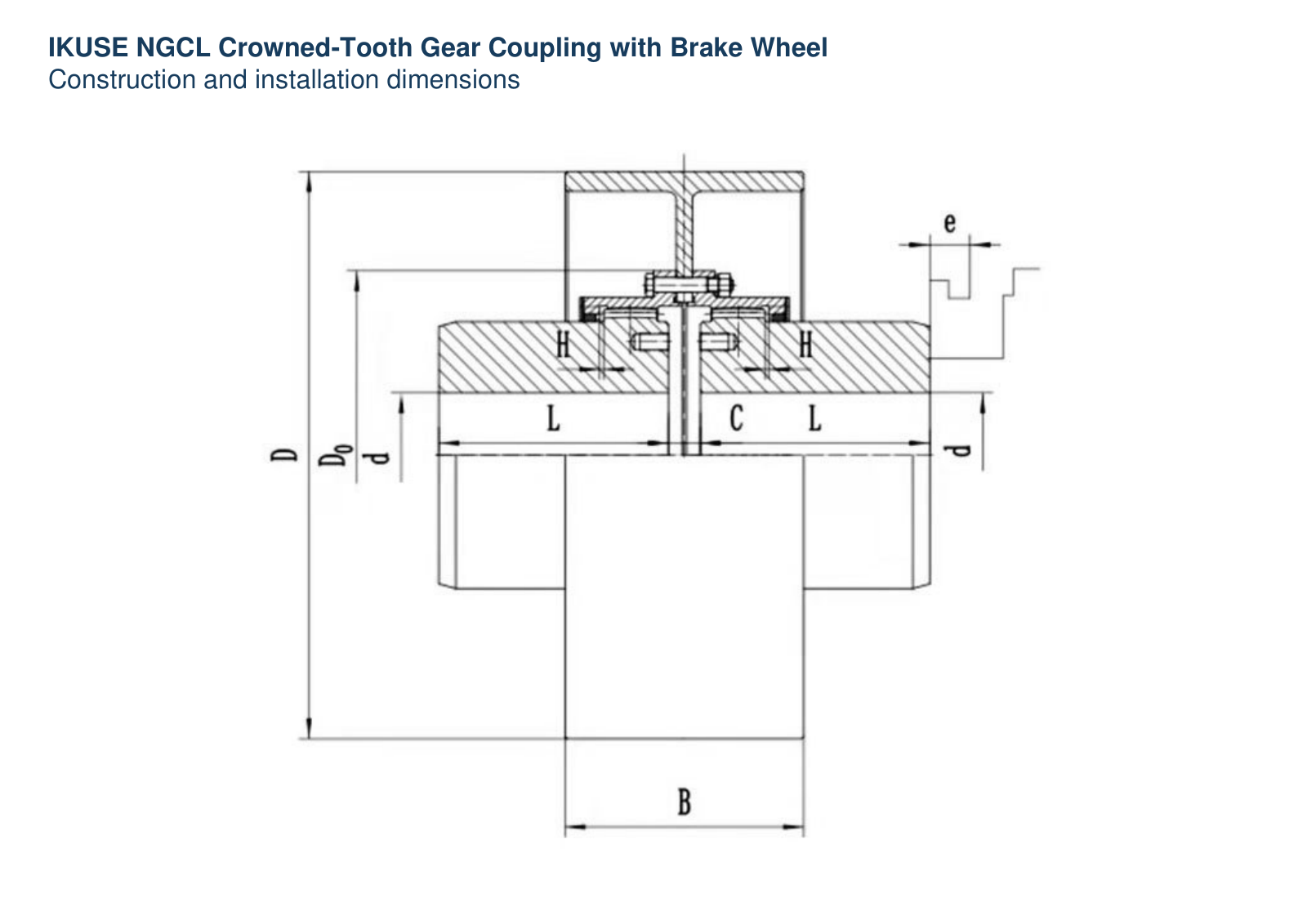

Construction
Gear-tooth torque transmission with a brake wheel. Match wheel, bore and shaft-end dimensions to the equipment.
Applications
Lifting, conveying, metallurgical, mining and other equipment with braking devices.

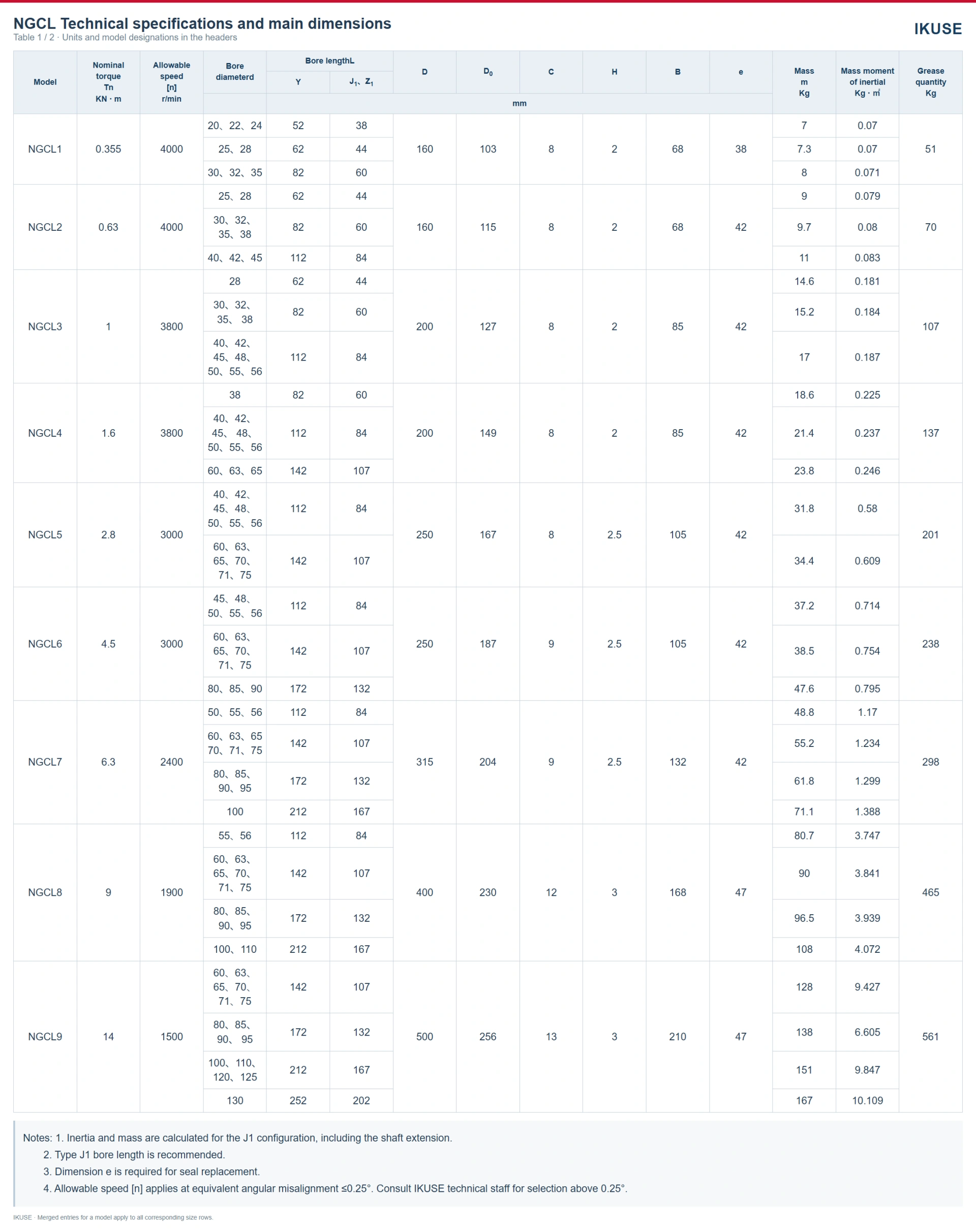

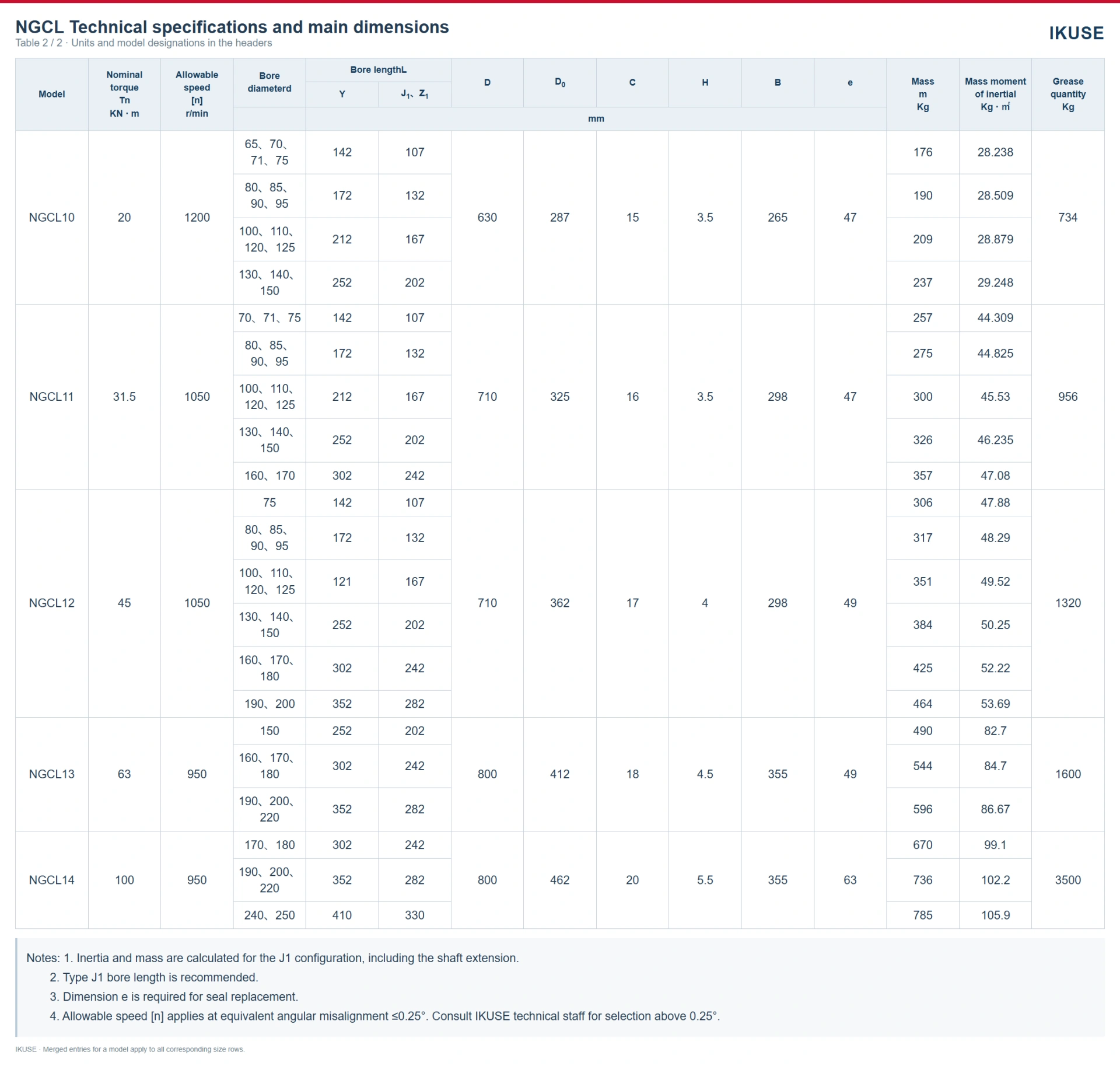

Selection
Check the brake wheel together with the brake. Confirm allowable speed and displacements for the selected size.
Ordering information
Specify equipment type, transmitted power, operating speed, load characteristics, both shaft diameters and extension lengths, shaft-end separation and installation space. Include any brake, dynamic-balancing or elastic-element requirements.
