Overview
A narrow basic configuration with a short distance between toothed rings for compact horizontal drives.

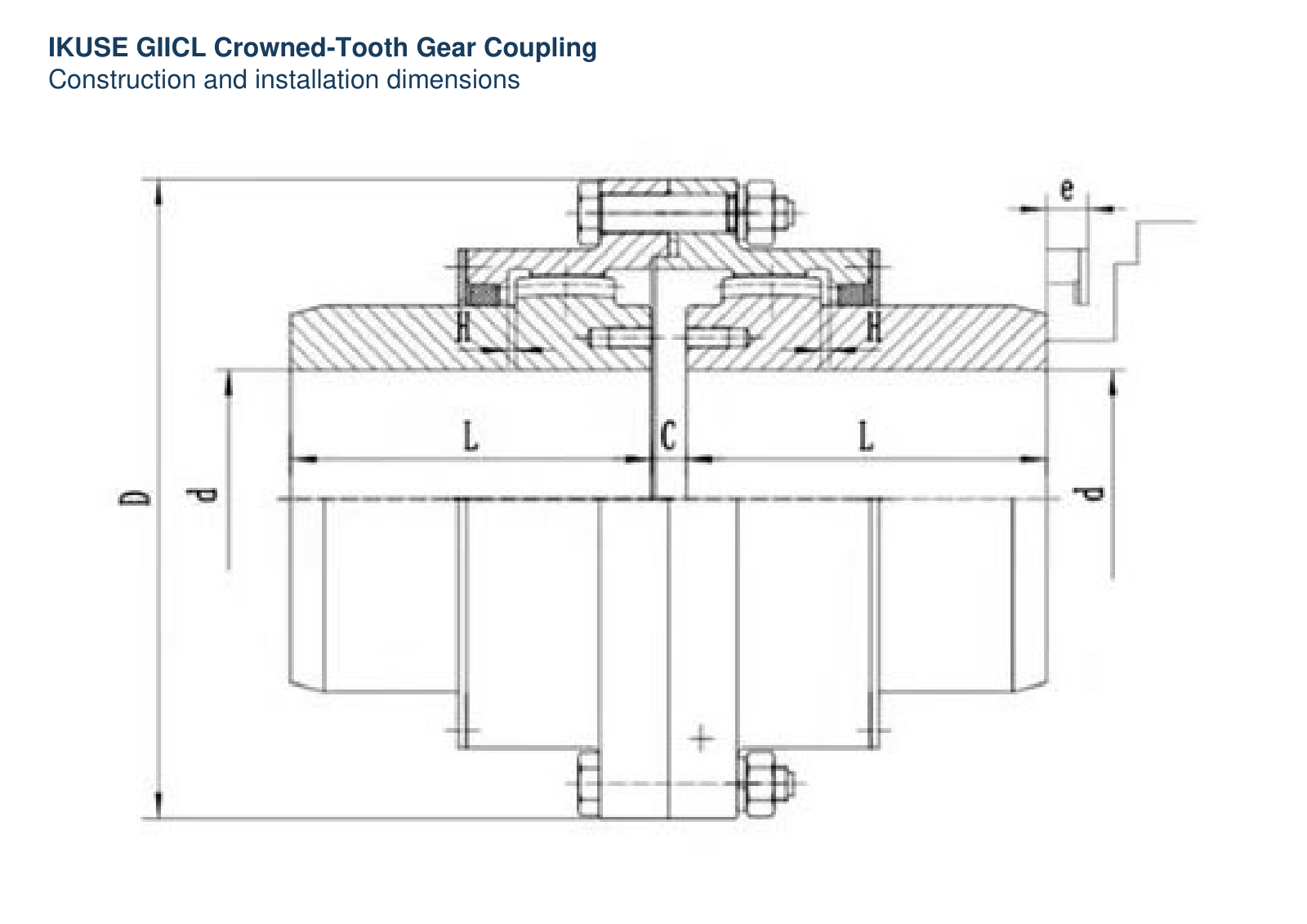

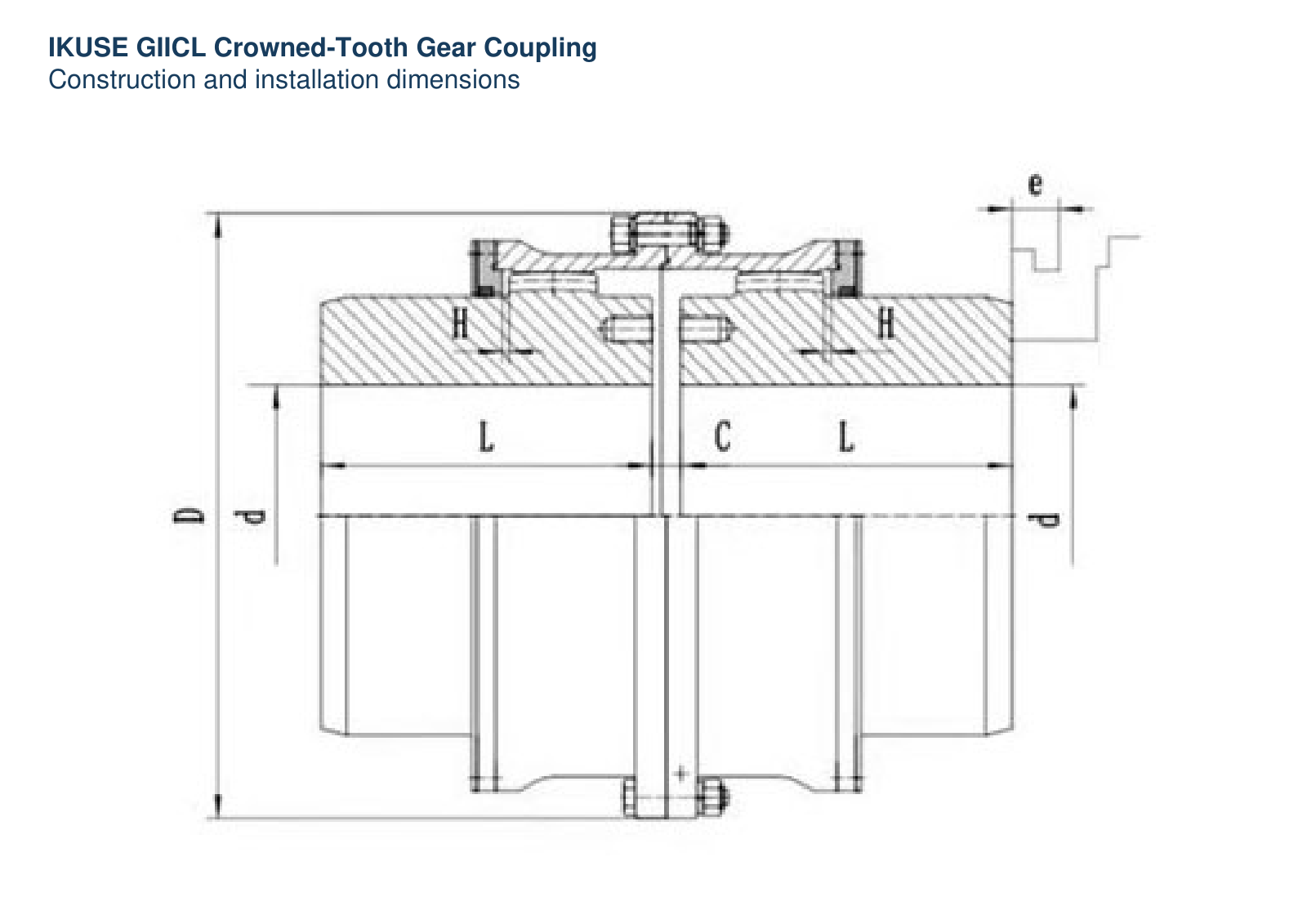

Construction
Compact gear connection. Check allowable radial displacement by size and provide removal space for seal maintenance.
Applications
Horizontal drives in metallurgy, mining, lifting, conveying and general industrial machinery.
Selection

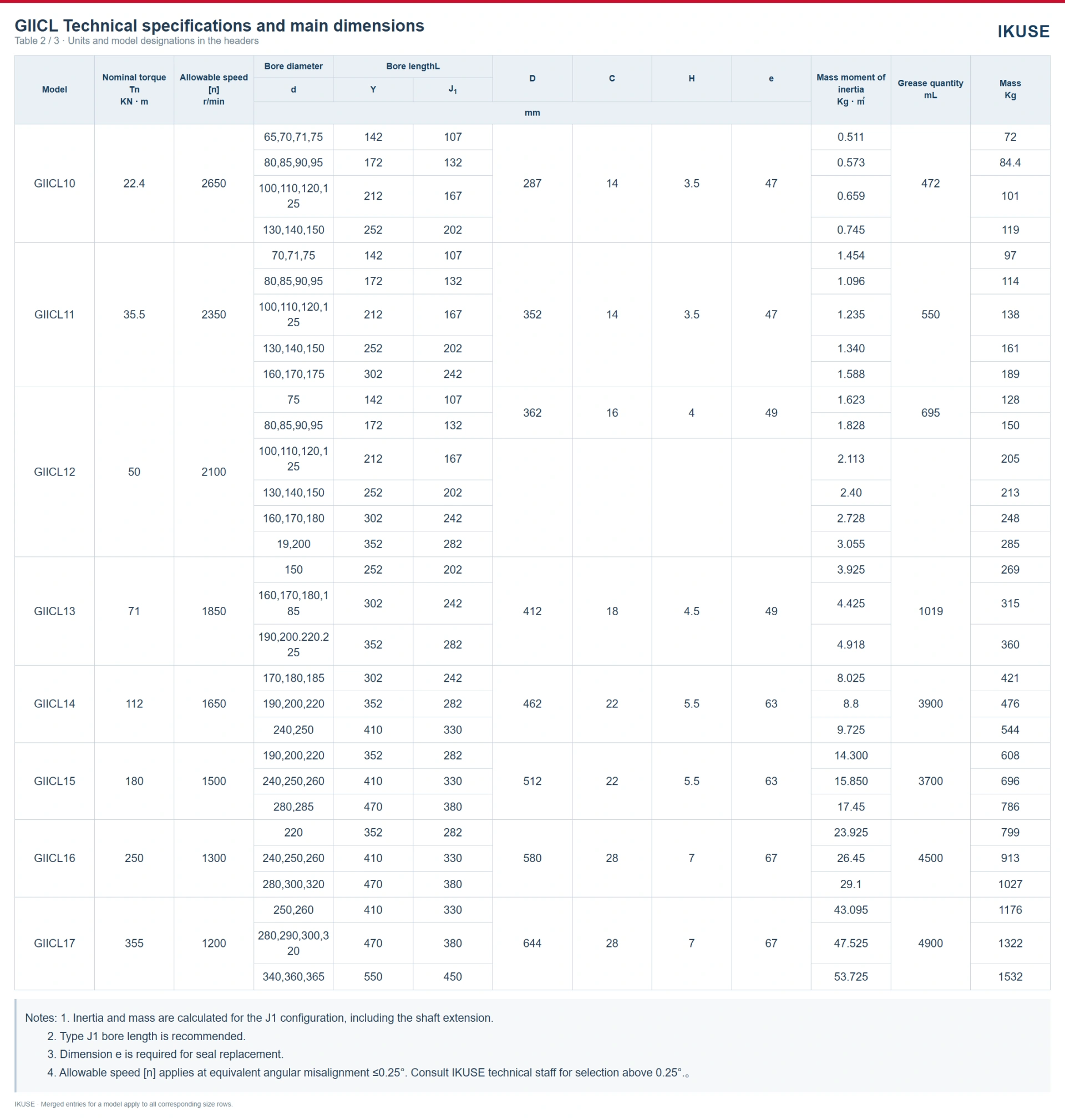

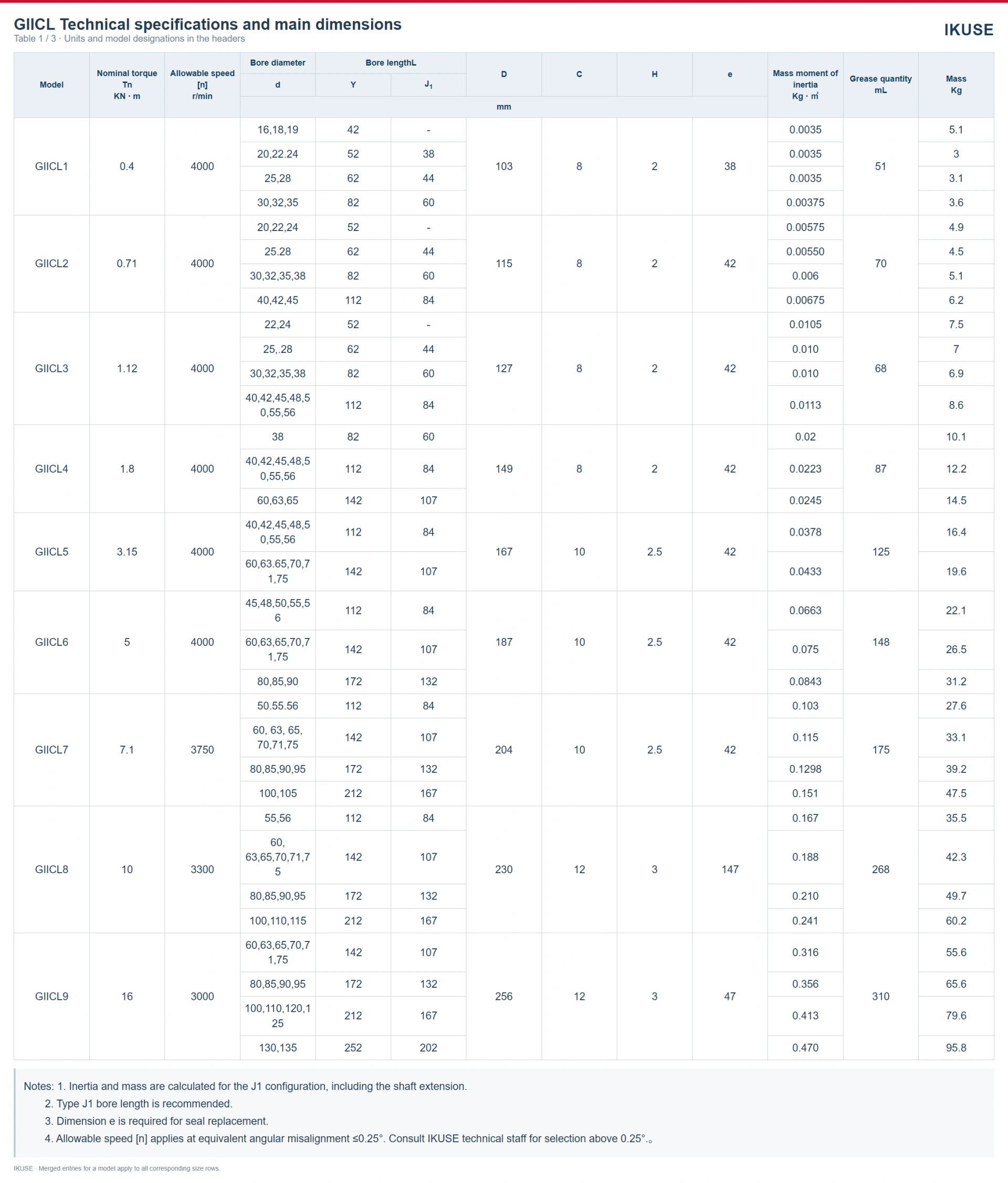

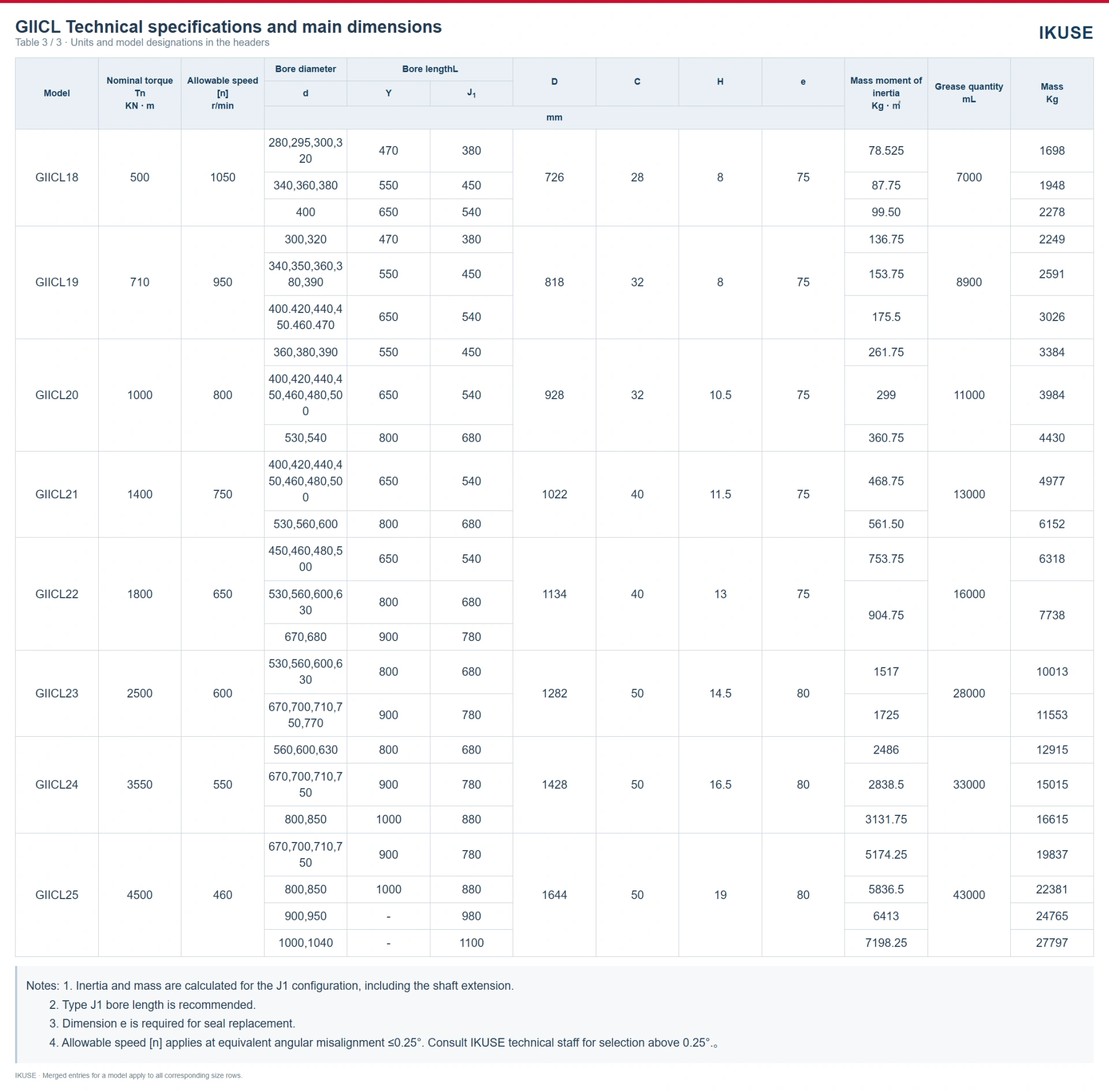

GIICL1–GIICL25. Select torque, bore and allowable speed for the same size.
Ordering information
Specify equipment type, transmitted power, operating speed, load characteristics, both shaft diameters and extension lengths, shaft-end separation and installation space. Include any brake, dynamic-balancing or elastic-element requirements.
