Overview
SRB-J: 10 MPa. SRB-L: 20 MPa. Reference standard: JB/ZQ 4557-97. These small pumps mount on a machine panel or frame and supply metered grease through dual-line distributors. For intervals generally longer than 8 hours, DN15 piping no longer than 50 m and no more than 80 points. Use NLGI 0-1 grease with penetration 310-385 × 0.1 mm at 25 °C and 150 g.
Selection and operation
Nominal pressure: SRB-J, 10 MPa; SRB-L, 20 MPa. Grease penetration: 310–385 (0.1 mm, 25°C, 150 g). Install vertically and allow space for the level indicator to move and for filling.

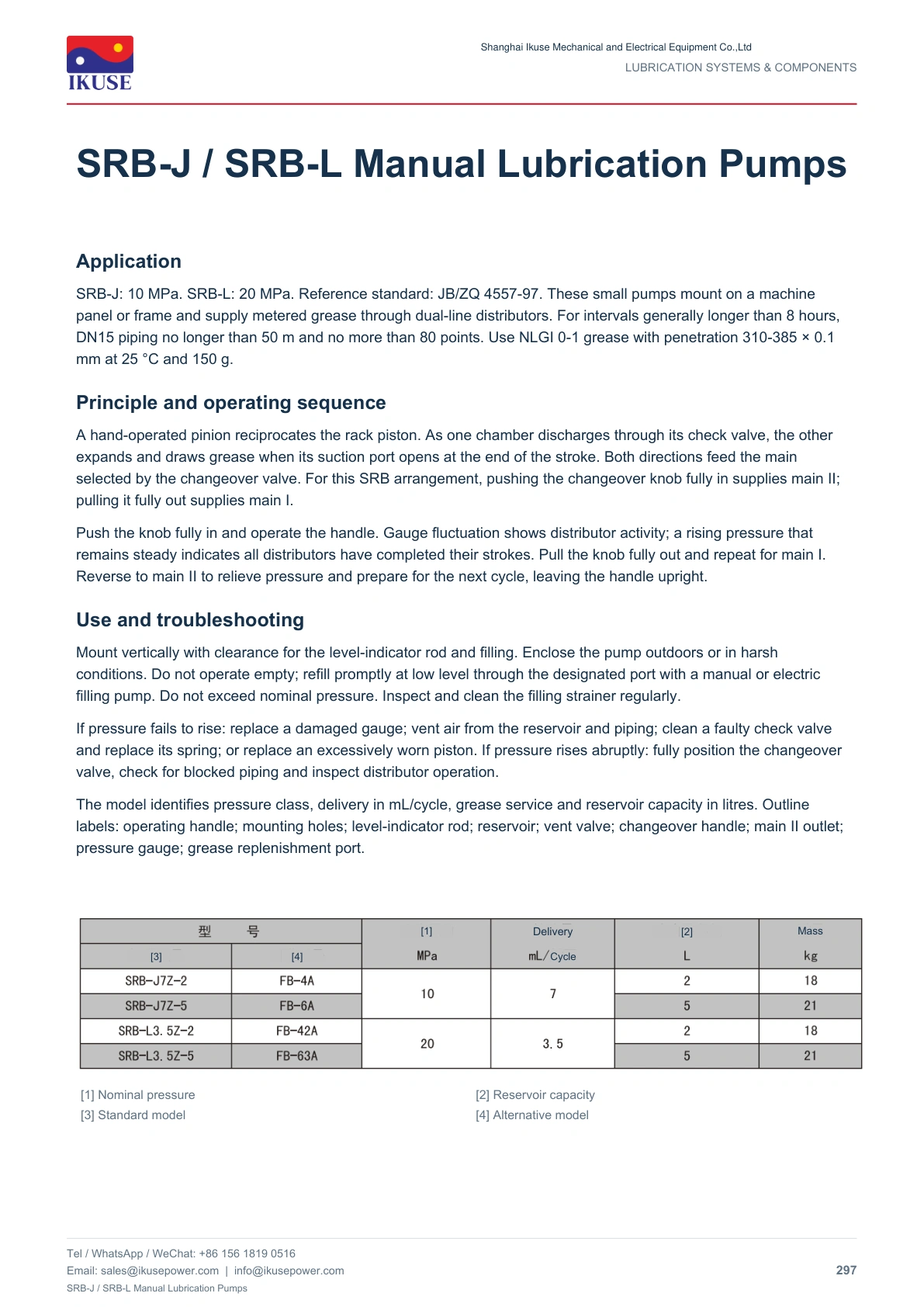

Technical documentation

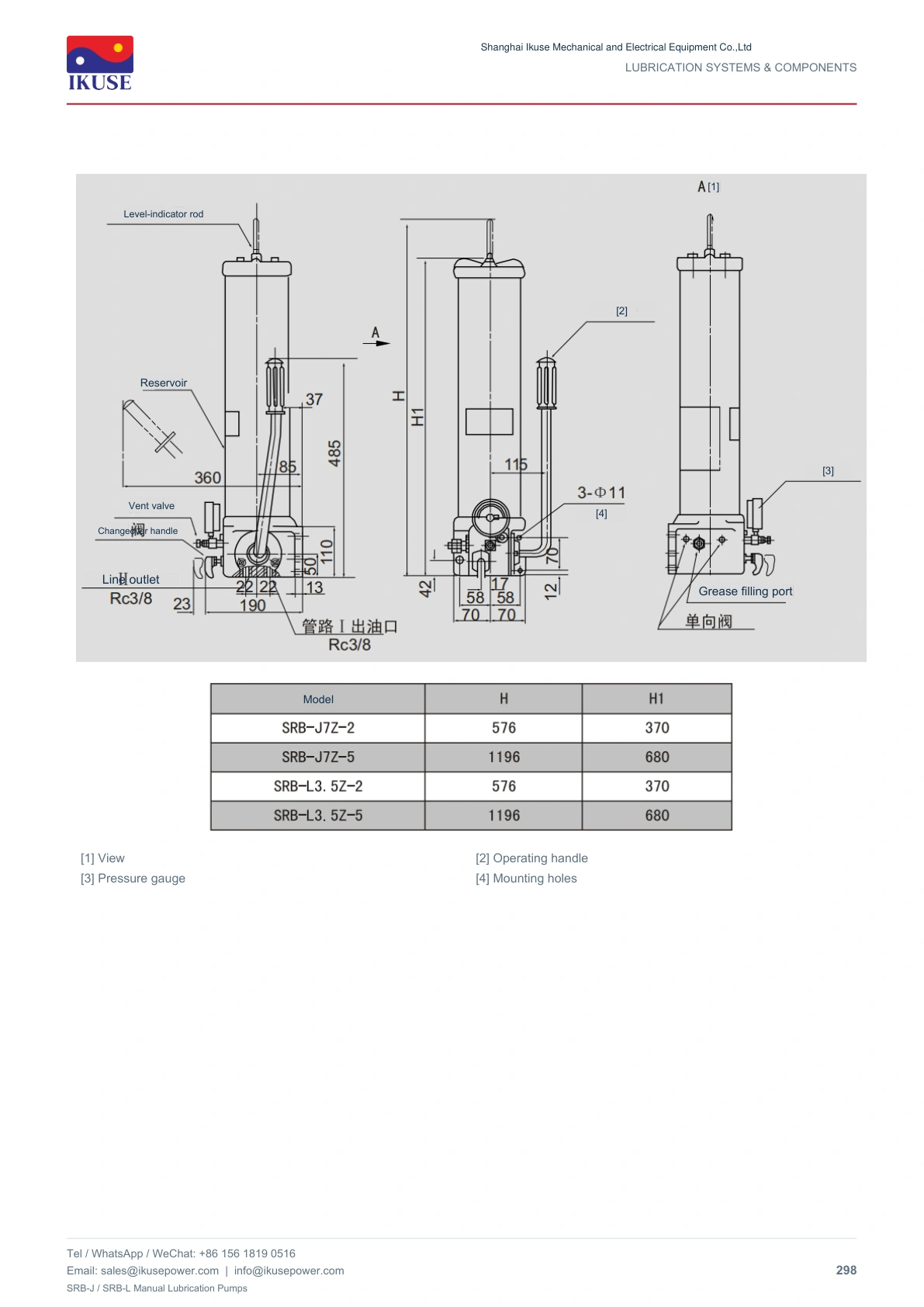

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
