Overview

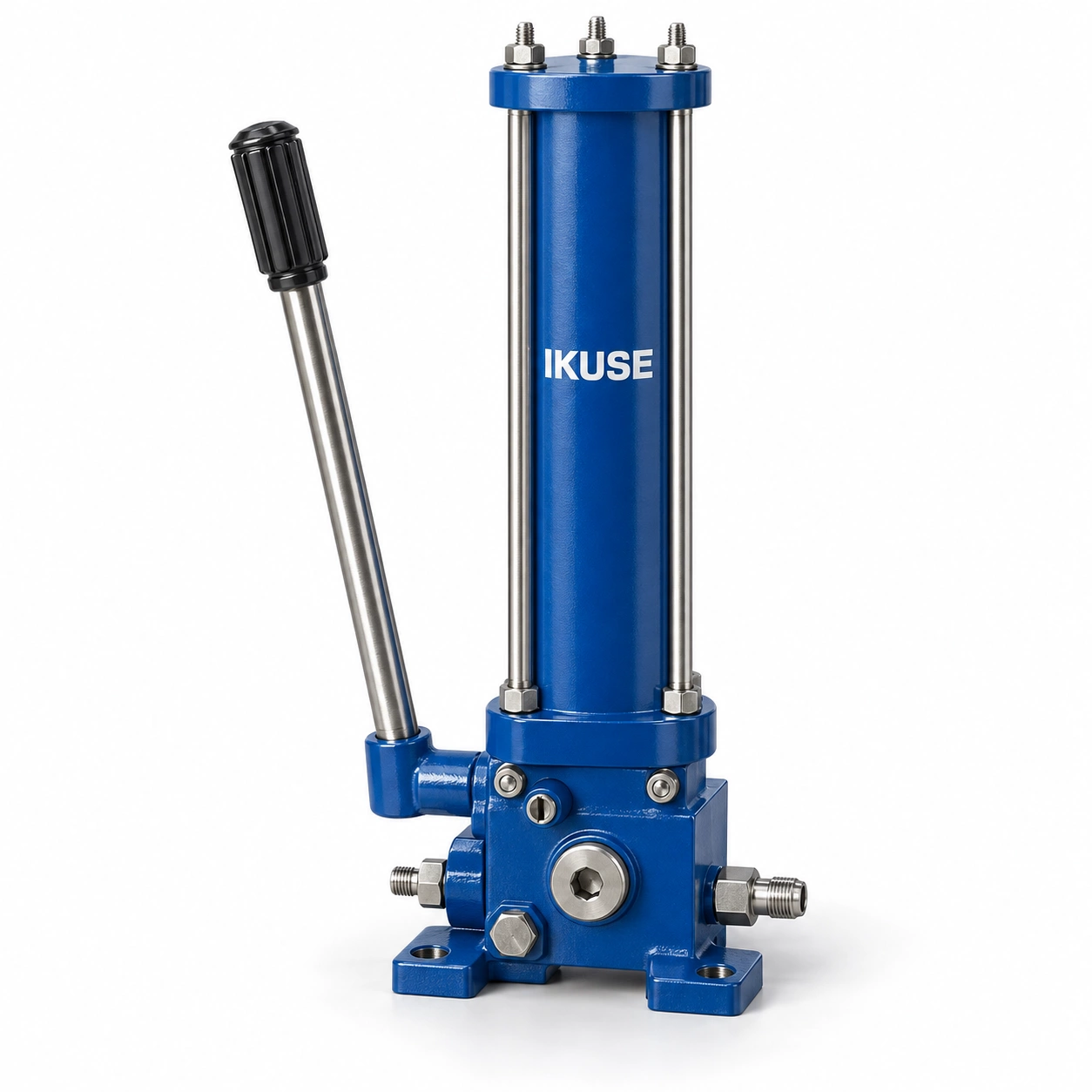

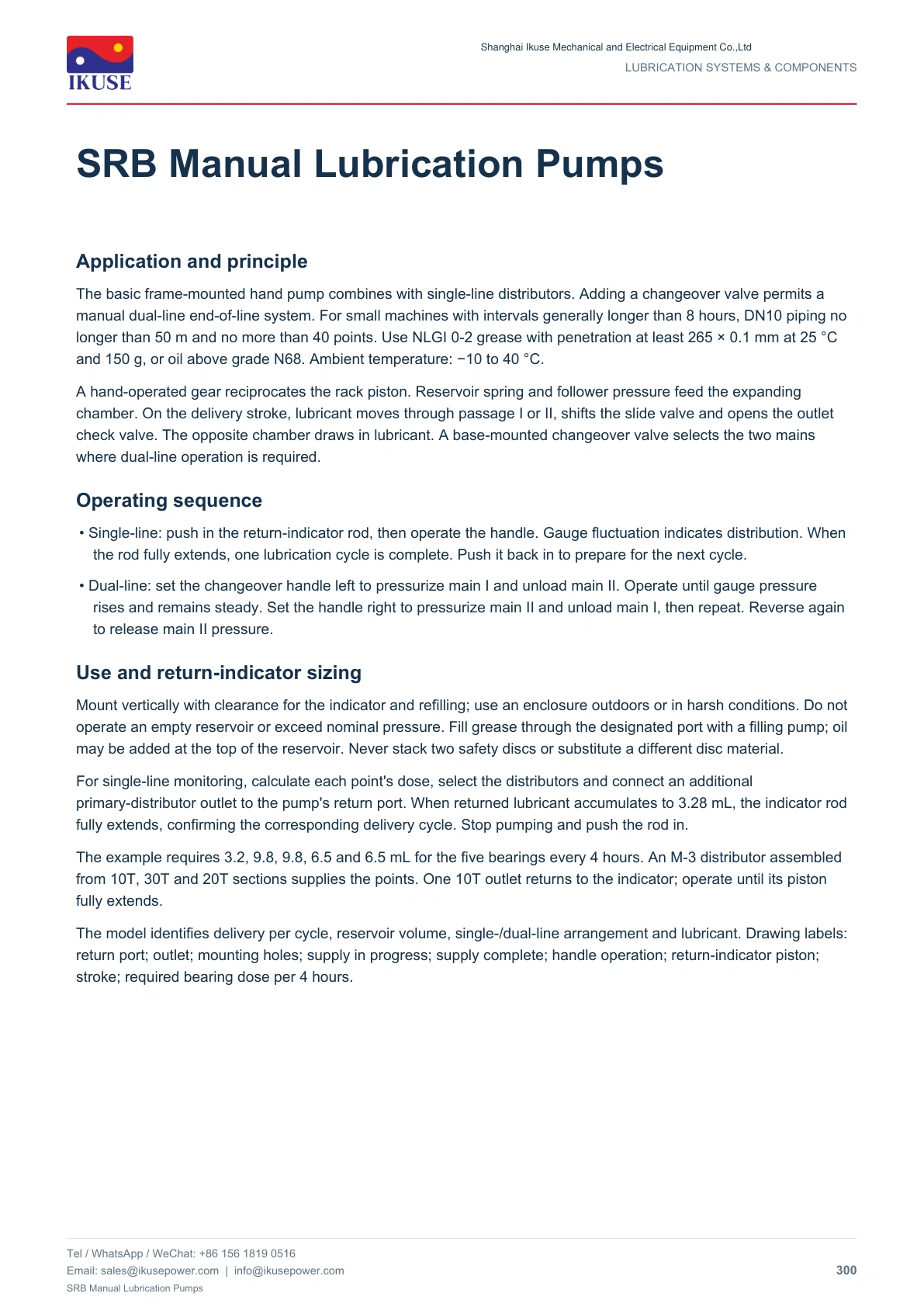

The basic frame-mounted hand pump combines with single-line distributors. Adding a changeover valve permits a manual dual-line end-of-line system. For small machines with intervals generally longer than 8 hours, DN10 piping no longer than 50 m and no more than 40 points. Use NLGI 0-2 grease with penetration at least 265 × 0.1 mm at 25 °C and 150 g, or oil above grade N68. Ambient temperature: −10 to 40 °C.
Selection and operation
For small machines: maximum line length 50 m and no more than 40 lubrication points. Select the model according to the lubricant.
Technical documentation

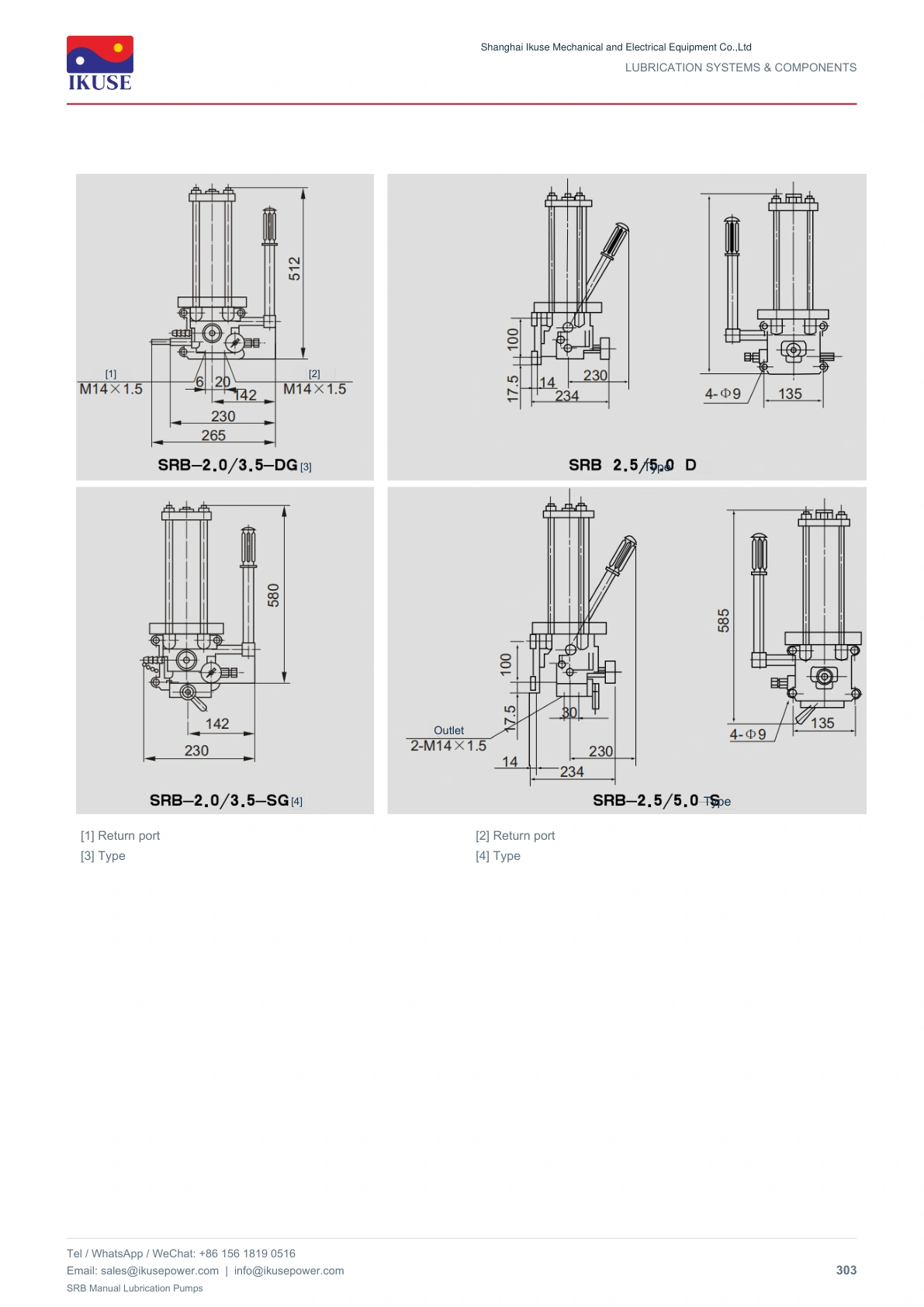

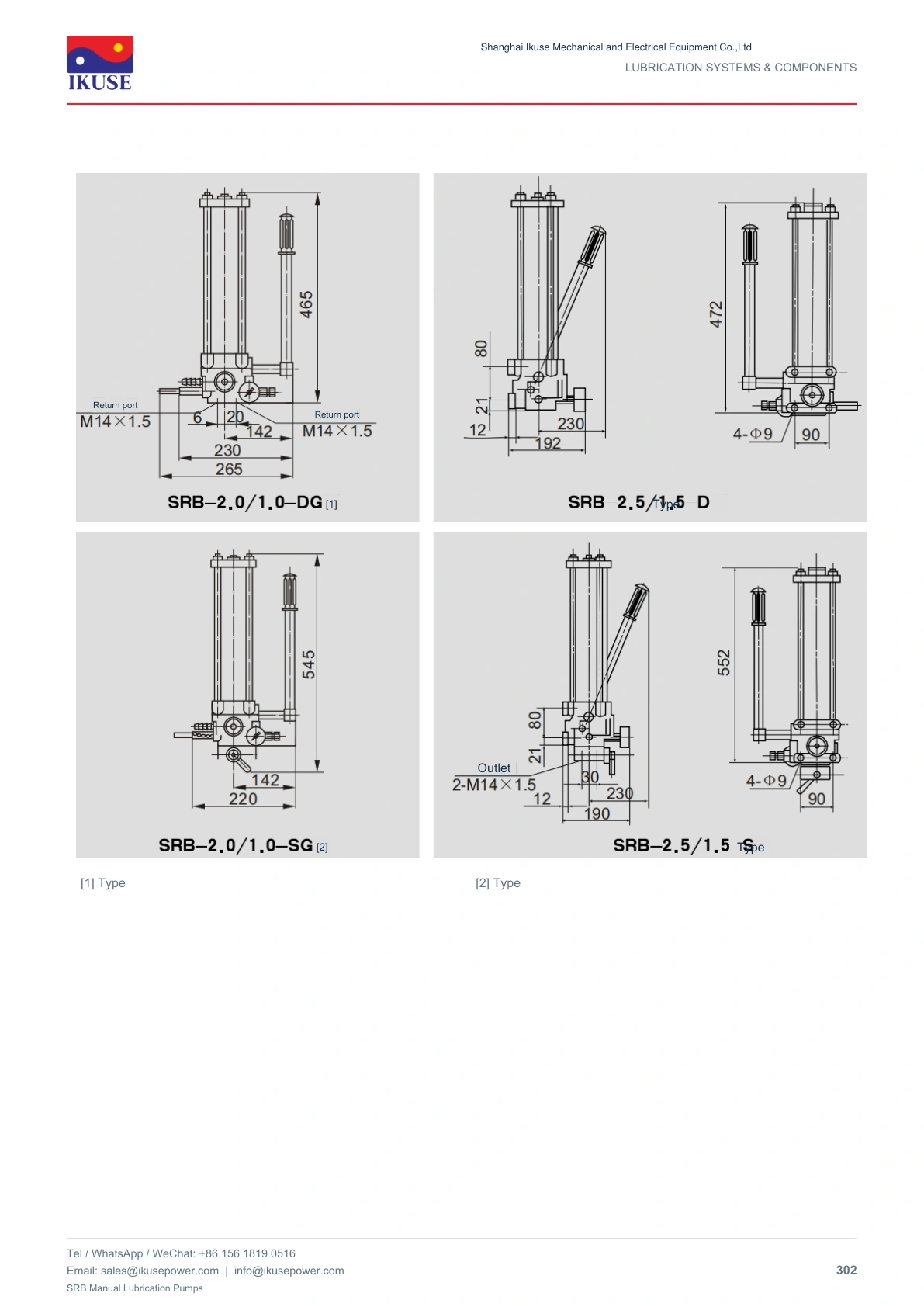

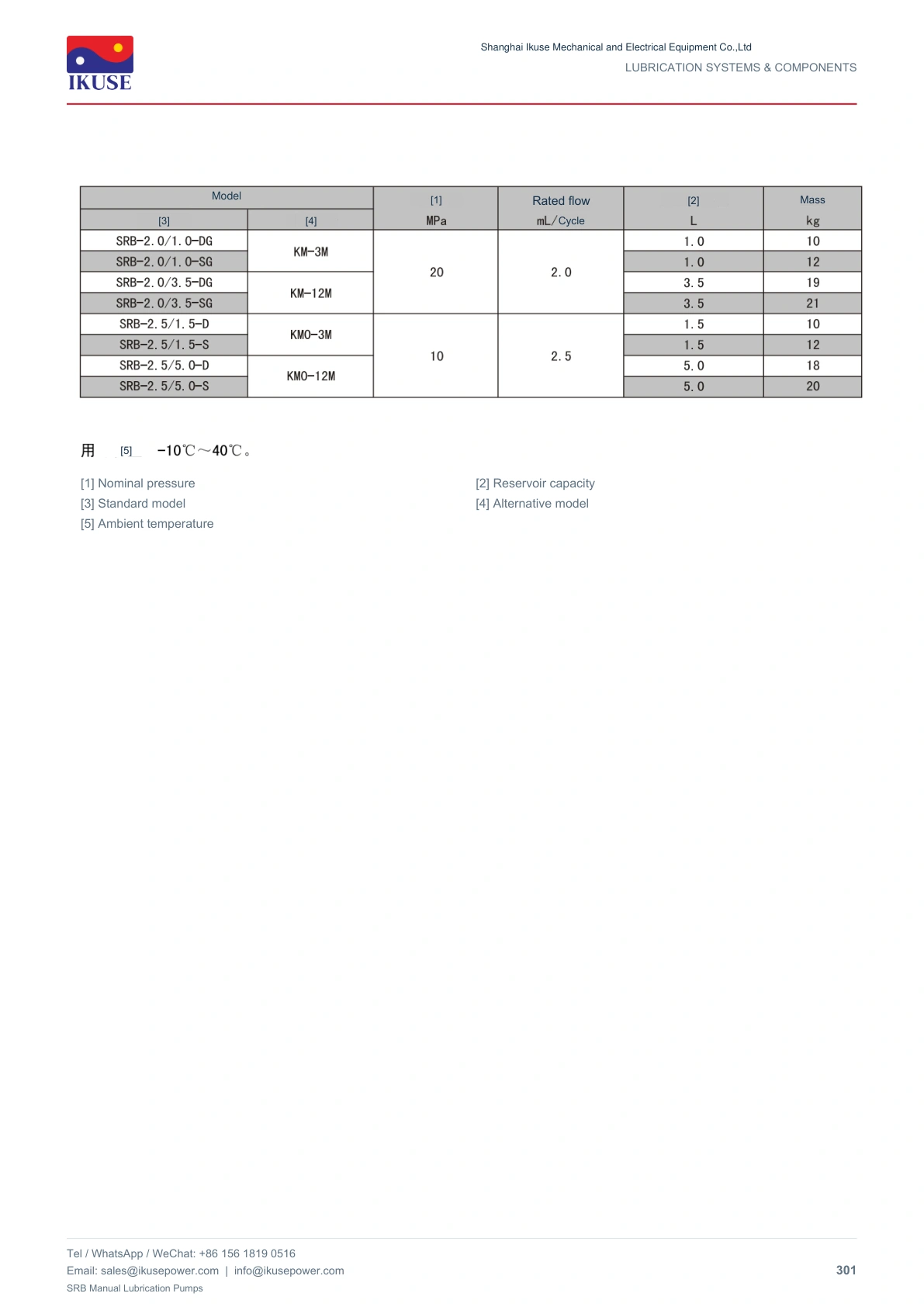

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
