Overview
For small and medium multi-line centralized systems at 20 MPa, with low lubrication frequency and fewer than 50 points. Supply grease directly or through single-line distributors. Typical uses include metallurgical, mining, heavy machinery, port handling and construction equipment. Use grease with penetration at least 265 × 0.1 mm or oil above viscosity grade N68. Ambient temperature: −20 to 80 °C.
Selection and operation
Temperature range: −20–80°C. Use grease with a penetration of at least 265 (0.1 mm, 25°C, 150 g), or industrial oil with a viscosity grade above N68.
Technical documentation

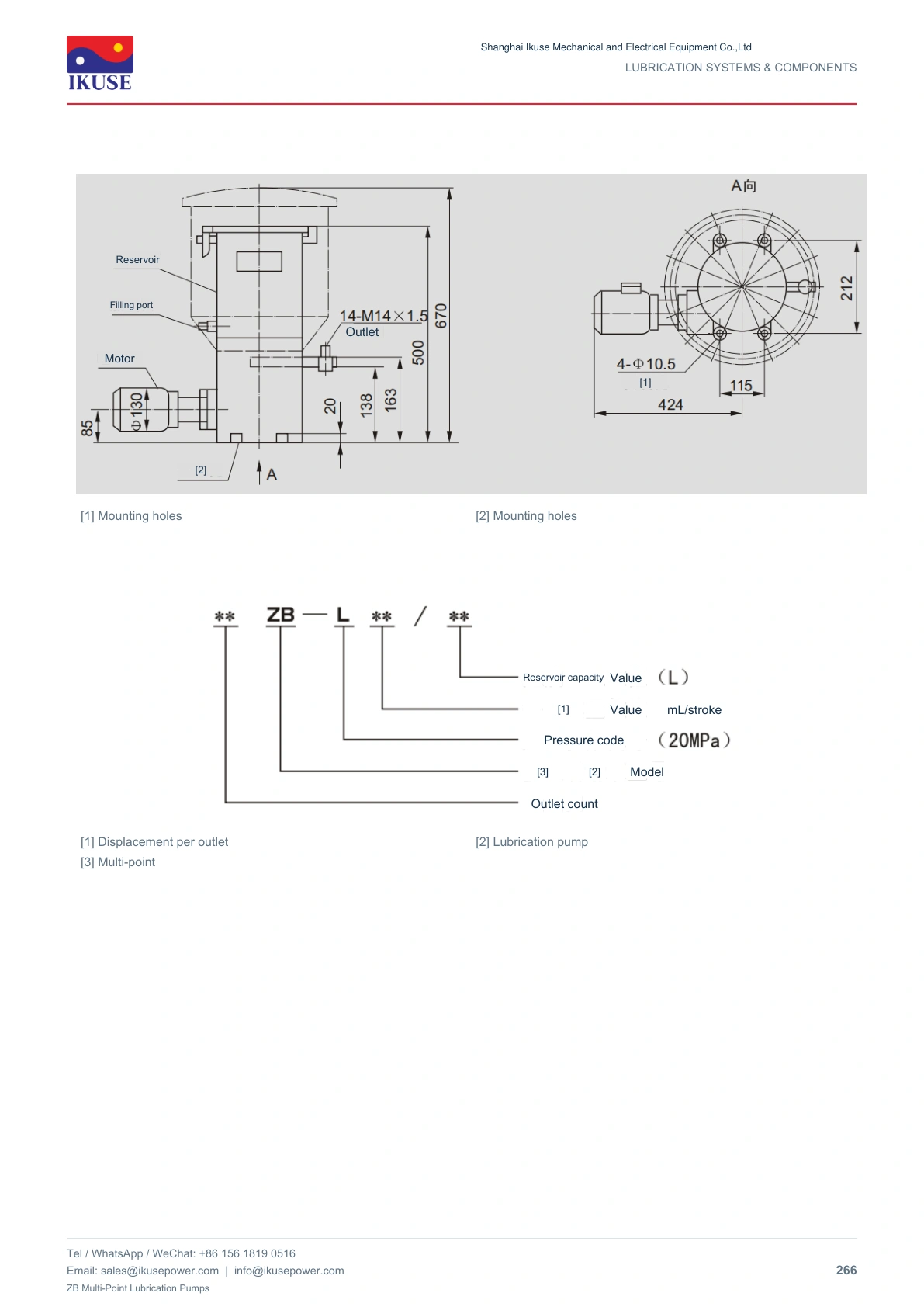

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
