Overview

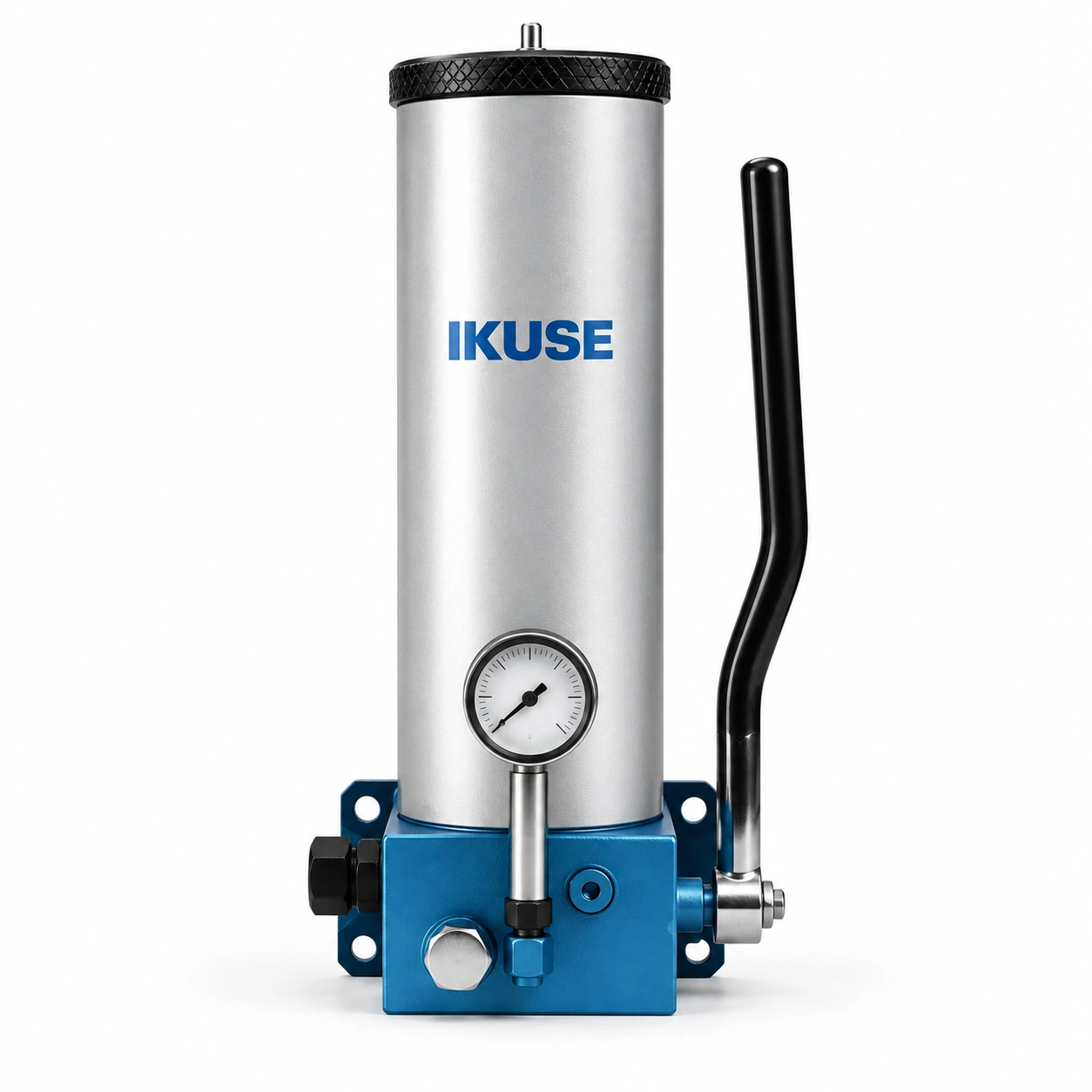

A compact hand-operated pump that mounts directly on the machine and combines with dual-line distributors to form a manual end-of-line system. For small individual machines with intervals generally longer than 8 hours, DN20 piping no longer than 35 m and no more than 50 points. Use grease with penetration at least 265 × 0.1 mm at 25 °C and 150 g. Ambient temperature: 0-40 °C.
Selection and operation
Maximum line length 35 m, no more than 50 lubrication points, and ambient temperature 0–40°C.

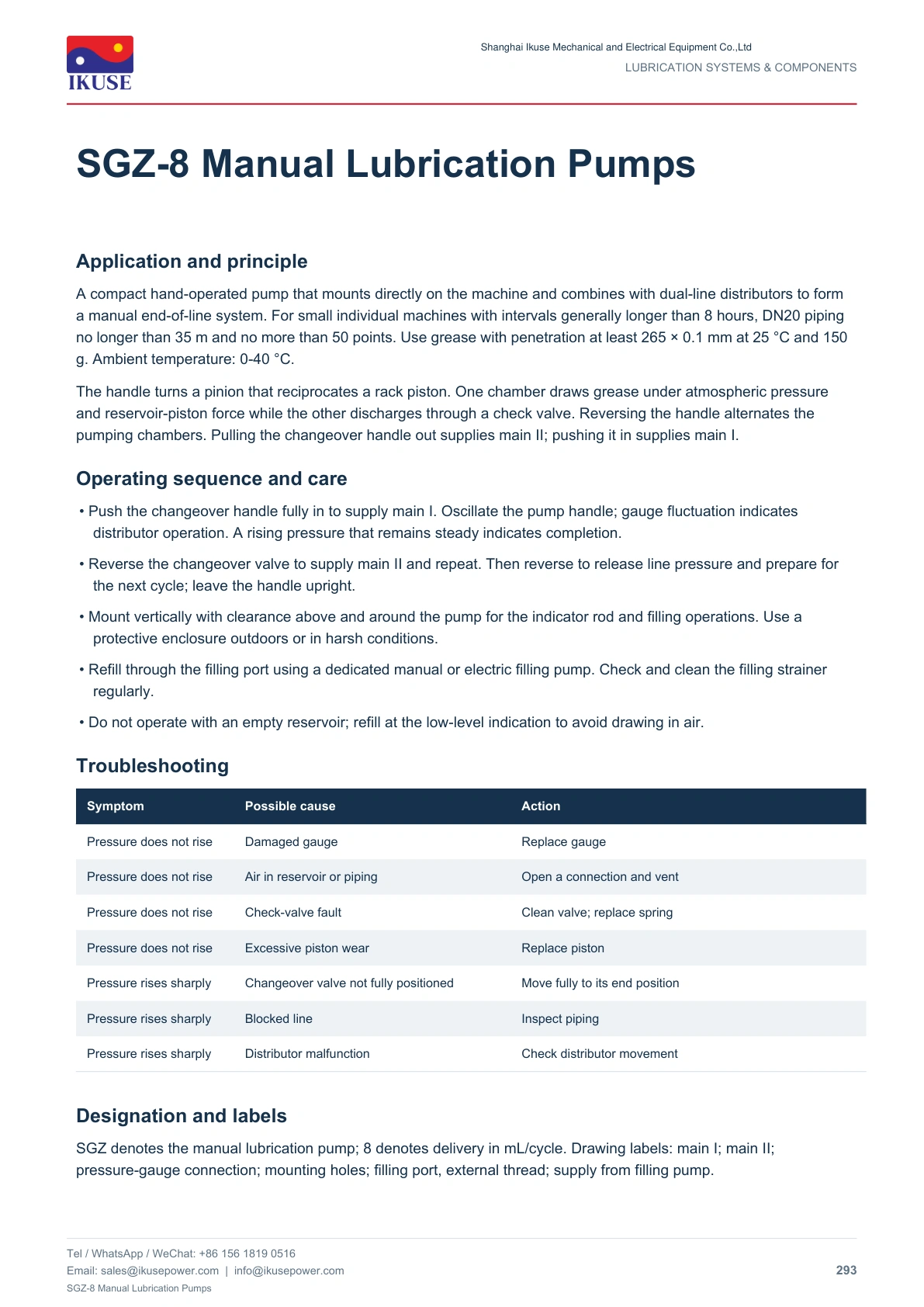

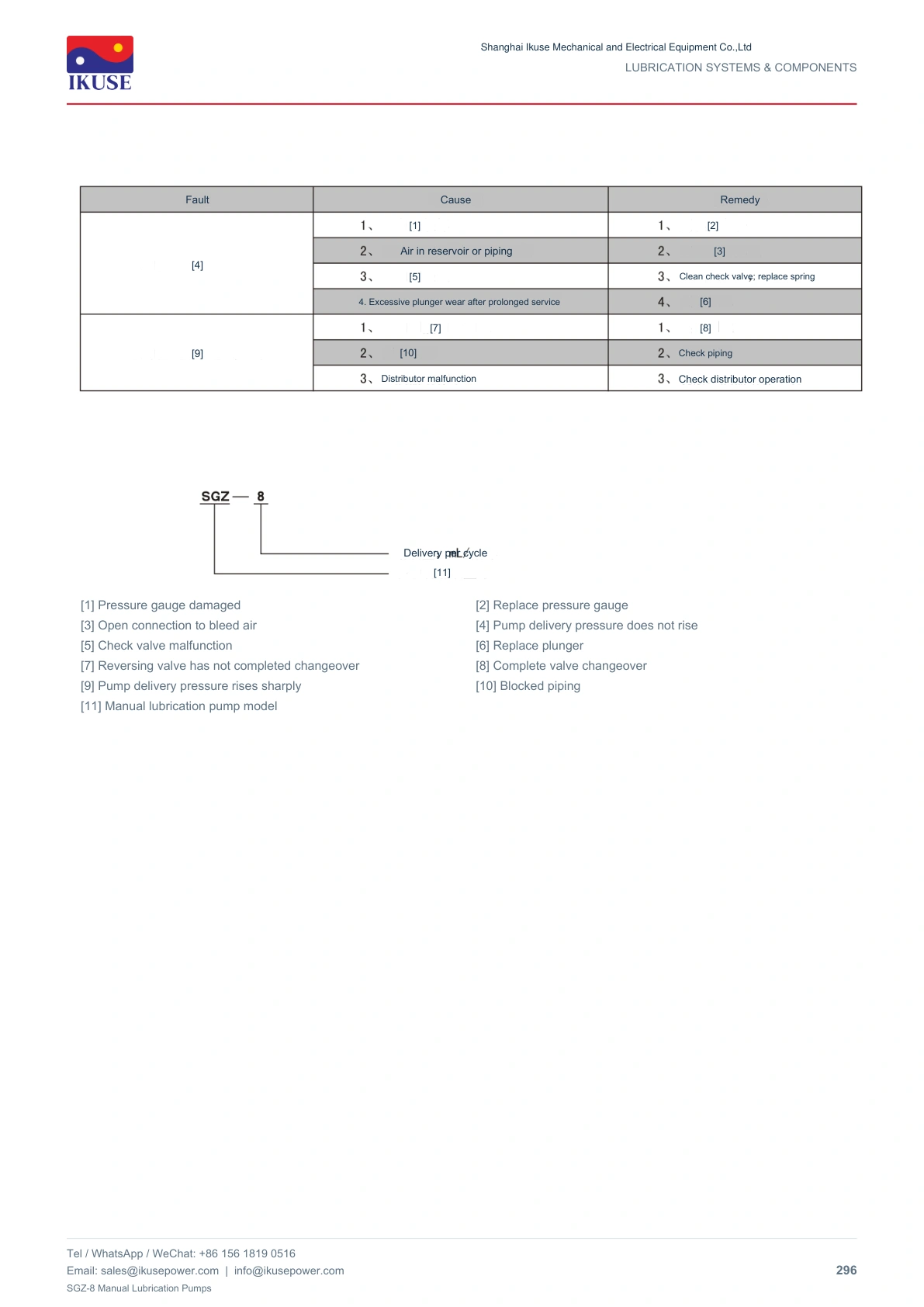

Technical documentation

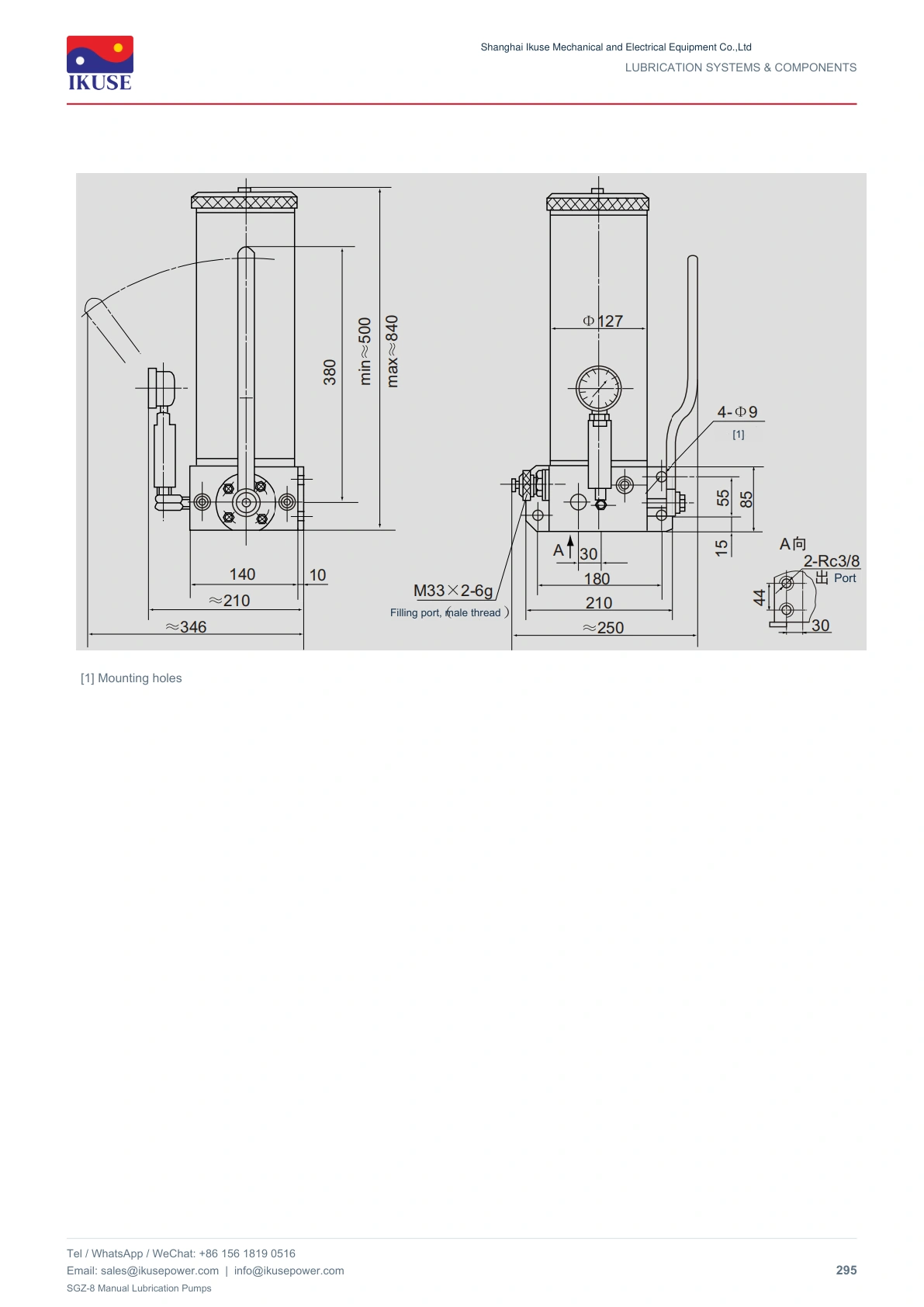

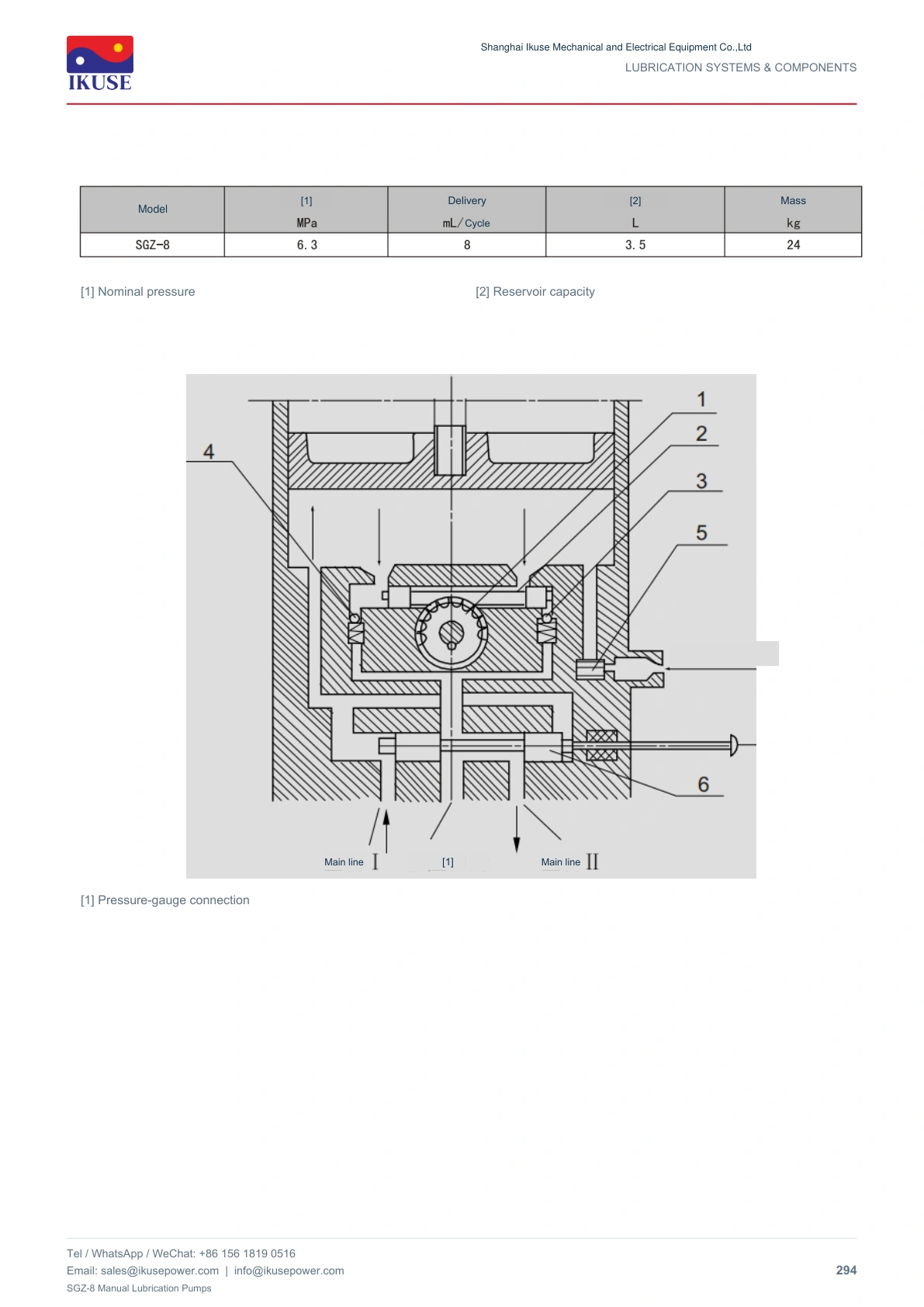

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
