Overview
A compact high-pressure foot pump on a hand trolley for convenient movement. It supplies grease to machinery, vehicles and centralized lubrication systems. Nominal pressure: 40 MPa. Ambient temperature: −20 to 80 °C. Use grease with cone penetration 250-350 × 0.1 mm at 25 °C and 150 g.
Selection and operation
Ambient temperature: −20–80°C. Grease penetration: 250–350 (0.1 mm, 25°C, 150 g). Observe the nominal pressure and check the allowable pressure of the hose, connectors and equipment being filled.
Technical documentation

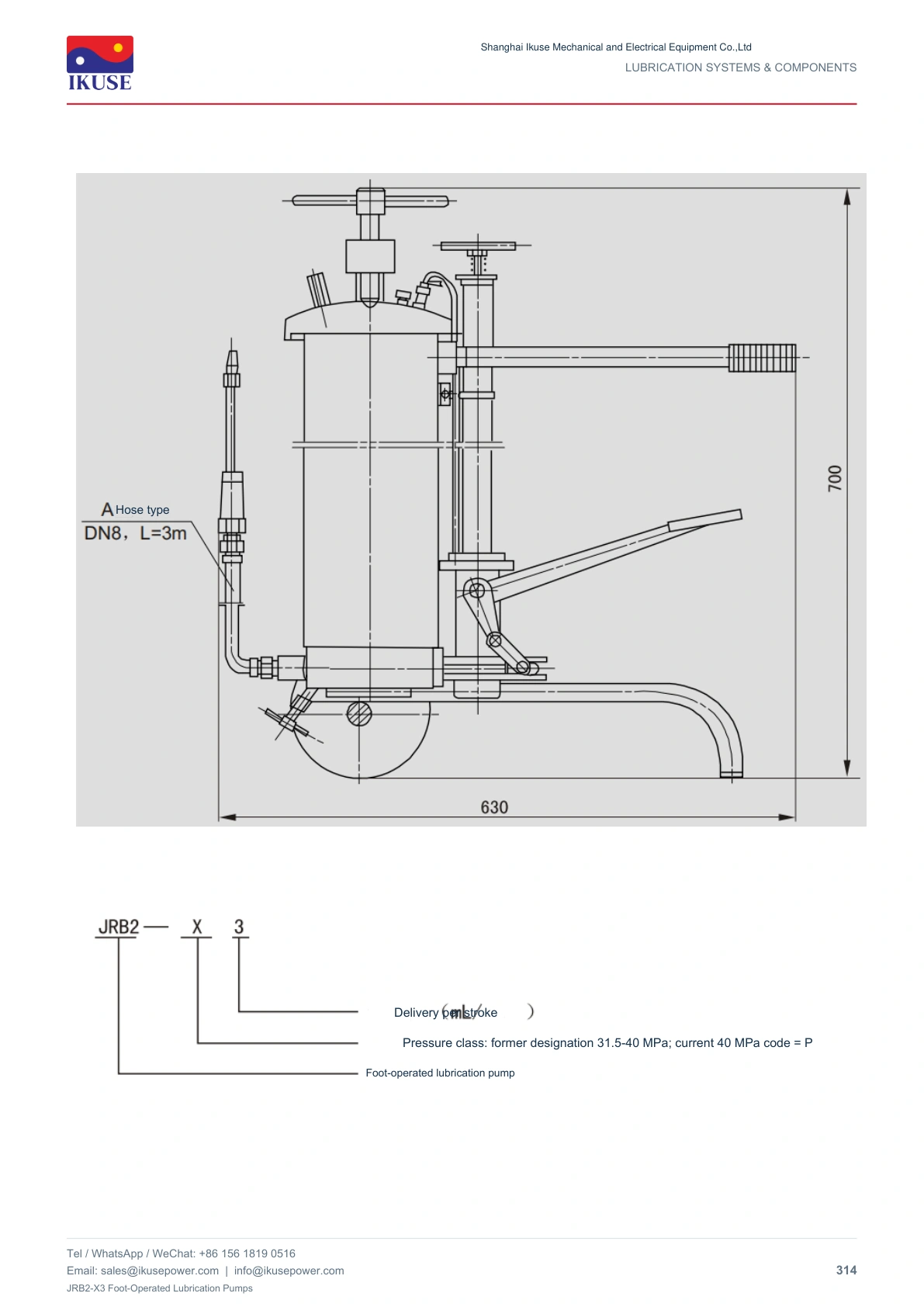

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
