Overview
A crowned-tooth connection for motor shaft ends and horizontal drive shafts.

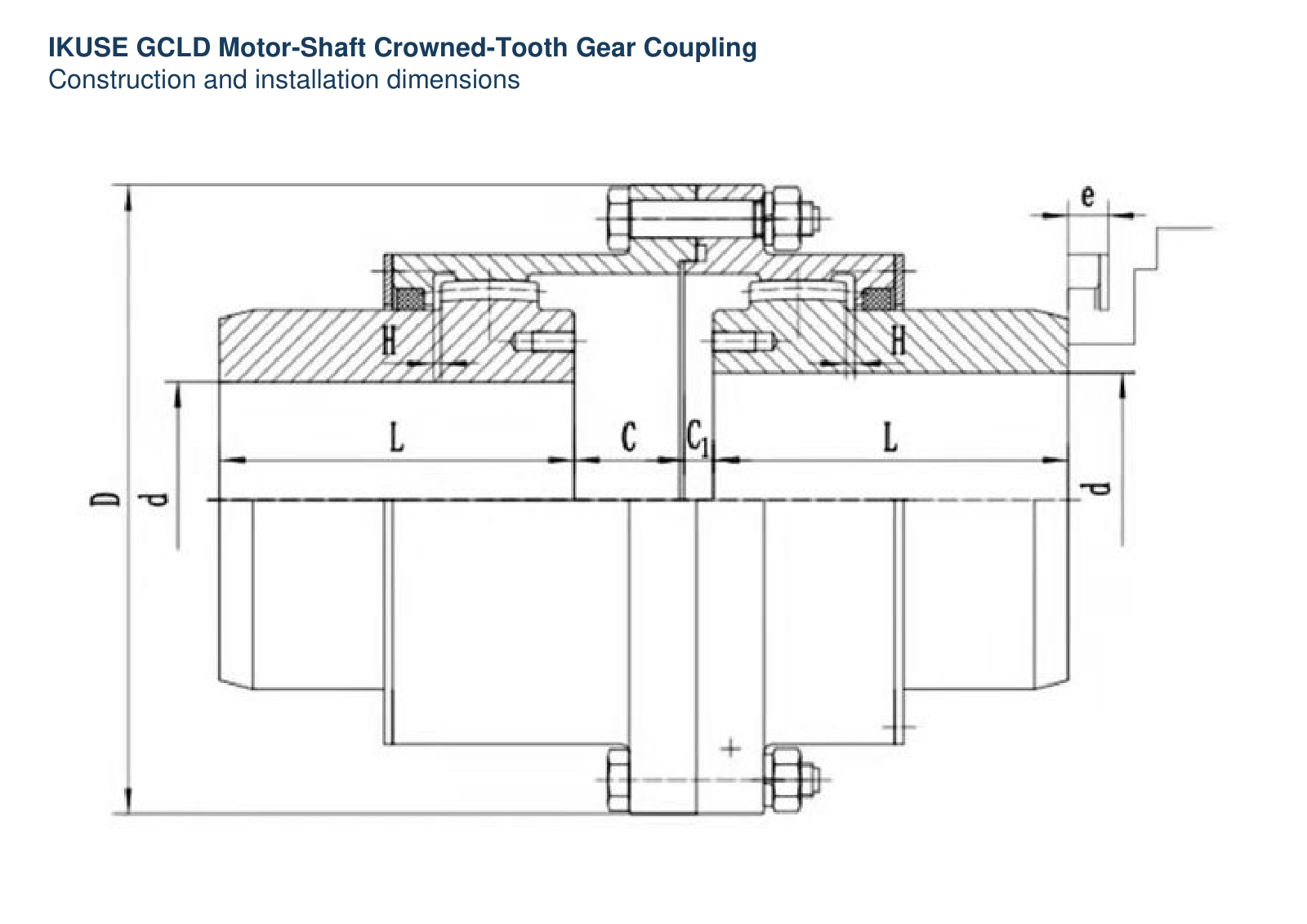

Construction
Gear teeth transmit torque while accommodating a specified angular displacement. Lubricate and maintain according to the construction.
Applications
Horizontal drives between electric motors and industrial machines.

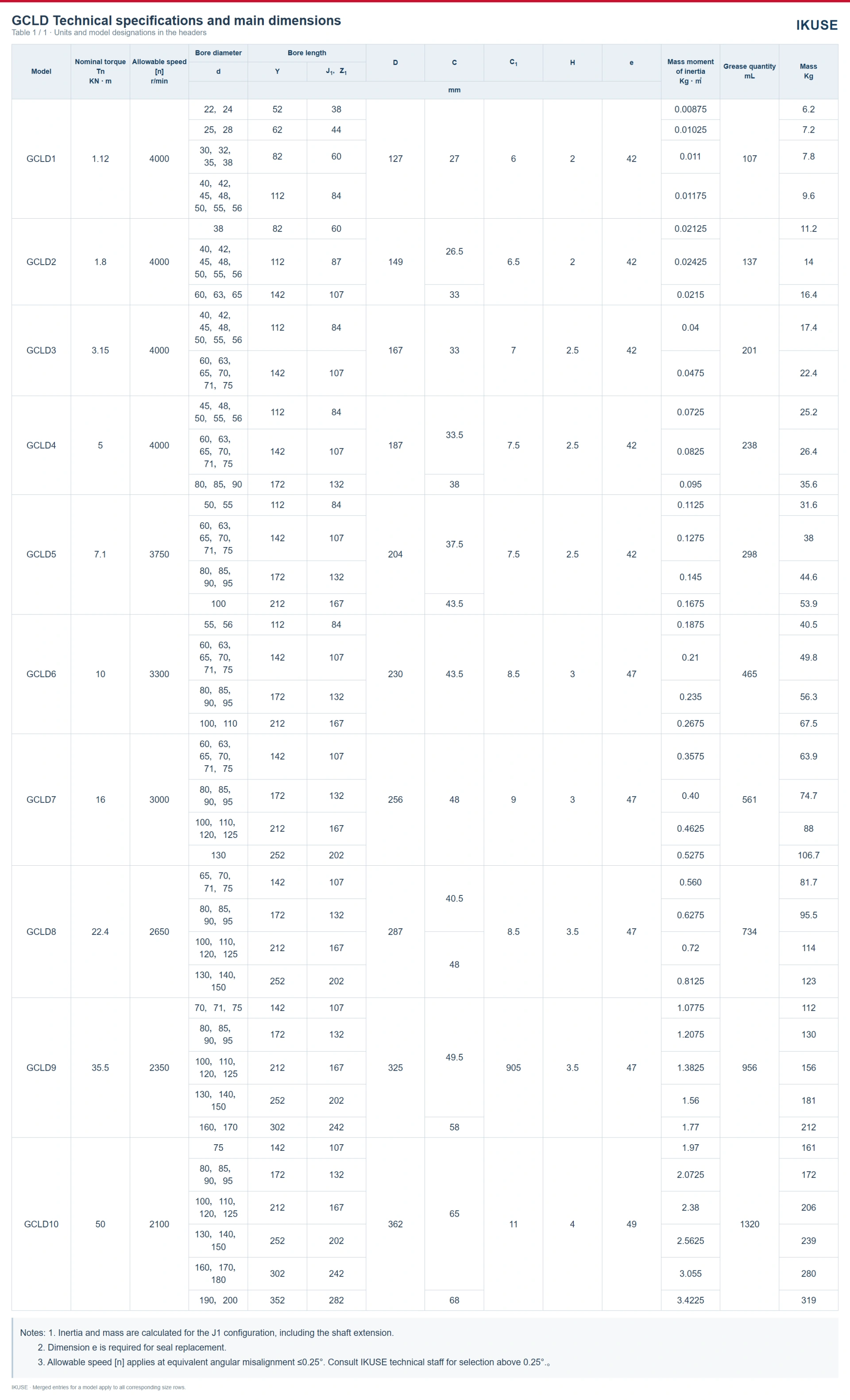

Selection
Nominal torque 1.12–50 kN·m; ambient temperature −20…+80 °C. Check speed and bore for each size.
Ordering information
Specify equipment type, transmitted power, operating speed, load characteristics, both shaft diameters and extension lengths, shaft-end separation and installation space. Include any brake, dynamic-balancing or elastic-element requirements.
