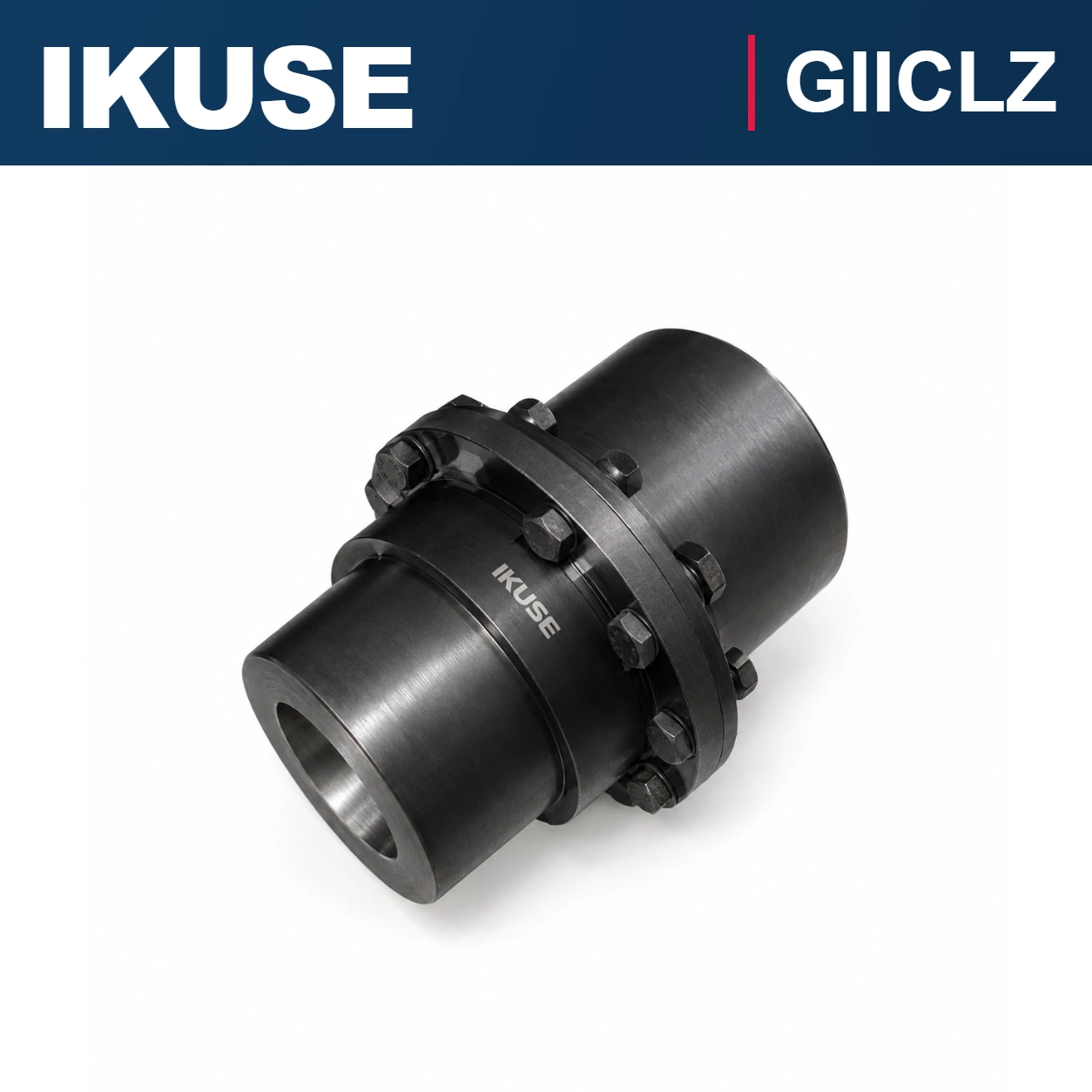

Overview
Crowned-tooth hubs are connected by an intermediate shaft for horizontal drive systems.

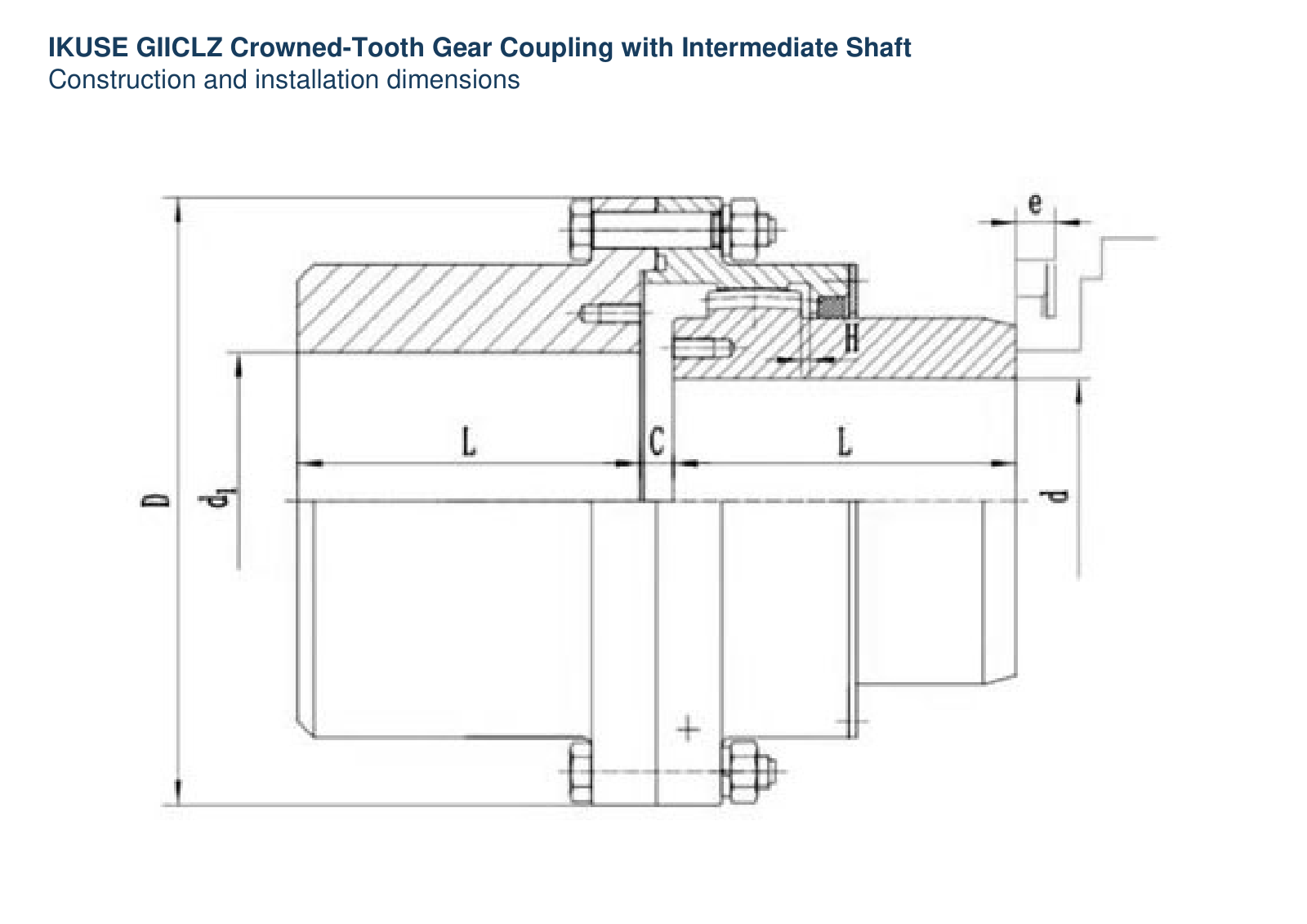

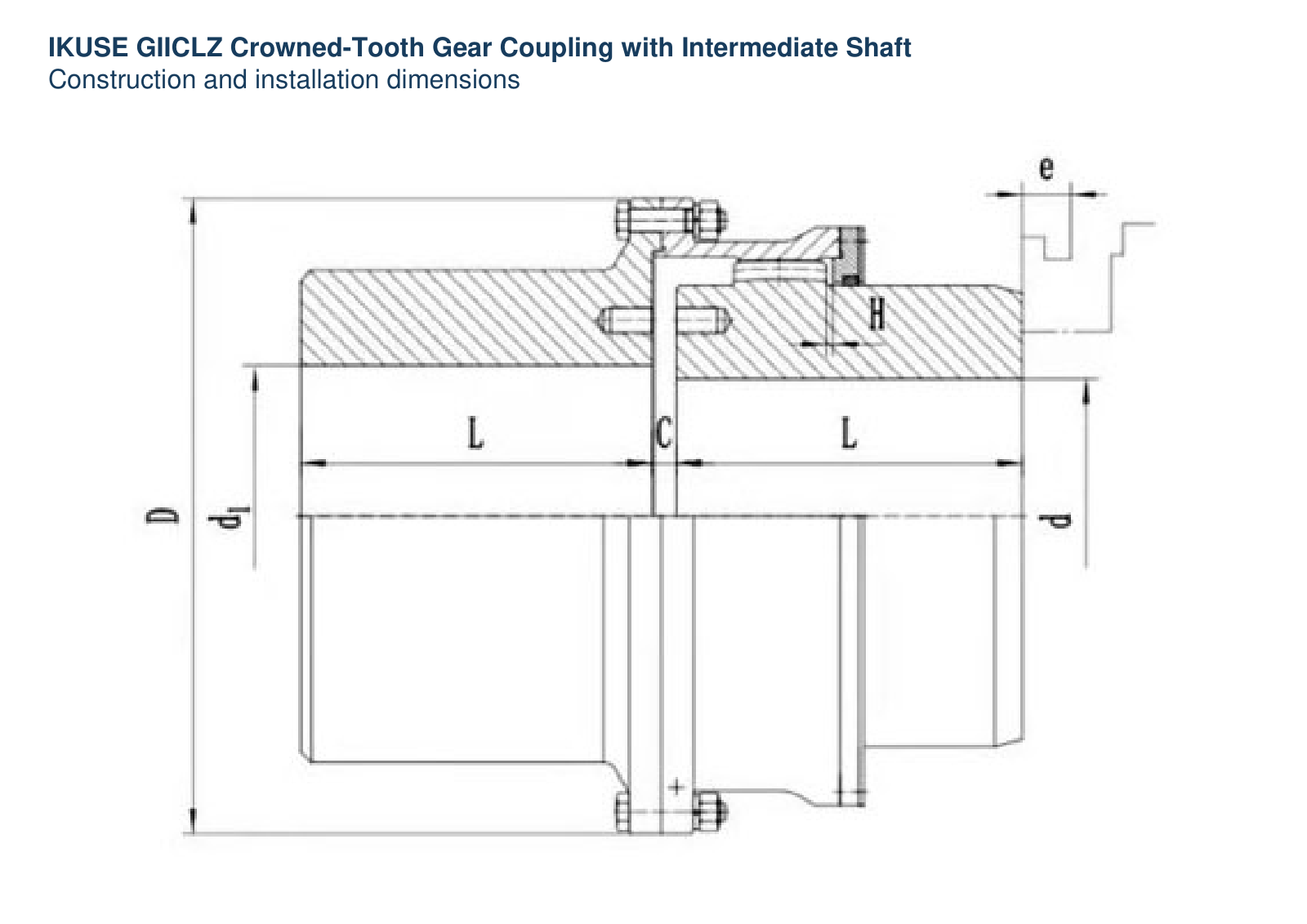

Construction
Intermediate-shaft construction; choose bores and shaft ends to match equipment interfaces. Lubricate according to the construction.
Applications
Horizontal drives in metallurgical, mining and conveyor equipment.

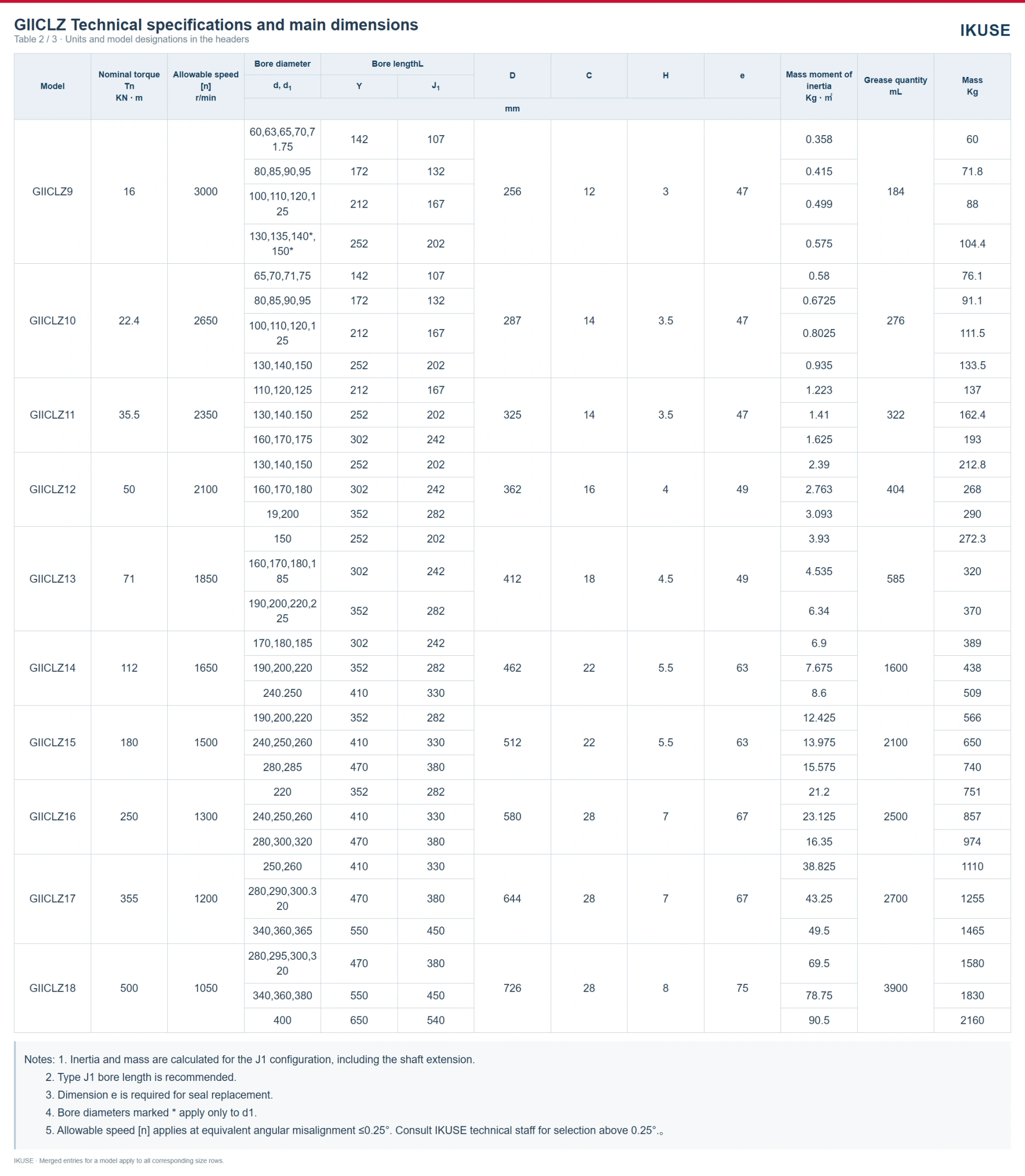

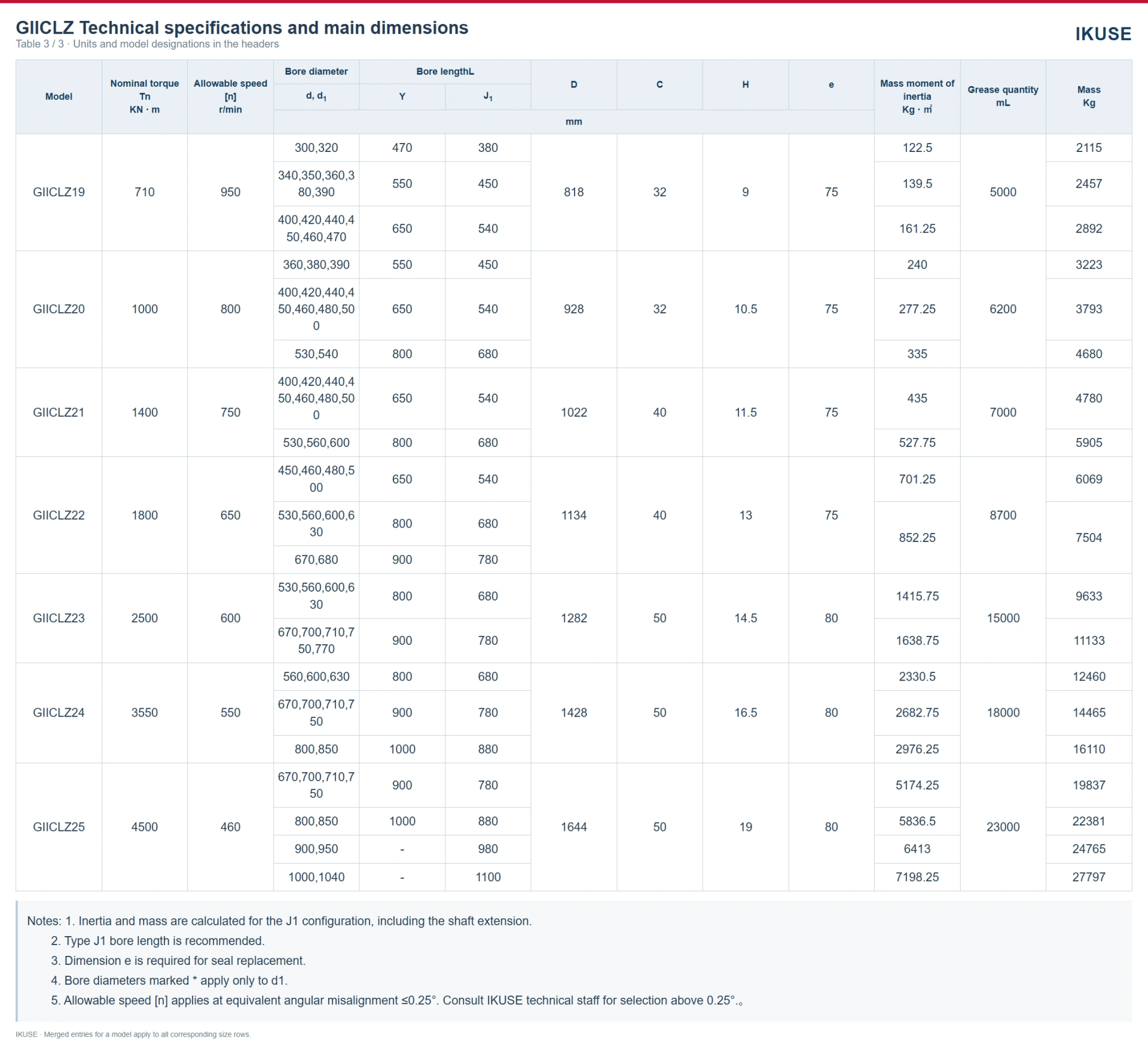

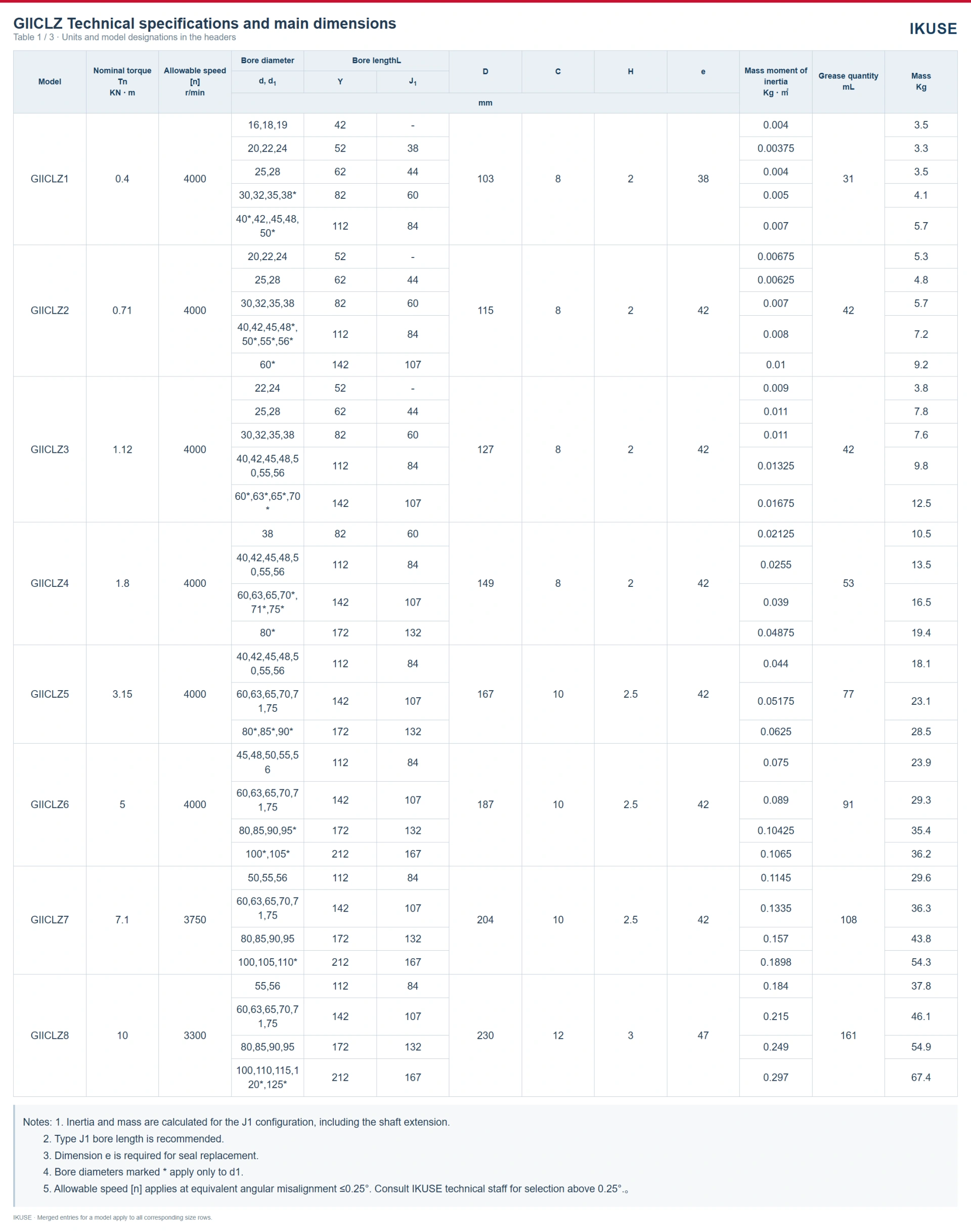

Selection
GIICLZ1–GIICLZ25. Confirm shaft separation and bore combinations when ordering.
Ordering information
Specify equipment type, transmitted power, operating speed, load characteristics, both shaft diameters and extension lengths, shaft-end separation and installation space. Include any brake, dynamic-balancing or elastic-element requirements.
