Overview

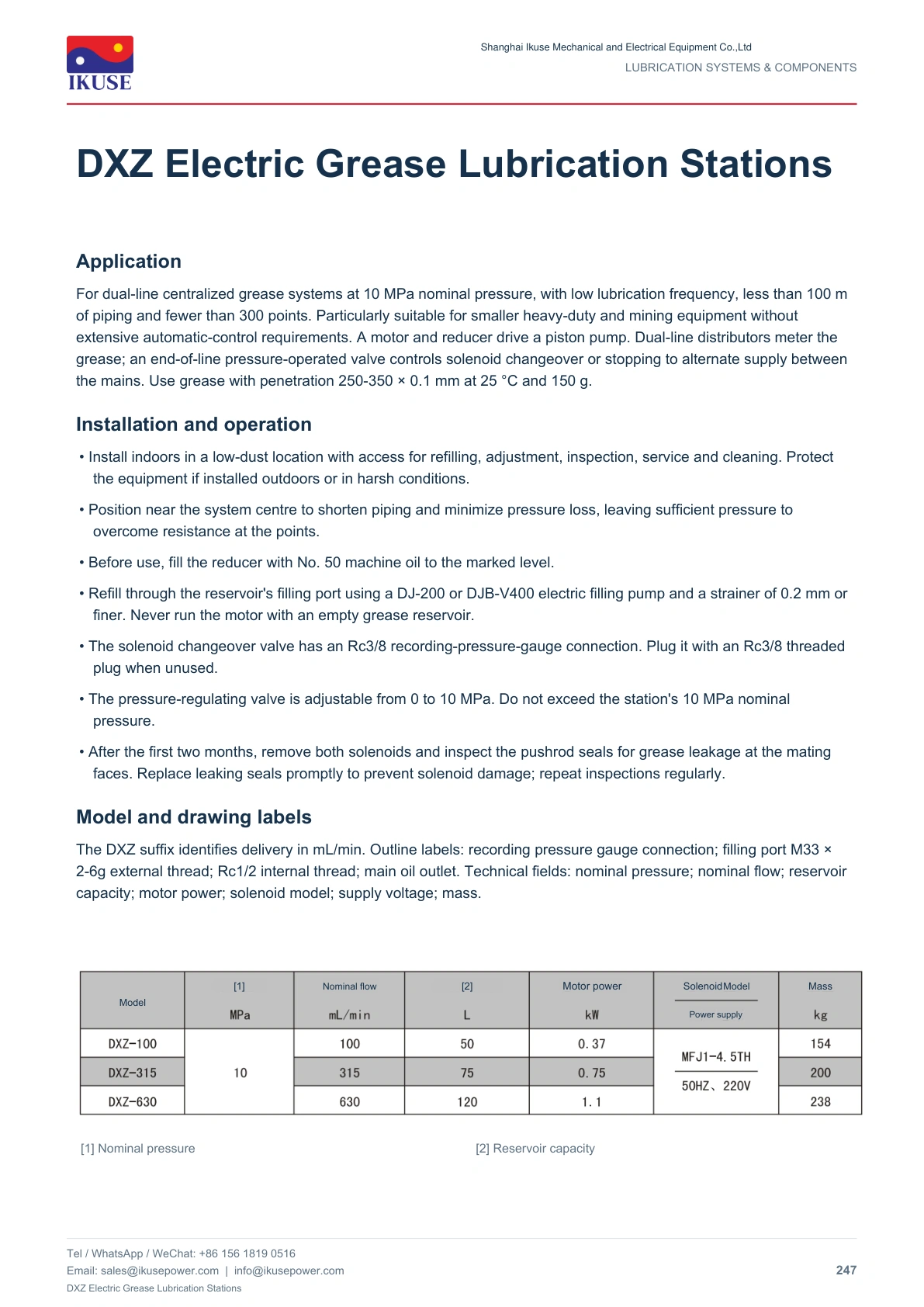

For dual-line centralized grease systems at 10 MPa nominal pressure, with low lubrication frequency, less than 100 m of piping and fewer than 300 points. Particularly suitable for smaller heavy-duty and mining equipment without extensive automatic-control requirements. A motor and reducer drive a piston pump. Dual-line distributors meter the grease; an end-of-line pressure-operated valve controls solenoid changeover or stopping to alternate supply between the mains. Use grease with penetration 250-350 × 0.1 mm at 25 °C and 150 g.
Selection and operation
Grease penetration: 250–350 (0.1 mm, 25°C, 150 g). Refill through the designated port and do not run without lubricant. Install indoors or in a sheltered location.
Technical documentation

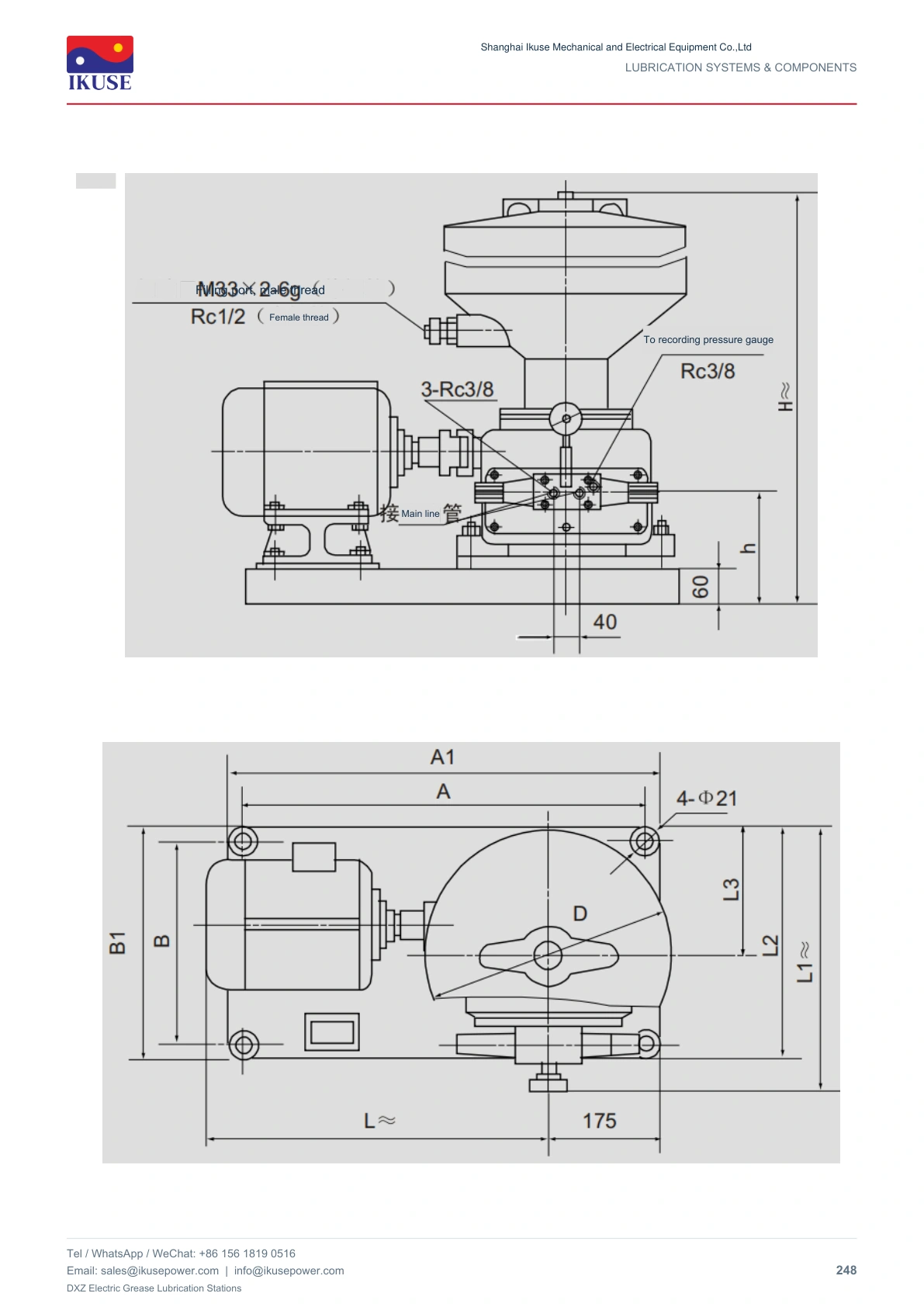

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
