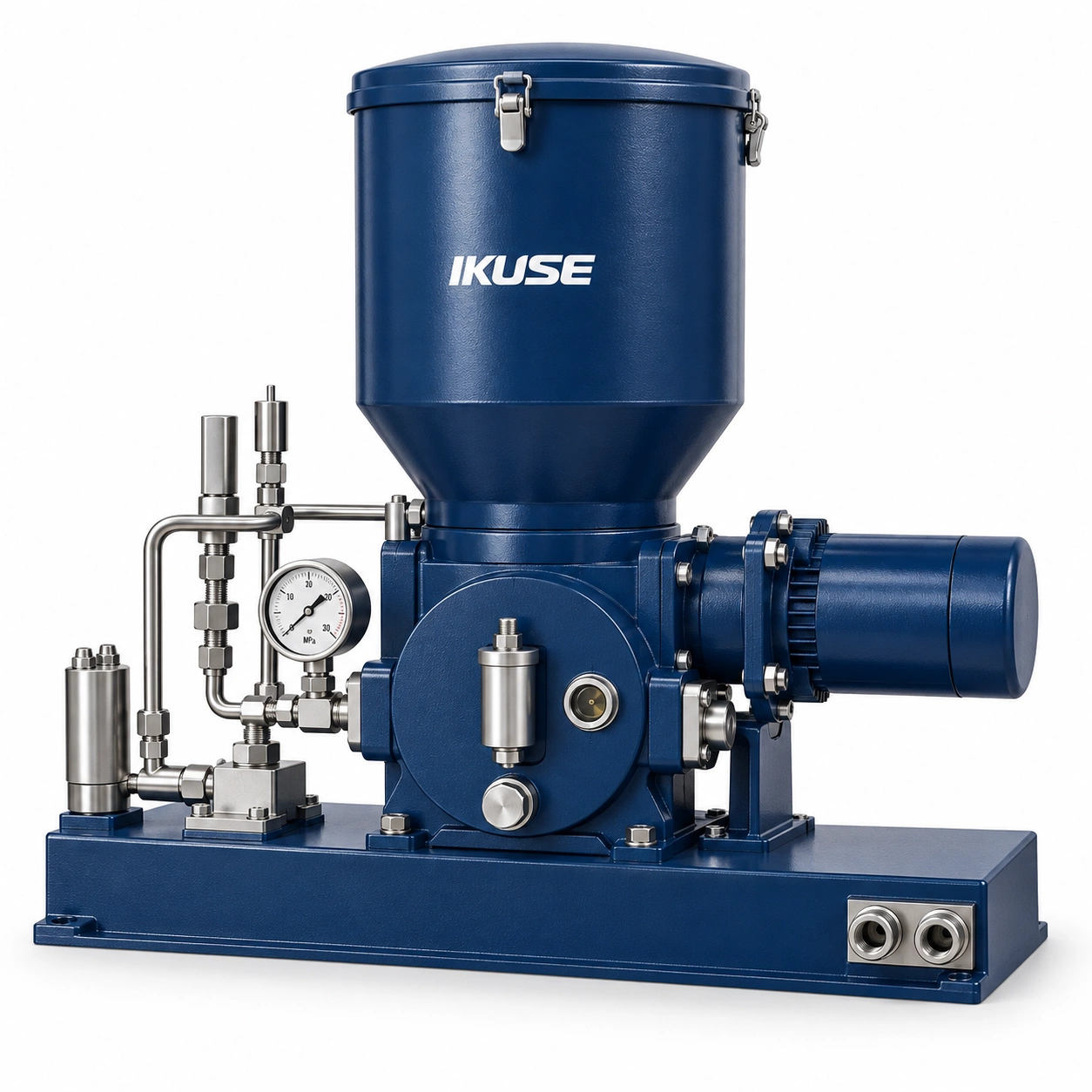

Overview
For single- and dual-line centralized oil/grease systems with numerous widely spread points and frequent lubrication, at 40 MPa (P) or 20 MPa (L). A trolley, hose, gun and cable can provide mobile lubrication for fewer points with large but infrequent doses. An automatic level alarm is provided; an appropriate cabinet enables automatic control and monitoring. Use NLGI 0-3 grease with penetration at least 220 × 0.1 mm at 25 °C and 150 g, or oil of at least grade N68.
Selection and operation
Level signalling and automatic control are available. For a mobile version, specify the hose and cable lengths.
Technical documentation

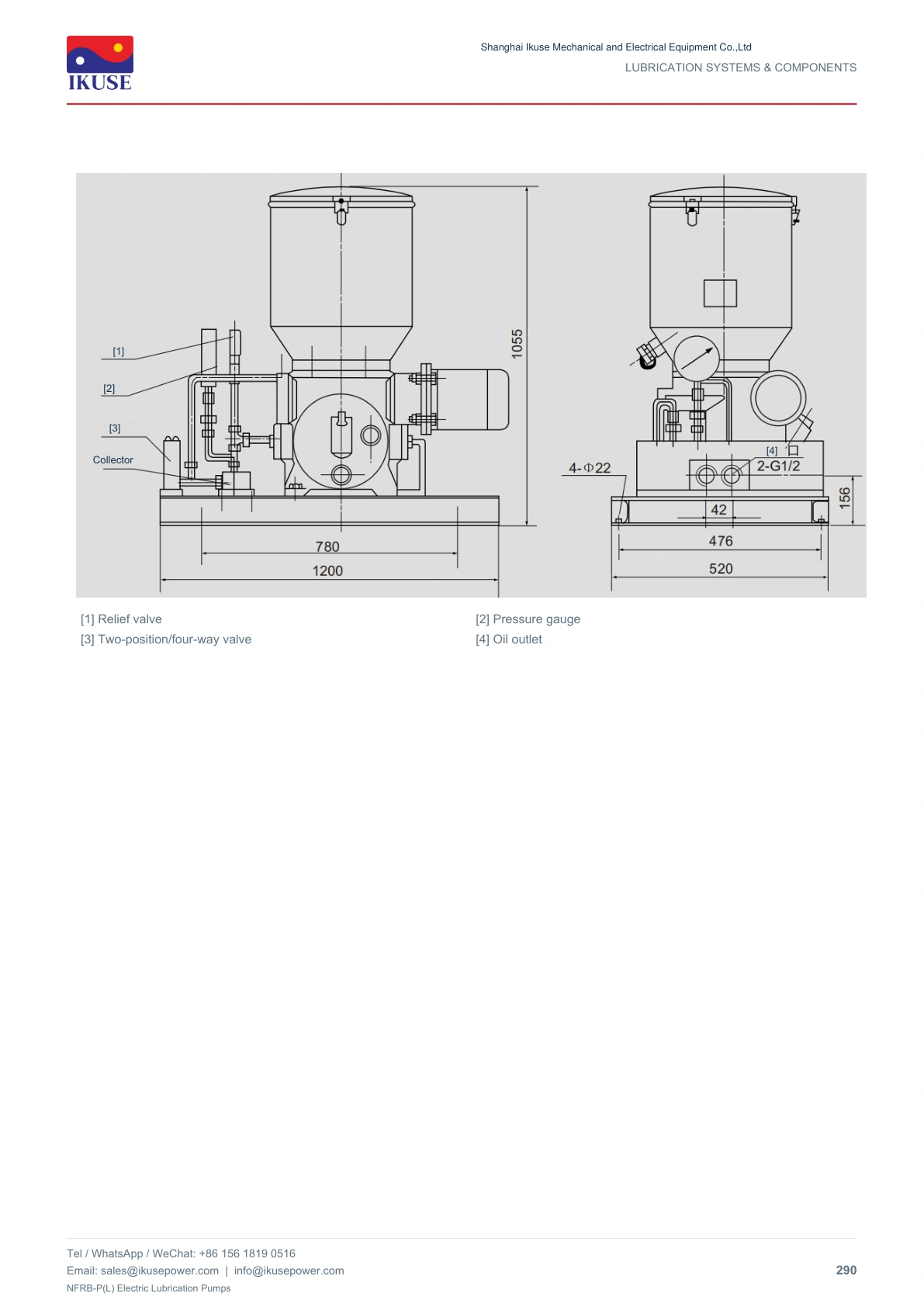

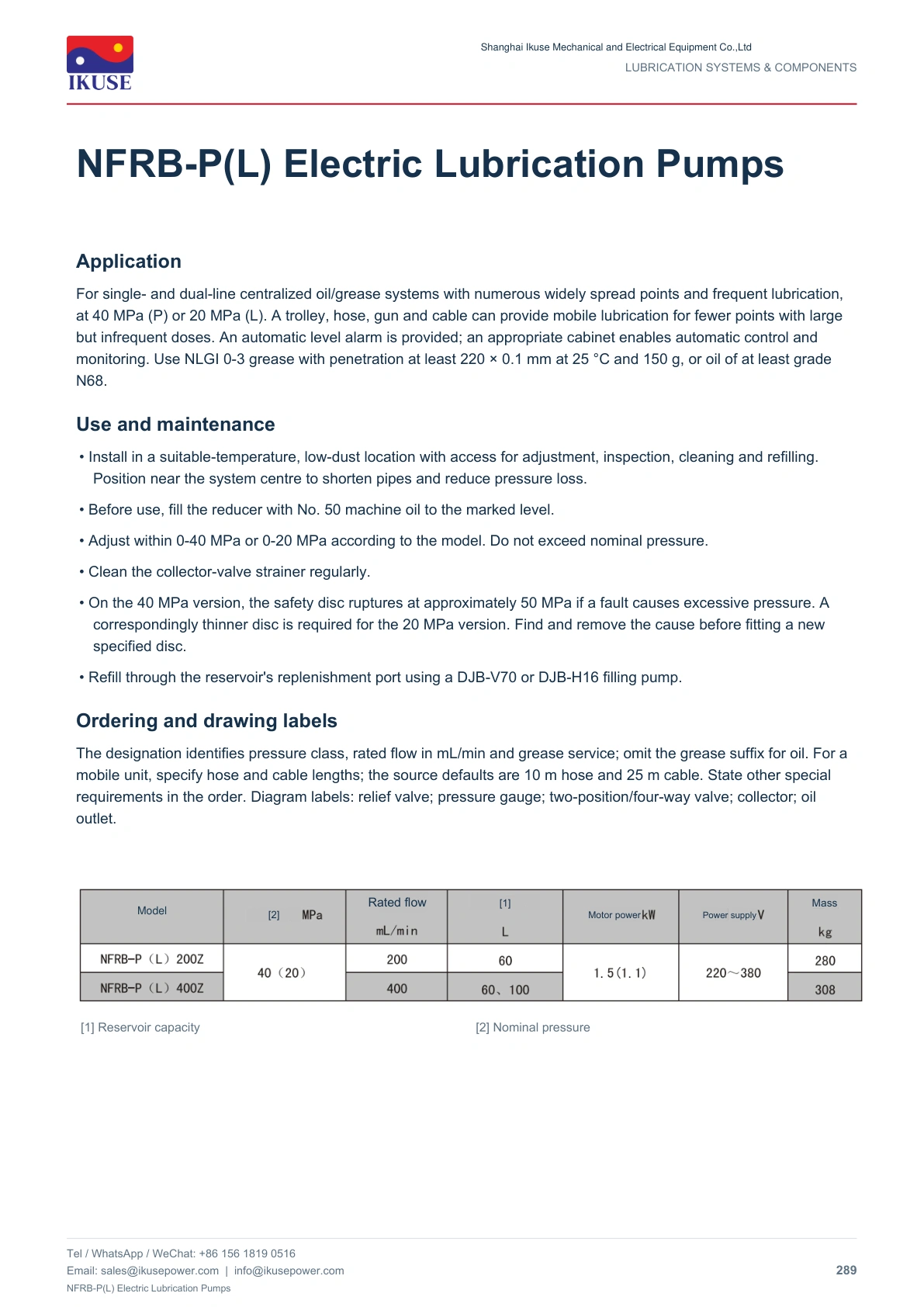

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
