Overview

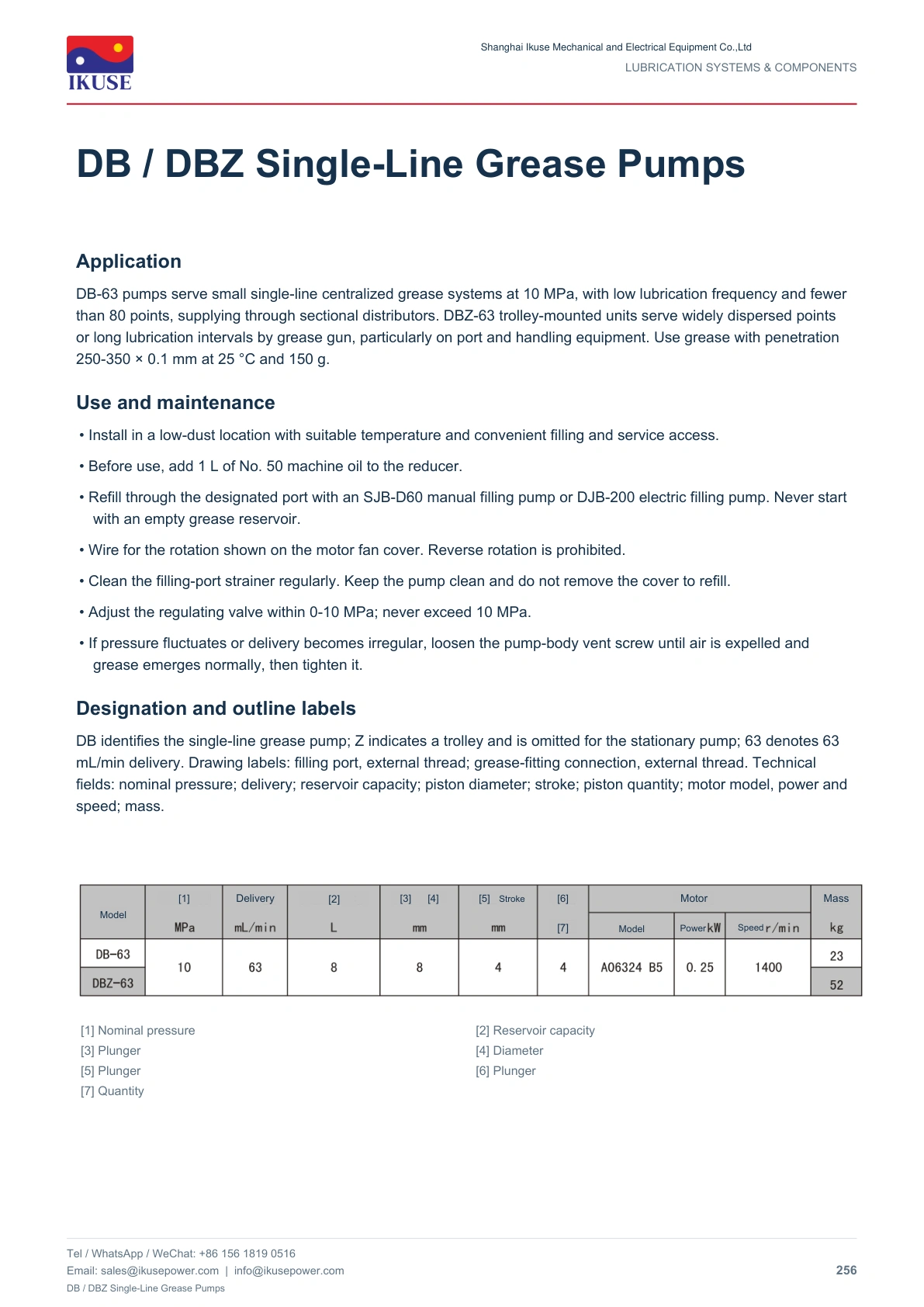

DB-63 pumps serve small single-line centralized grease systems at 10 MPa, with low lubrication frequency and fewer than 80 points, supplying through sectional distributors. DBZ-63 trolley-mounted units serve widely dispersed points or long lubrication intervals by grease gun, particularly on port and handling equipment. Use grease with penetration 250-350 × 0.1 mm at 25 °C and 150 g.
Selection and operation
Grease penetration: 250–350 (0.1 mm, 25°C, 150 g). Select a stationary or mobile version to suit the location; check the hose and filling connection.
Technical documentation

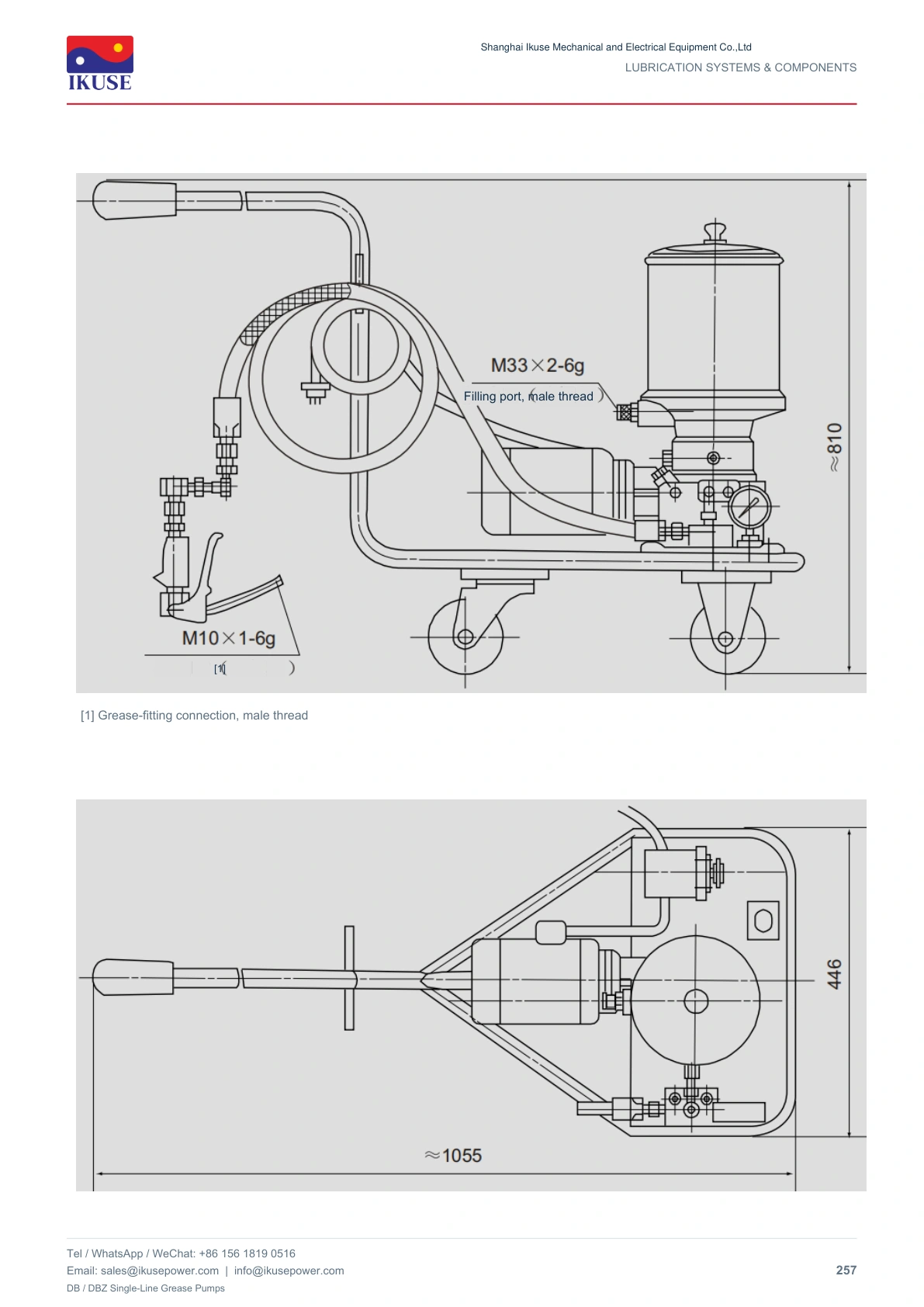

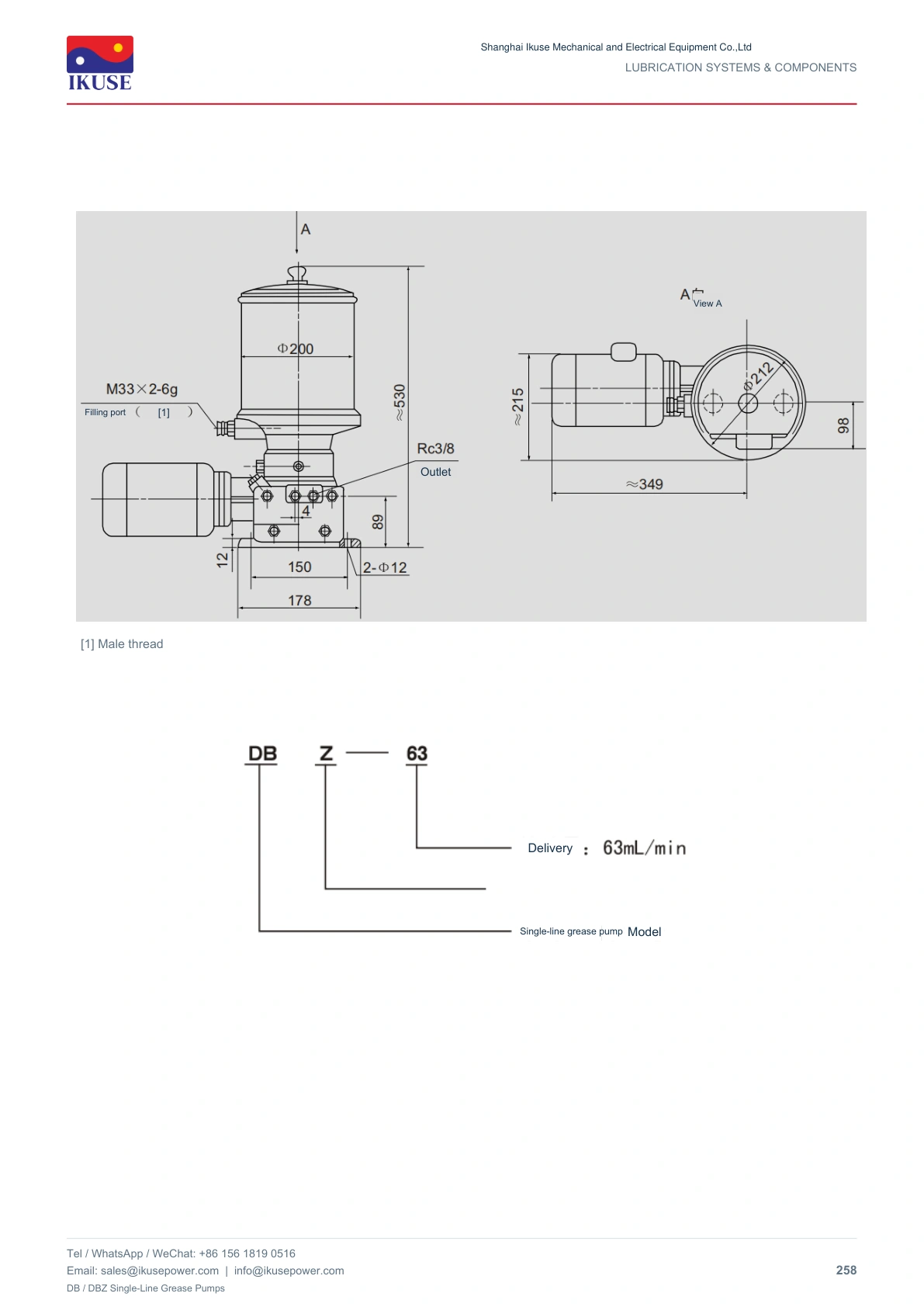

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
