Overview

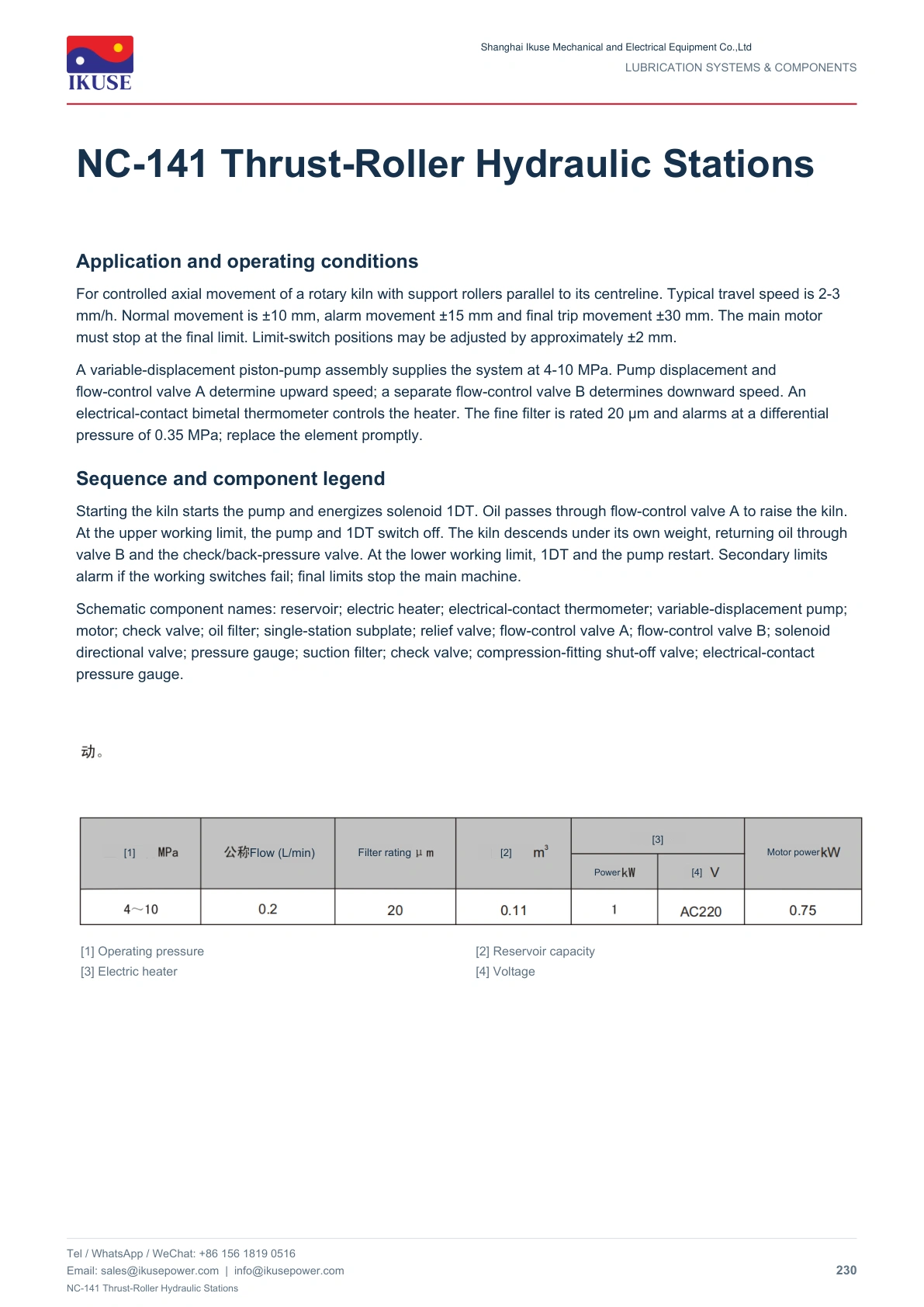

For controlled axial movement of a rotary kiln with support rollers parallel to its centreline. Typical travel speed is 2-3 mm/h. Normal movement is ±10 mm, alarm movement ±15 mm and final trip movement ±30 mm. The main motor must stop at the final limit. Limit-switch positions may be adjusted by approximately ±2 mm.
Selection and operation
Working travel: ±10 mm; alarm travel: ±15 mm; limit travel: ±30 mm. The main motor must stop when the travel limit is reached. Set the limit devices and flow rate according to the kiln operating conditions.
Technical documentation

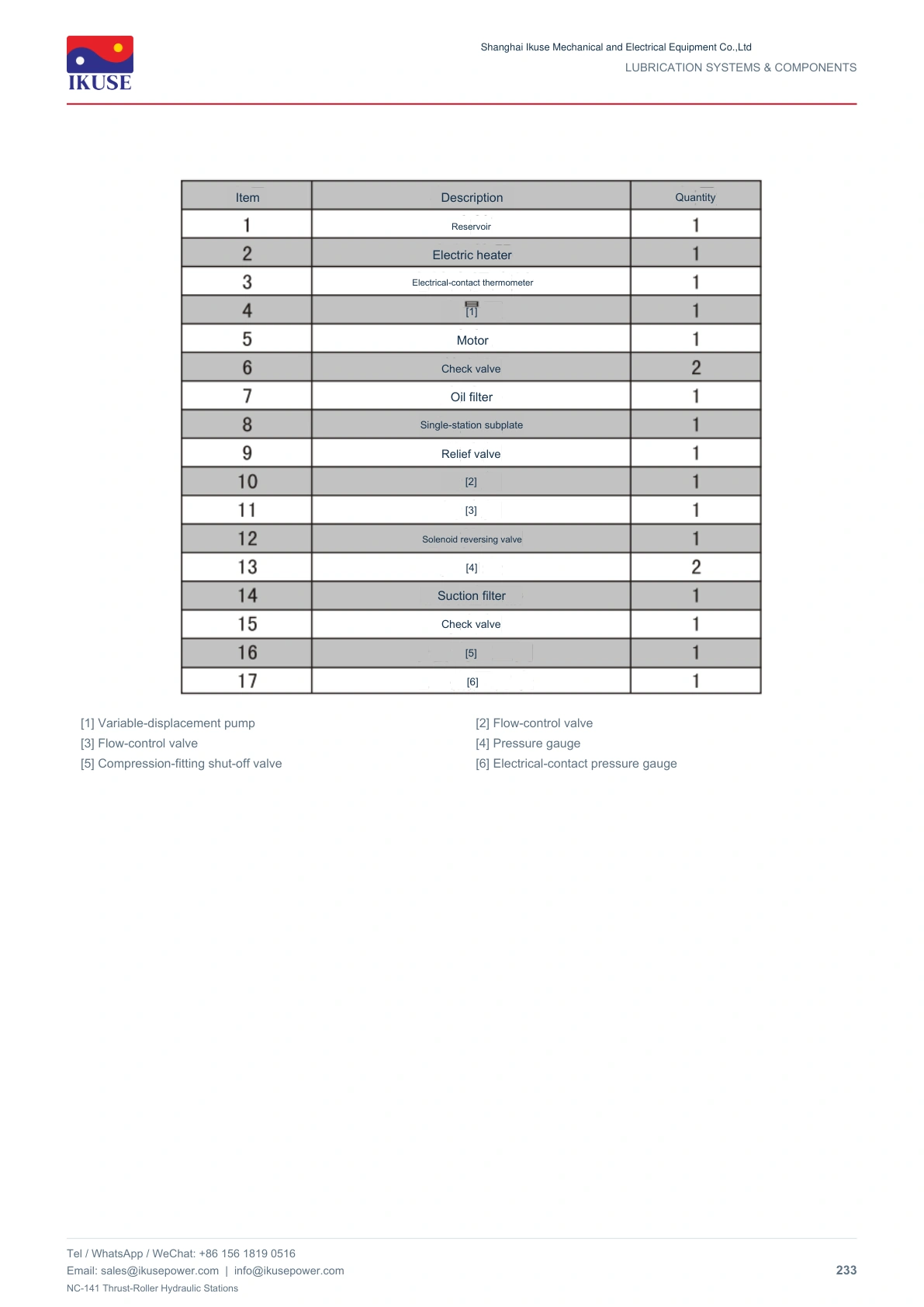

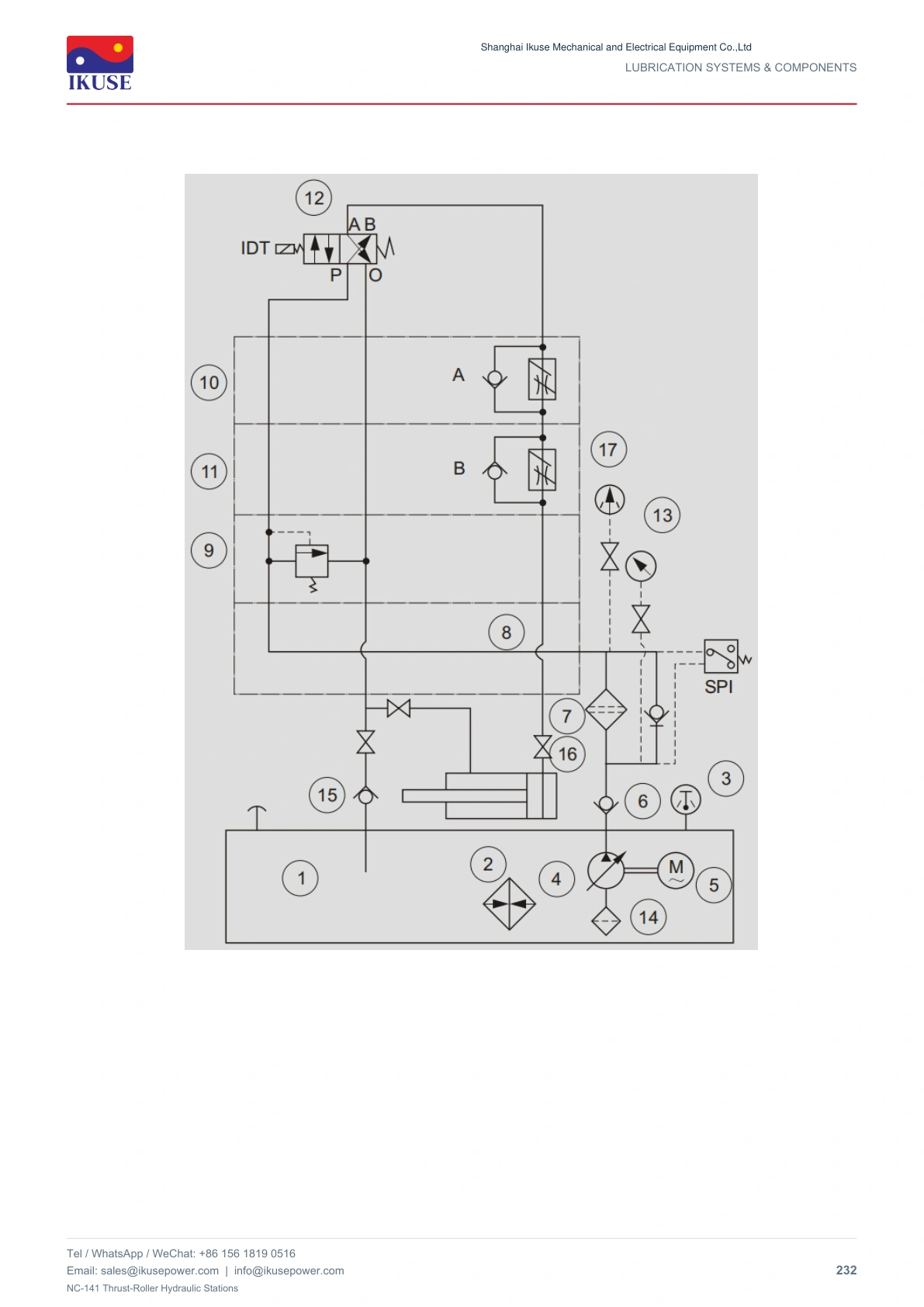

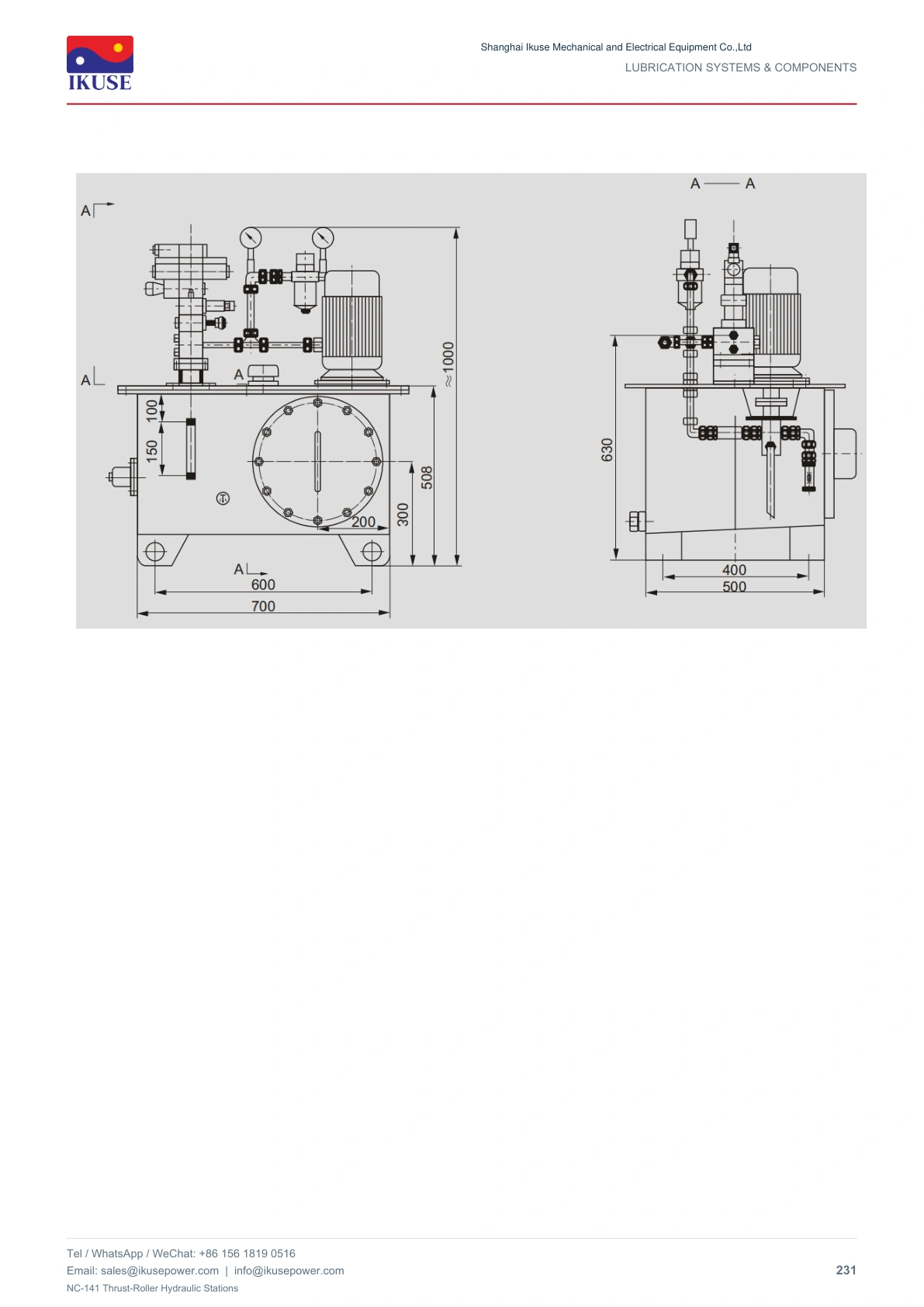

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
