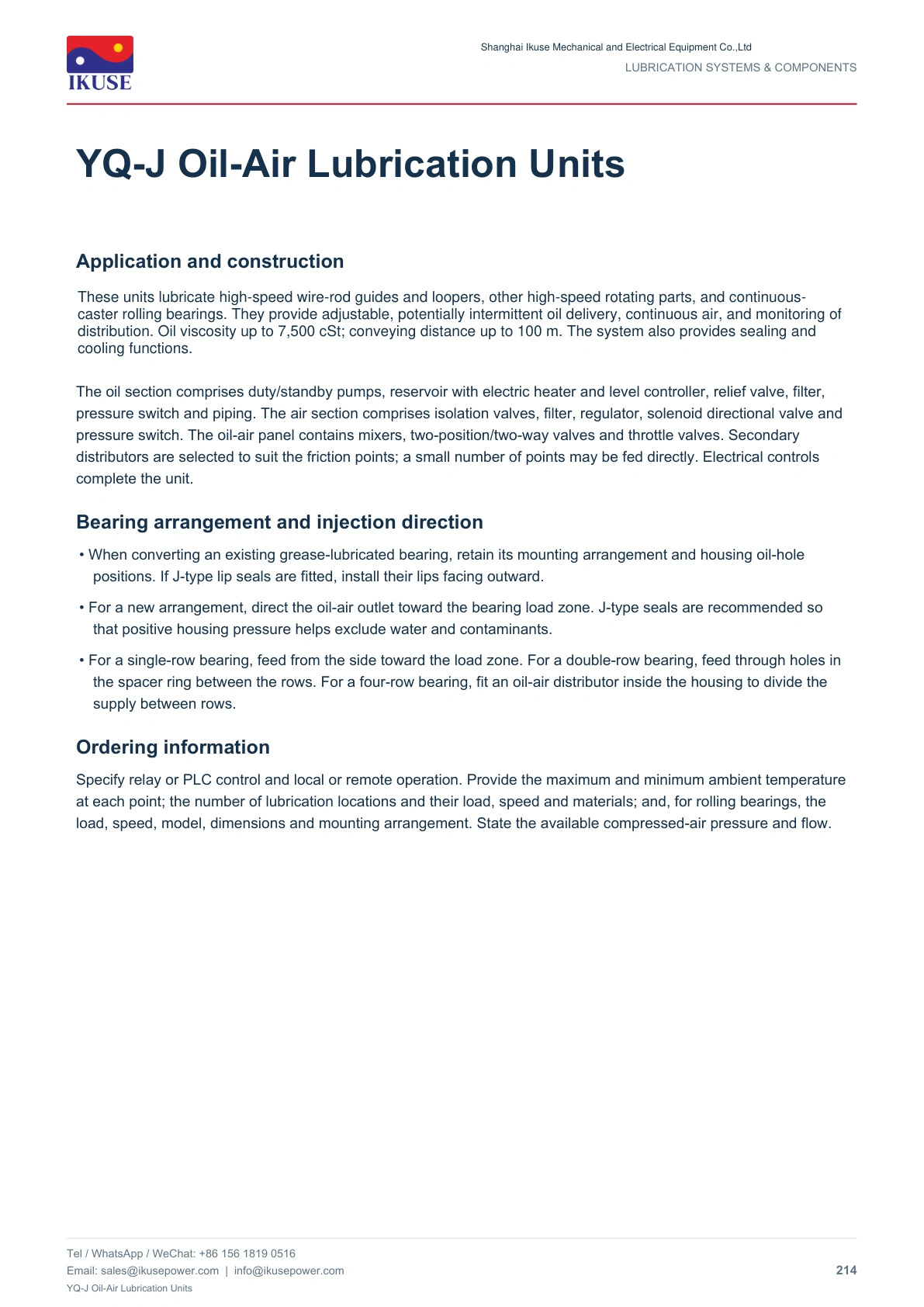

Overview
These units lubricate high-speed wire-rod guides and loopers, other high-speed rotating parts, and continuous-caster rolling bearings. They provide adjustable, potentially intermittent oil delivery, continuous air, and monitoring of distribution. Oil viscosity can be up to 7,500 cSt, with a conveying distance of up to 100 m and sealing and cooling functions.
Selection and operation
The system comprises oil supply, air supply, mixing and electrical control sections. Specify the number of points, bearing data, temperature and compressed-air conditions; select relay control or a PLC.
Technical documentation

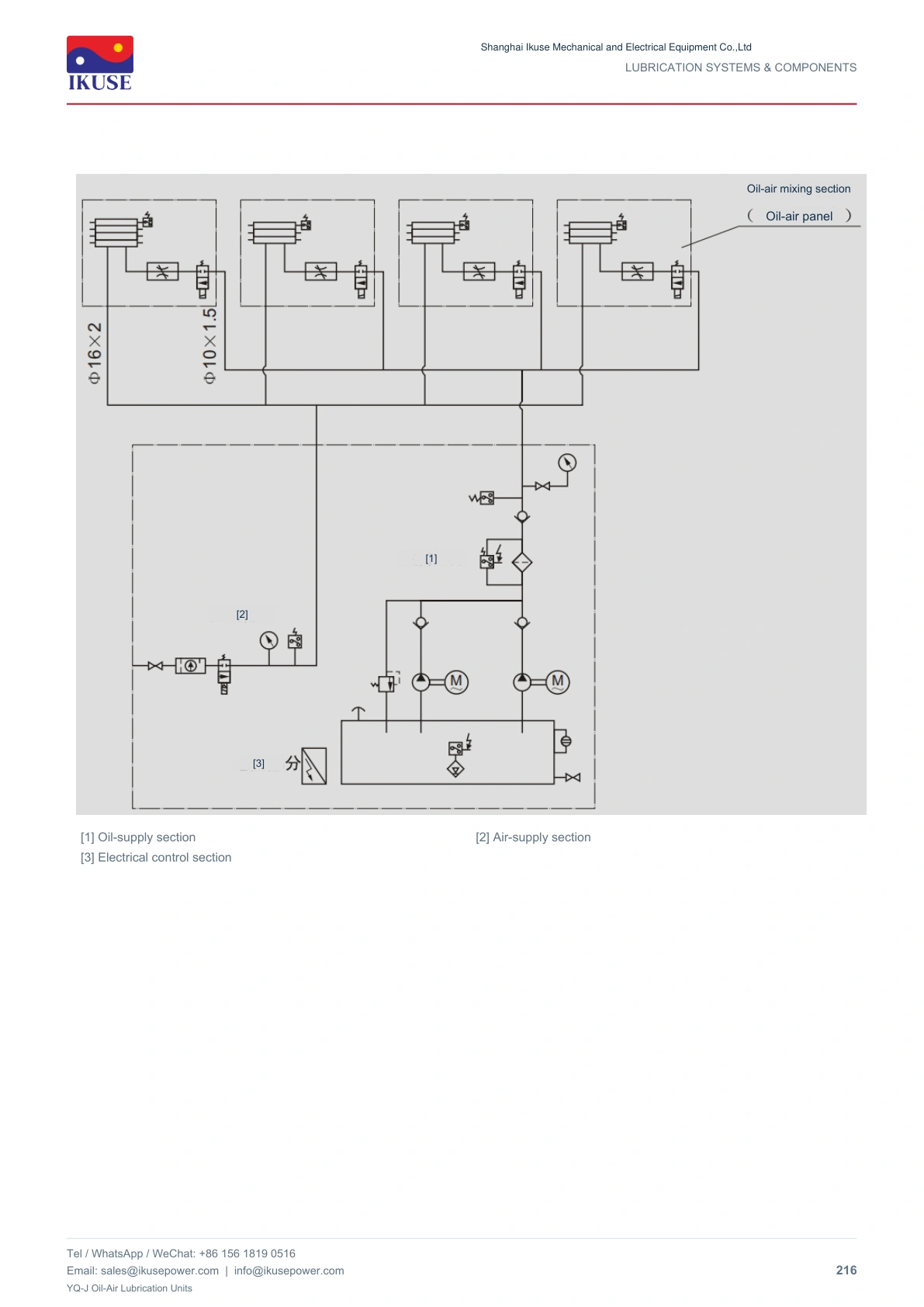

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
