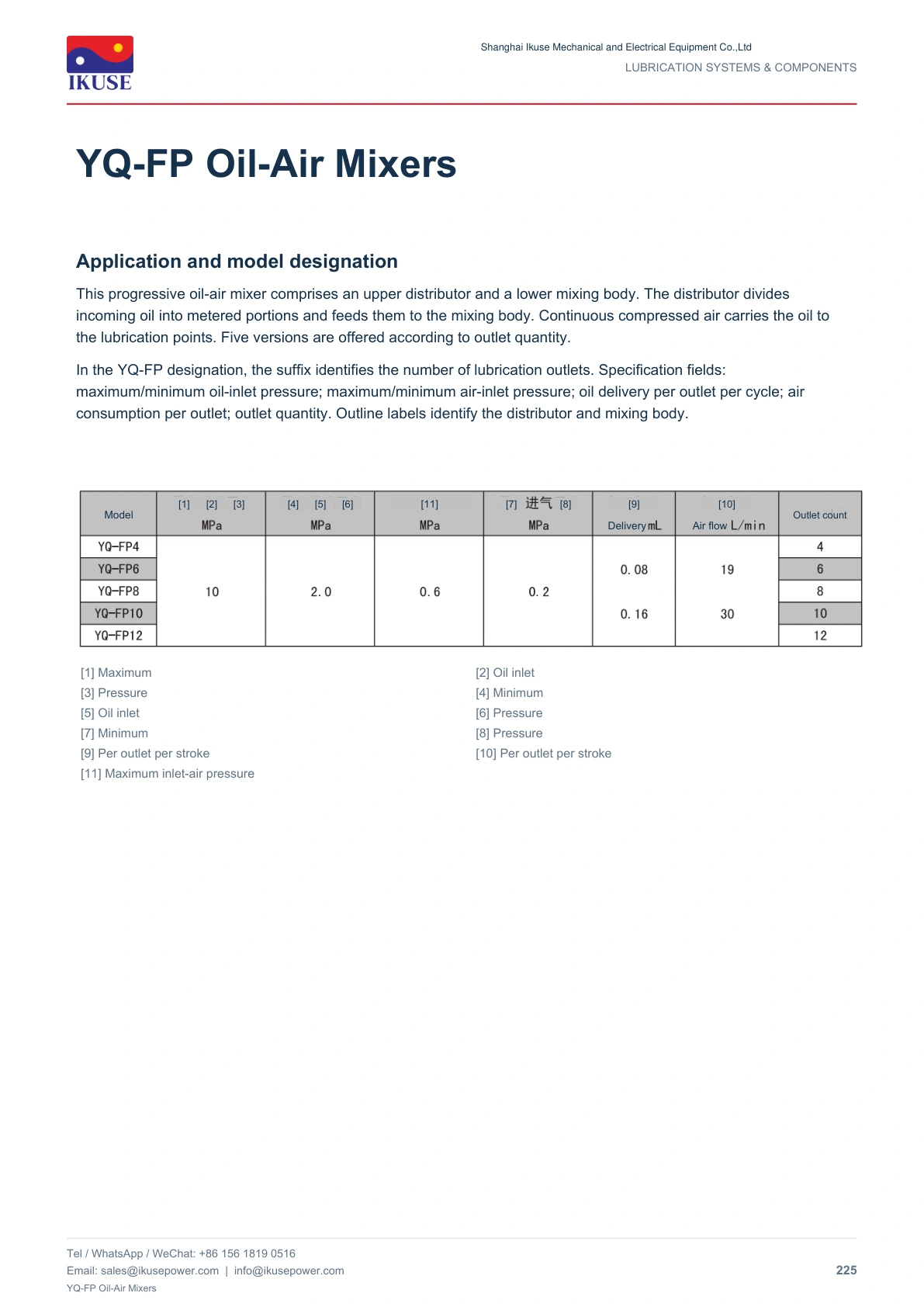

Overview
This progressive oil-air mixer comprises an upper distributor and a lower mixing body. The distributor divides incoming oil into metered portions and feeds them to the mixing body. Continuous compressed air carries the oil to the lubrication points. Five versions are offered according to outlet quantity.
Selection and operation
Select YQ-FP4, 6, 8, 10 or 12 according to the number of outlets. Specify the oil delivery, air consumption and piping conditions when ordering.
Technical documentation

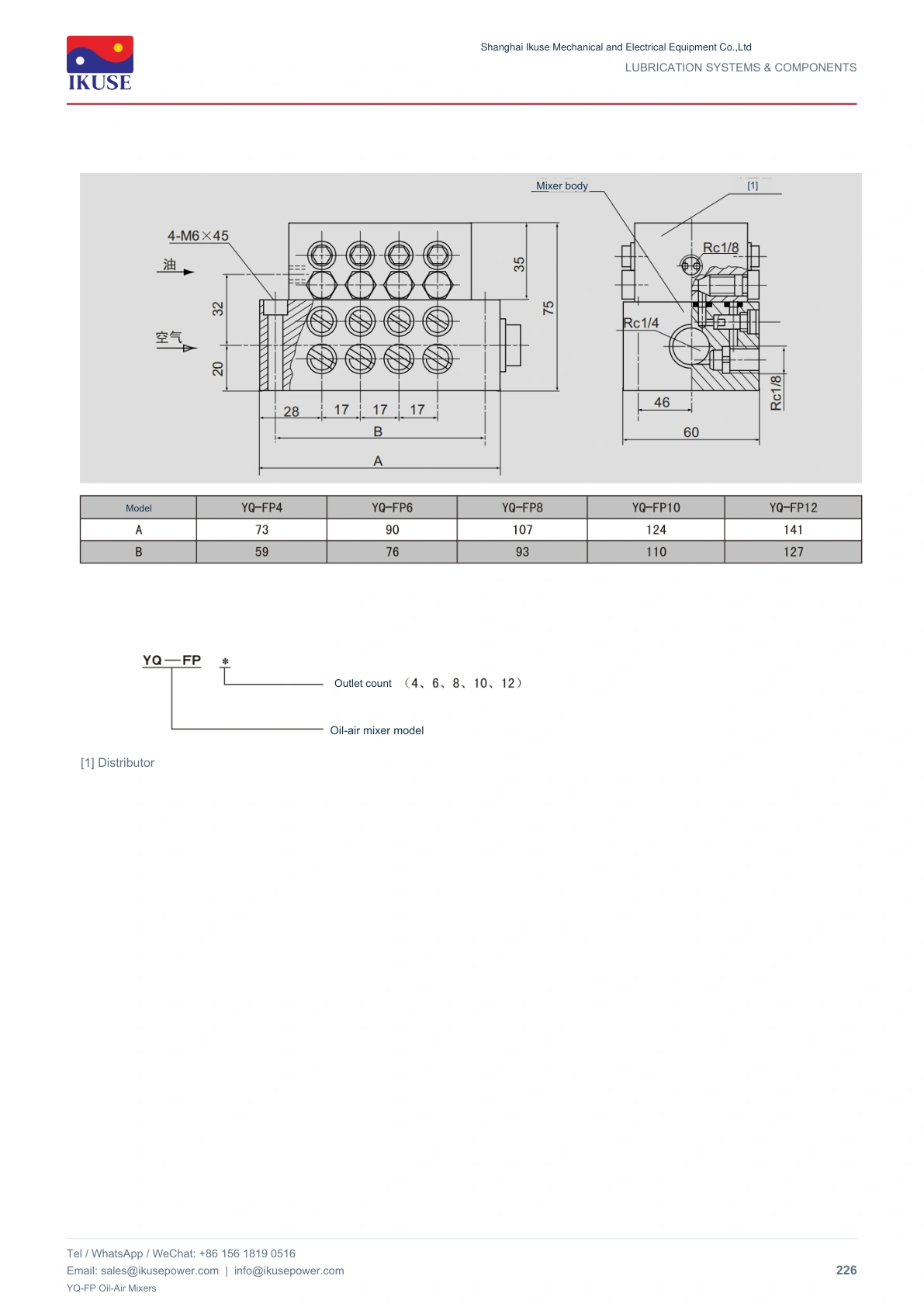

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
