Overview

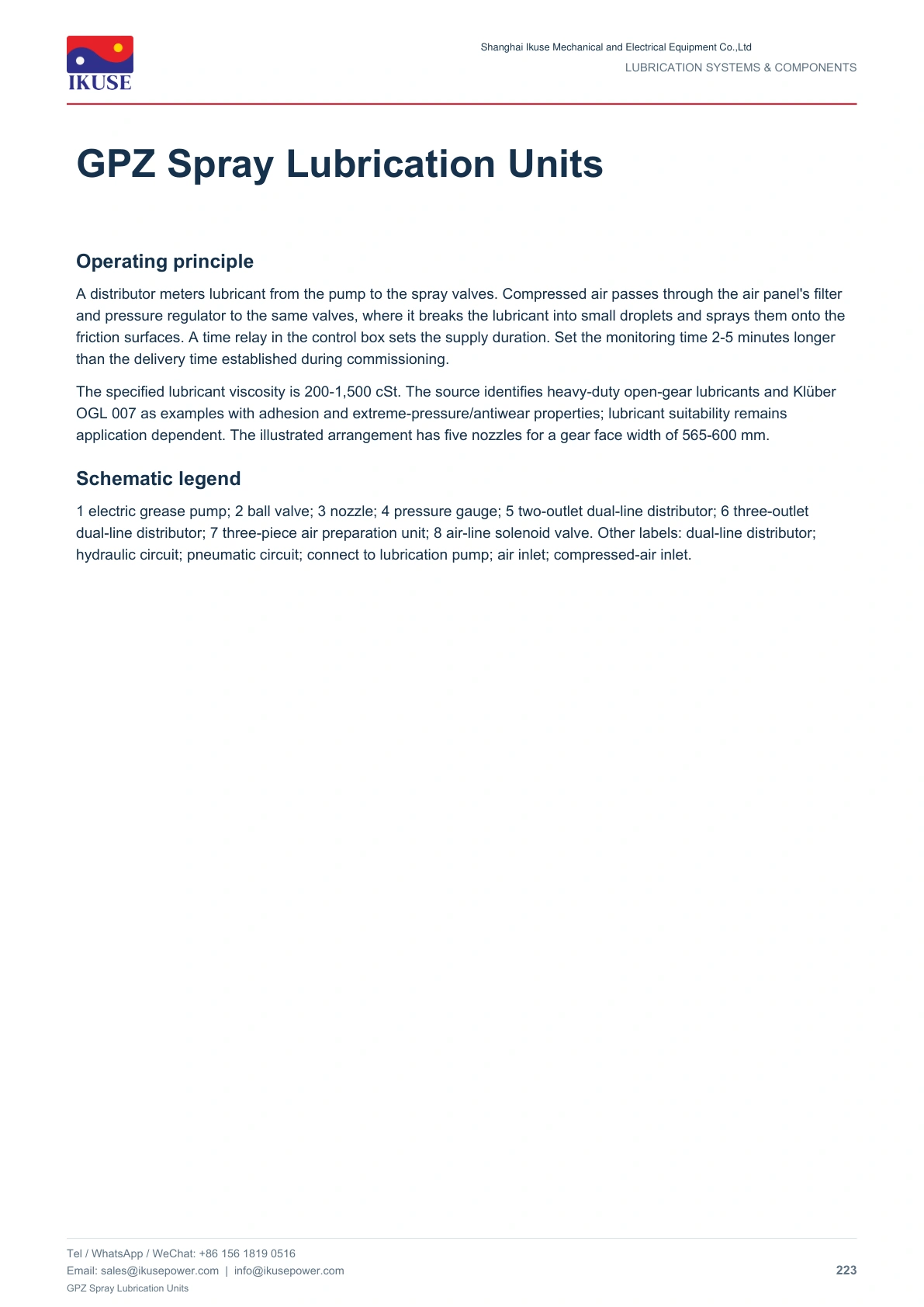

A distributor meters lubricant from the pump to the spray valves. Compressed air passes through the air panel's filter and pressure regulator to the same valves, where it breaks the lubricant into small droplets and sprays them onto the friction surfaces. A time relay in the control box sets the supply duration. Set the monitoring time 2-5 minutes longer than the delivery time established during commissioning.
Selection and operation

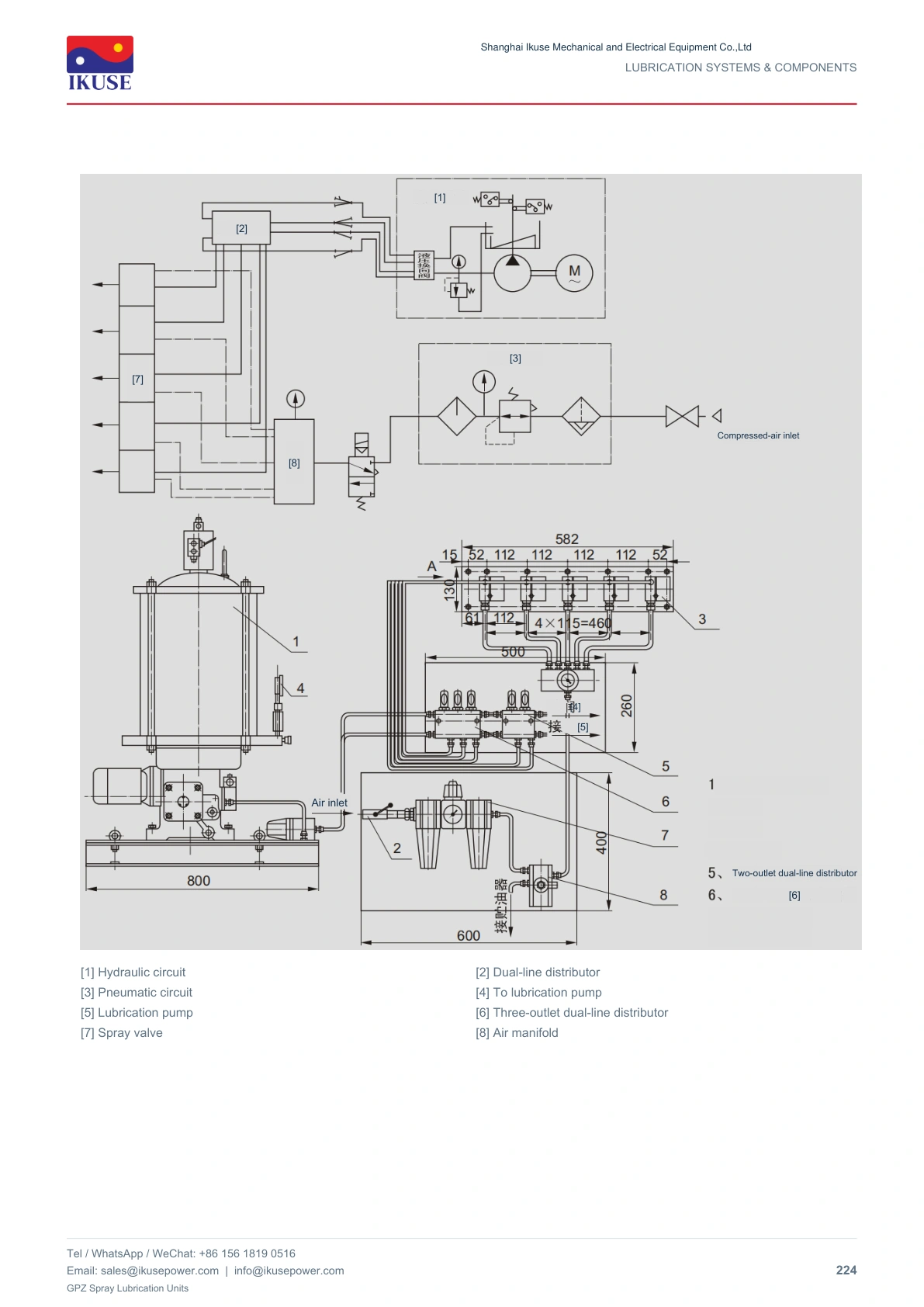

Lubricant viscosity: 200–1500 cSt. The illustrated configuration has five nozzles for a gear face width of 565–600 mm. For other widths, agree the nozzle quantity and positions separately.
Technical documentation
Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
