Overview

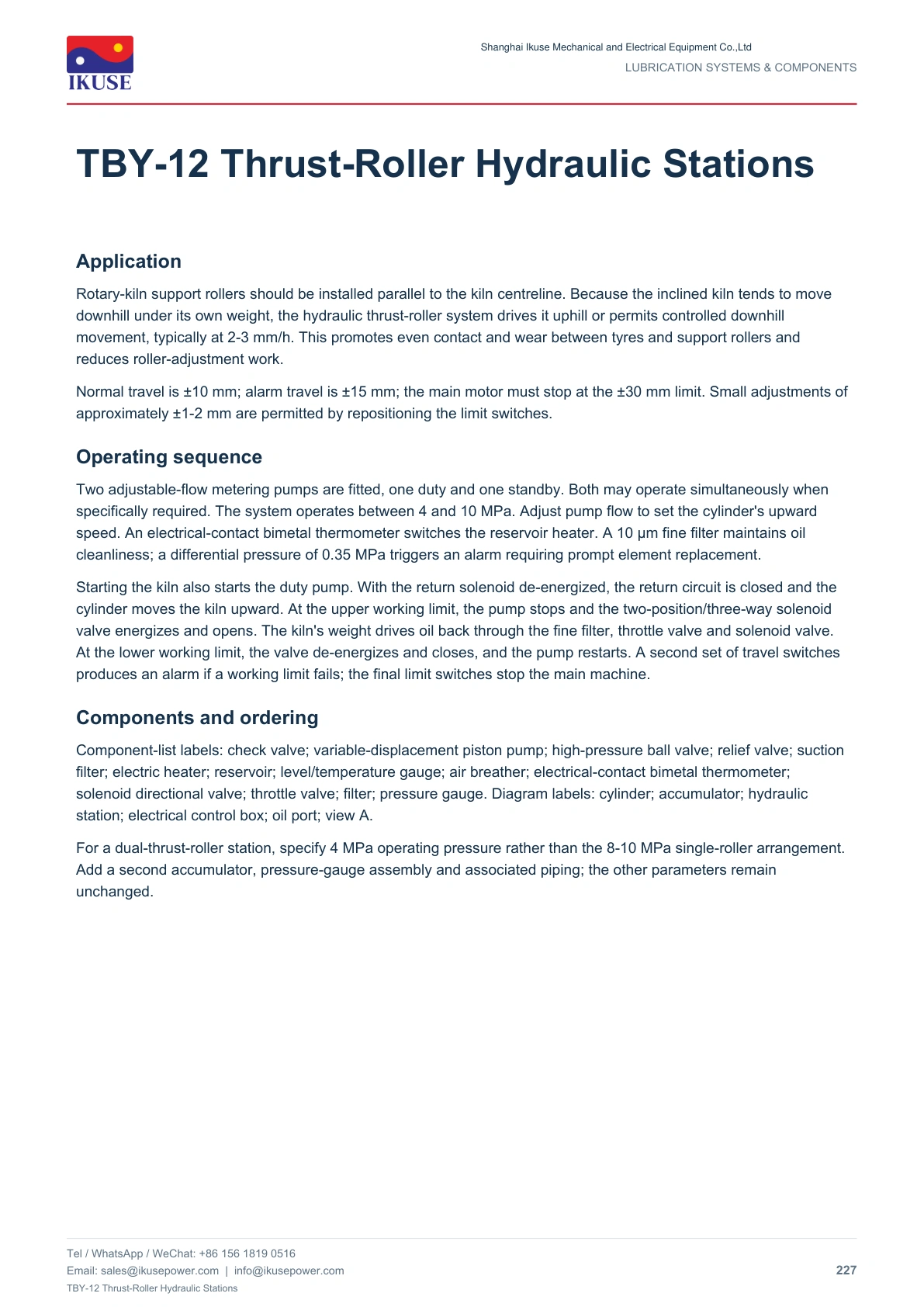

Rotary-kiln support rollers should be installed parallel to the kiln centreline. Because the inclined kiln tends to move downhill under its own weight, the hydraulic thrust-roller system drives it uphill or permits controlled downhill movement, typically at 2-3 mm/h. This promotes even contact and wear between tyres and support rollers and reduces roller-adjustment work.
Selection and operation
Working travel: ±10 mm; alarm travel: ±15 mm; limit travel: ±30 mm. The main motor must stop when the travel limit is reached. Set the limit devices and flow rate according to the kiln operating conditions.
Technical documentation

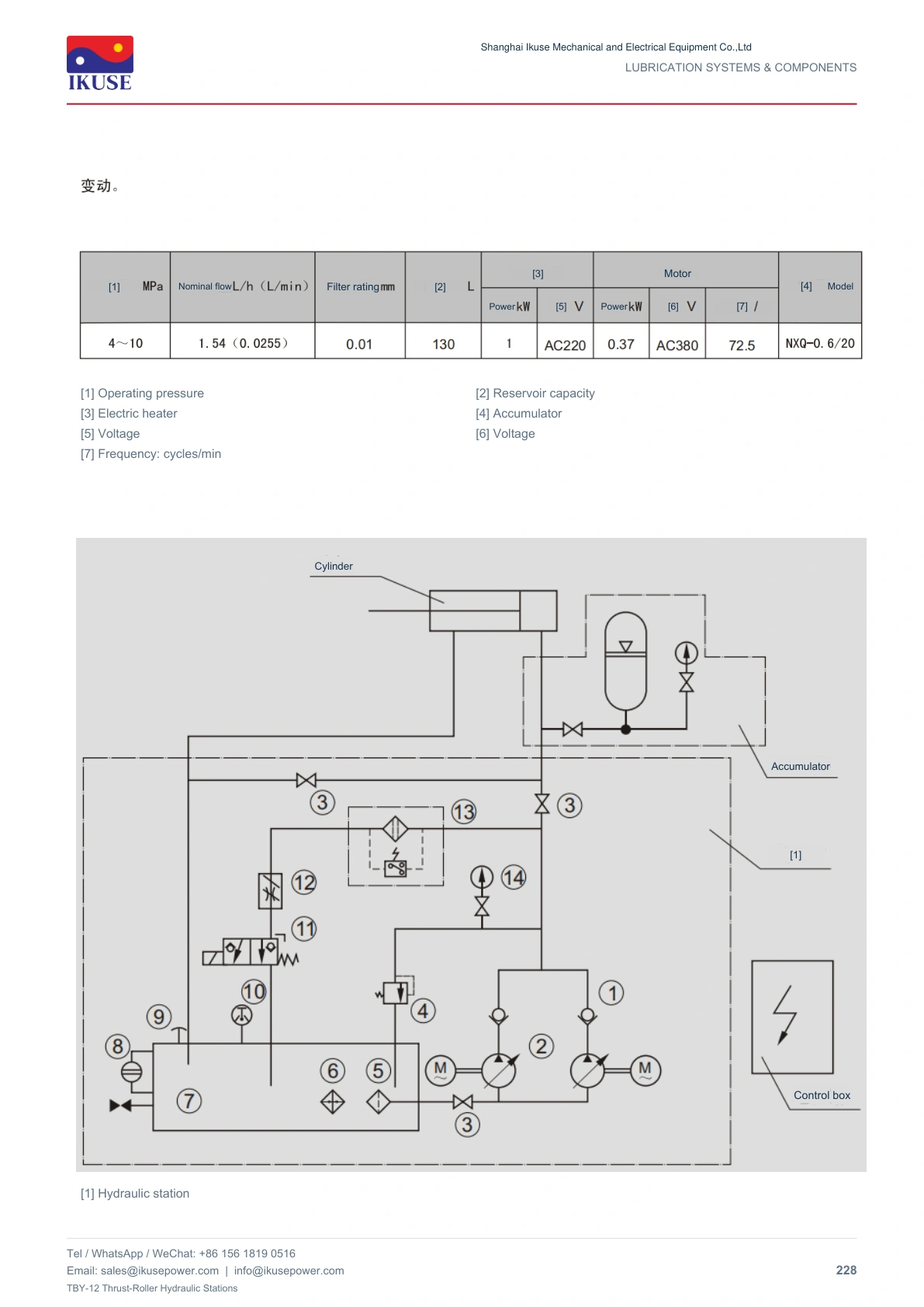

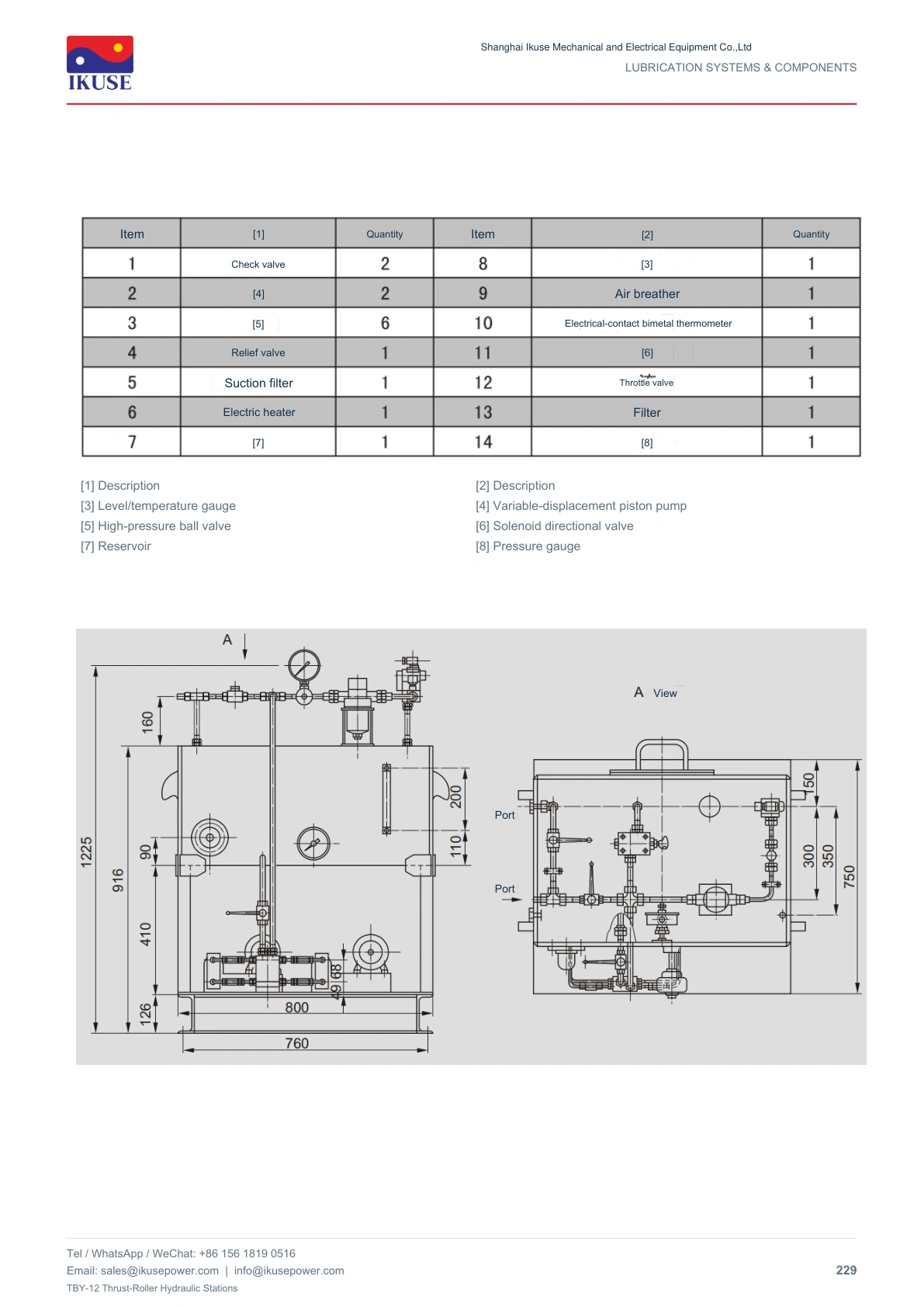

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
