Overview
For 20 MPa dual-line centralized grease systems. The piston alternately supplies top and bottom outlets. Indicator rods show operation and screws adjust delivery. Use the specified grease or oil above N68; the source gives penetration at least 265 × 0.1 mm with an NLGI 0-1 label. Ambient temperature: −10 to 80 °C. Operate below 10 MPa with oil.
Selection and operation
For oil service, reduce the pressure as specified in the catalogue. Select the version according to the number of outlets and delivery.
Technical documentation

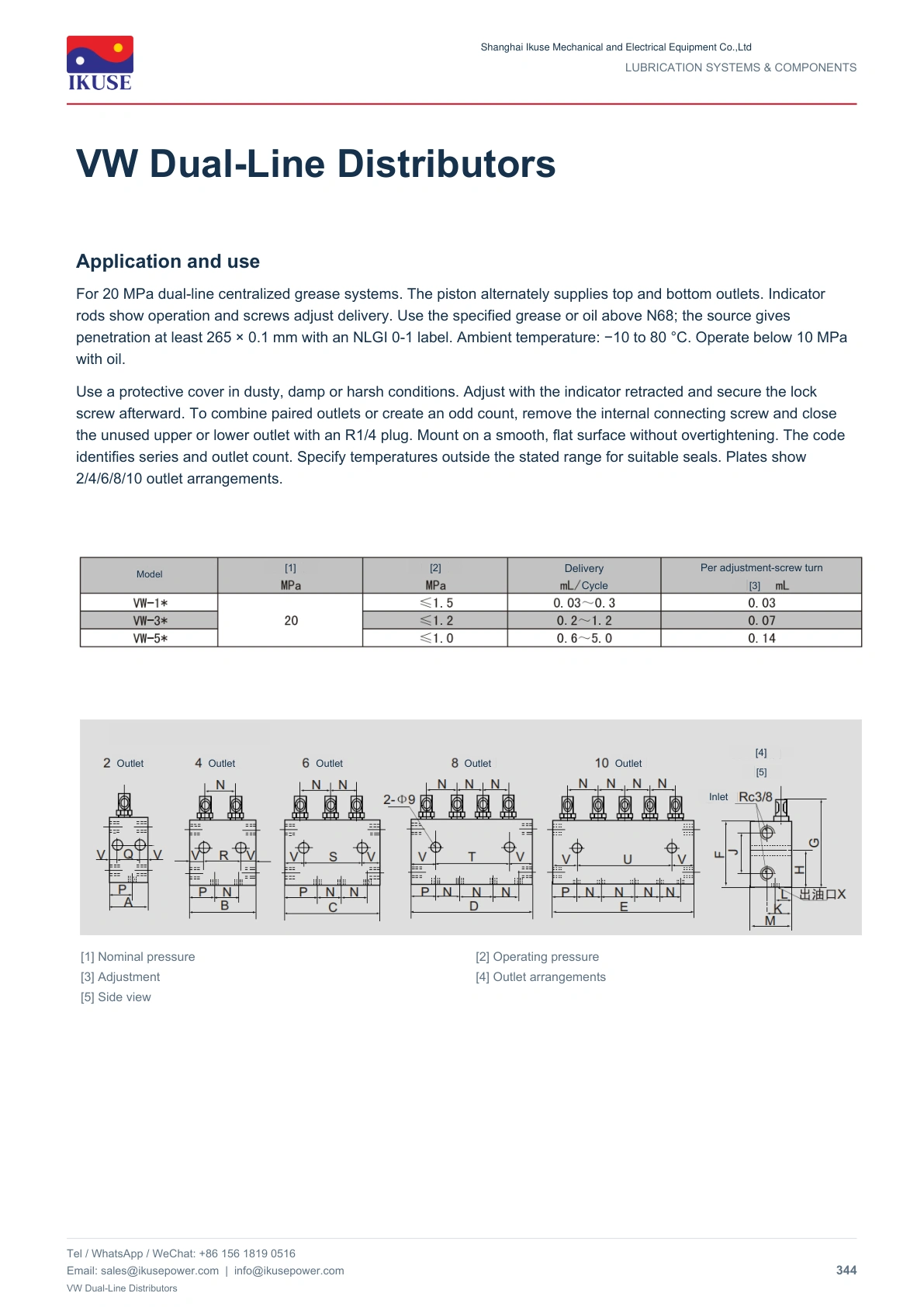

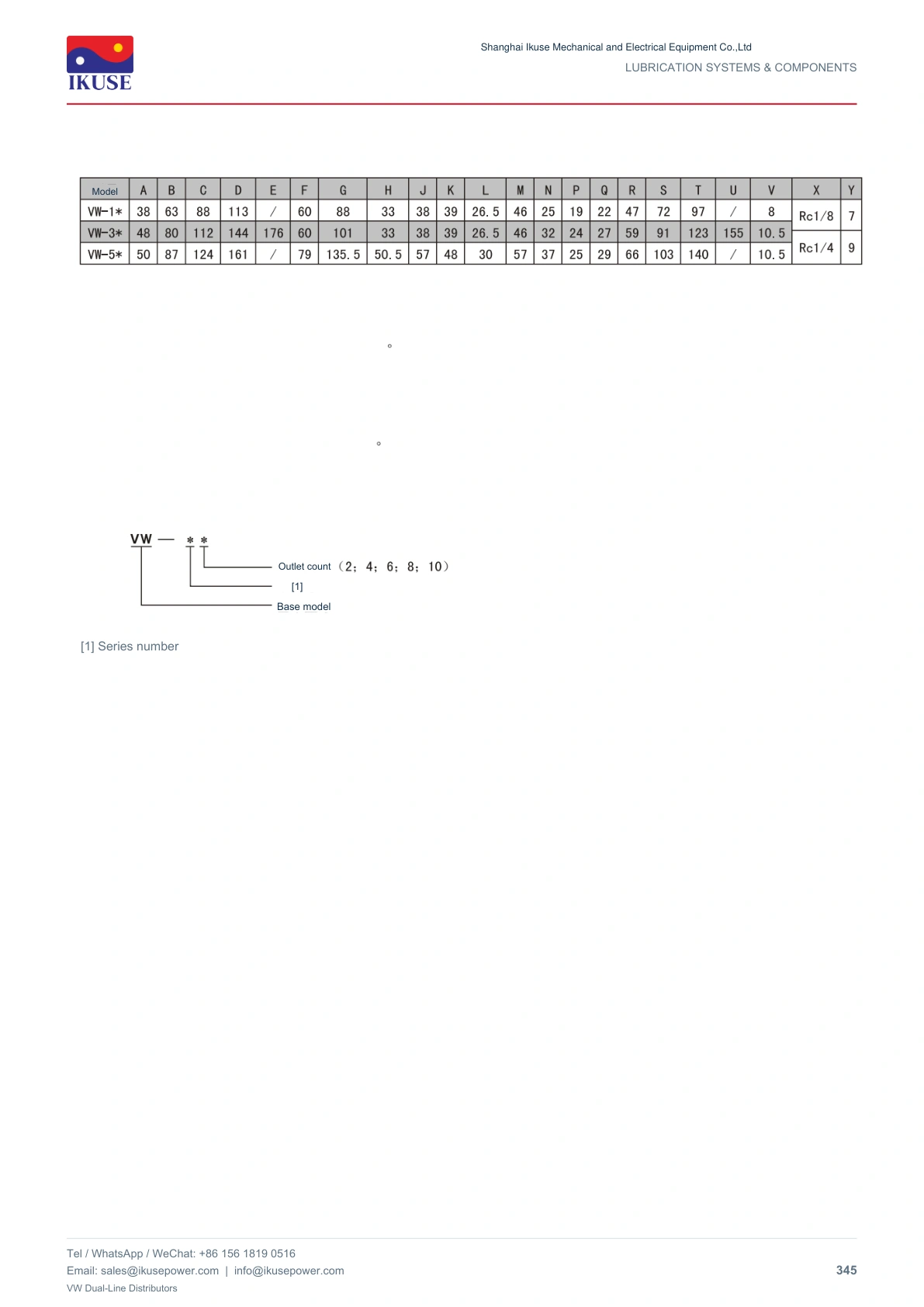

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
