Overview

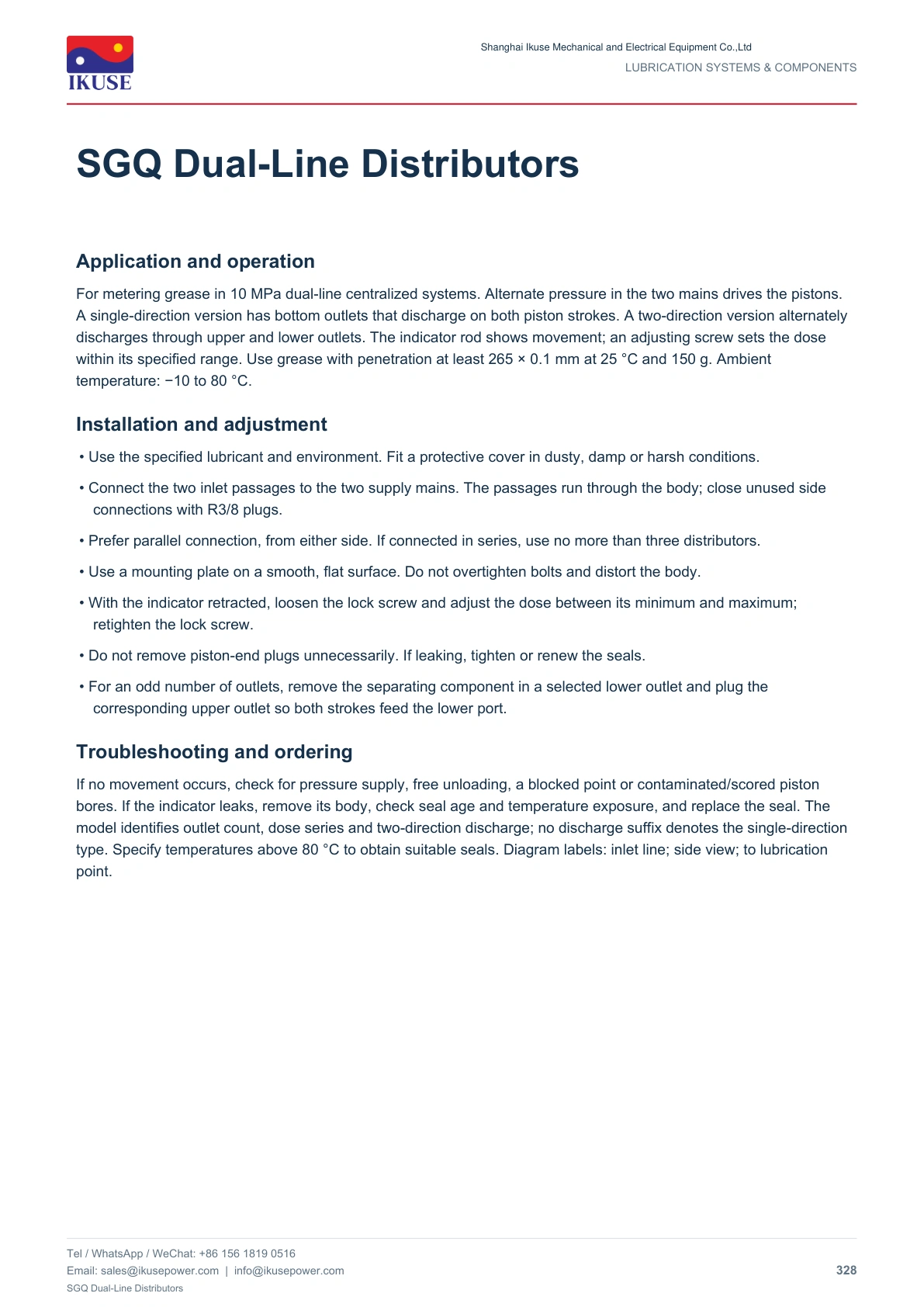

For metering grease in 10 MPa dual-line centralized systems. Alternate pressure in the two mains drives the pistons. A single-direction version has bottom outlets that discharge on both piston strokes. A two-direction version alternately discharges through upper and lower outlets. The indicator rod shows movement; an adjusting screw sets the dose within its specified range. Use grease with penetration at least 265 × 0.1 mm at 25 °C and 150 g. Ambient temperature: −10 to 80 °C.
Selection and operation
Versions with delivery in one or two directions are available. Select according to the number of lubrication points and the required delivery per point.
Technical documentation

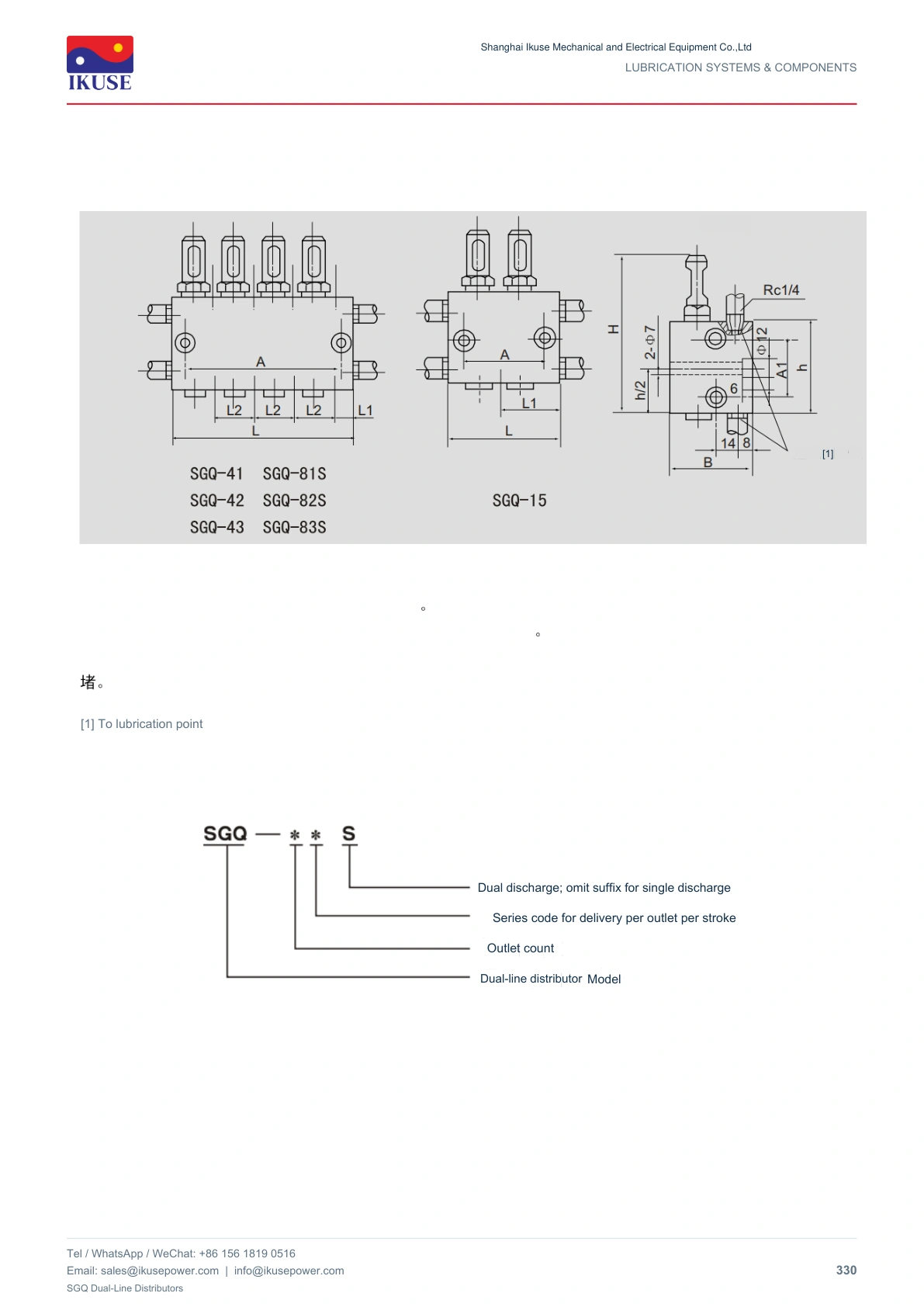

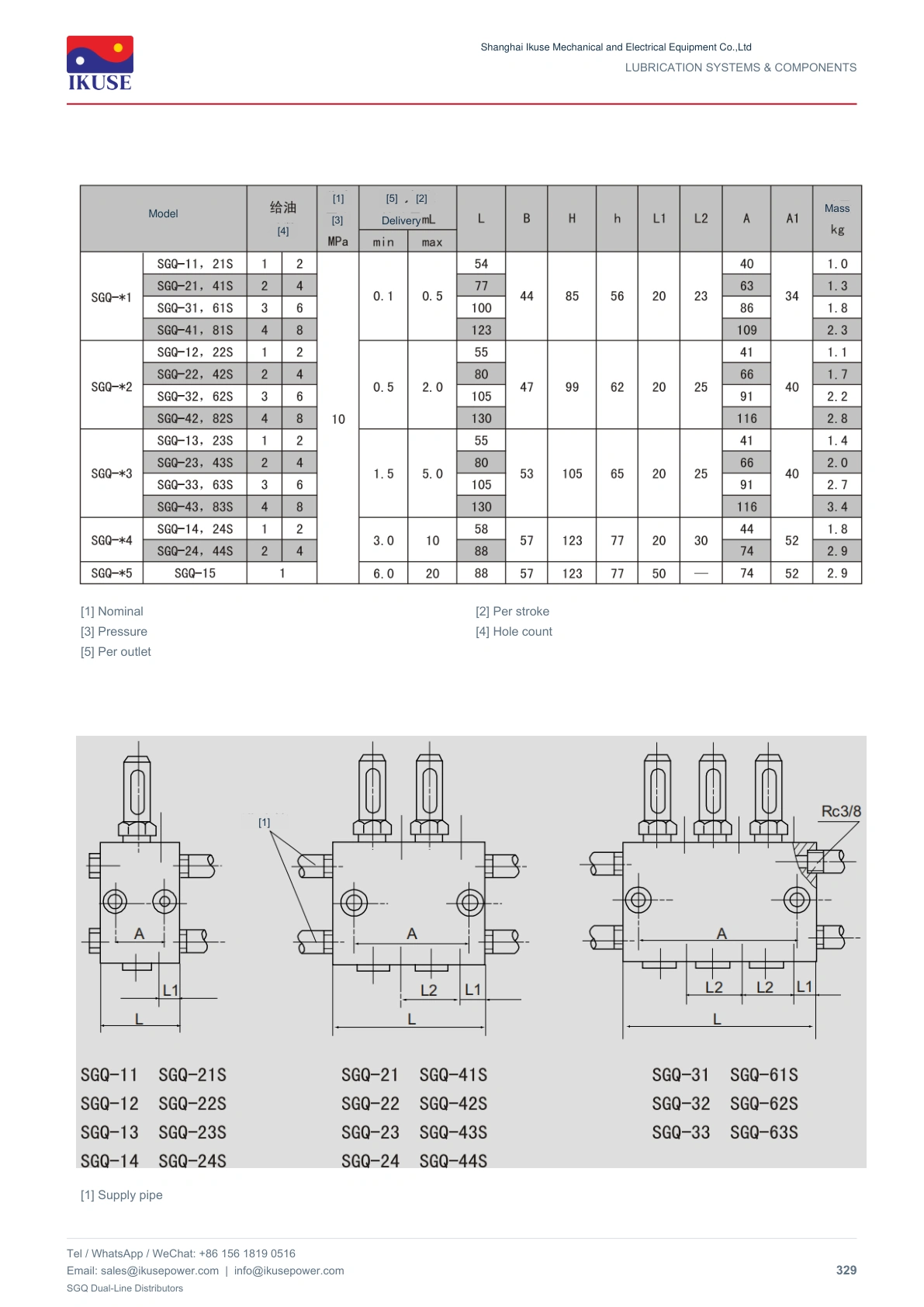

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
