Overview

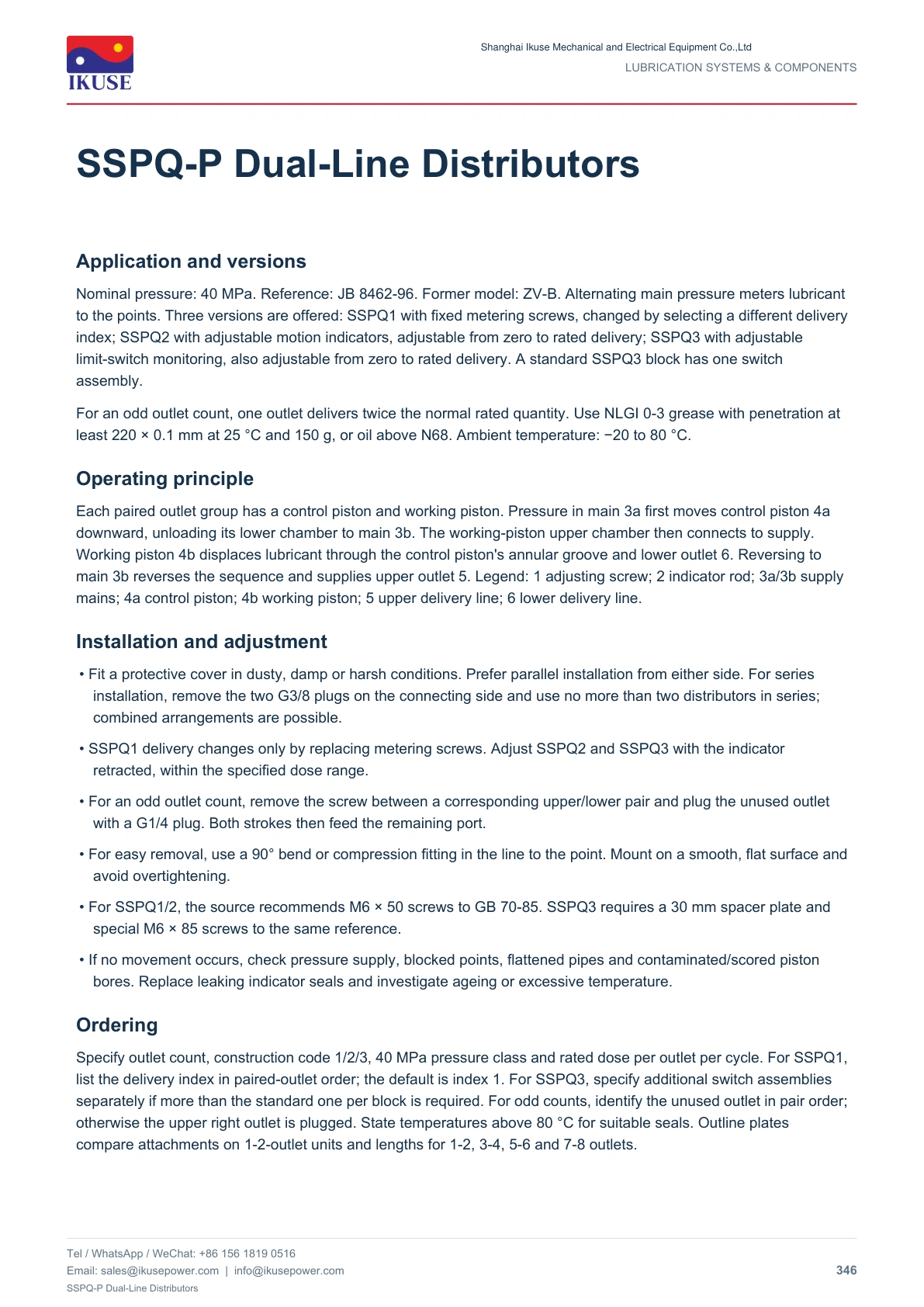

Nominal pressure: 40 MPa. Reference: JB 8462-96. Former model: ZV-B. Alternating main pressure meters lubricant to the points. Three versions are offered: SSPQ1 with fixed metering screws, changed by selecting a different delivery index; SSPQ2 with adjustable motion indicators, adjustable from zero to rated delivery; SSPQ3 with adjustable limit-switch monitoring, also adjustable from zero to rated delivery. A standard SSPQ3 block has one switch assembly.
Selection and operation
Select according to the number of outlets, delivery and monitoring requirements. Combine outlets as shown in the applicable circuit diagram.
Technical documentation

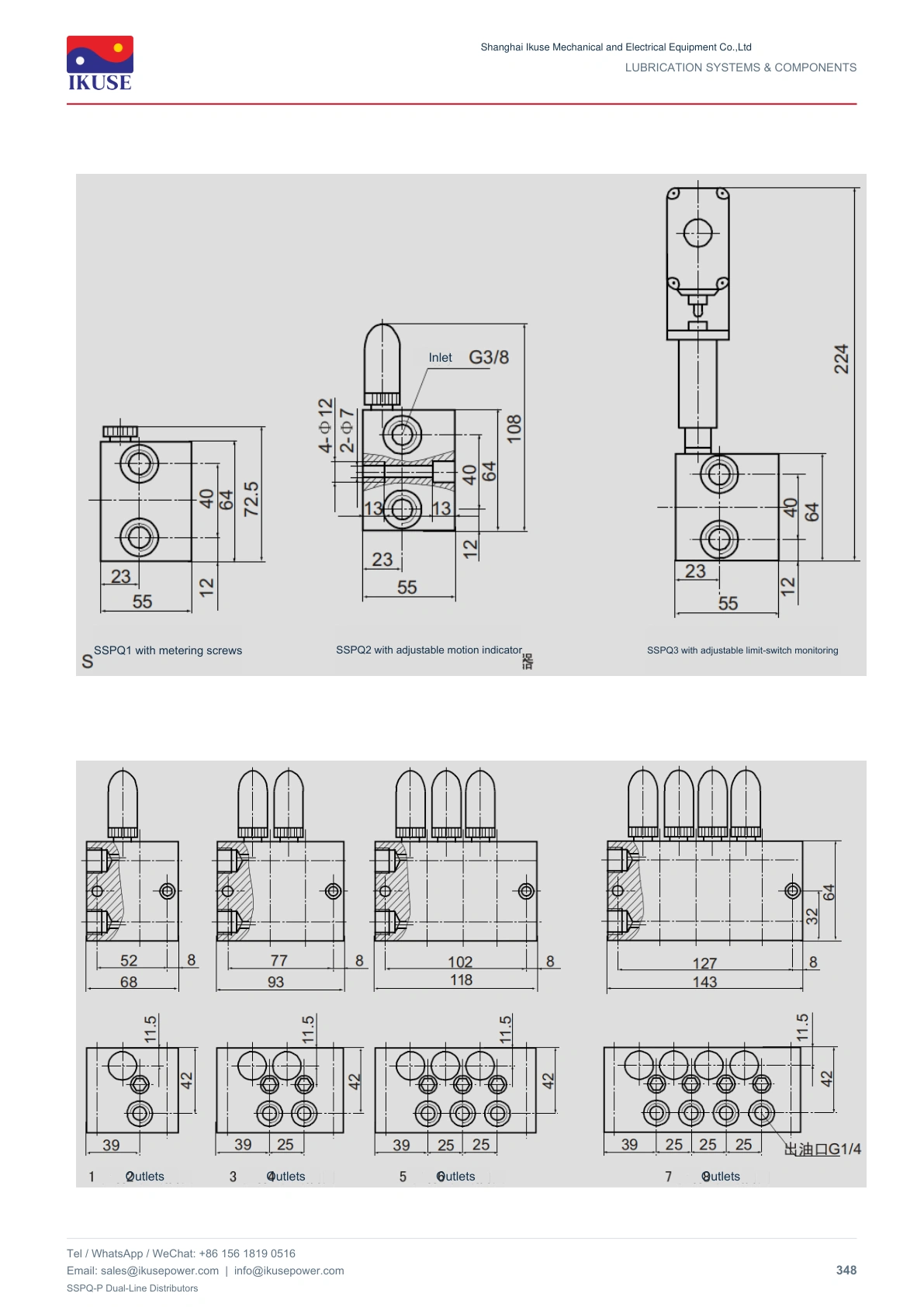

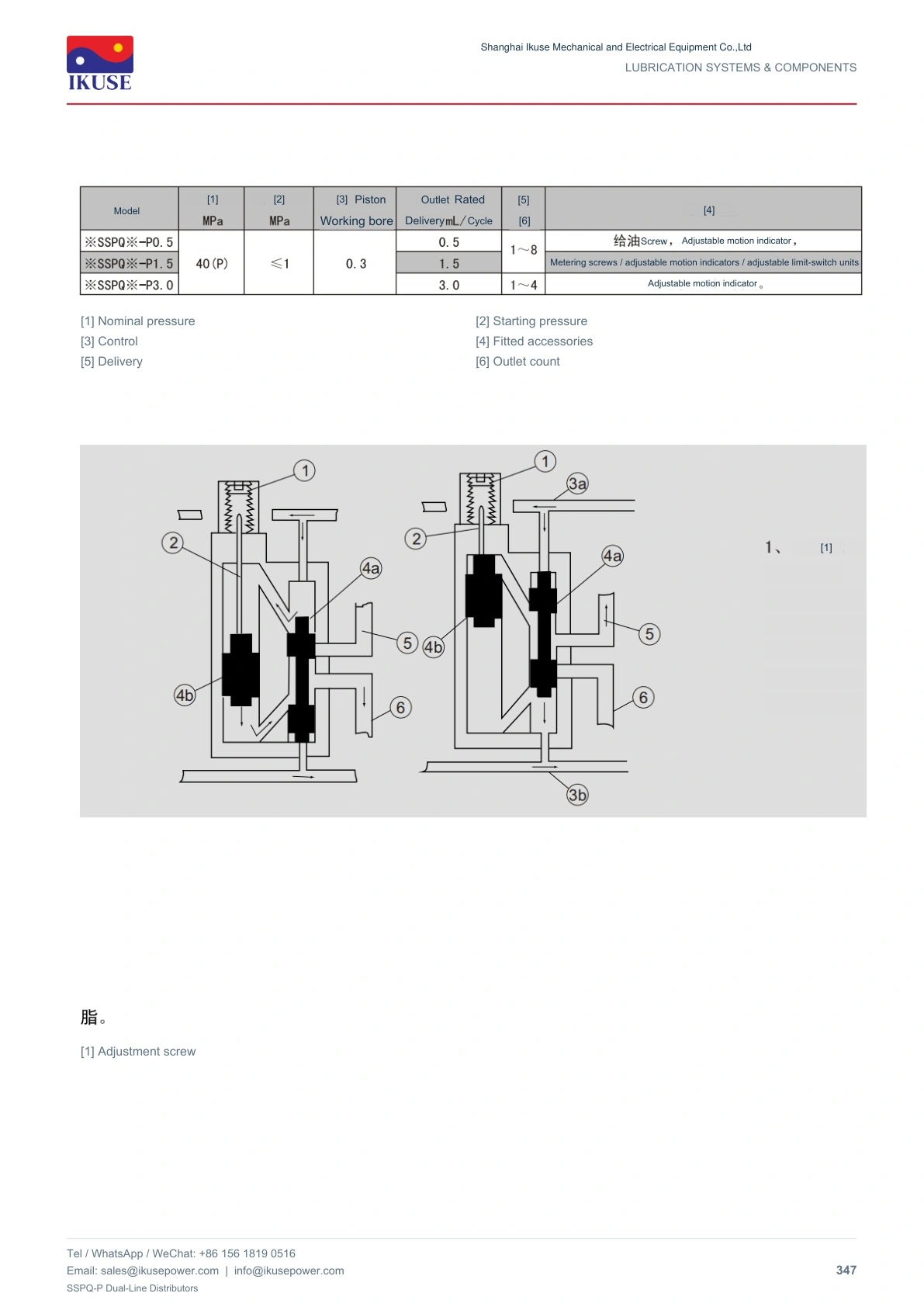

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
