Overview

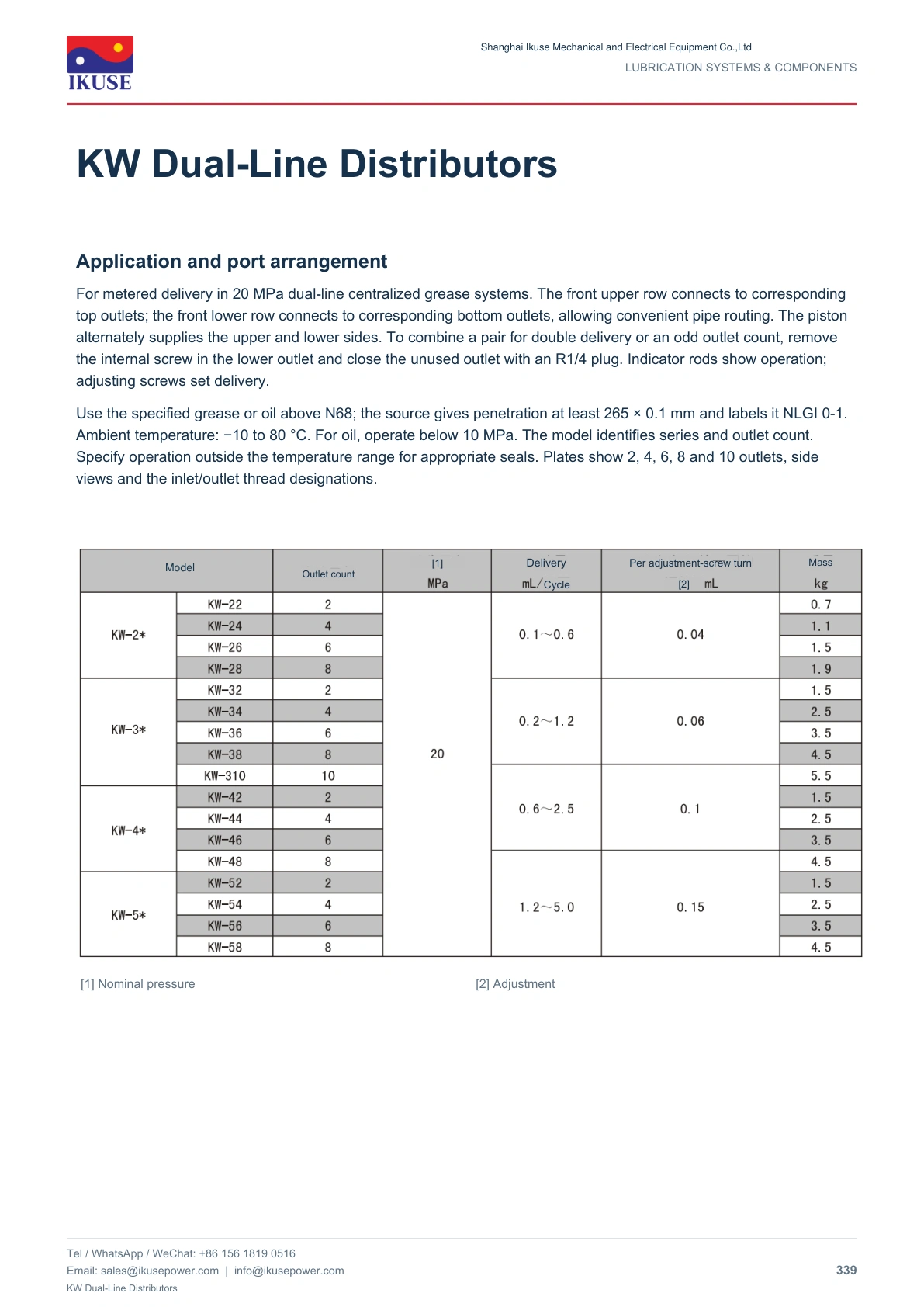

For metered delivery in 20 MPa dual-line centralized grease systems. The front upper row connects to corresponding top outlets; the front lower row connects to corresponding bottom outlets, allowing convenient pipe routing. The piston alternately supplies the upper and lower sides. To combine a pair for double delivery or an odd outlet count, remove the internal screw in the lower outlet and close the unused outlet with an R1/4 plug. Indicator rods show operation; adjusting screws set delivery.
Selection and operation
For oil service, reduce the pressure as specified in the catalogue. Select the version according to the number of outlets and delivery.
Technical documentation

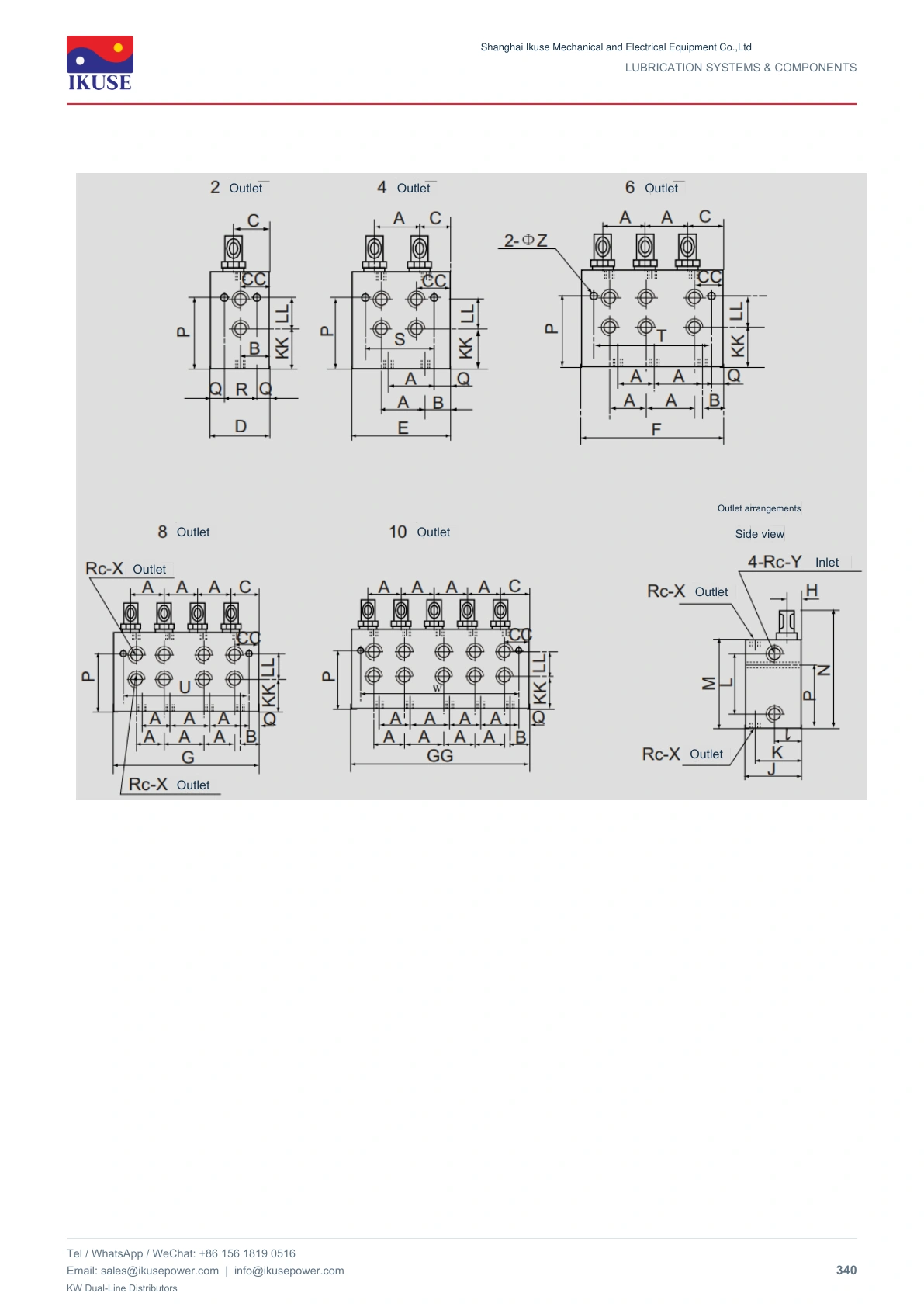

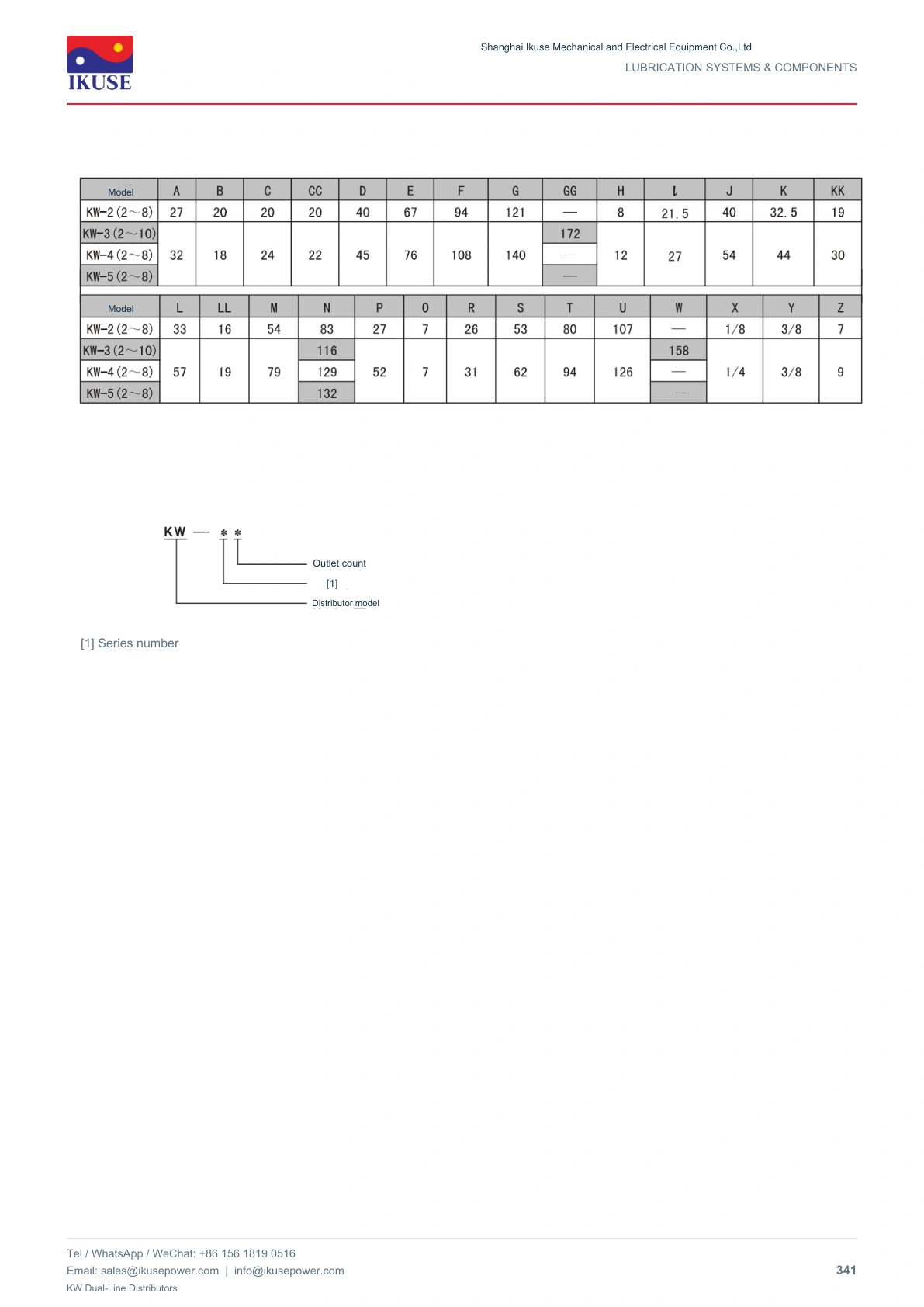

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
