Overview
SWCQ filters serve oil lubrication systems at a nominal pressure of 0.63 MPa. In addition to removing general contaminants, the internal magnetic core captures magnetic particles small enough to pass through the mesh, reducing premature wear of friction surfaces. Two filter housings and a three-position, six-way valve provide duty/standby operation and changeover without stopping.
Technical documentation

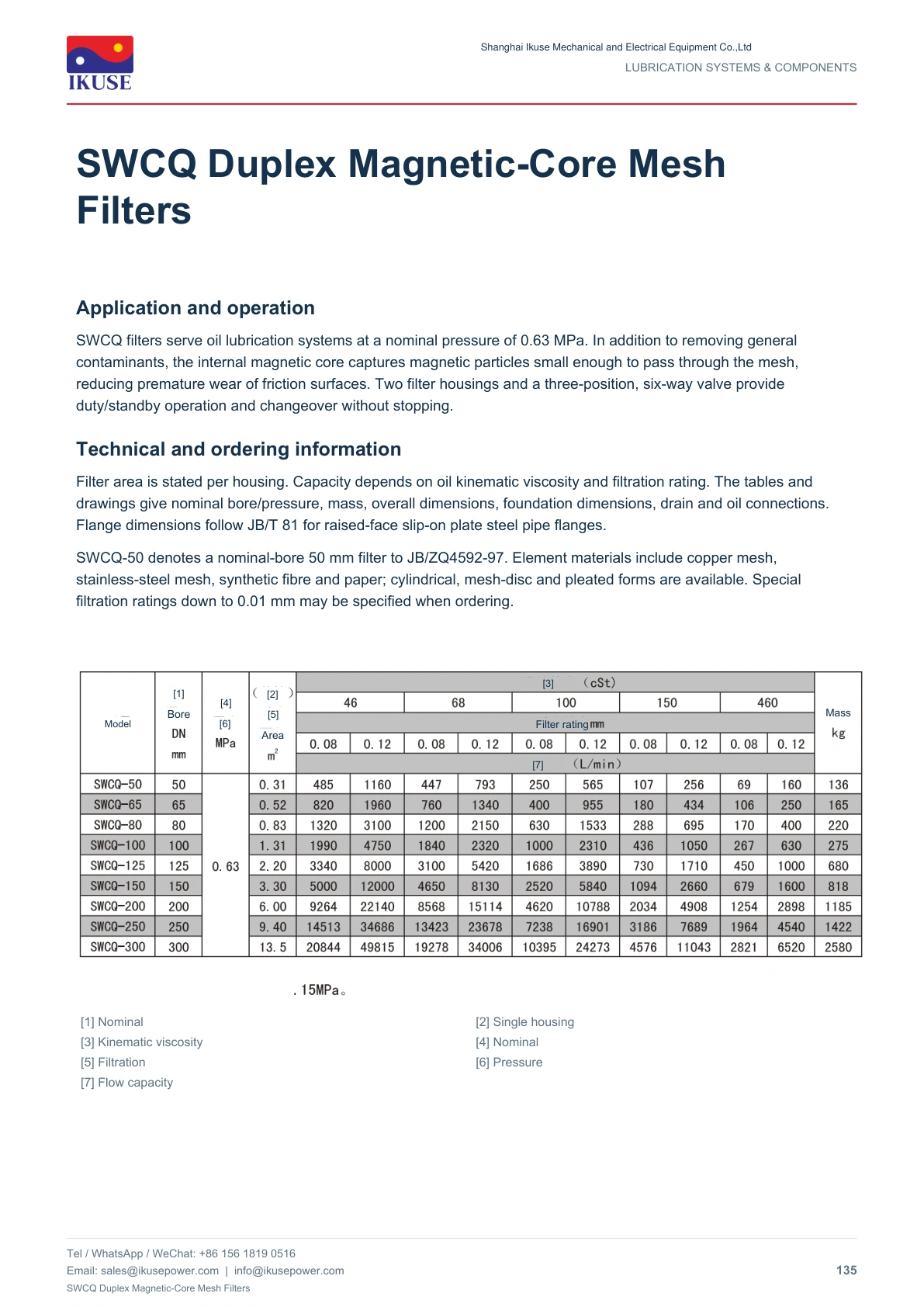

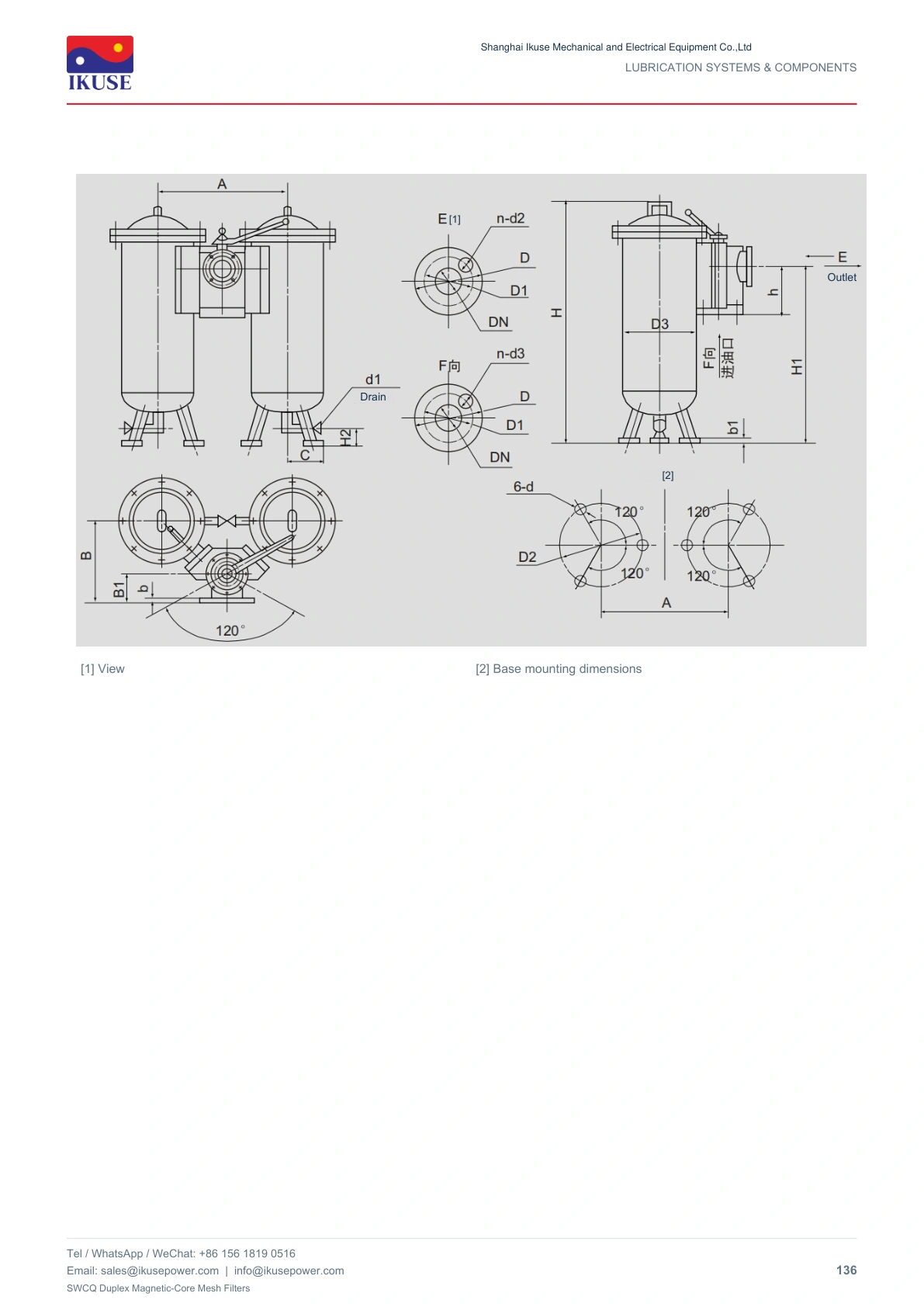

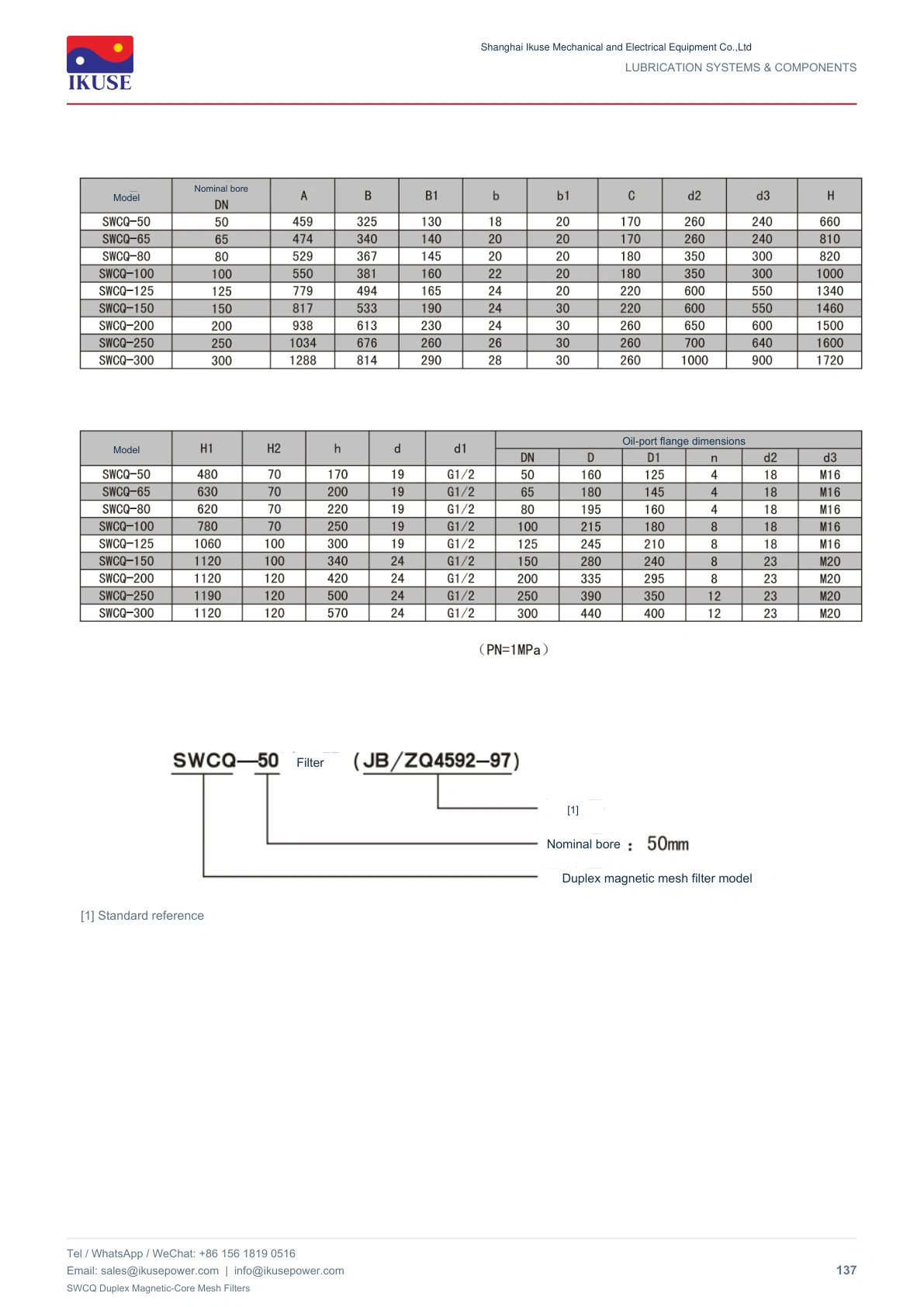

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
