Overview

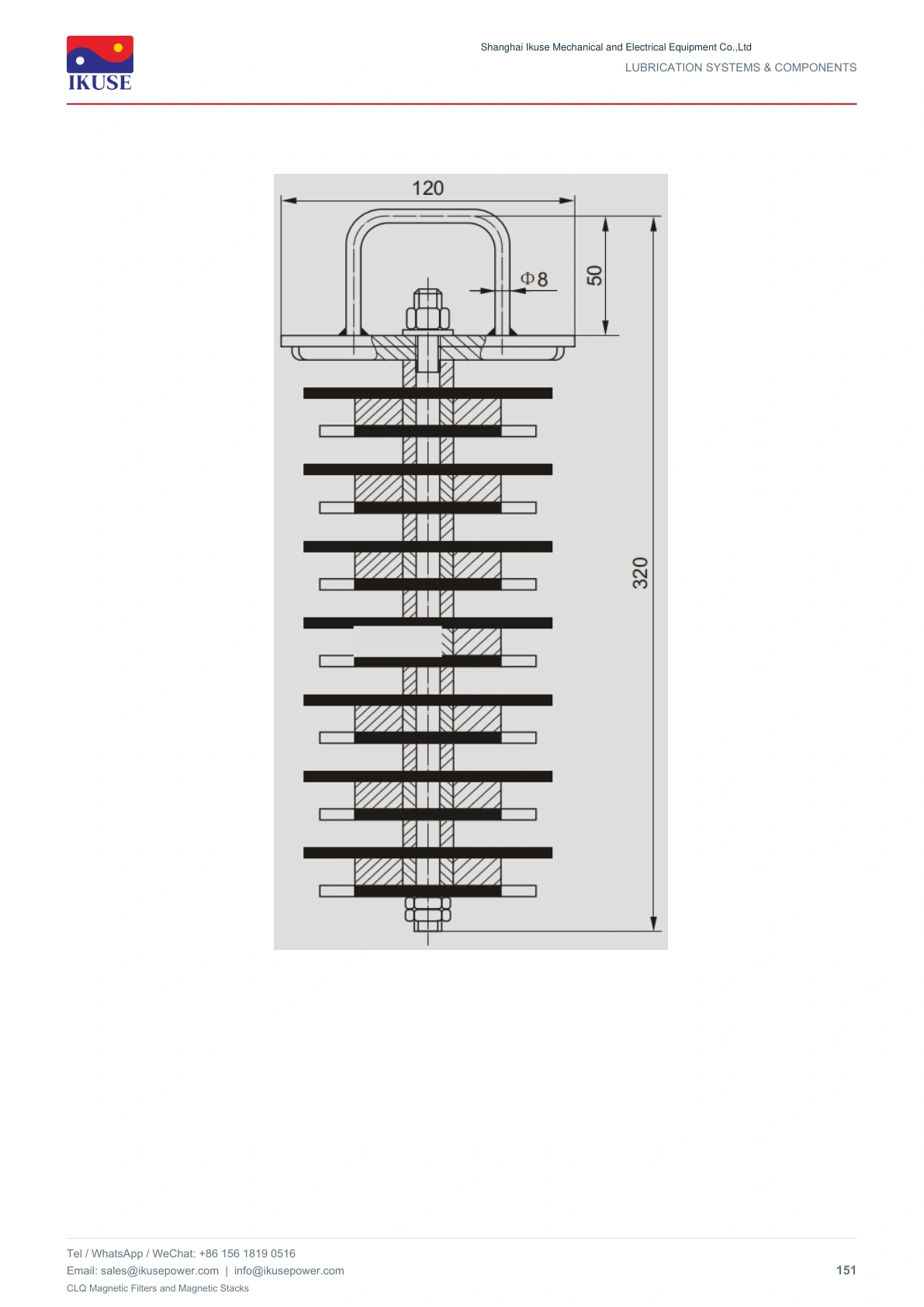

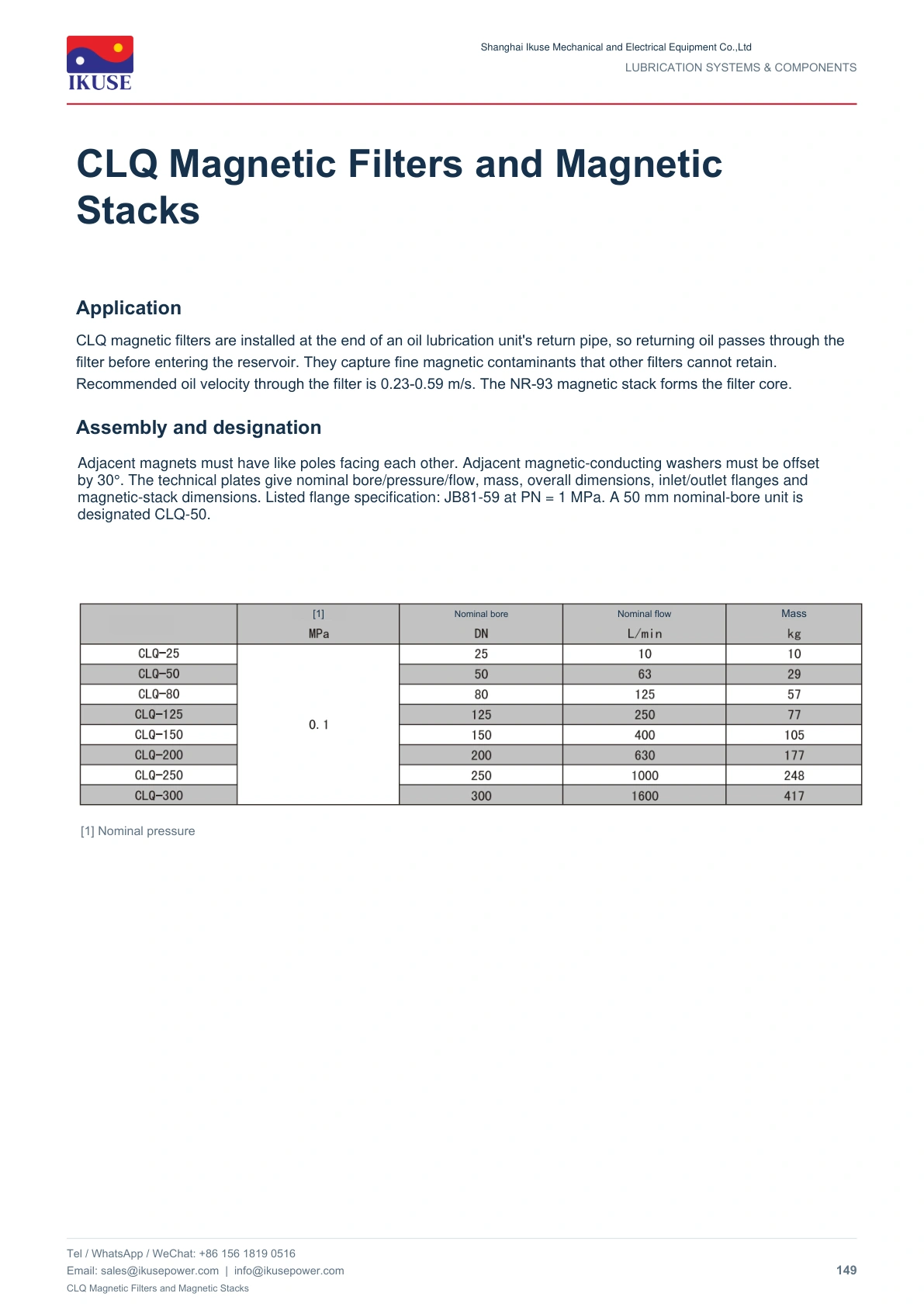

CLQ magnetic filters are installed at the end of an oil lubrication unit's return pipe, so returning oil passes through the filter before entering the reservoir. They capture fine magnetic contaminants that other filters cannot retain. Recommended oil velocity through the filter is 0.23-0.59 m/s. The NR-93 magnetic stack forms the filter core.
Selection and operation
Recommended oil velocity through the filter: 0.23–0.59 m/s. The NR-93 magnetic stack forms the magnetic core.
Technical documentation

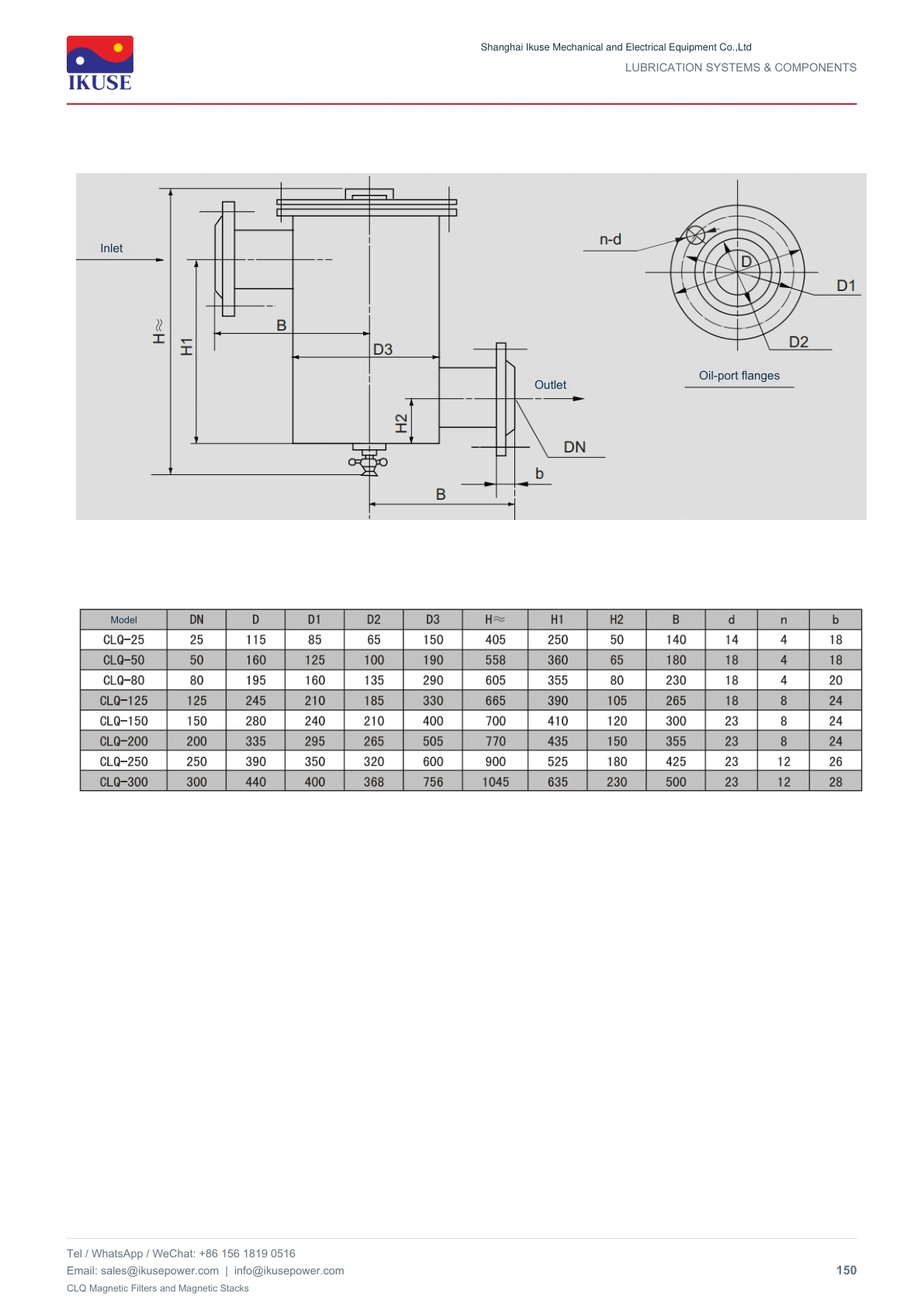

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
