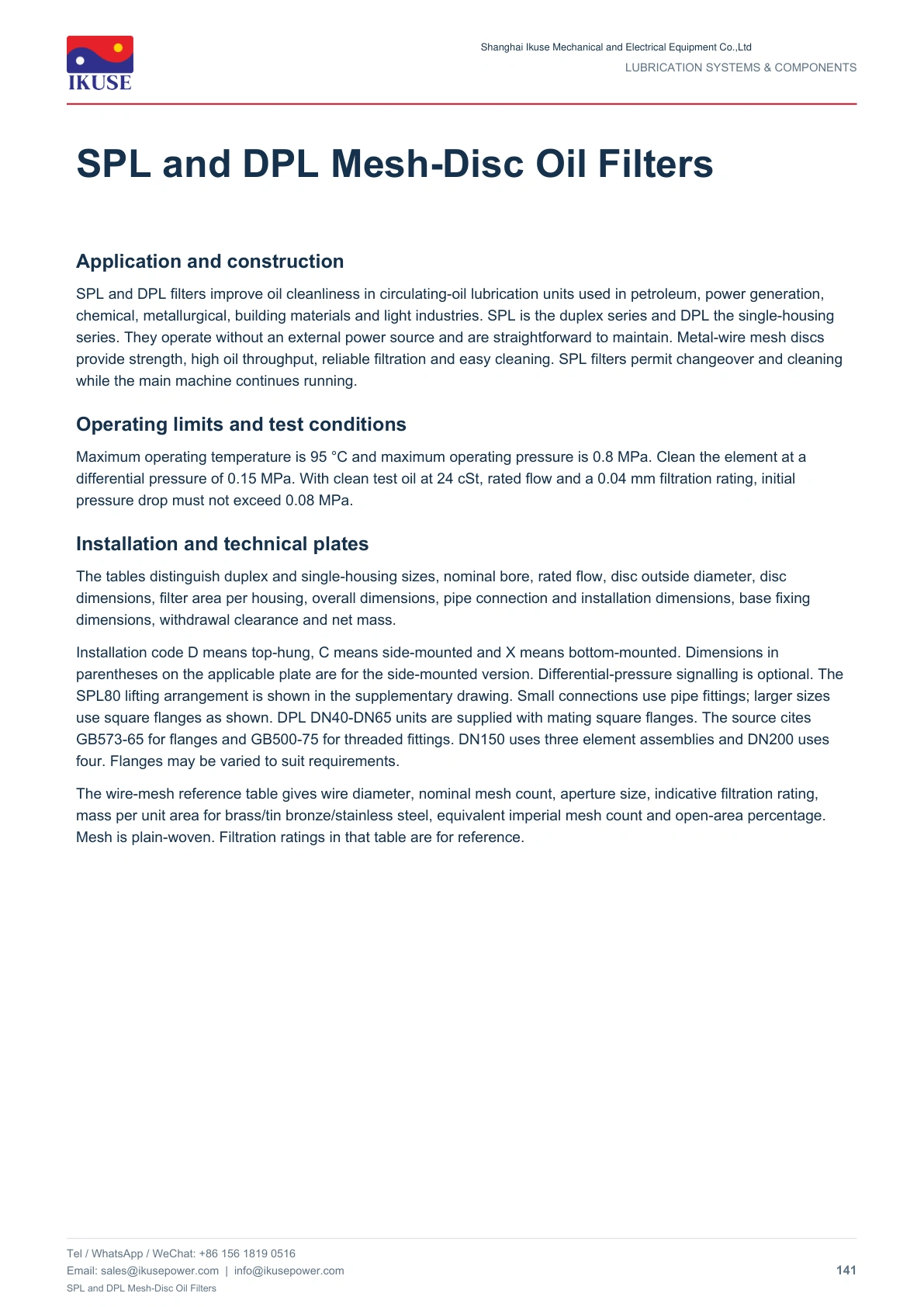

Overview
SPL and DPL filters improve oil cleanliness in circulating-oil lubrication units used in petroleum, power generation, chemical, metallurgical, building materials and light industries. SPL is the duplex series and DPL the single-housing series. They operate without an external power source and are straightforward to maintain. Metal-wire mesh discs provide strength, high oil throughput, reliable filtration and easy cleaning. SPL filters permit changeover and cleaning while the main machine continues running.
Selection and operation
Maximum temperature: 95°C. Maximum working pressure: 0.8 MPa. Clean the element at a differential pressure of 0.15 MPa.
Technical documentation

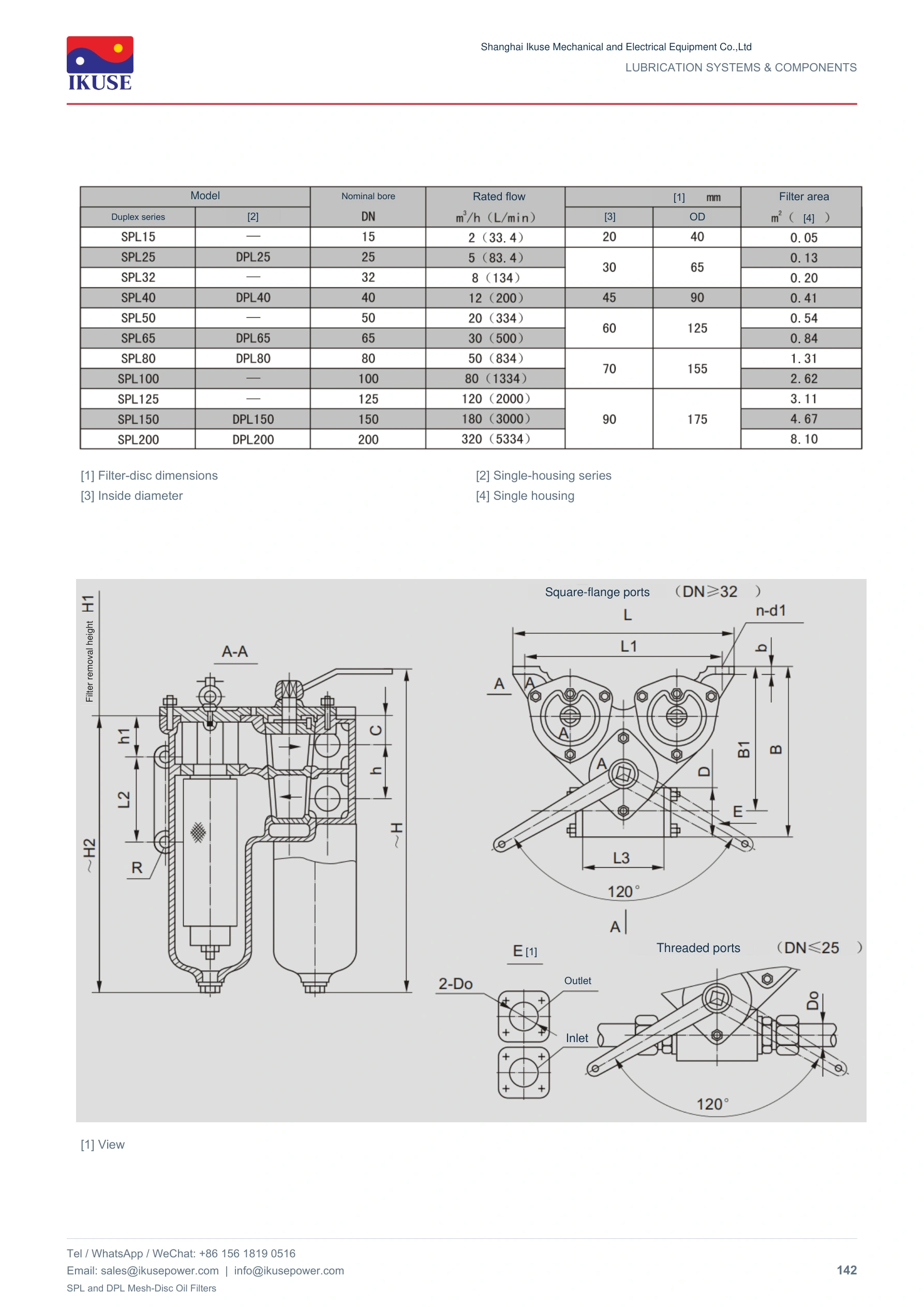

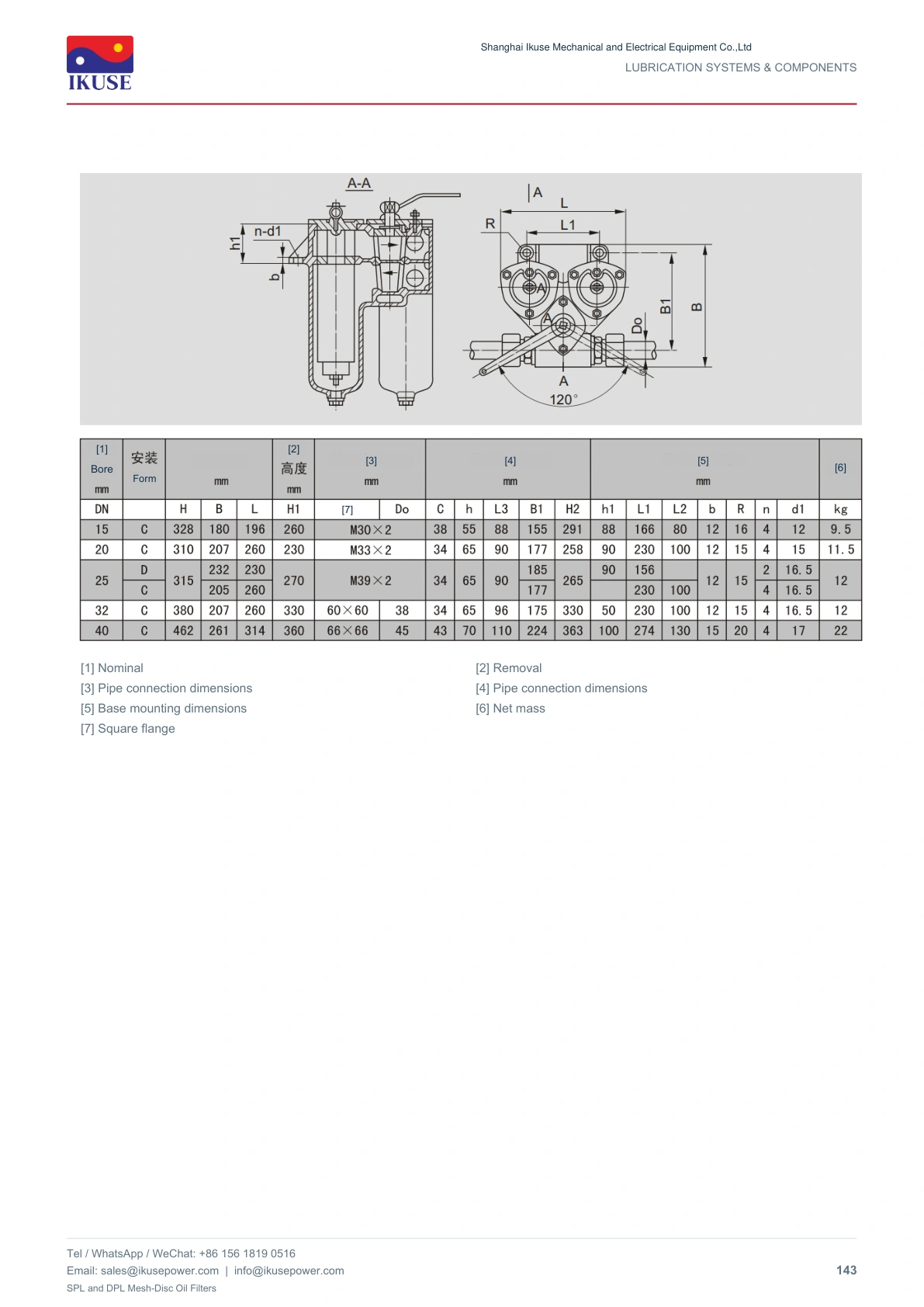

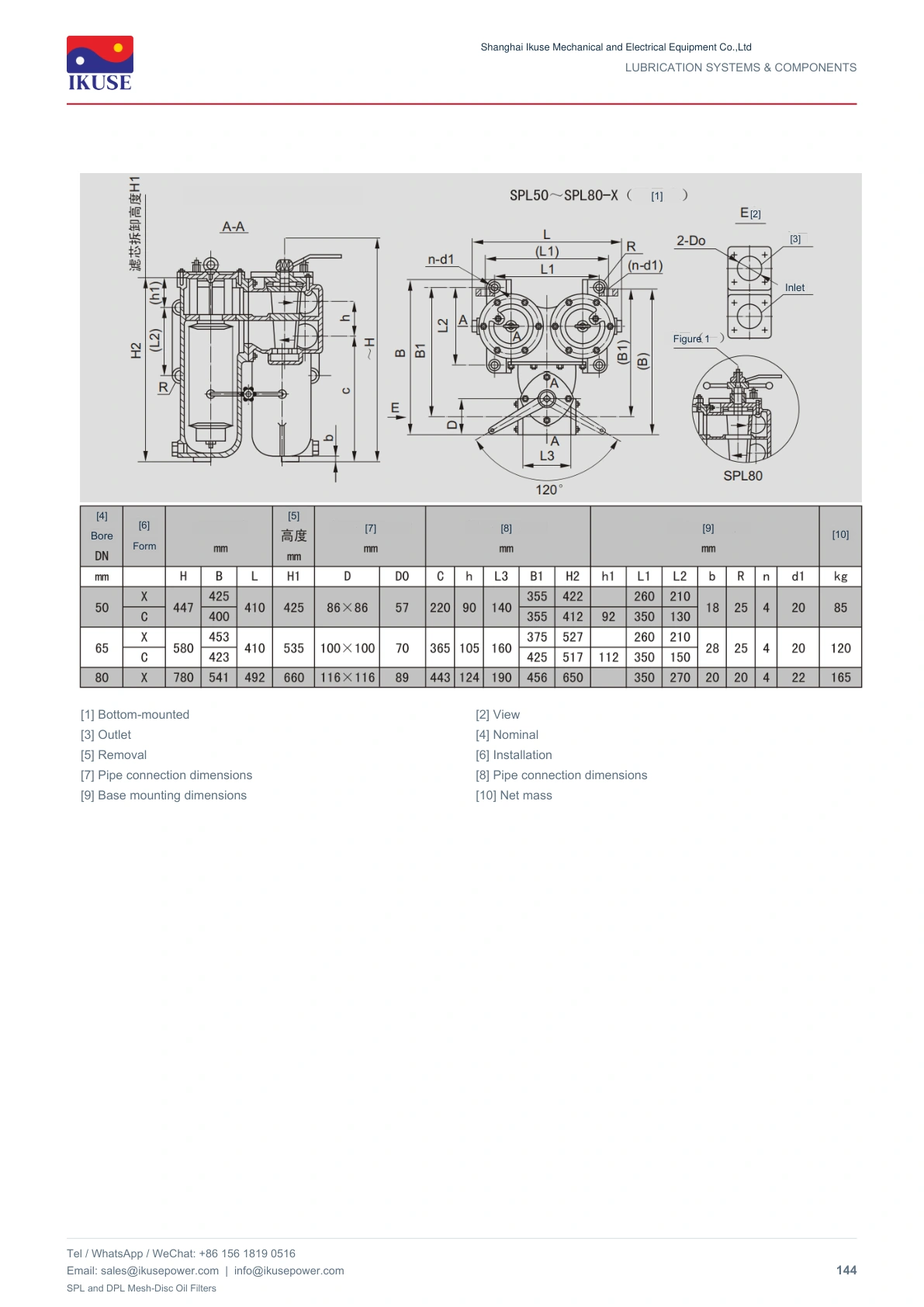

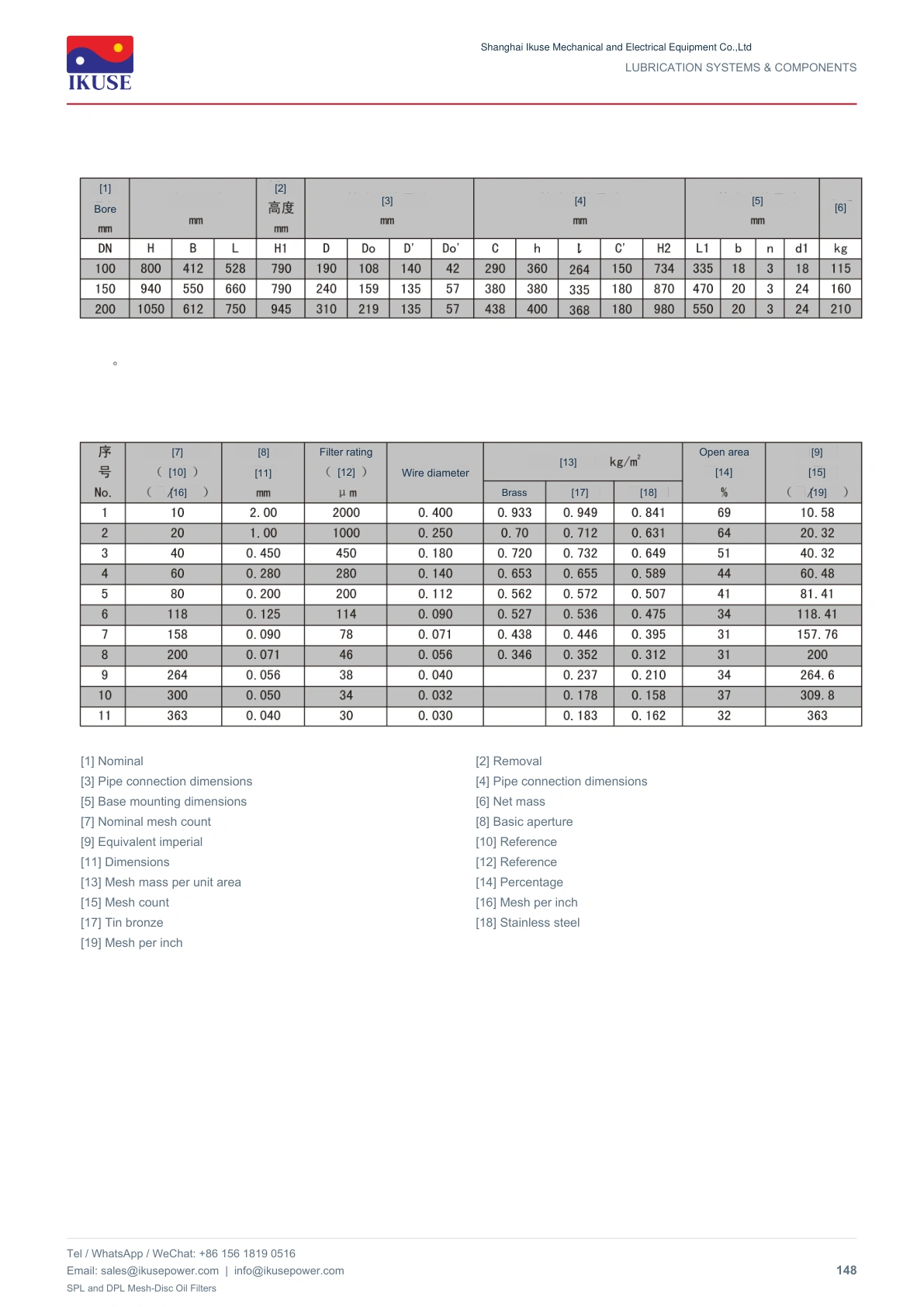

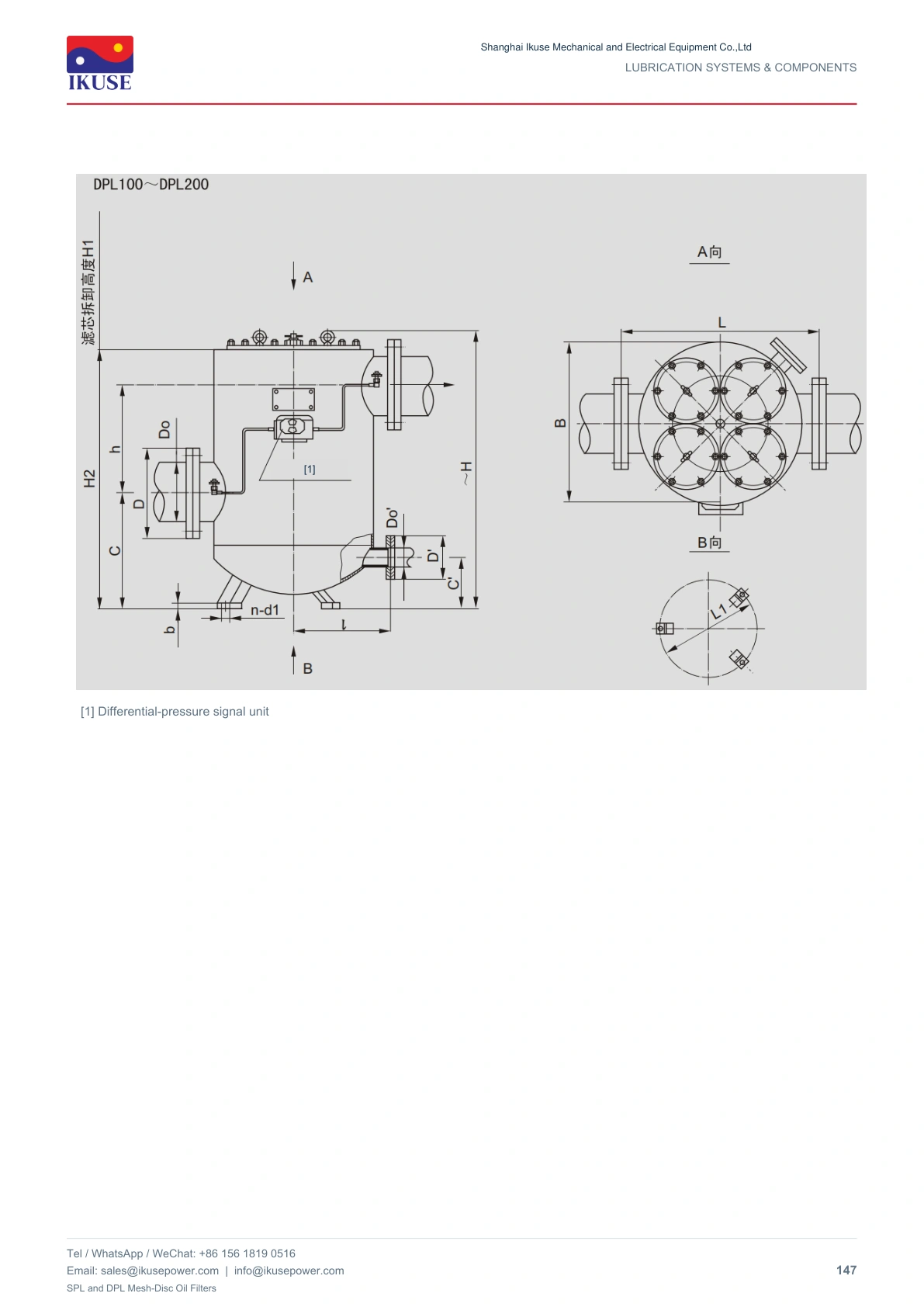

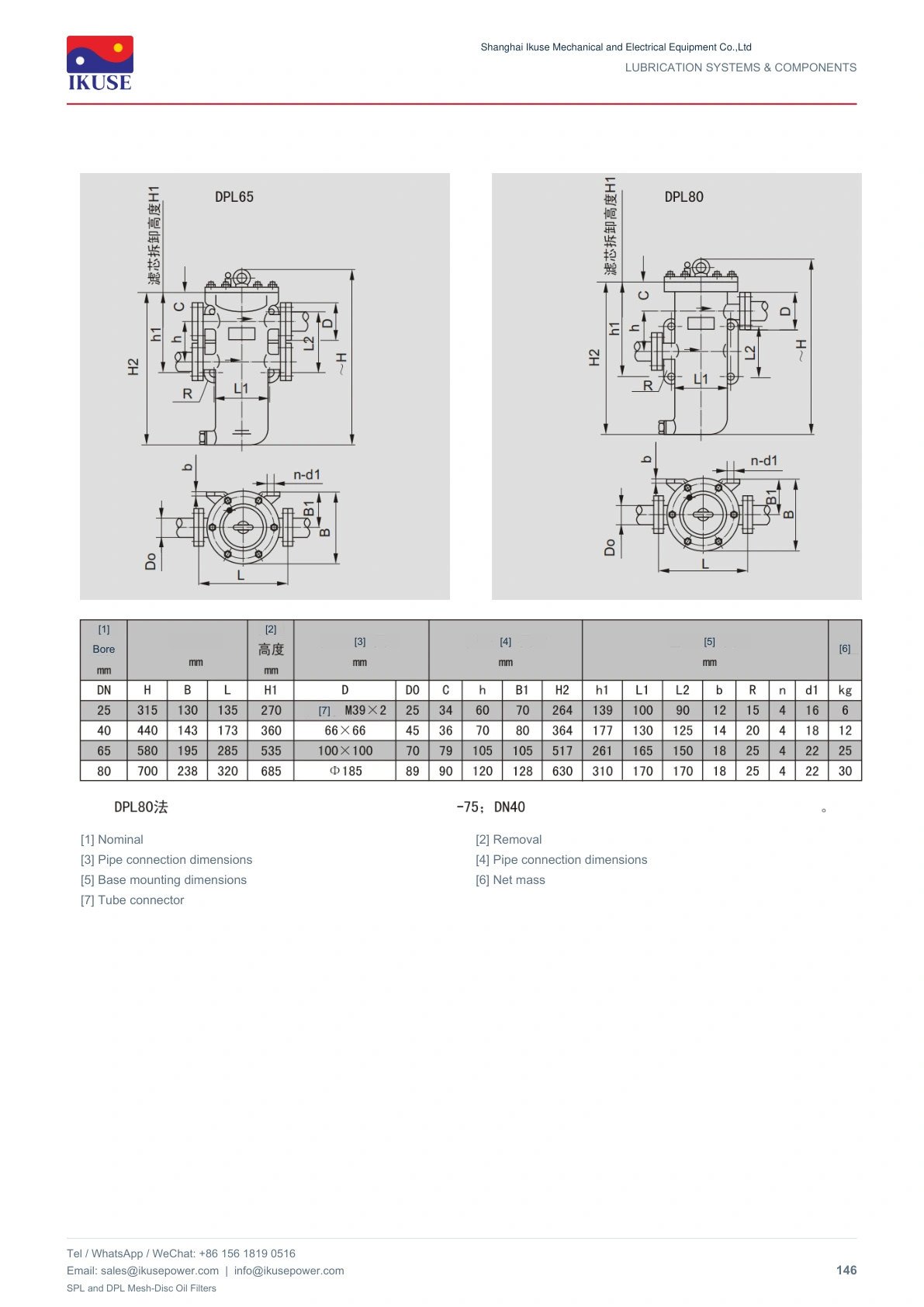

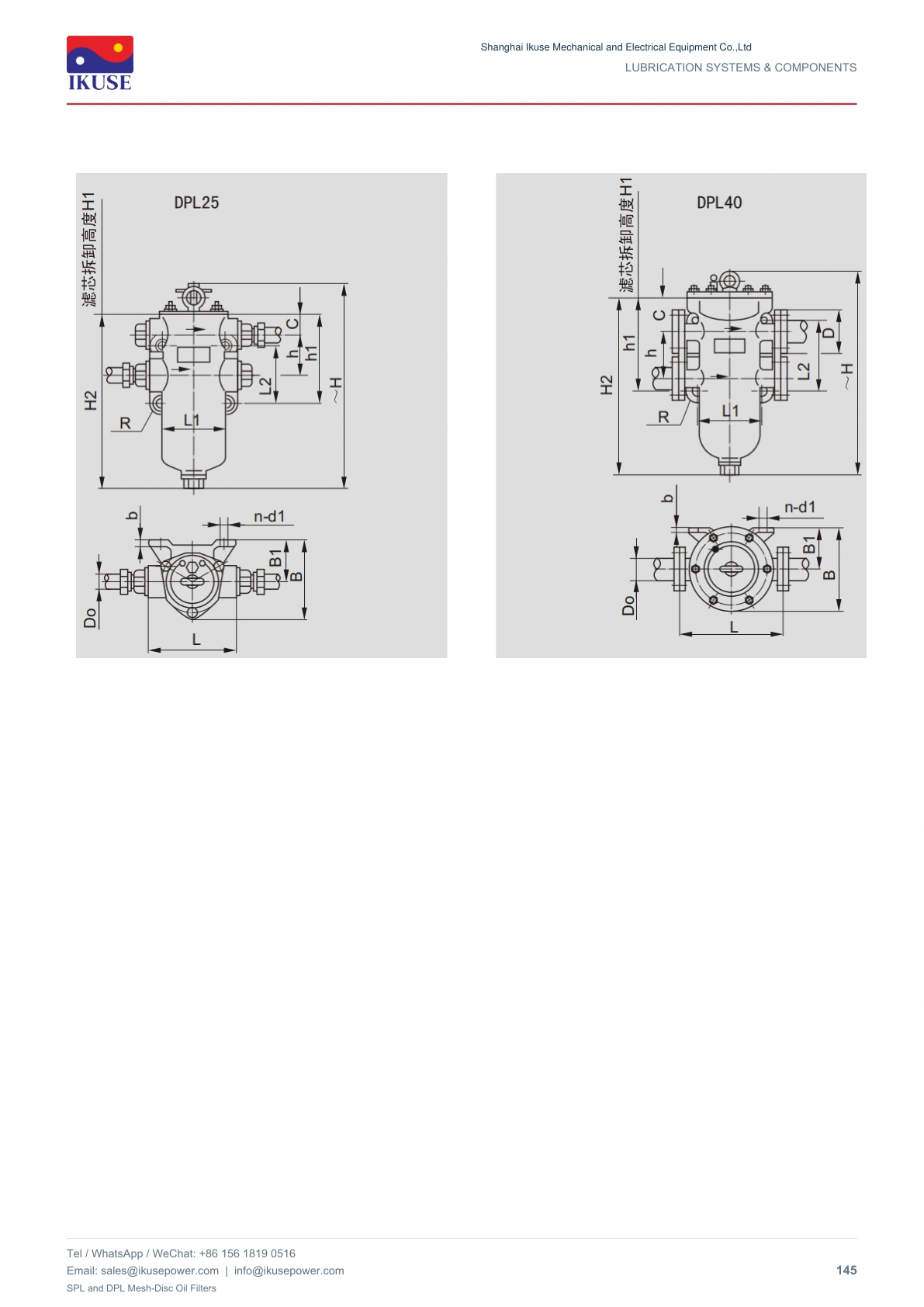

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
