Overview

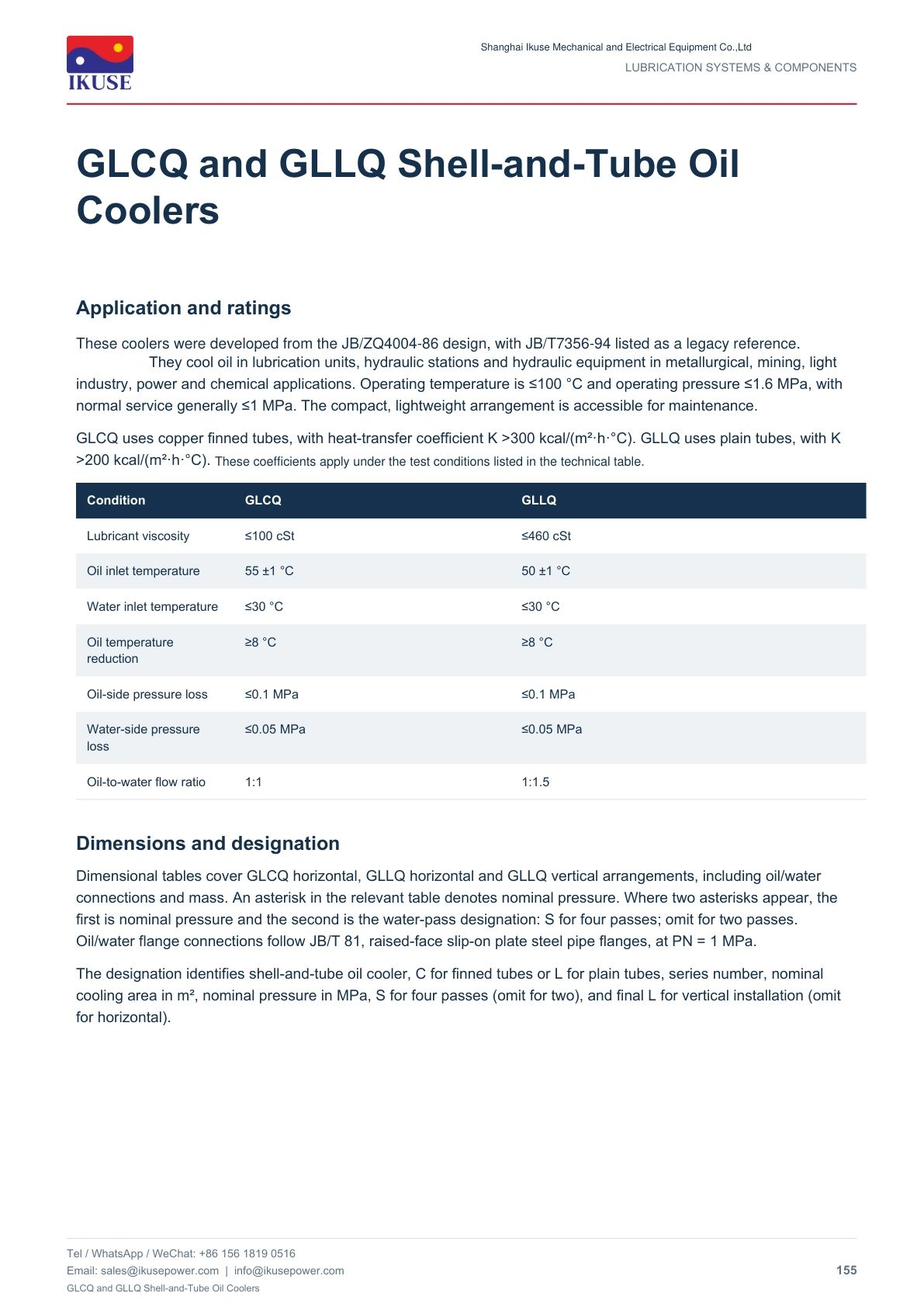

These coolers were developed from the JB/ZQ4004-86 design, with JB/T7356-94 listed as a legacy reference. They cool oil in lubrication units, hydraulic stations and hydraulic equipment in metallurgical, mining, light industry, power and chemical applications. Operating temperature is ≤100 °C and operating pressure ≤1.6 MPa, with normal service generally ≤1 MPa. The compact, lightweight arrangement is accessible for maintenance.
Technical documentation

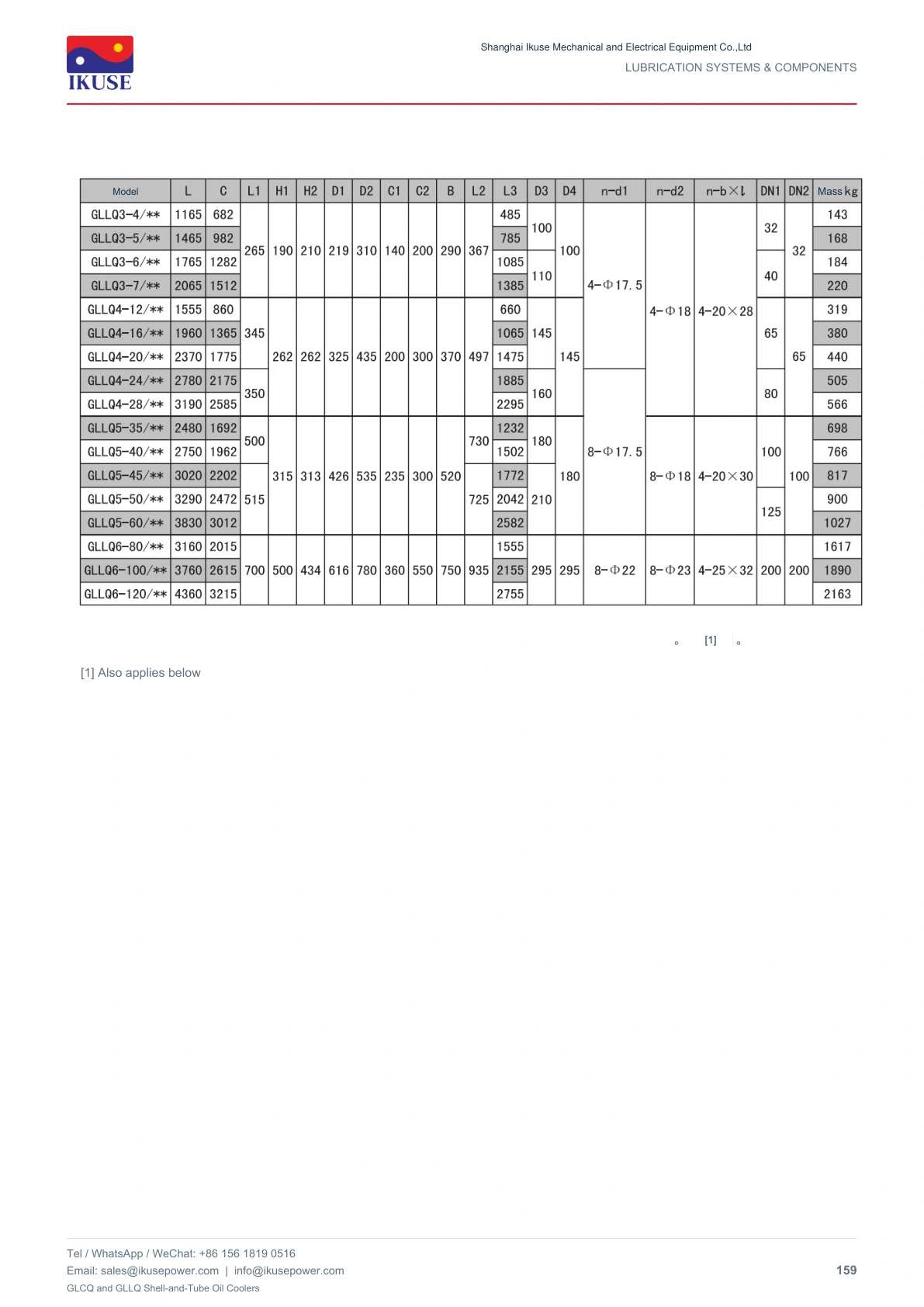

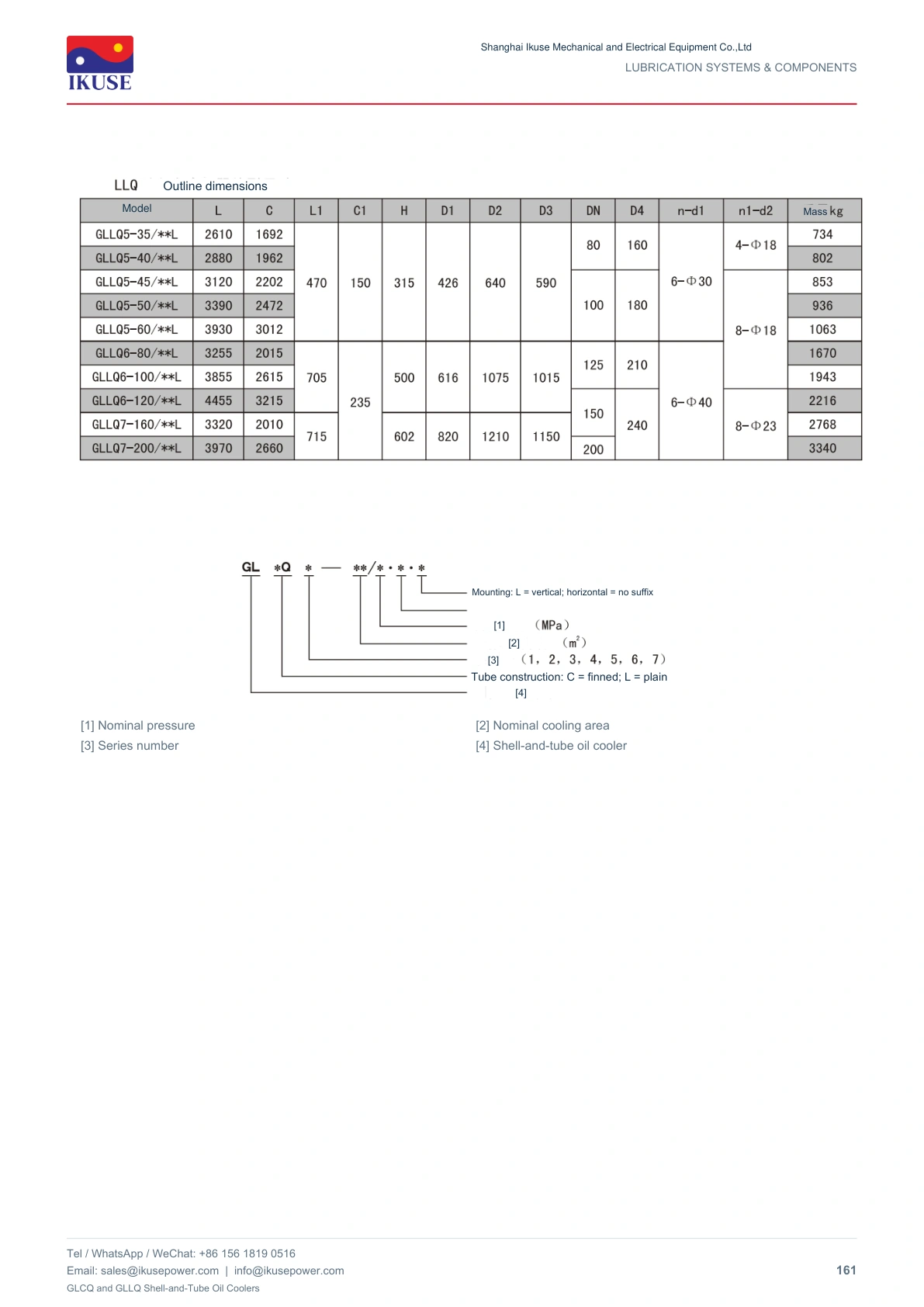

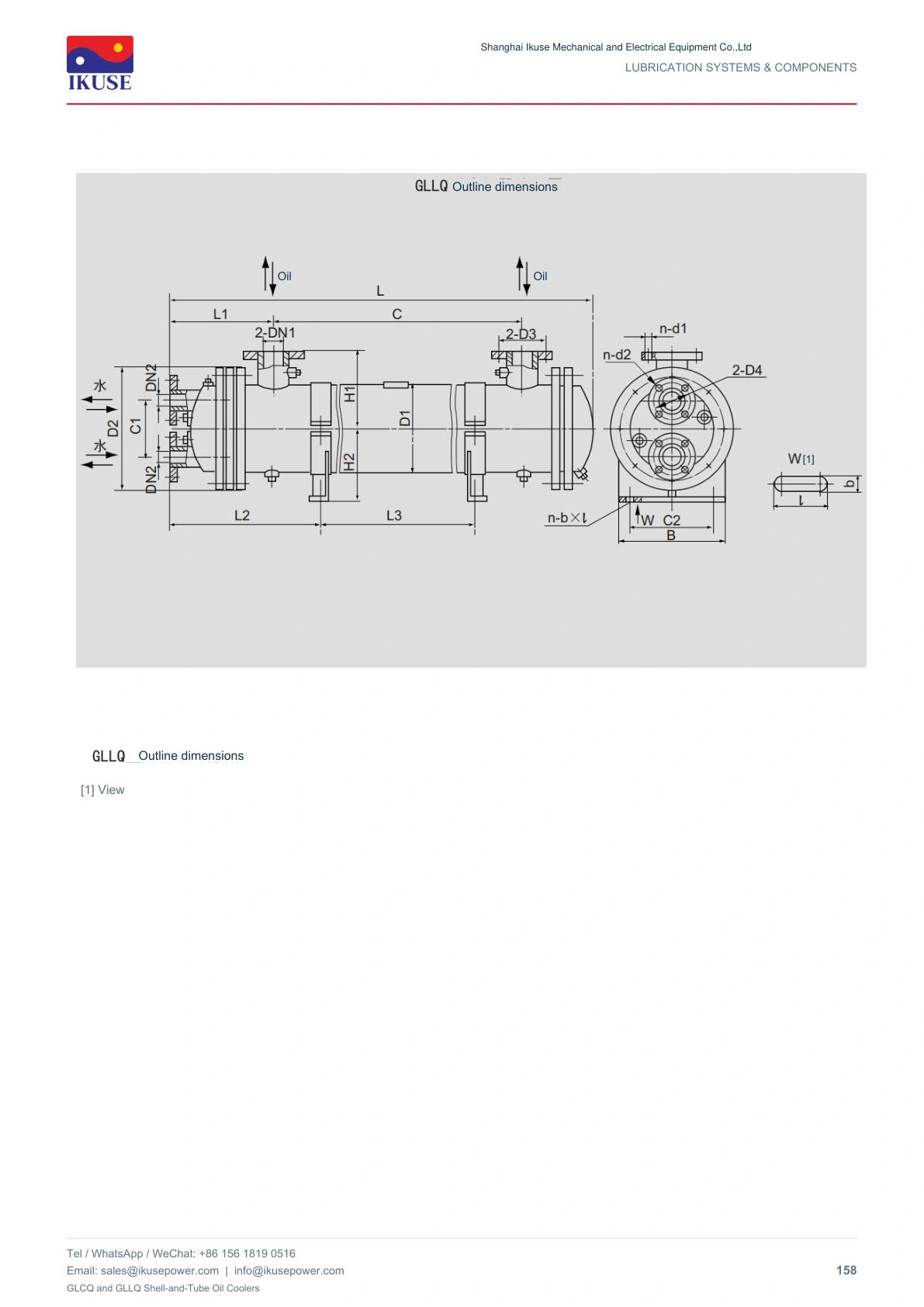

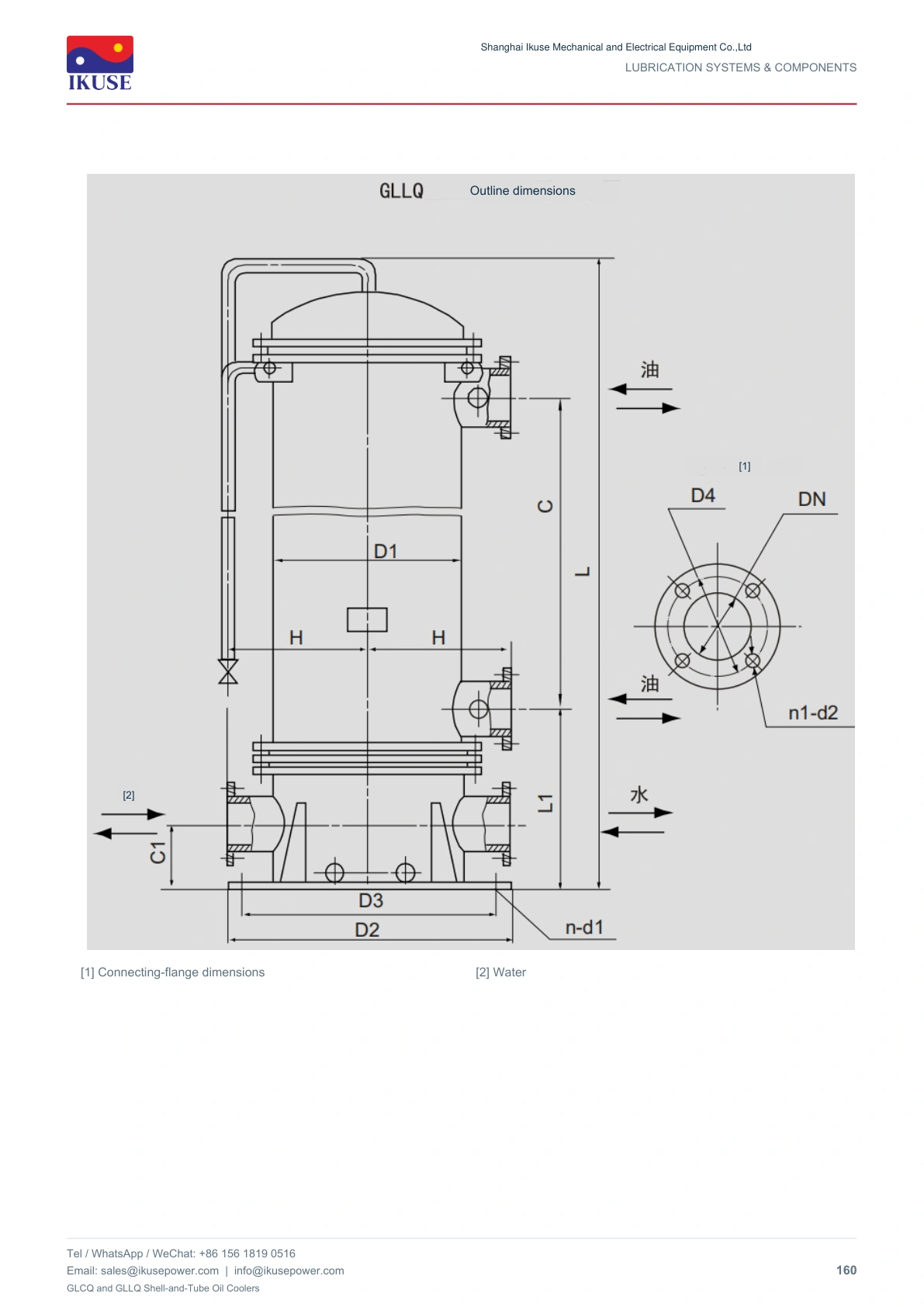

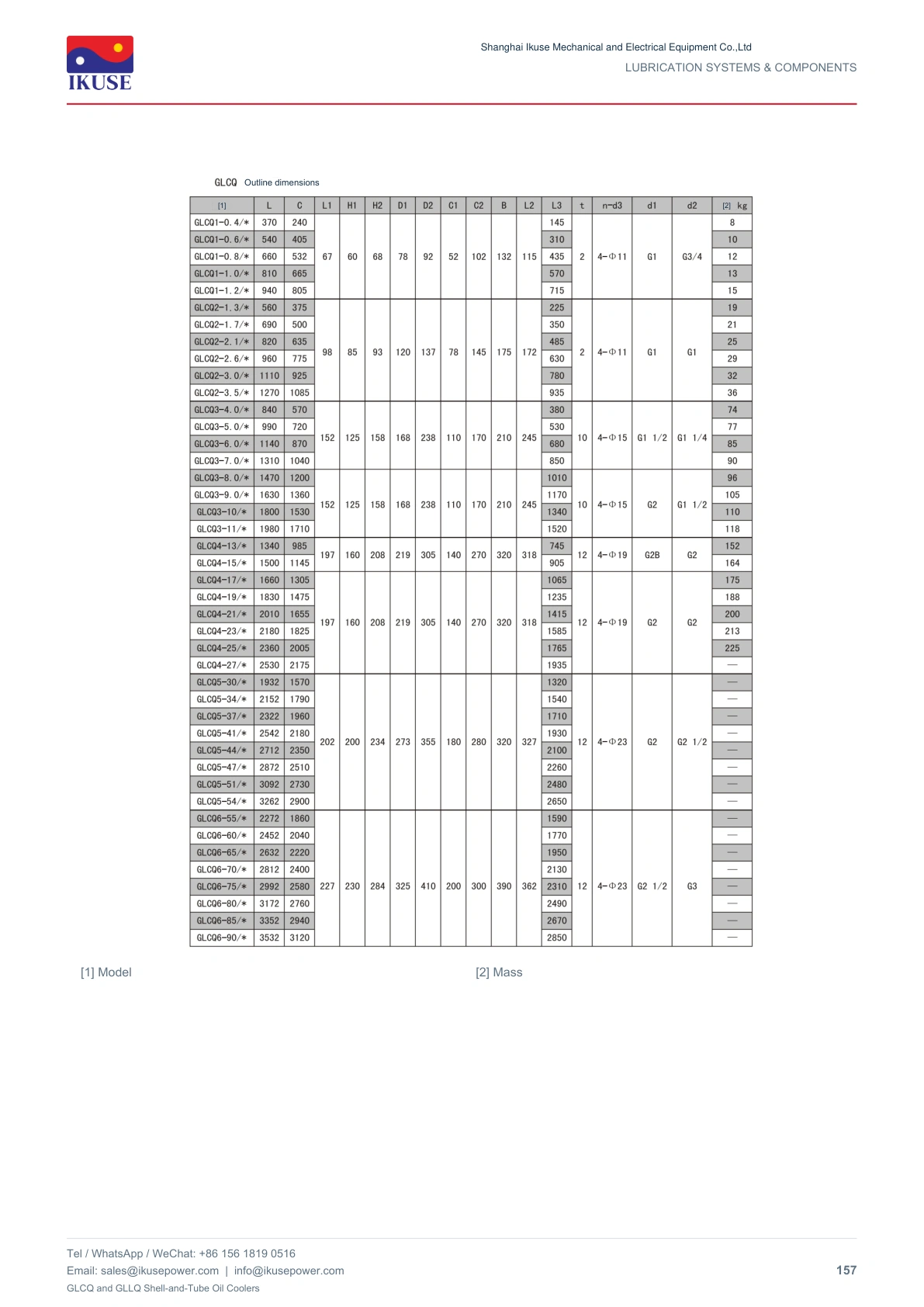

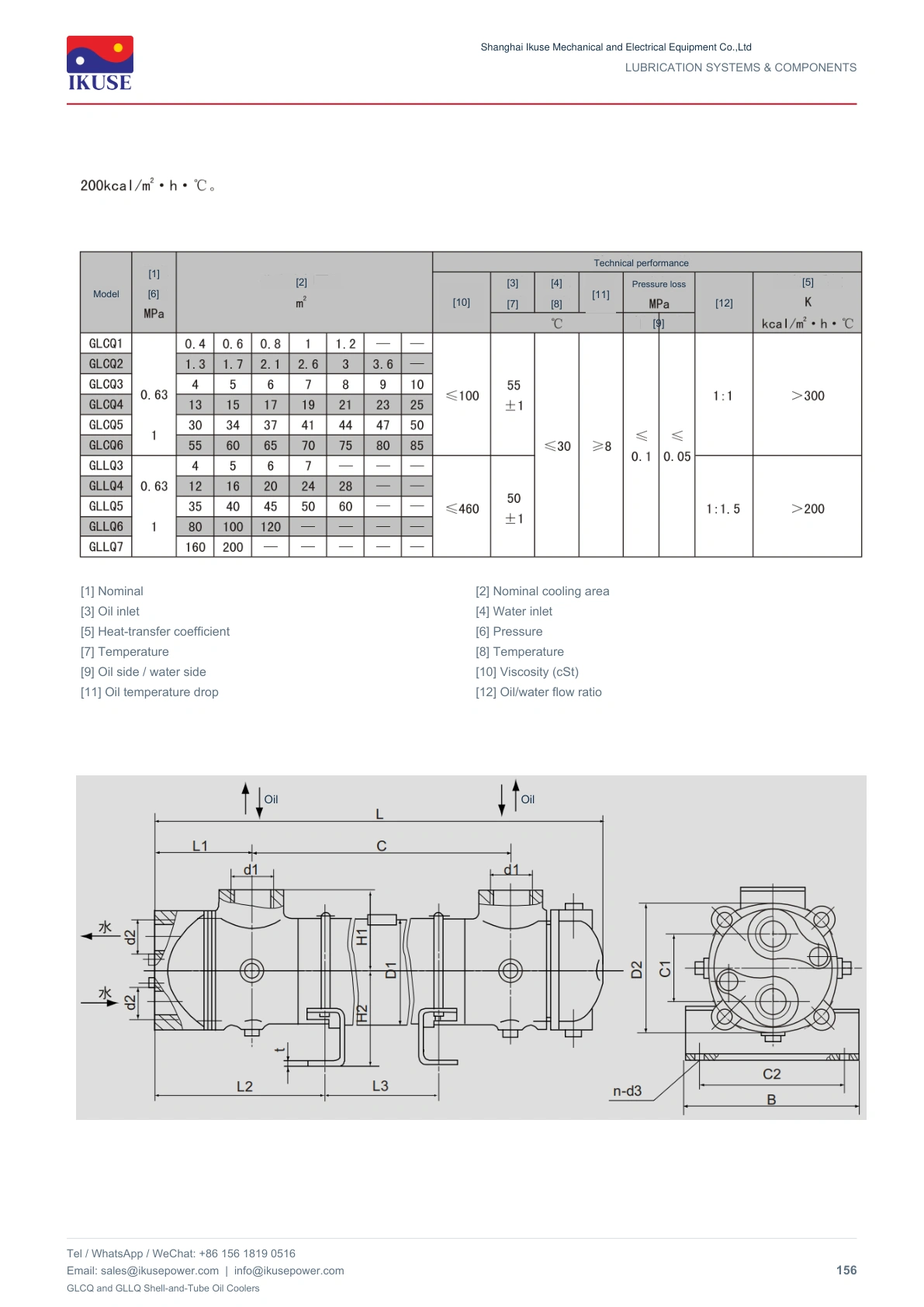

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
