Overview

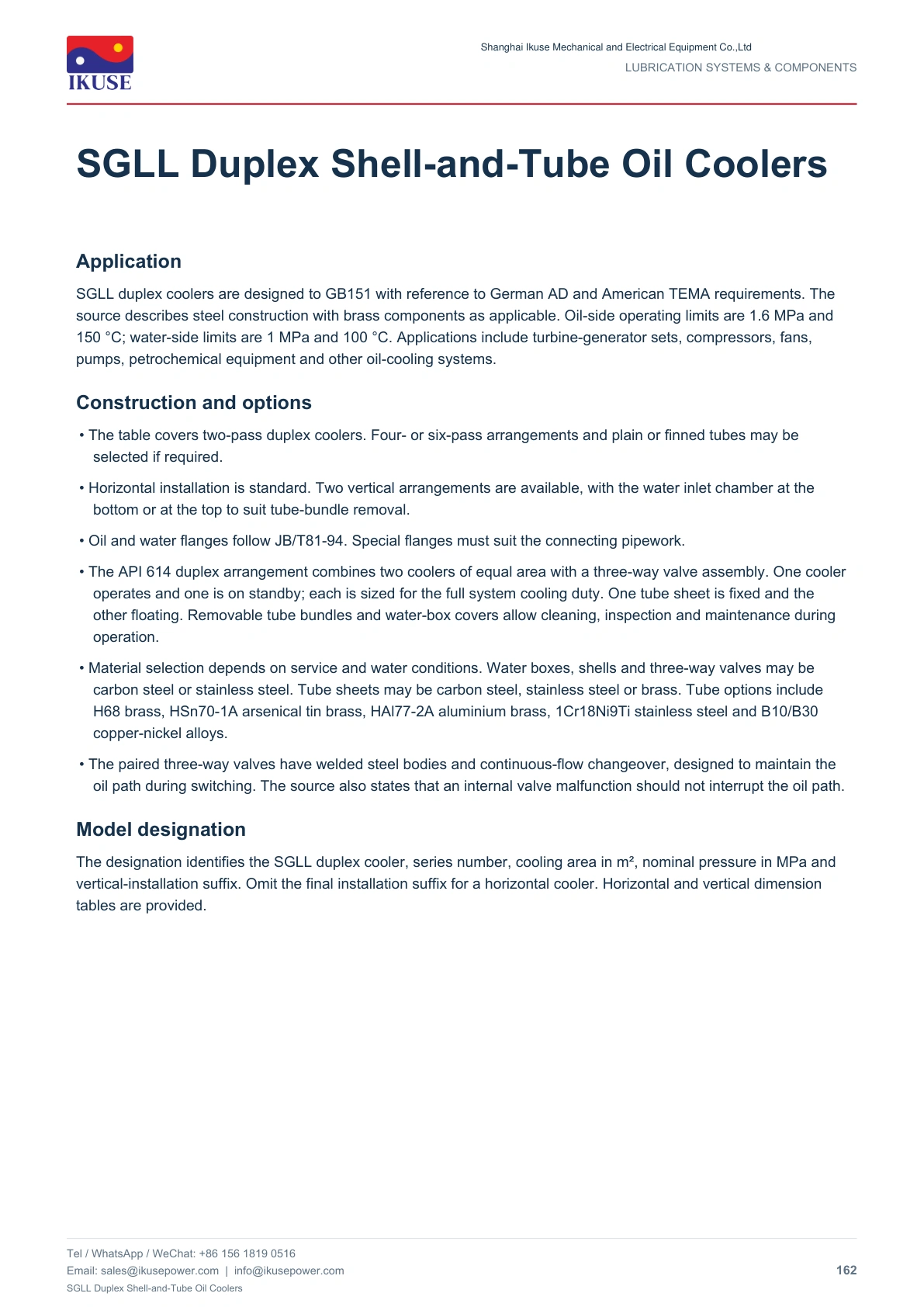

SGLL duplex coolers are designed to GB151 with reference to German AD and American TEMA requirements. The source describes steel construction with brass components as applicable. Oil-side operating limits are 1.6 MPa and 150 °C; water-side limits are 1 MPa and 100 °C. Applications include turbine-generator sets, compressors, fans, pumps, petrochemical equipment and other oil-cooling systems.
Selection and operation
The removable tube bundle facilitates cleaning. Horizontal arrangement is usual; select vertical arrangement and materials according to the fluids and installation location.
Technical documentation

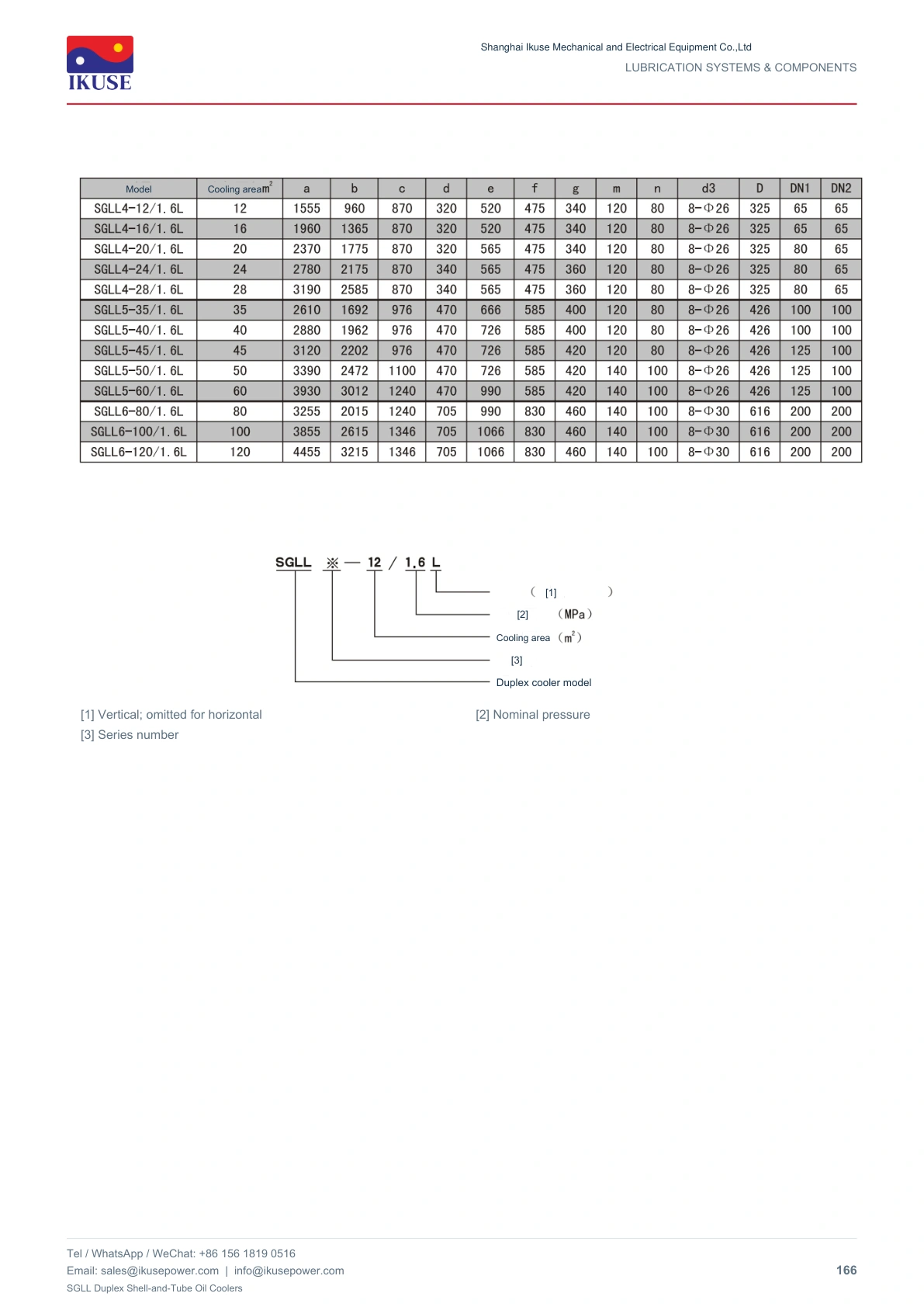

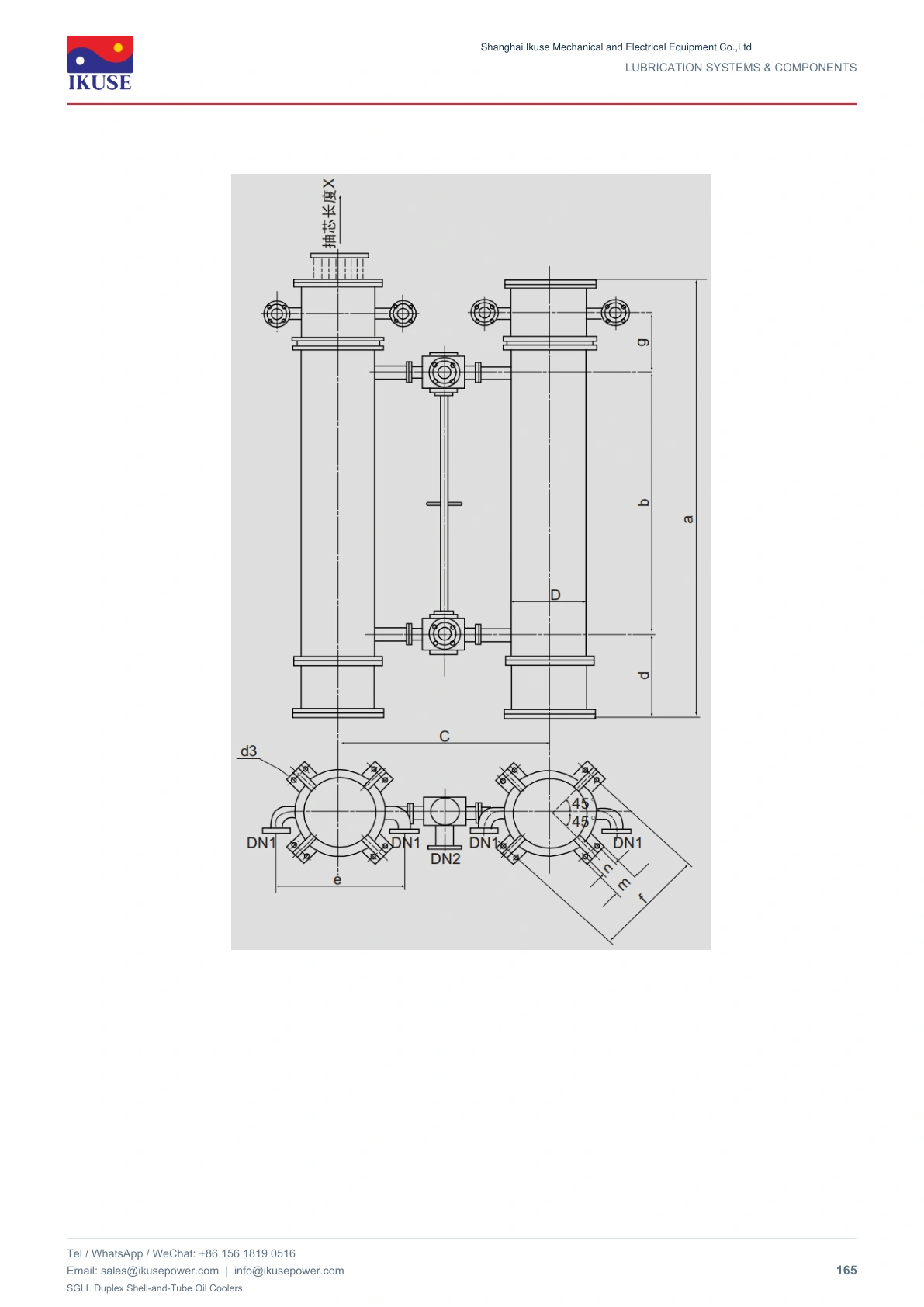

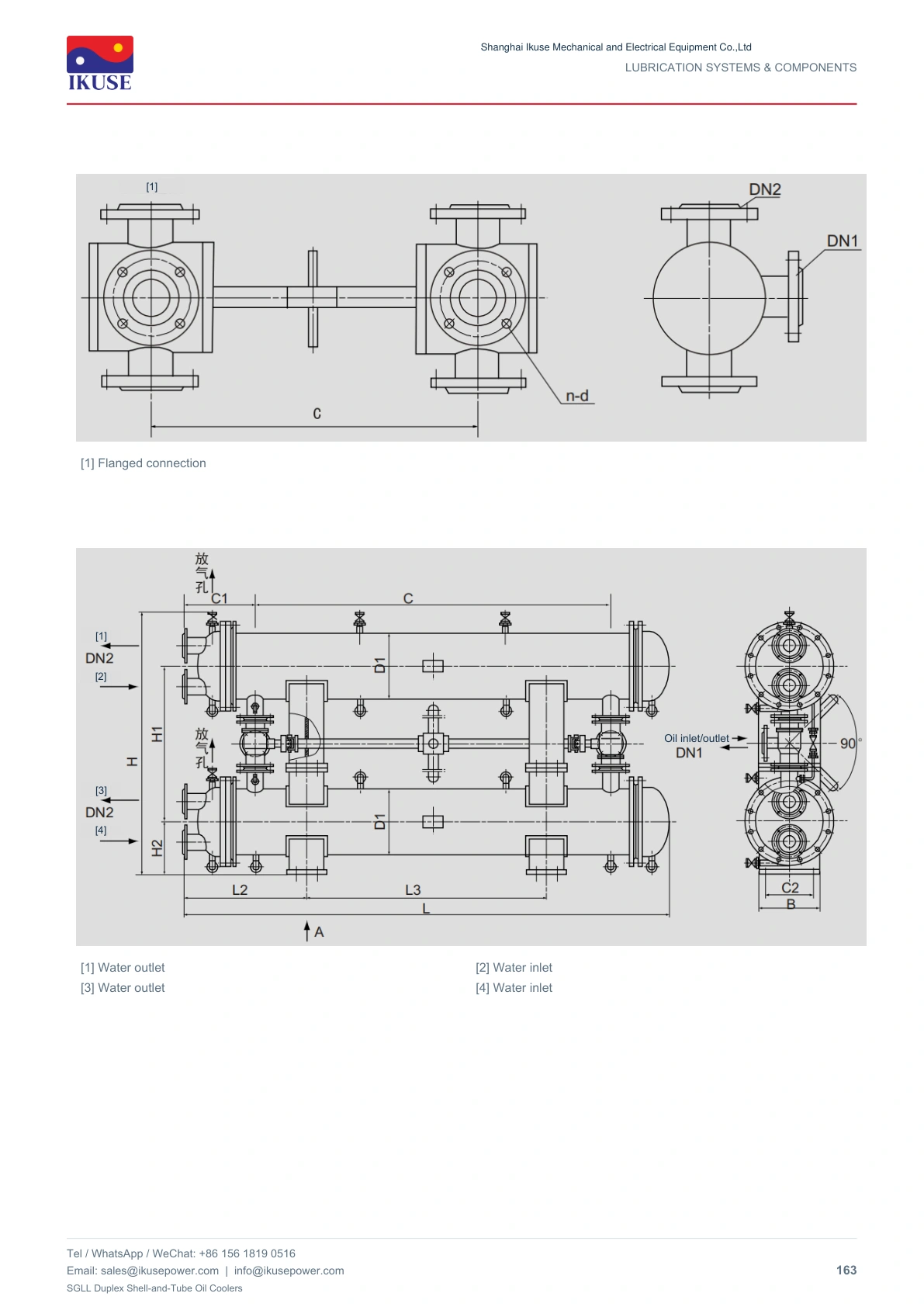

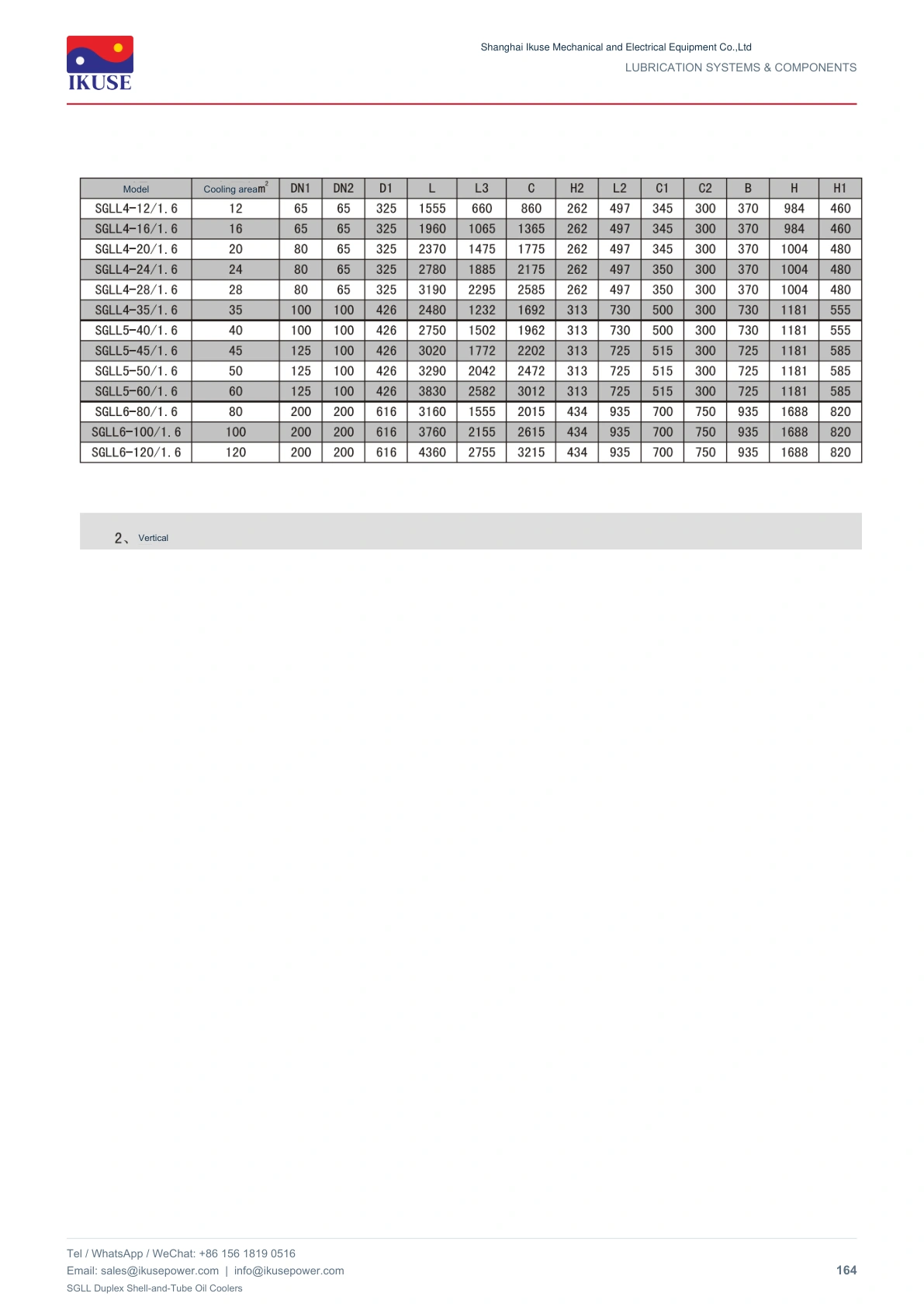

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
