Overview

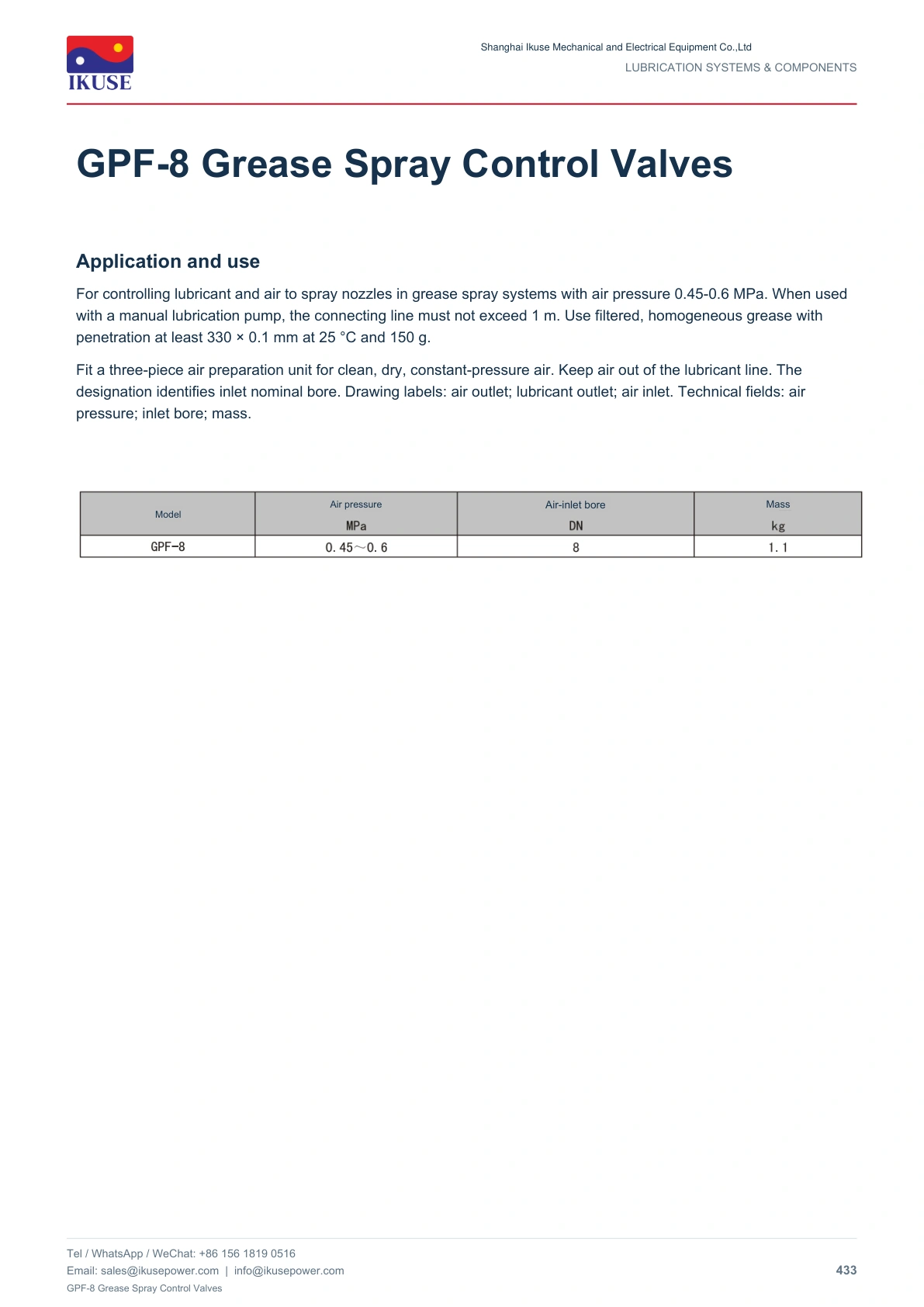

For controlling lubricant and air to spray nozzles in grease spray systems with air pressure 0.45-0.6 MPa. When used with a manual lubrication pump, the connecting line must not exceed 1 m. Use filtered, homogeneous grease with penetration at least 330 × 0.1 mm at 25 °C and 150 g.
Selection and operation
When used with a manual pump, the connecting line must not exceed 1 m. Use clean, homogeneous grease with a penetration of at least 330 (0.1 mm).
Technical documentation

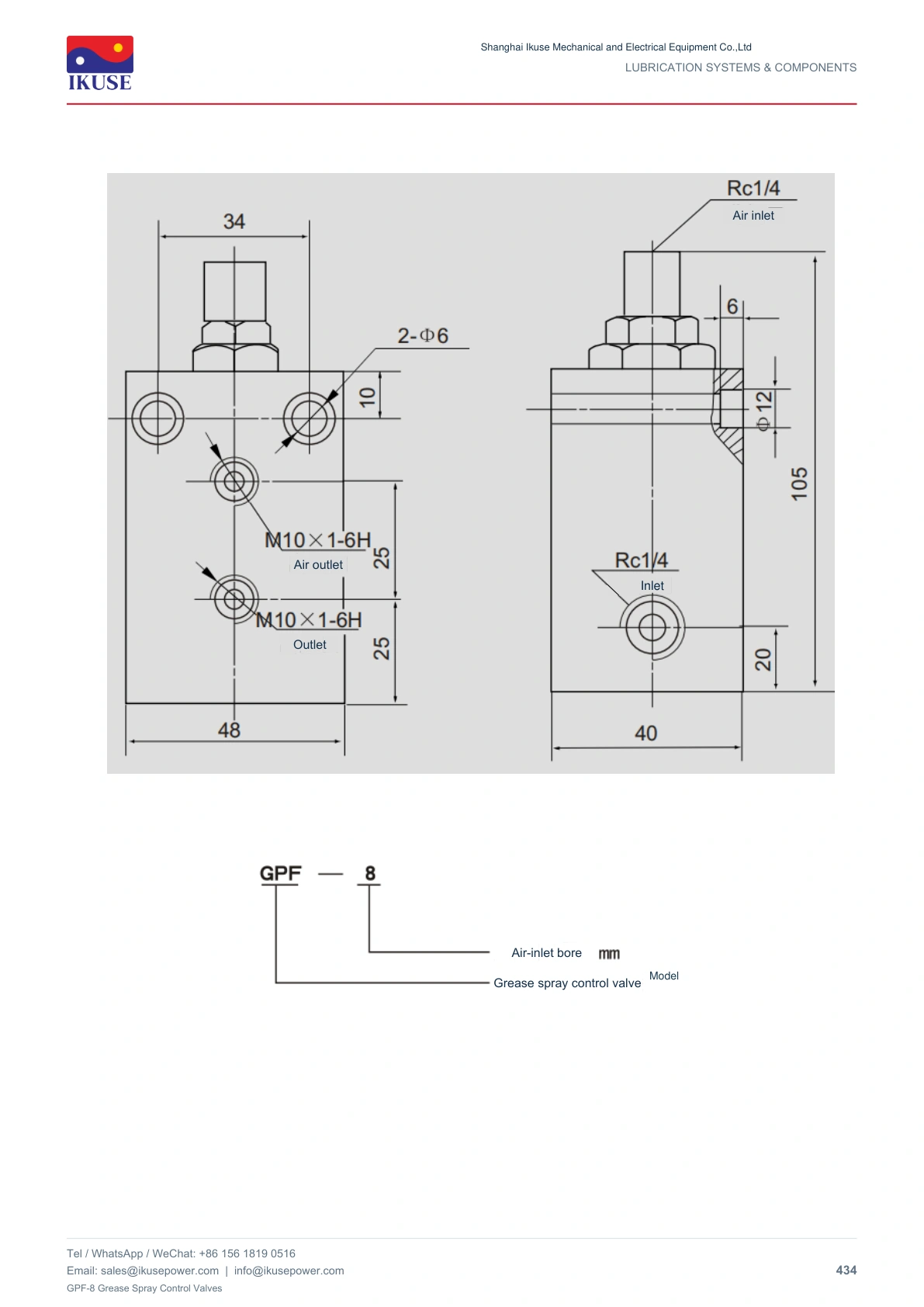

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
