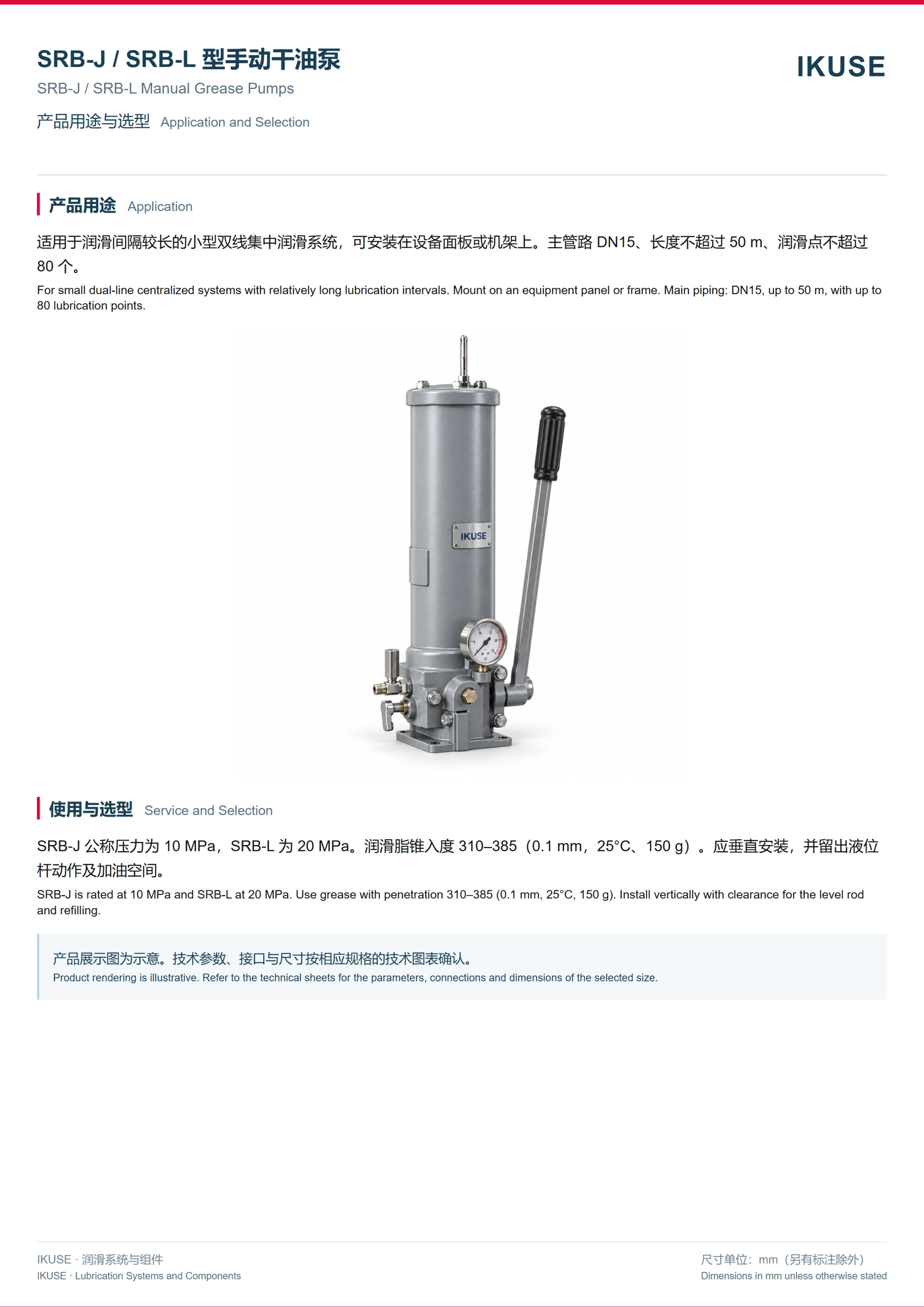

产品概述 / Overview
适用于润滑间隔较长的小型双线集中润滑系统，可安装在设备面板或机架上。主管路 DN15、长度不超过 50 m、润滑点不超过 80 个。
For small dual-line centralized systems with relatively long lubrication intervals. Mount on an equipment panel or frame. Main piping: DN15, up to 50 m, with up to 80 lubrication points.
For small dual-line centralized systems with relatively long lubrication intervals. Mount on an equipment panel or frame. Main piping: DN15, up to 50 m, with up to 80 lubrication points.
使用与选型 / Service and Selection
SRB-J 公称压力为 10 MPa，SRB-L 为 20 MPa。润滑脂锥入度 310–385（0.1 mm，25°C、150 g）。应垂直安装，并留出液位杆动作及加油空间。
SRB-J is rated at 10 MPa and SRB-L at 20 MPa. Use grease with penetration 310–385 (0.1 mm, 25°C, 150 g). Install vertically with clearance for the level rod and refilling.
SRB-J is rated at 10 MPa and SRB-L at 20 MPa. Use grease with penetration 310–385 (0.1 mm, 25°C, 150 g). Install vertically with clearance for the level rod and refilling.
技术资料 / Technical Data

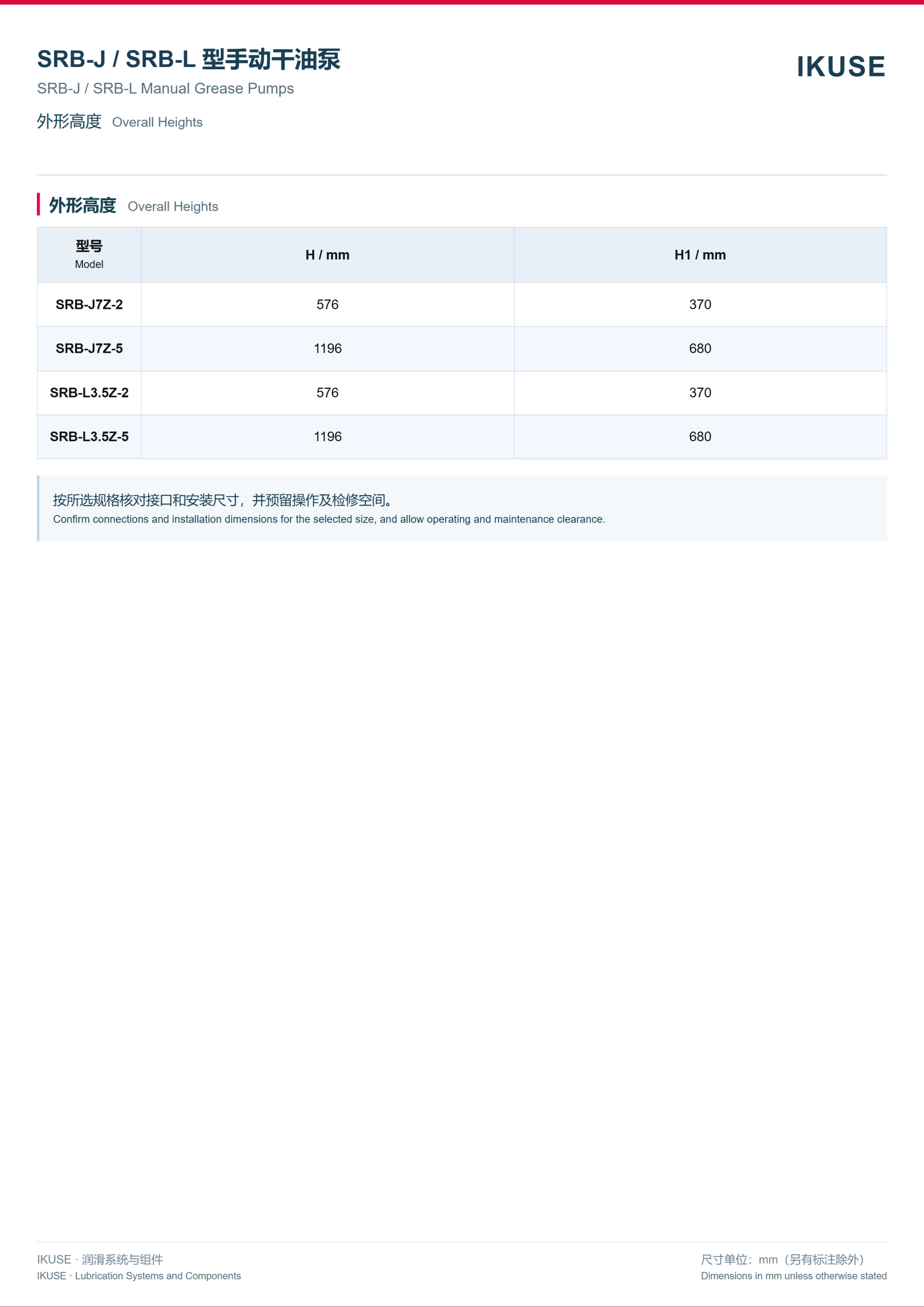

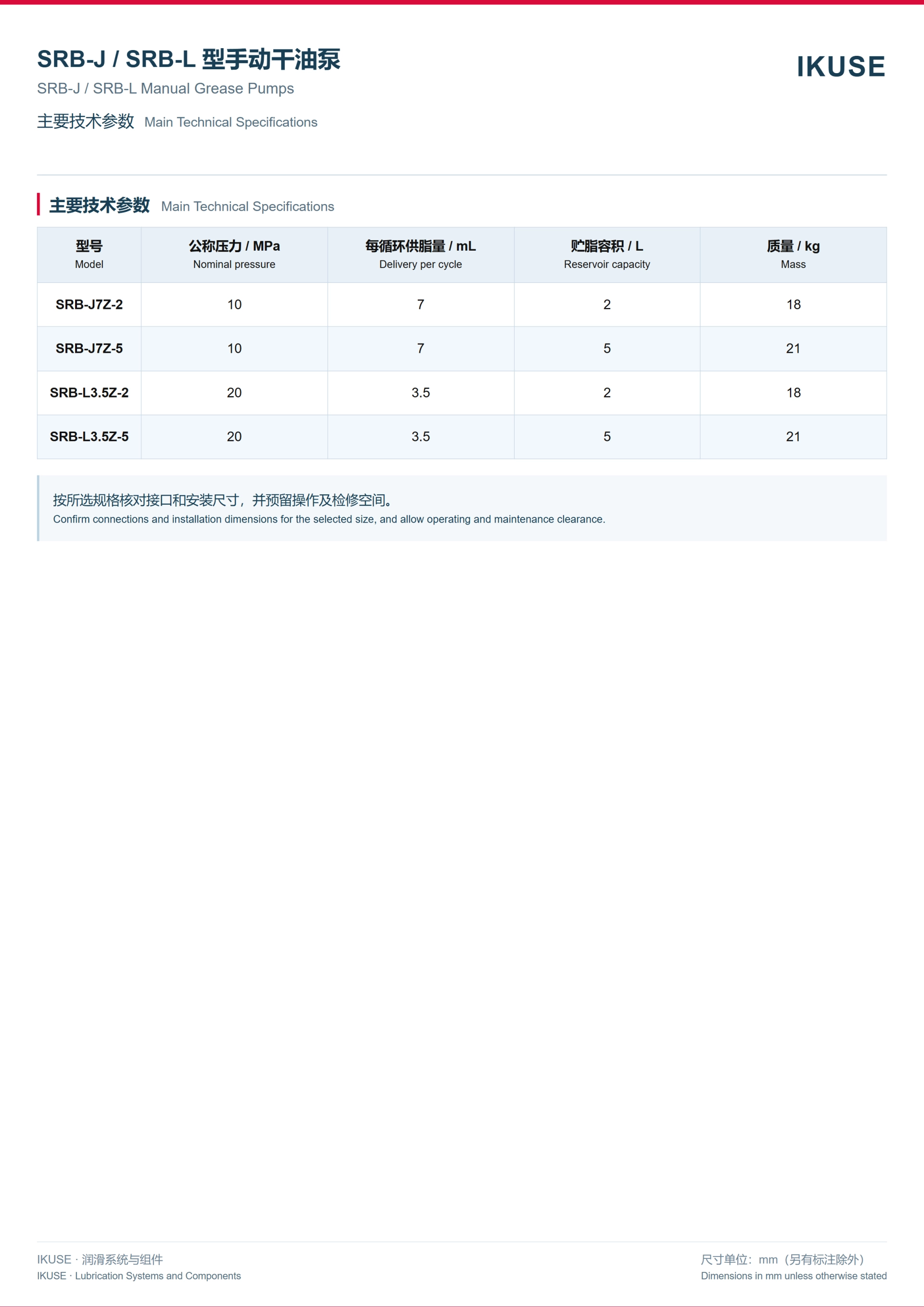

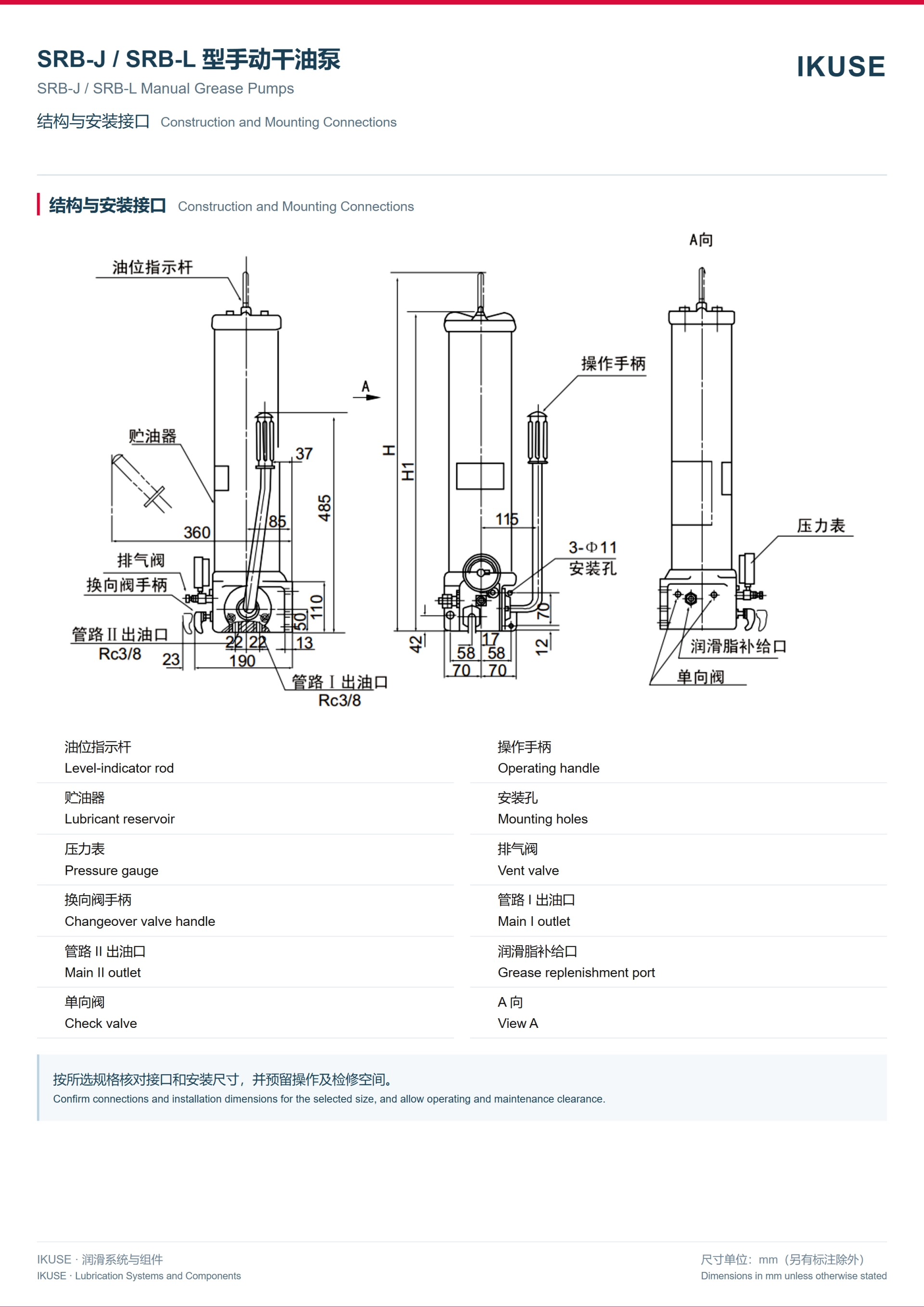

技术图表列出对应系列的规格与结构。按选定型号核对接口及安装尺寸，预留检修空间。产品展示图为示意。
Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
