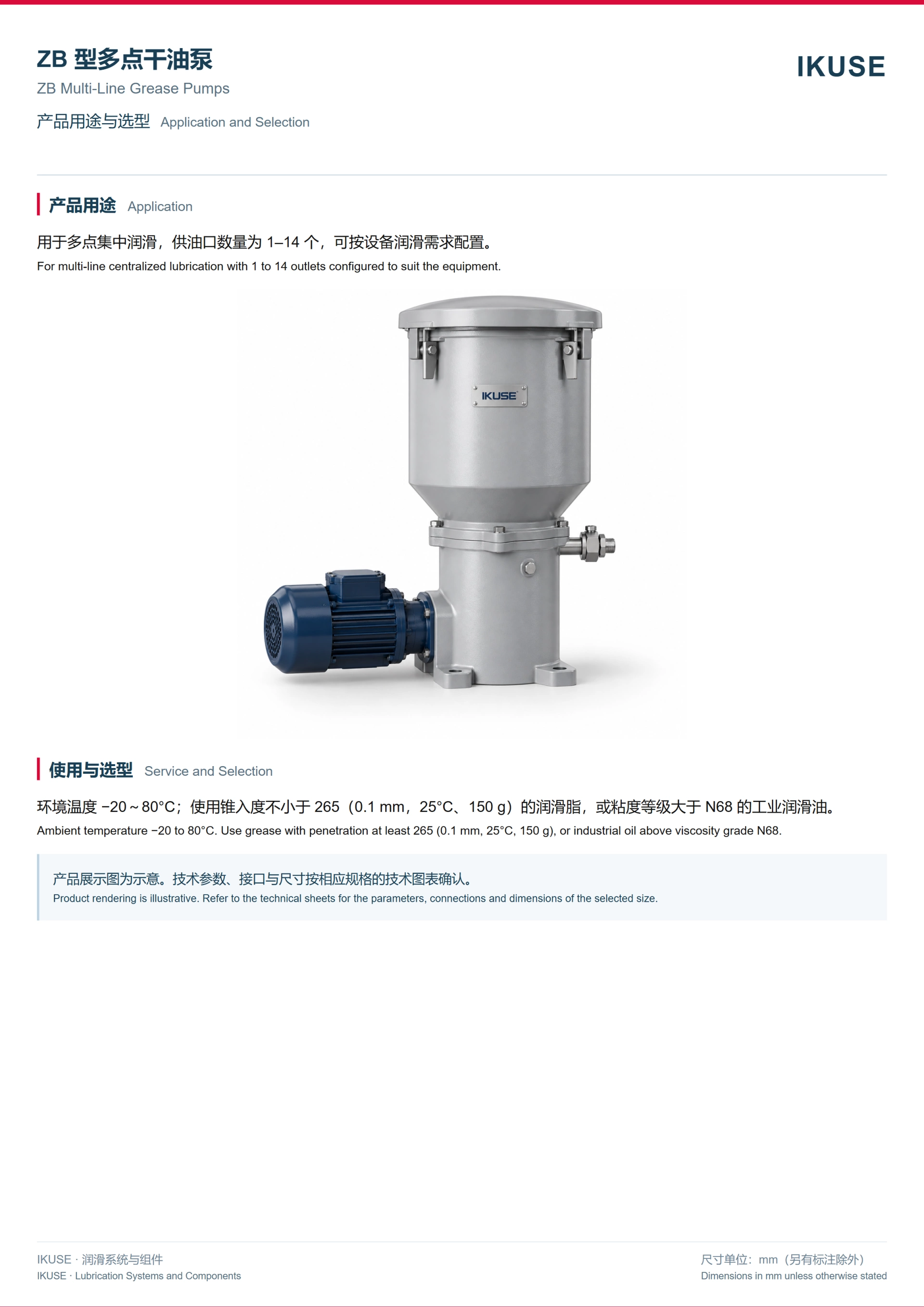

产品概述 / Overview
用于多点集中润滑，供油口数量为 1–14 个，可按设备润滑需求配置。
For multi-line centralized lubrication with 1 to 14 outlets configured to suit the equipment.
For multi-line centralized lubrication with 1 to 14 outlets configured to suit the equipment.
使用与选型 / Service and Selection
环境温度 −20～80°C；使用锥入度不小于 265（0.1 mm，25°C、150 g）的润滑脂，或粘度等级大于 N68 的工业润滑油。
Ambient temperature −20 to 80°C. Use grease with penetration at least 265 (0.1 mm, 25°C, 150 g), or industrial oil above viscosity grade N68.
Ambient temperature −20 to 80°C. Use grease with penetration at least 265 (0.1 mm, 25°C, 150 g), or industrial oil above viscosity grade N68.

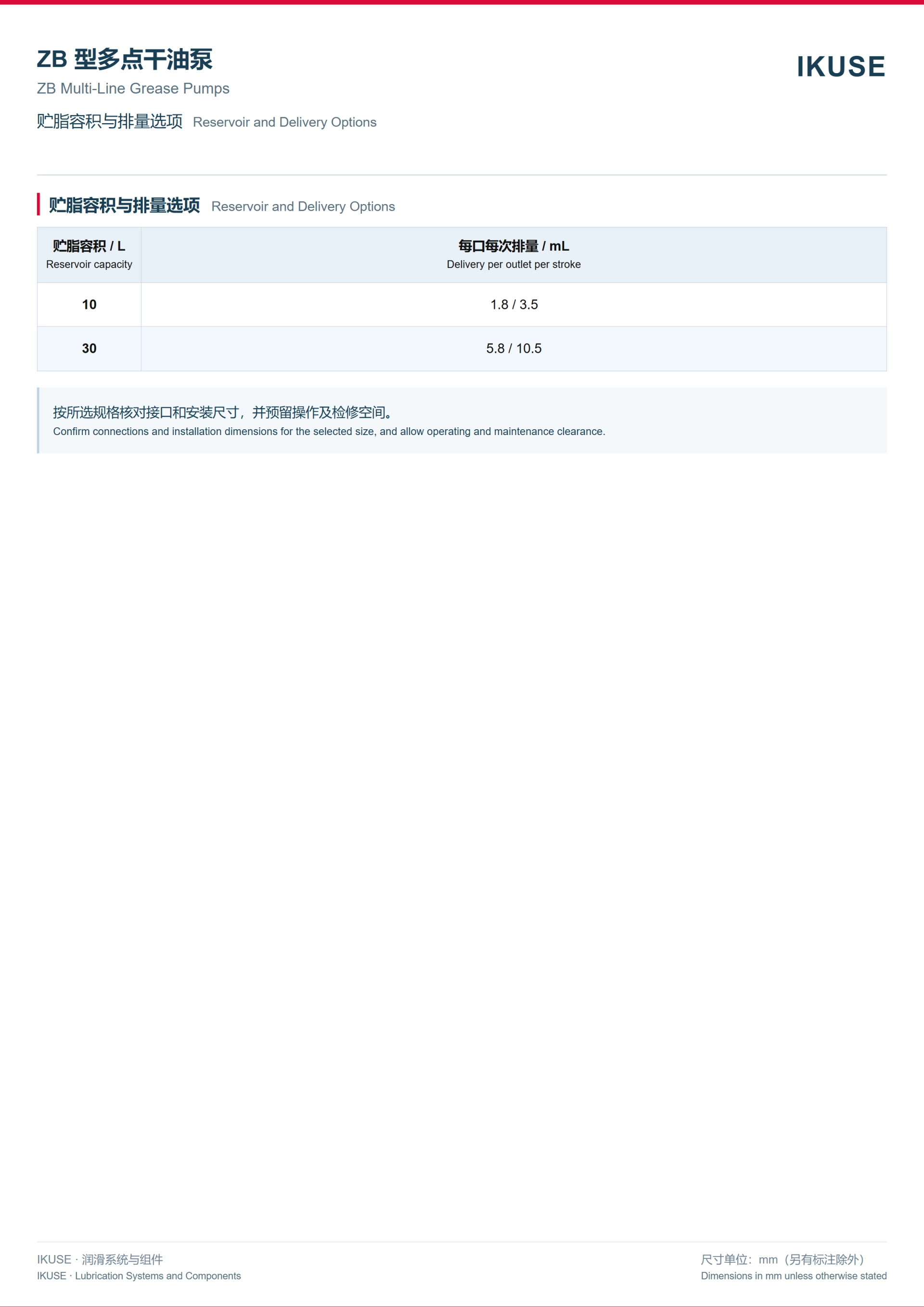

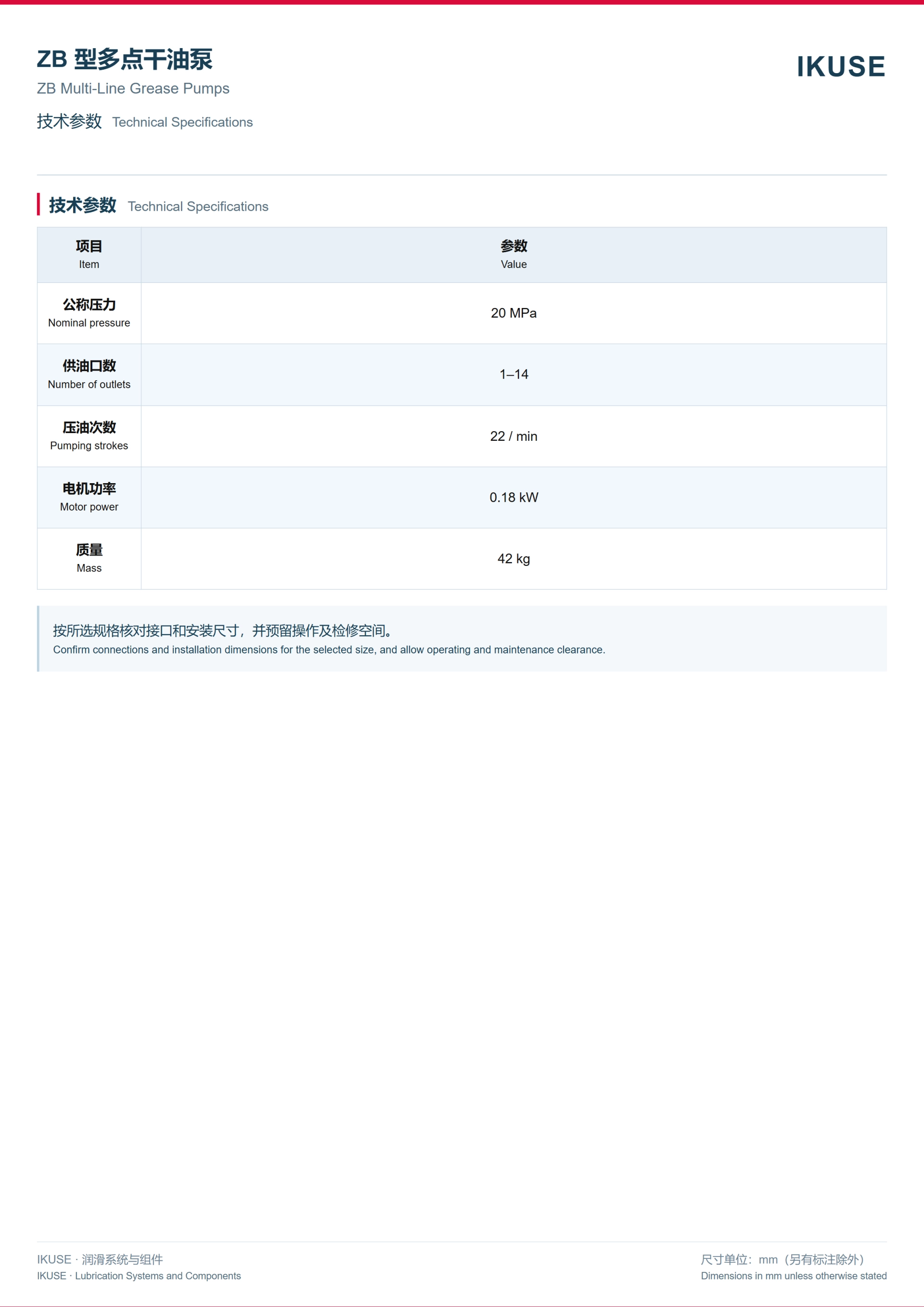

技术资料 / Technical Data

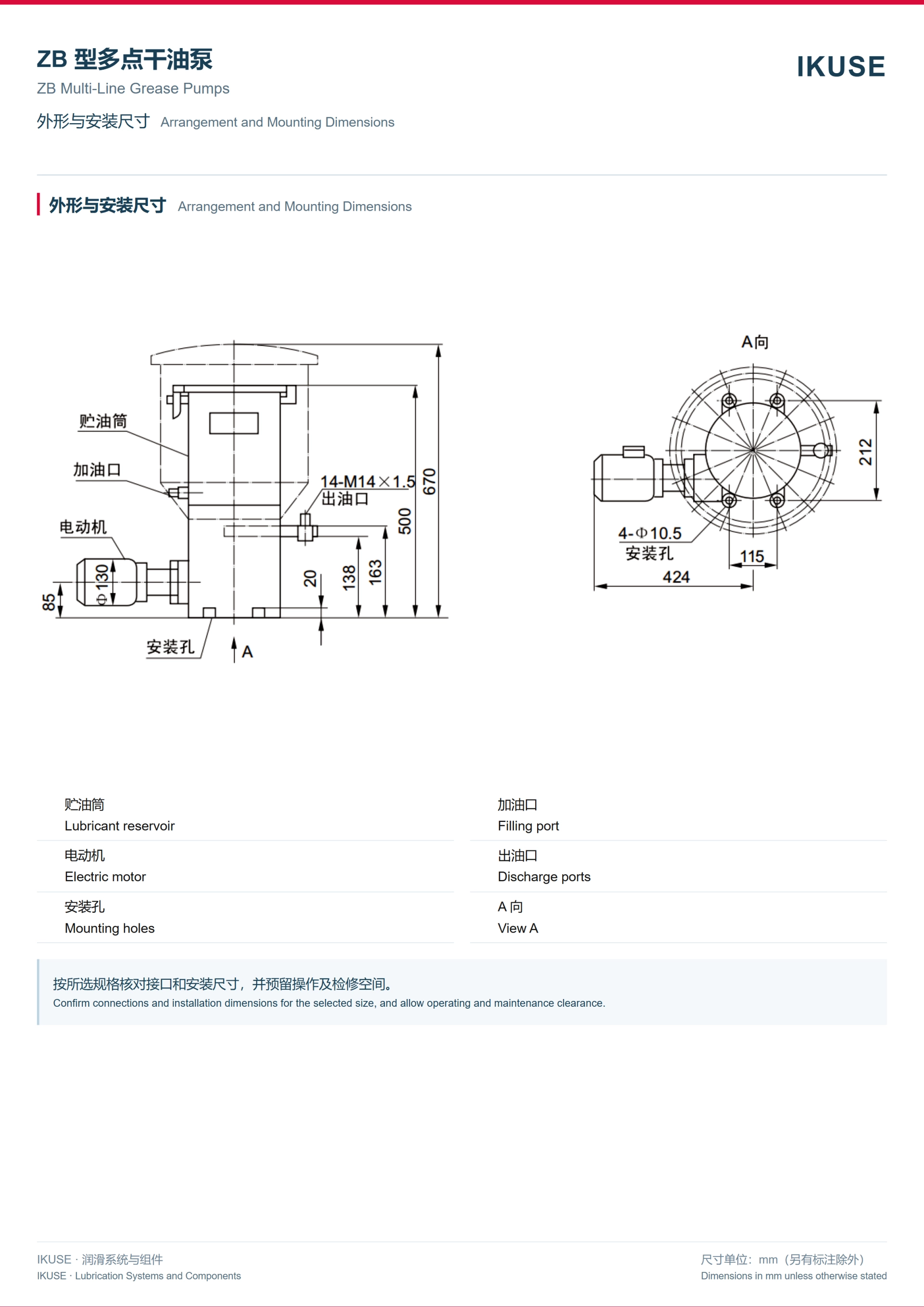

技术图表列出对应系列的规格与结构。按选定型号核对接口及安装尺寸，预留检修空间。产品展示图为示意。
Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
