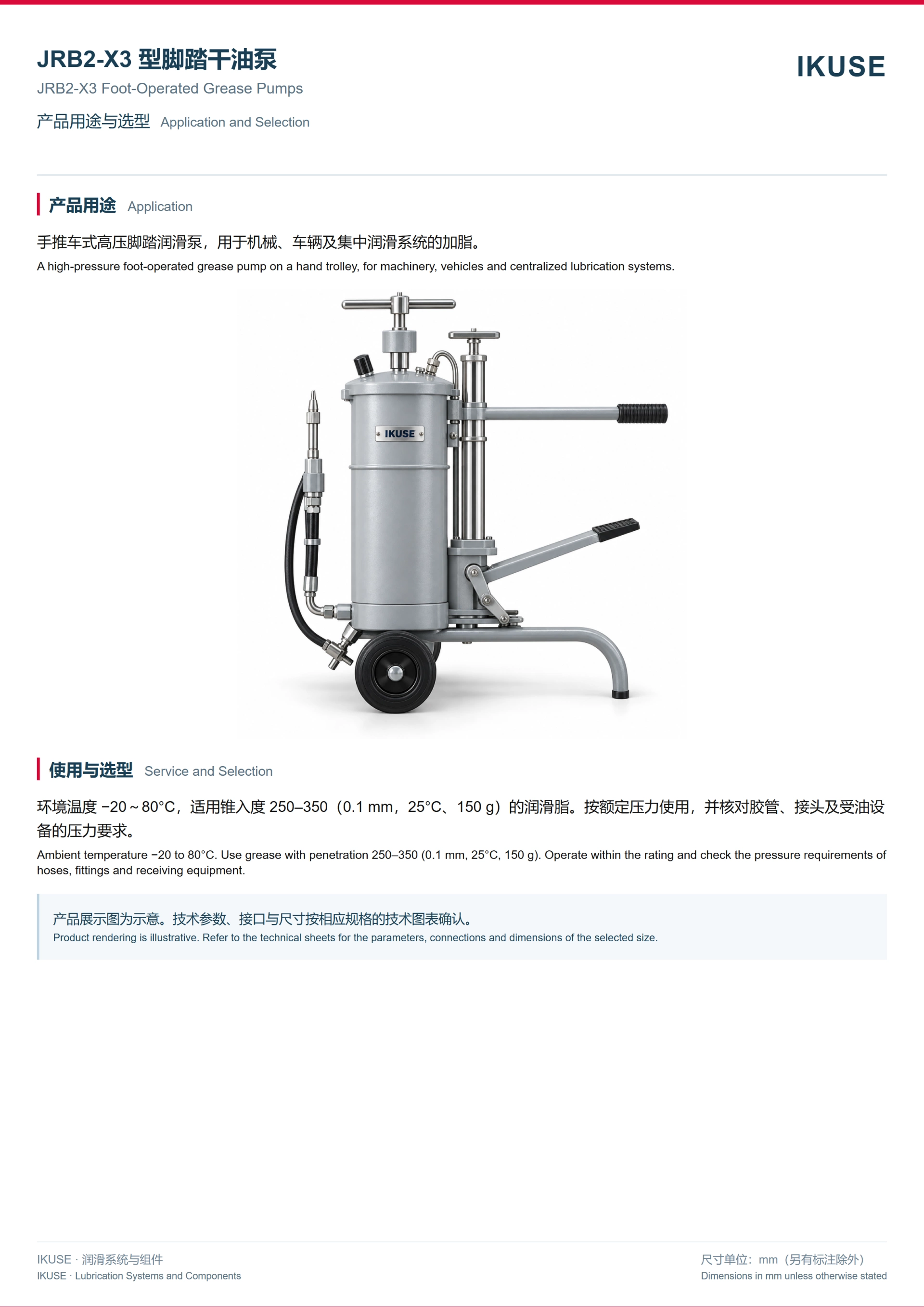

产品概述 / Overview

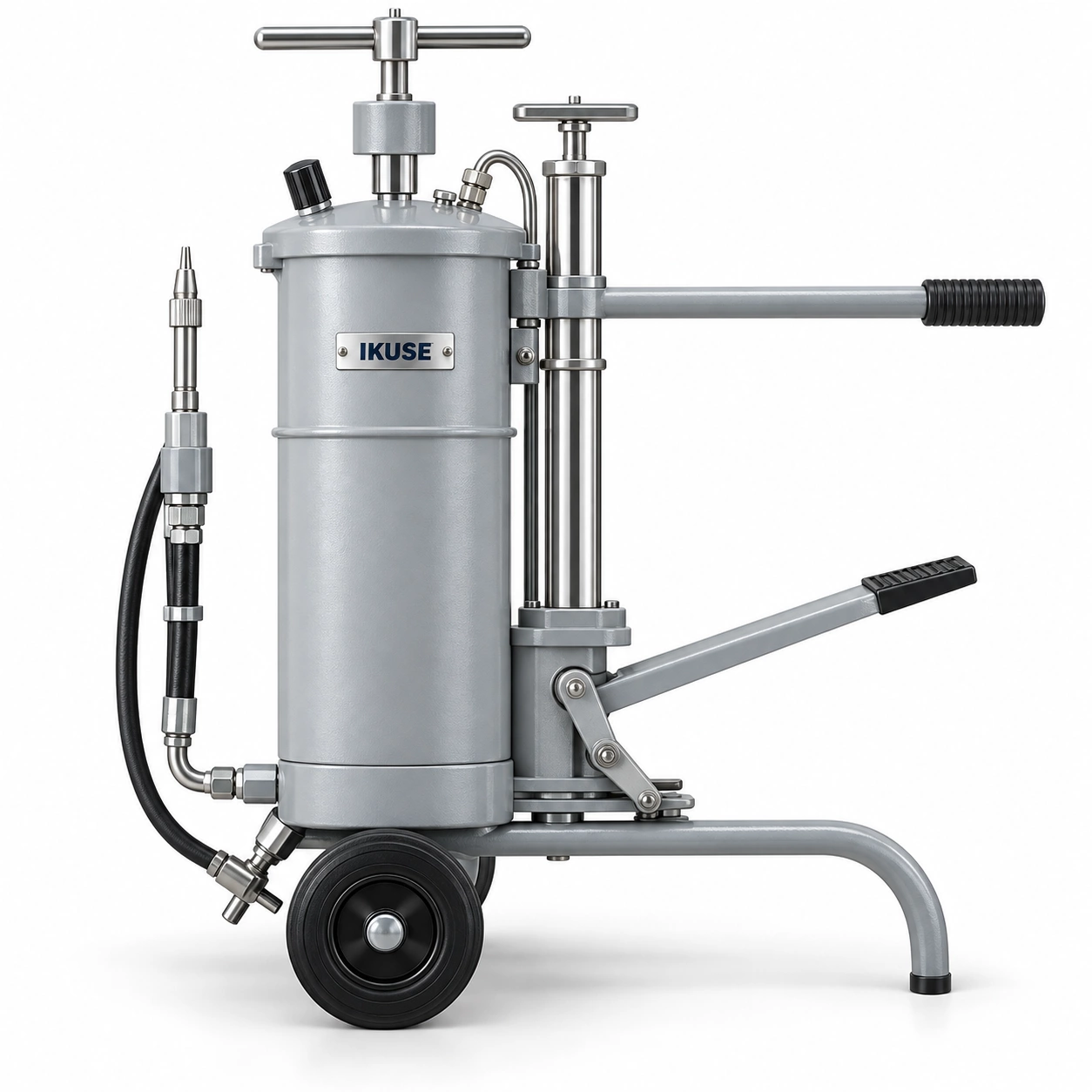

手推车式高压脚踏润滑泵，用于机械、车辆及集中润滑系统的加脂。
A high-pressure foot-operated grease pump on a hand trolley, for machinery, vehicles and centralized lubrication systems.
A high-pressure foot-operated grease pump on a hand trolley, for machinery, vehicles and centralized lubrication systems.
使用与选型 / Service and Selection
环境温度 −20～80°C，适用锥入度 250–350（0.1 mm，25°C、150 g）的润滑脂。按额定压力使用，并核对胶管、接头及受油设备的压力要求。
Ambient temperature −20 to 80°C. Use grease with penetration 250–350 (0.1 mm, 25°C, 150 g). Operate within the rating and check the pressure requirements of hoses, fittings and receiving equipment.
Ambient temperature −20 to 80°C. Use grease with penetration 250–350 (0.1 mm, 25°C, 150 g). Operate within the rating and check the pressure requirements of hoses, fittings and receiving equipment.
技术资料 / Technical Data

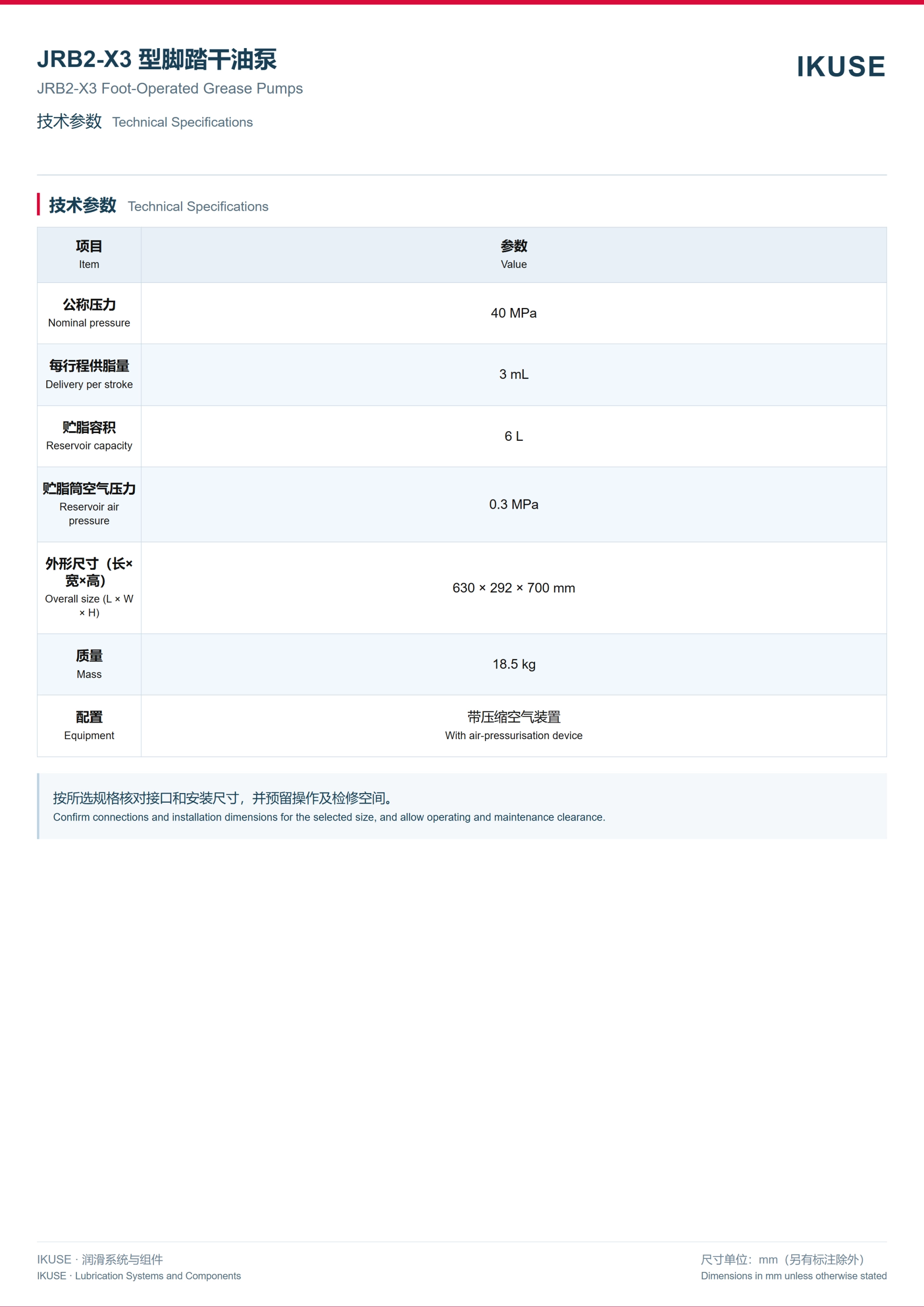

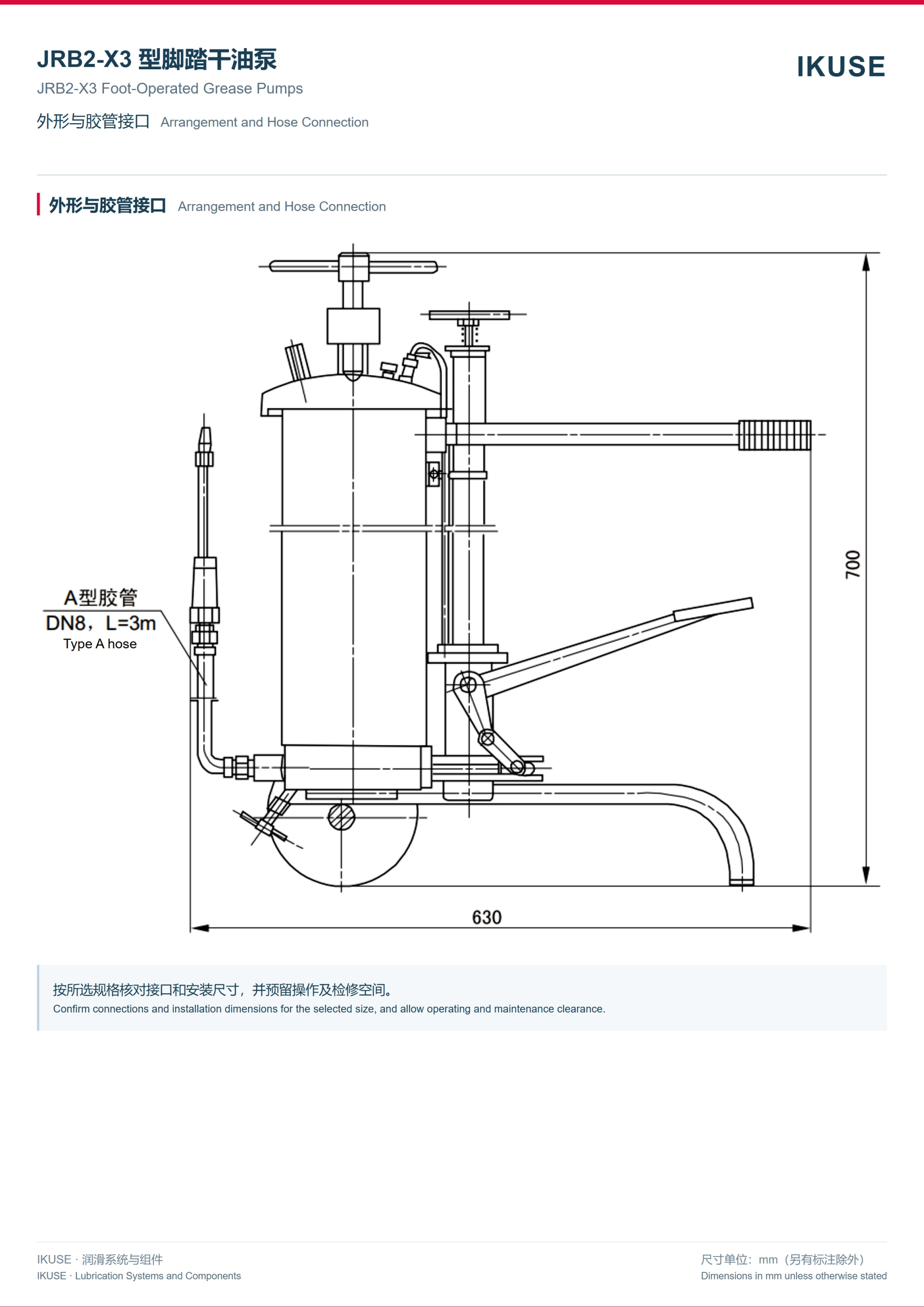

技术图表列出对应系列的规格与结构。按选定型号核对接口及安装尺寸，预留检修空间。产品展示图为示意。
Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
