产品概述 / Overview
手动润滑泵可配单线分配器，增加换向阀后可组成双线终端式系统。
A manual pump for single-line distributors; adding a changeover valve enables a dual-line end-of-line system.
A manual pump for single-line distributors; adding a changeover valve enables a dual-line end-of-line system.
选型与使用 / Selection and Service
适用于管路不超过 50 m、润滑点不超过 40 个的小型设备；按介质选择对应型号。
For small machines with piping up to 50 m and no more than 40 points; select the model for the lubricant.
For small machines with piping up to 50 m and no more than 40 points; select the model for the lubricant.

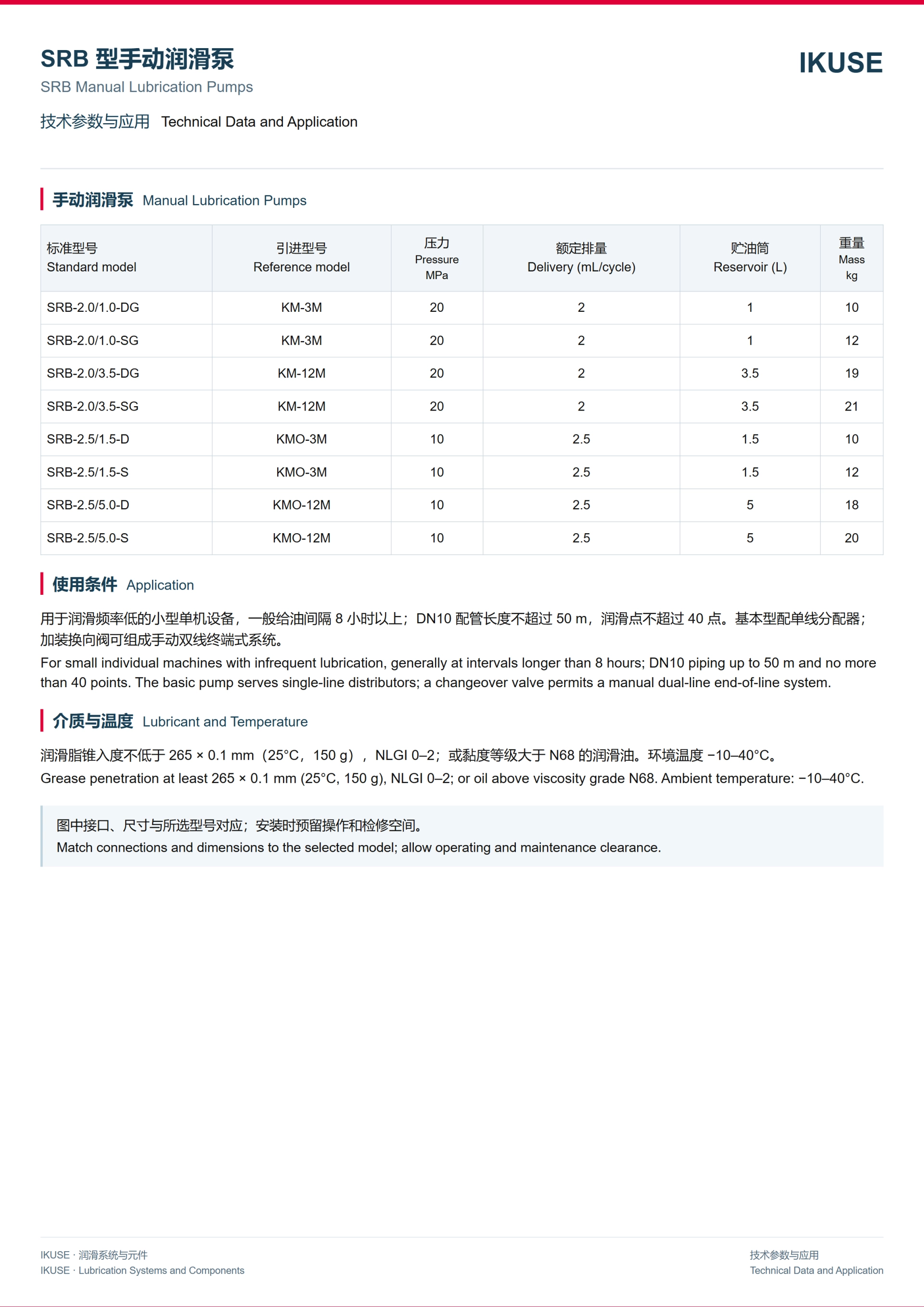

技术资料 / Technical Data

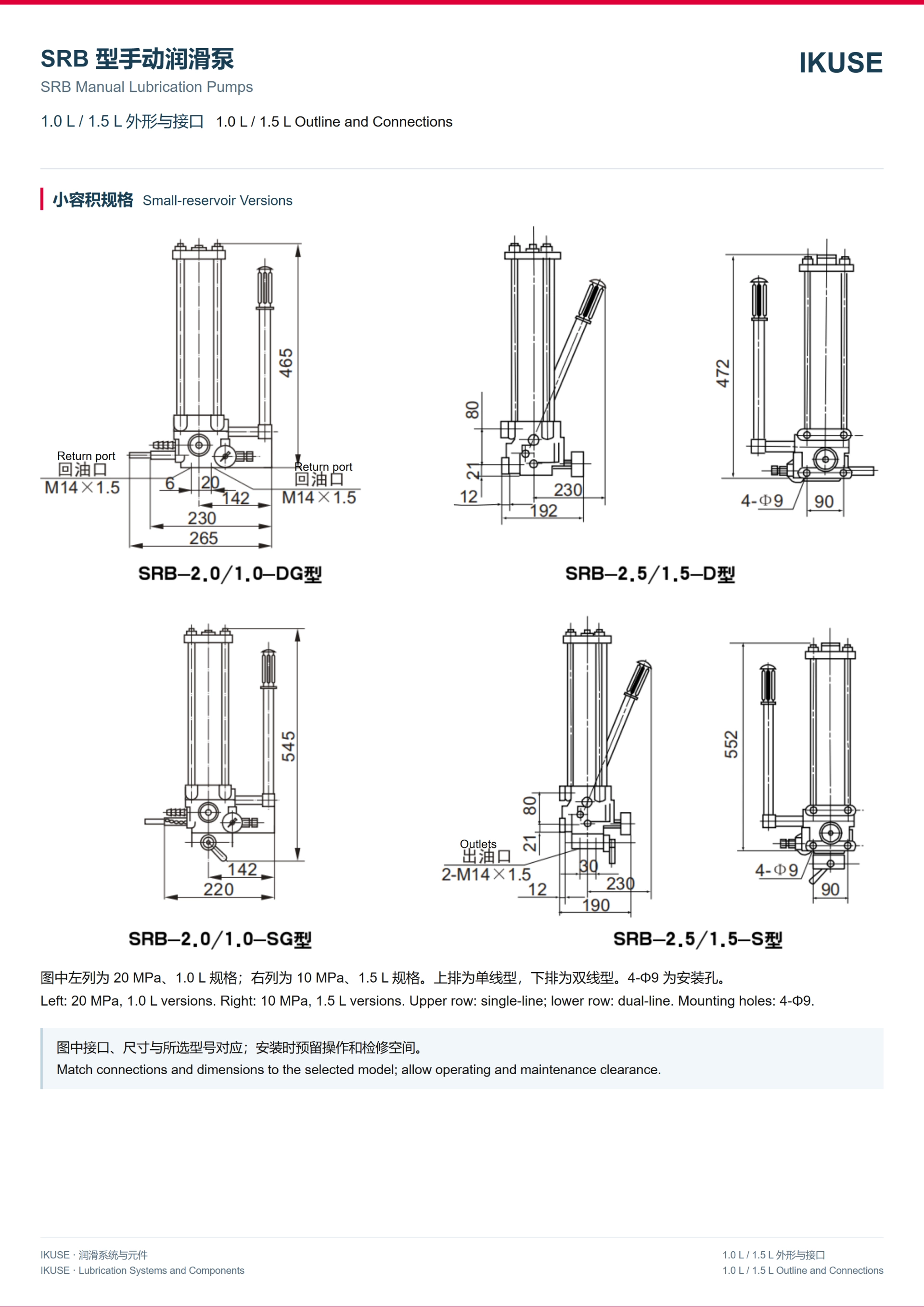

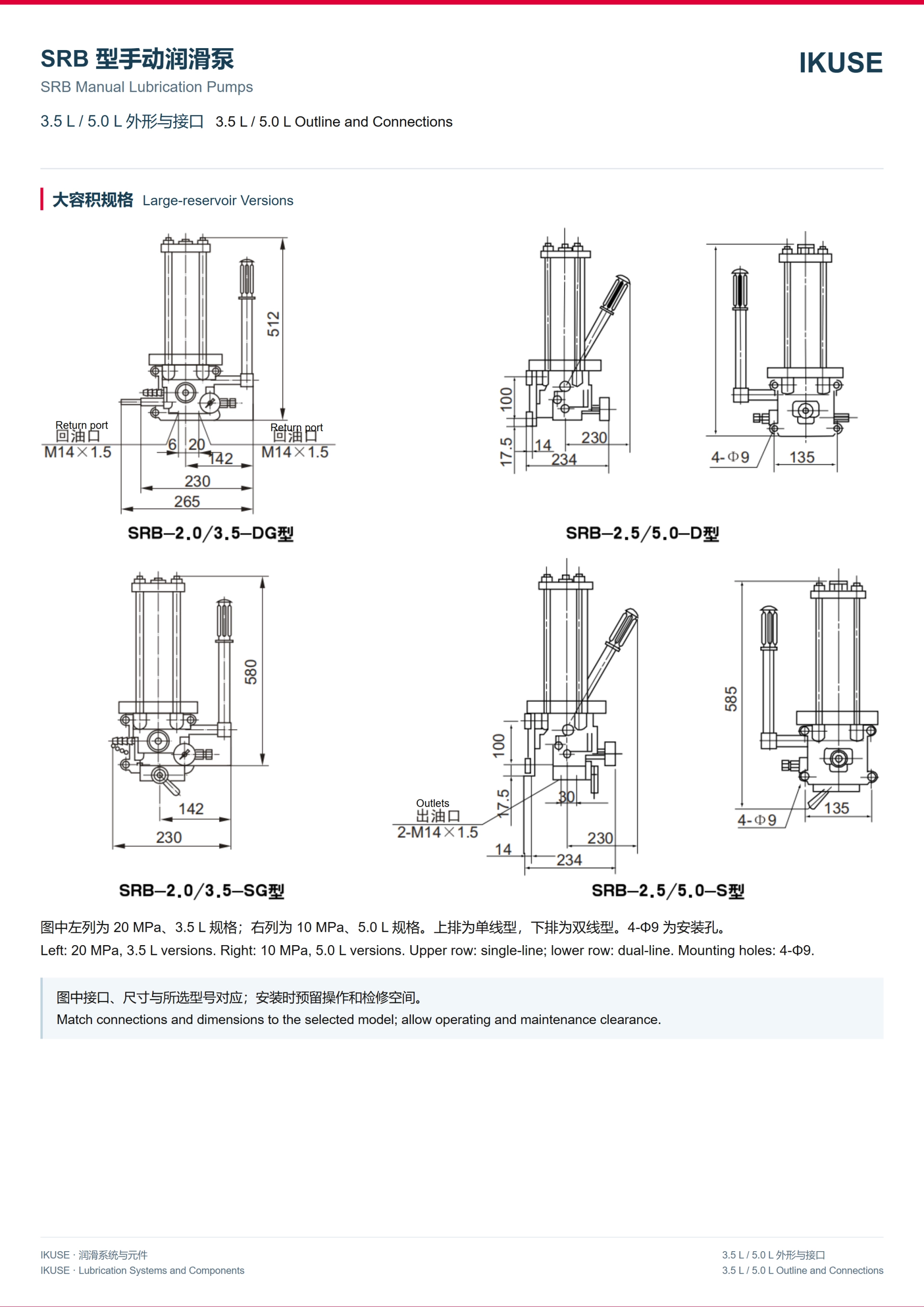

技术图表及安装尺寸按所选型号对应。接口形式、压力等级、适用介质及安装空间请结合对应规格确认。
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
