产品概述 / Overview

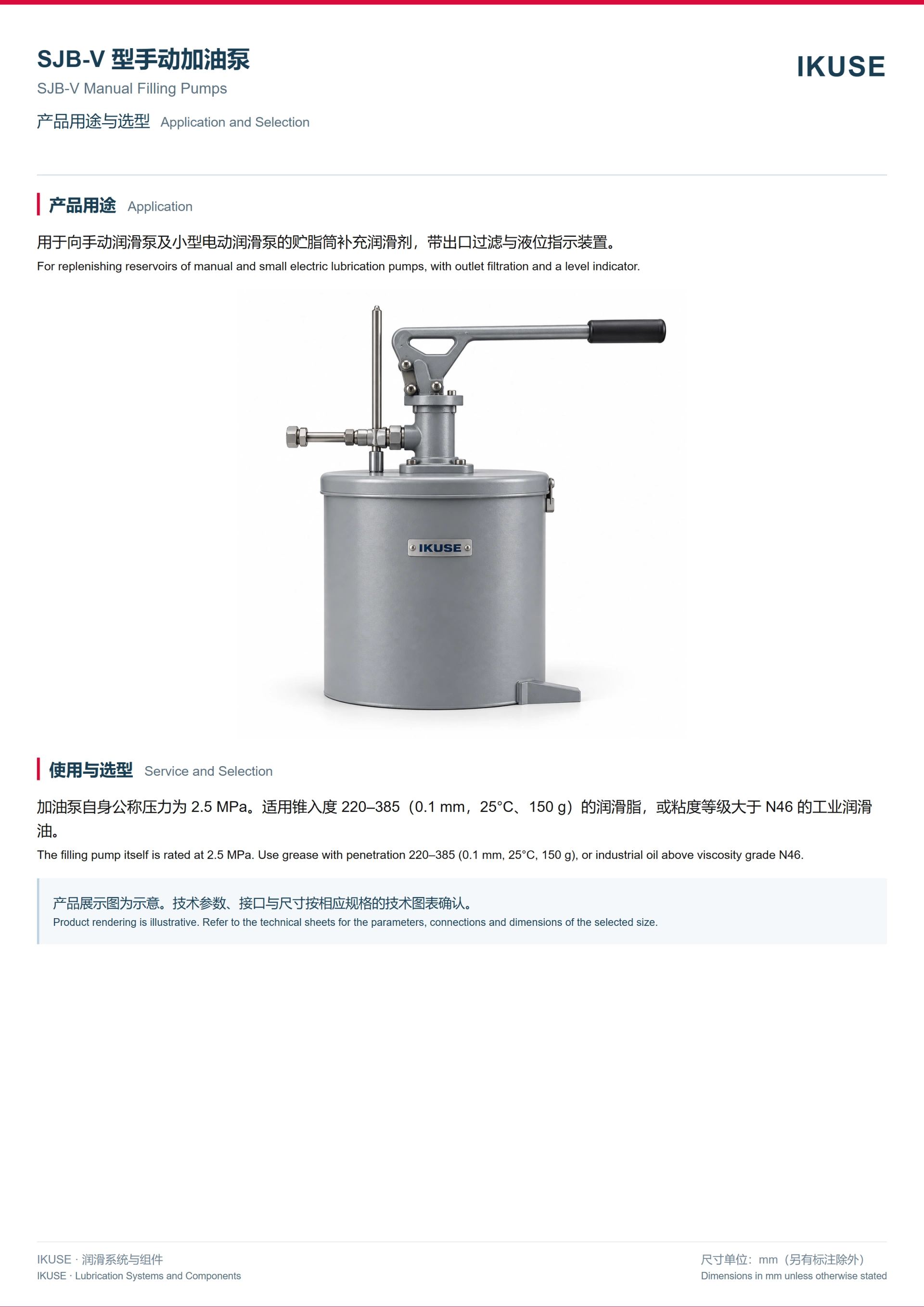

用于向手动润滑泵及小型电动润滑泵的贮脂筒补充润滑剂，带出口过滤与液位指示装置。
For replenishing reservoirs of manual and small electric lubrication pumps, with outlet filtration and a level indicator.
For replenishing reservoirs of manual and small electric lubrication pumps, with outlet filtration and a level indicator.
使用与选型 / Service and Selection
加油泵自身公称压力为 2.5 MPa。适用锥入度 220–385（0.1 mm，25°C、150 g）的润滑脂，或粘度等级大于 N46 的工业润滑油。
The filling pump itself is rated at 2.5 MPa. Use grease with penetration 220–385 (0.1 mm, 25°C, 150 g), or industrial oil above viscosity grade N46.
The filling pump itself is rated at 2.5 MPa. Use grease with penetration 220–385 (0.1 mm, 25°C, 150 g), or industrial oil above viscosity grade N46.
技术资料 / Technical Data
技术图表列出对应系列的规格与结构。按选定型号核对接口及安装尺寸，预留检修空间。产品展示图为示意。

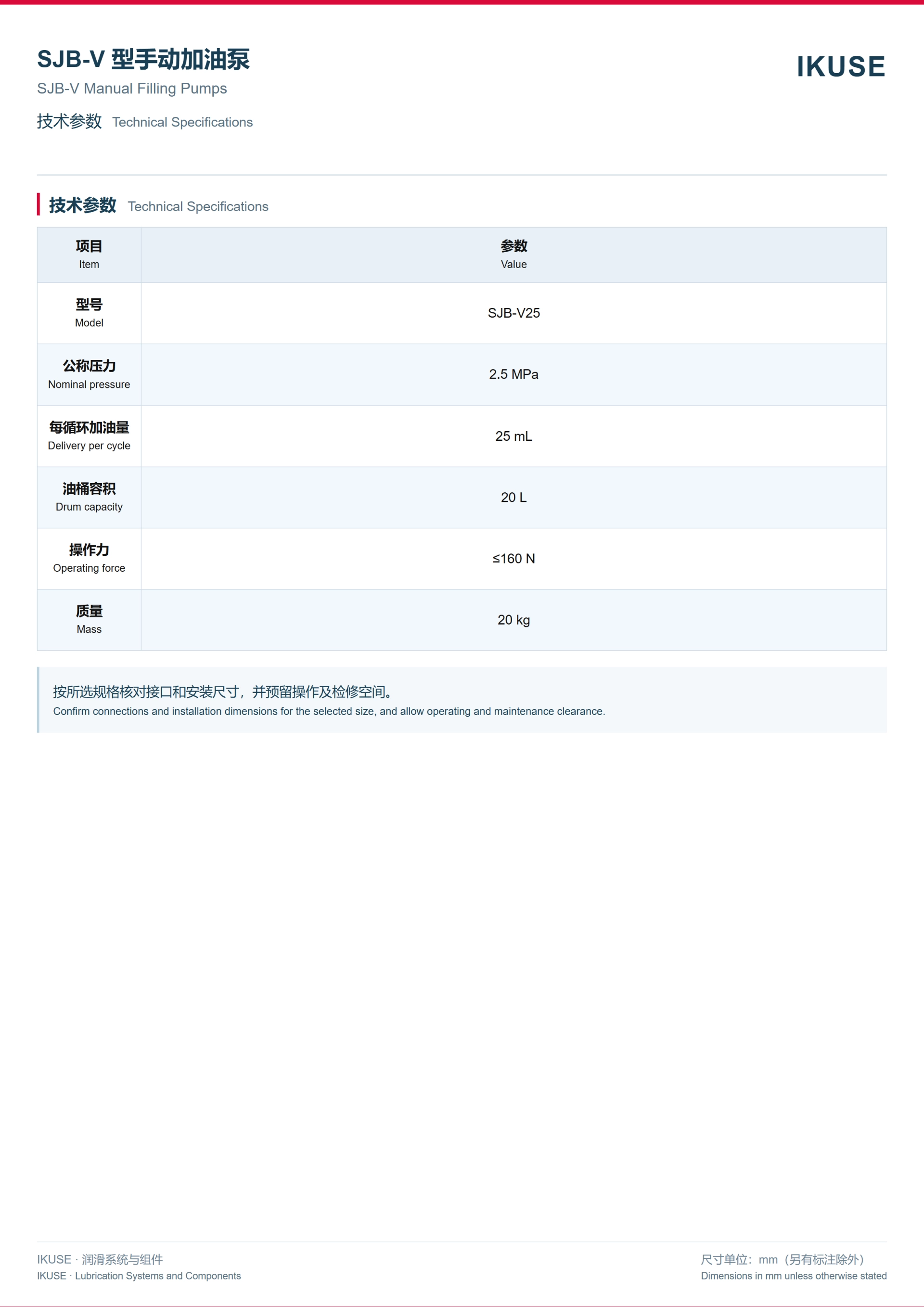

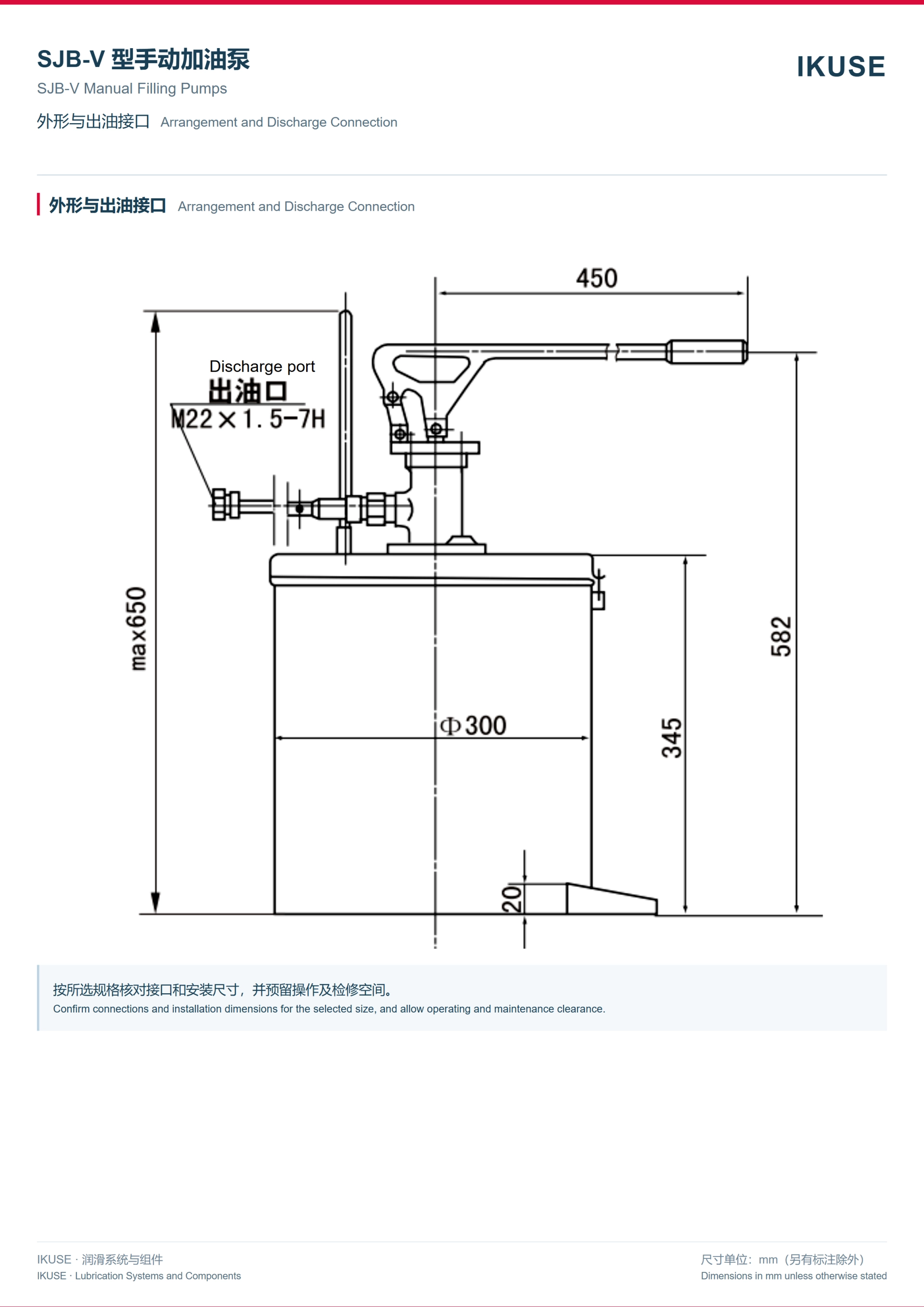

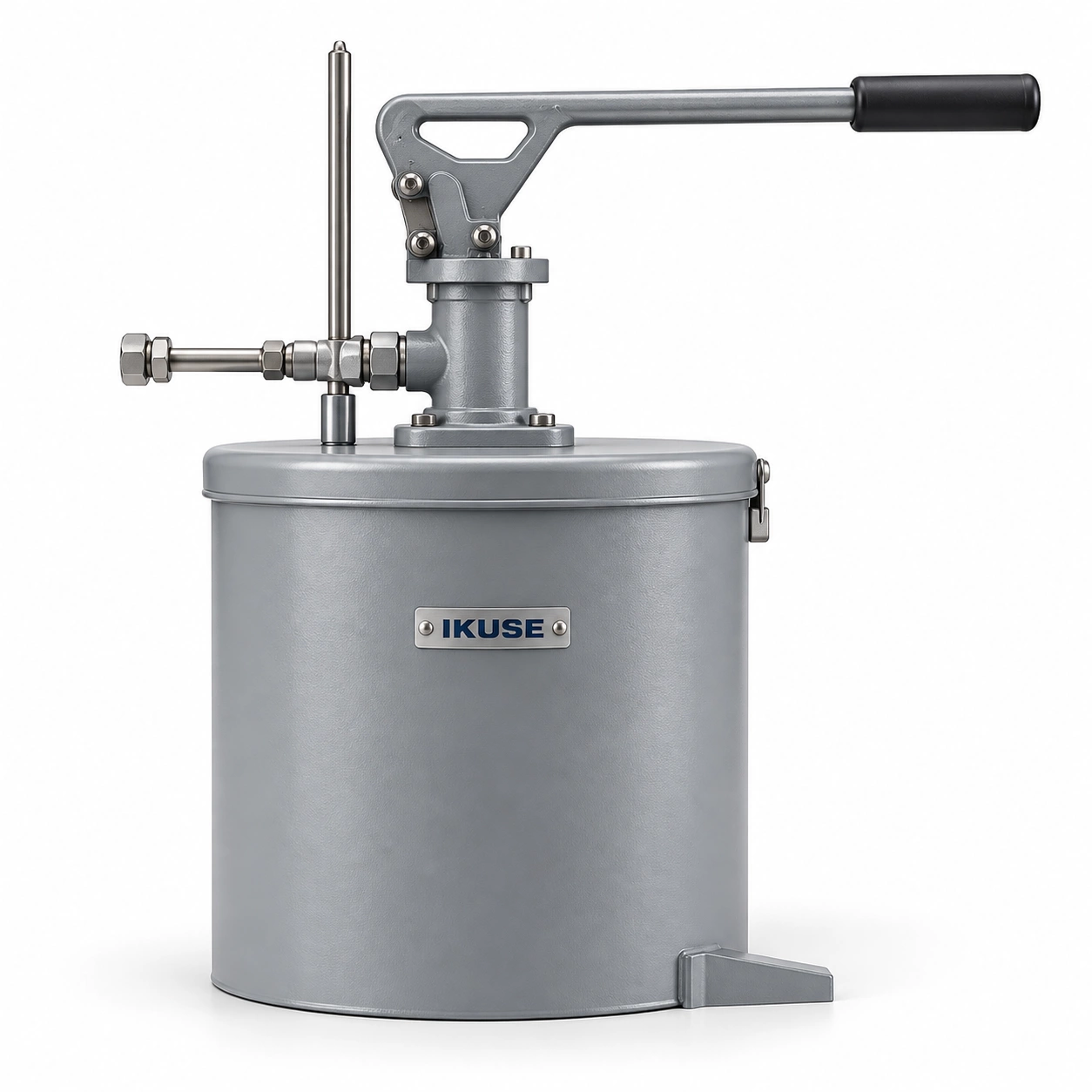

Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
