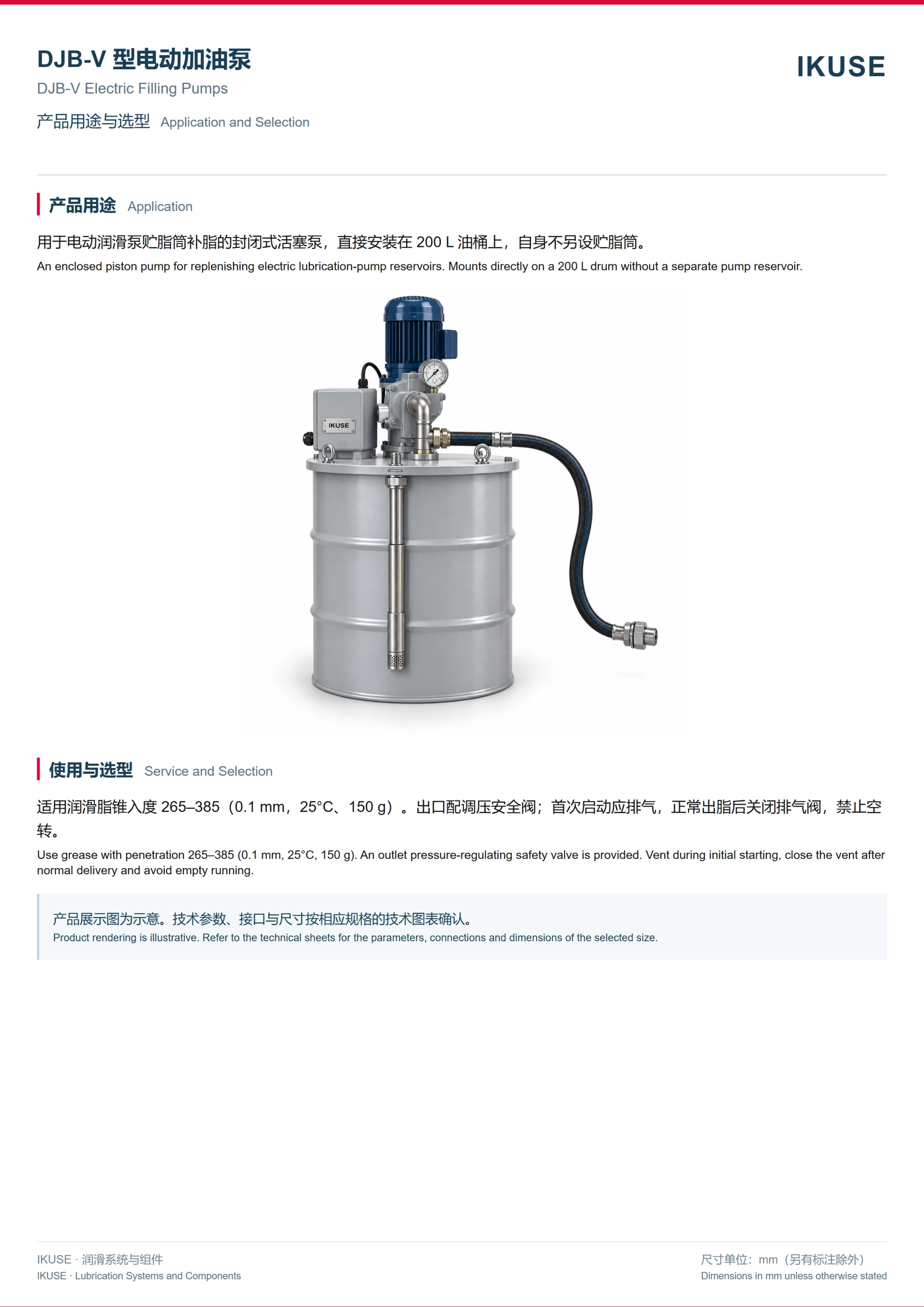

产品概述 / Overview
用于电动润滑泵贮脂筒补脂的封闭式活塞泵，直接安装在 200 L 油桶上，自身不另设贮脂筒。
An enclosed piston pump for replenishing electric lubrication-pump reservoirs. Mounts directly on a 200 L drum without a separate pump reservoir.
An enclosed piston pump for replenishing electric lubrication-pump reservoirs. Mounts directly on a 200 L drum without a separate pump reservoir.
使用与选型 / Service and Selection
适用润滑脂锥入度 265–385（0.1 mm，25°C、150 g）。出口配调压安全阀；首次启动应排气，正常出脂后关闭排气阀，禁止空转。
Use grease with penetration 265–385 (0.1 mm, 25°C, 150 g). An outlet pressure-regulating safety valve is provided. Vent during initial starting, close the vent after normal delivery and avoid empty running.
Use grease with penetration 265–385 (0.1 mm, 25°C, 150 g). An outlet pressure-regulating safety valve is provided. Vent during initial starting, close the vent after normal delivery and avoid empty running.

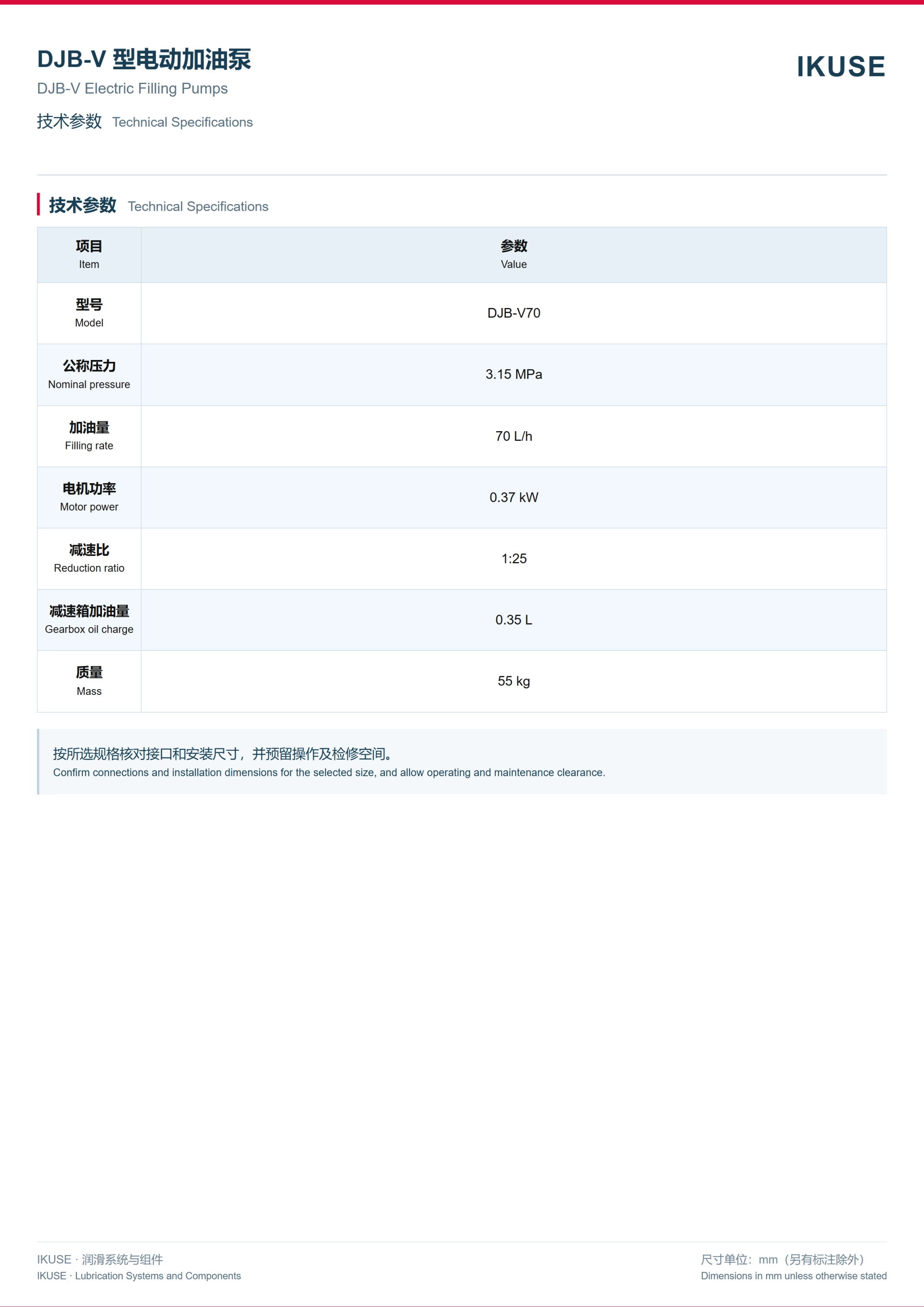

技术资料 / Technical Data

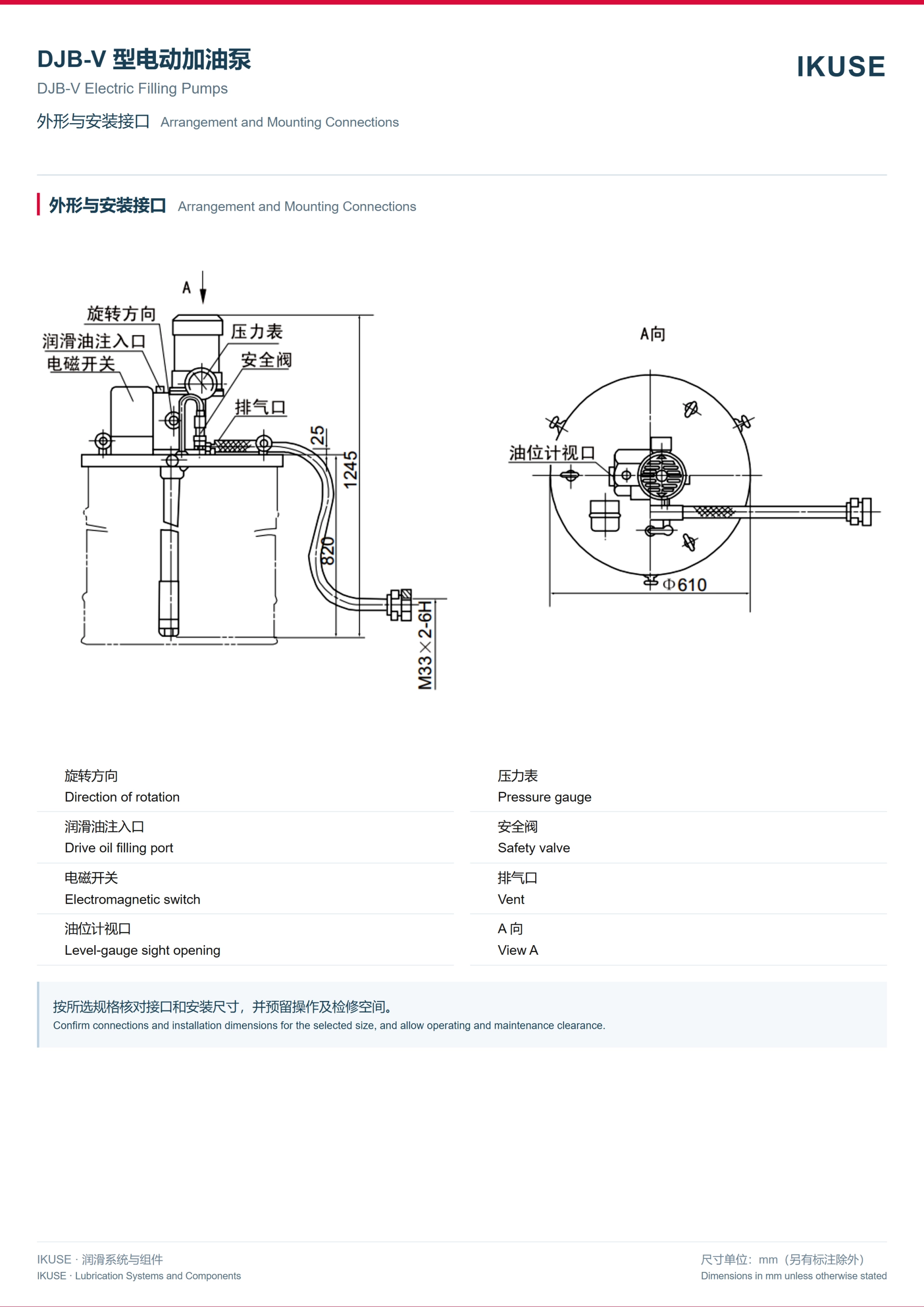

技术图表列出对应系列的规格与结构。按选定型号核对接口及安装尺寸，预留检修空间。产品展示图为示意。

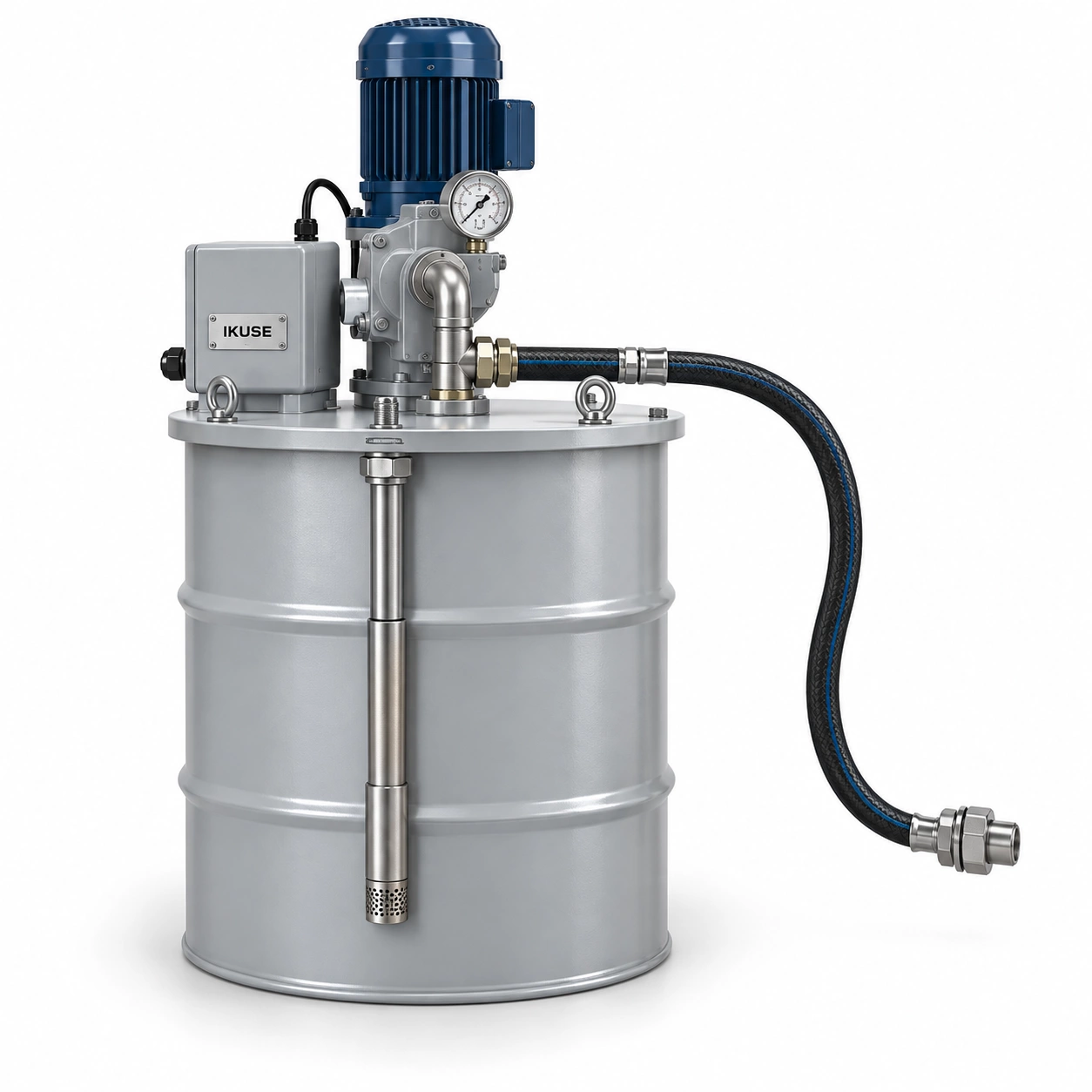

Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
