产品概述 / Overview
用于电动润滑泵贮脂筒补脂，卧式减速电机带动封闭式活塞机构，出口设过滤装置。

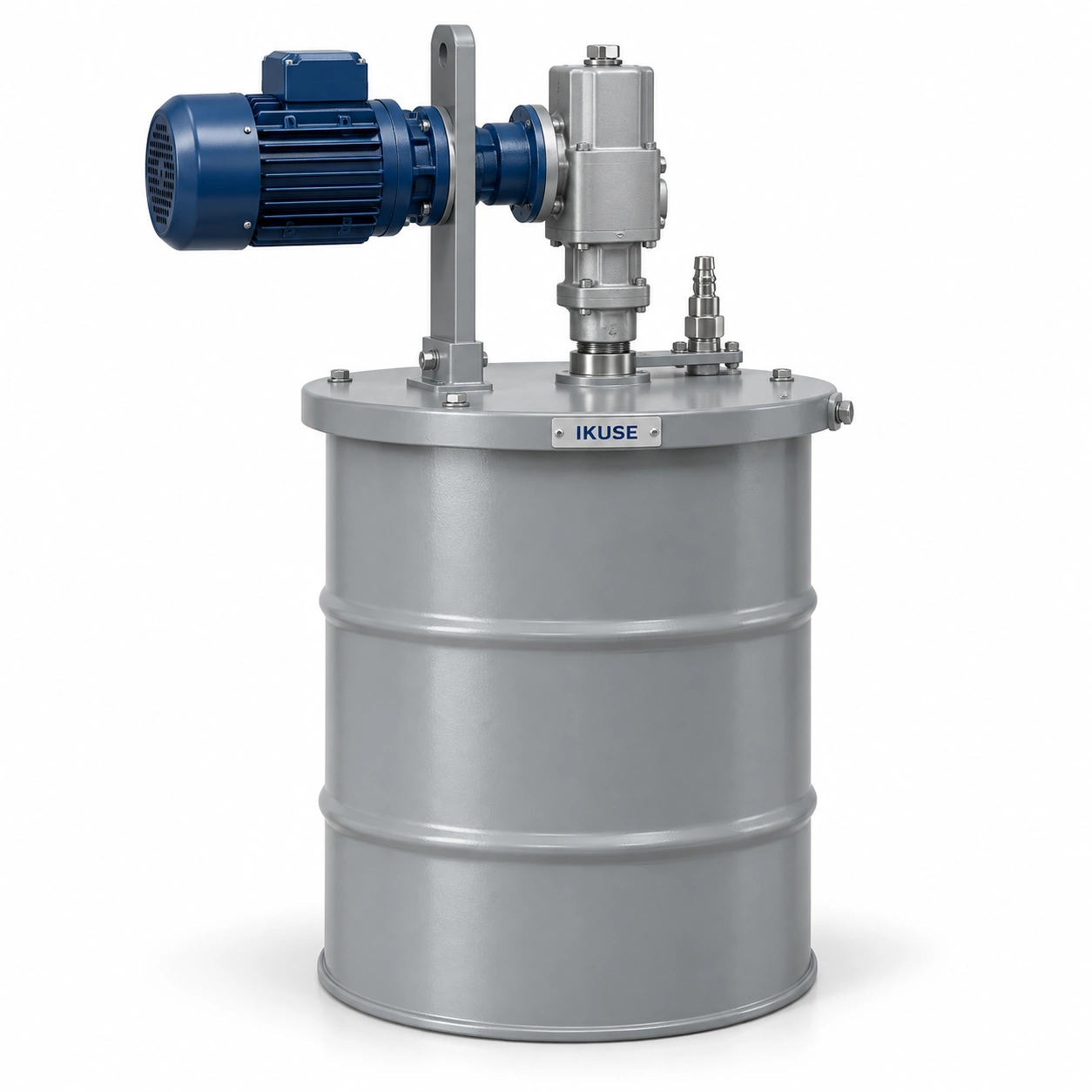

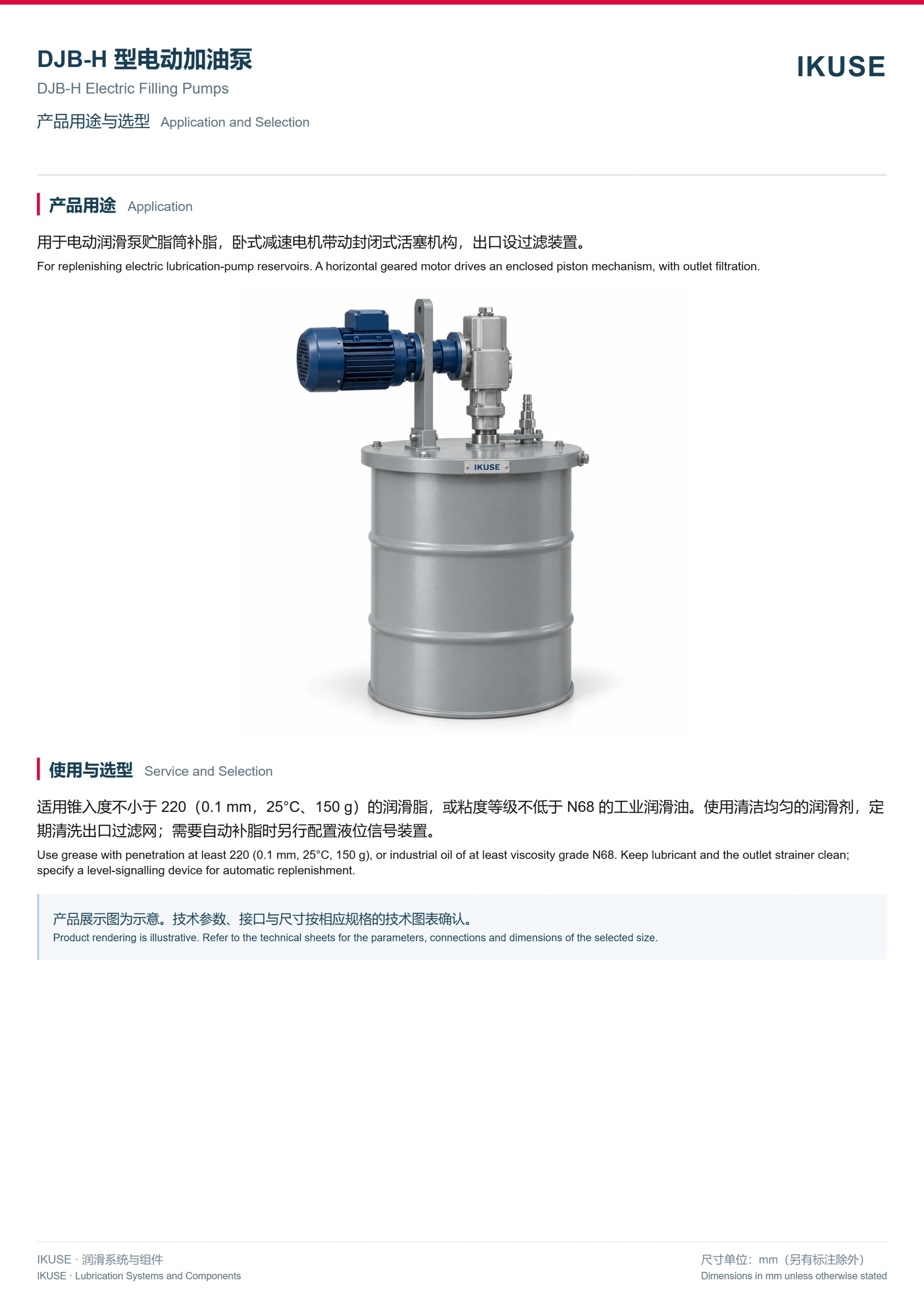

For replenishing electric lubrication-pump reservoirs. A horizontal geared motor drives an enclosed piston mechanism, with outlet filtration.
For replenishing electric lubrication-pump reservoirs. A horizontal geared motor drives an enclosed piston mechanism, with outlet filtration.
使用与选型 / Service and Selection
适用锥入度不小于 220（0.1 mm，25°C、150 g）的润滑脂，或粘度等级不低于 N68 的工业润滑油。使用清洁均匀的润滑剂，定期清洗出口过滤网；需要自动补脂时另行配置液位信号装置。
Use grease with penetration at least 220 (0.1 mm, 25°C, 150 g), or industrial oil of at least viscosity grade N68. Keep lubricant and the outlet strainer clean; specify a level-signalling device for automatic replenishment.
Use grease with penetration at least 220 (0.1 mm, 25°C, 150 g), or industrial oil of at least viscosity grade N68. Keep lubricant and the outlet strainer clean; specify a level-signalling device for automatic replenishment.
技术资料 / Technical Data

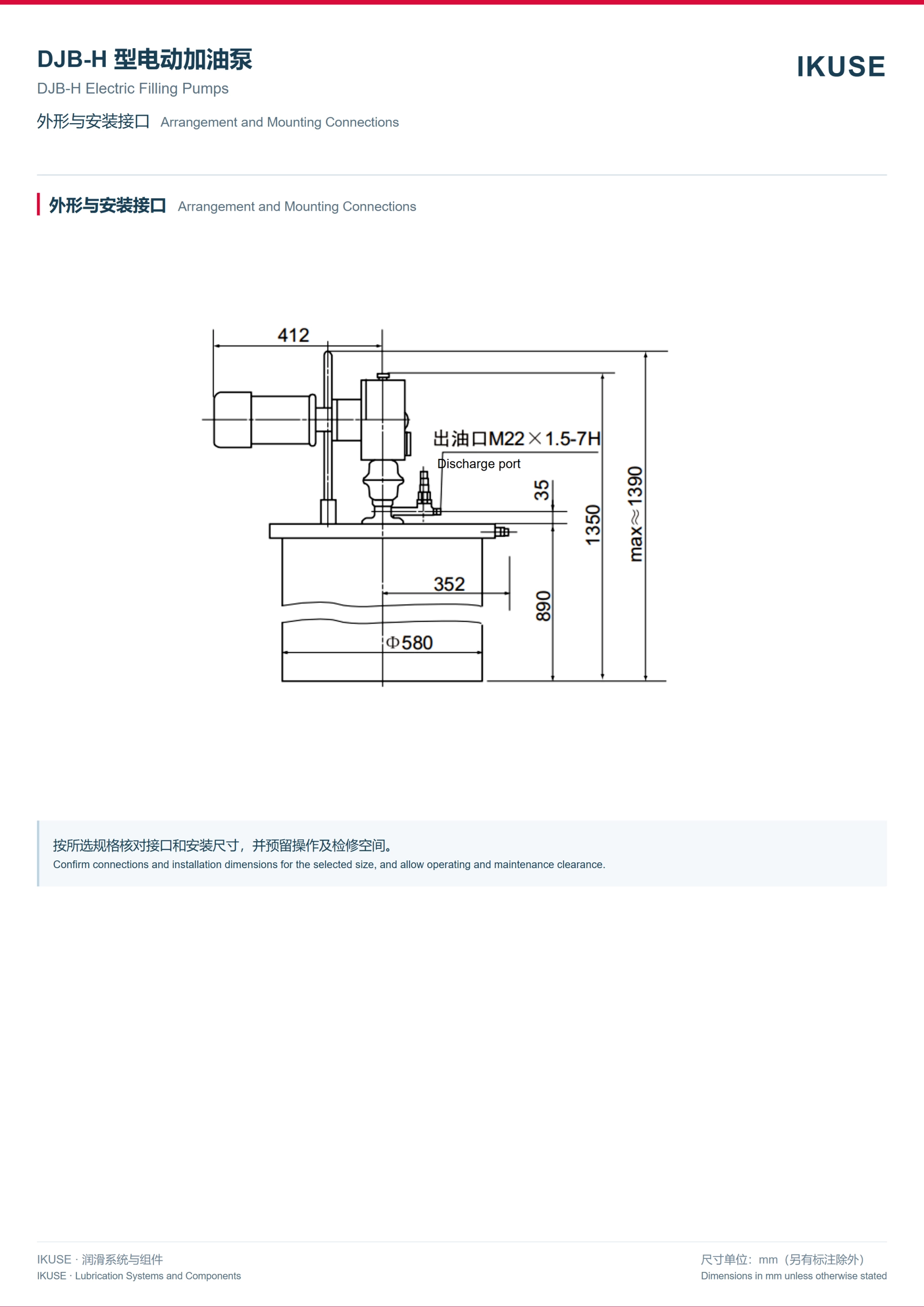

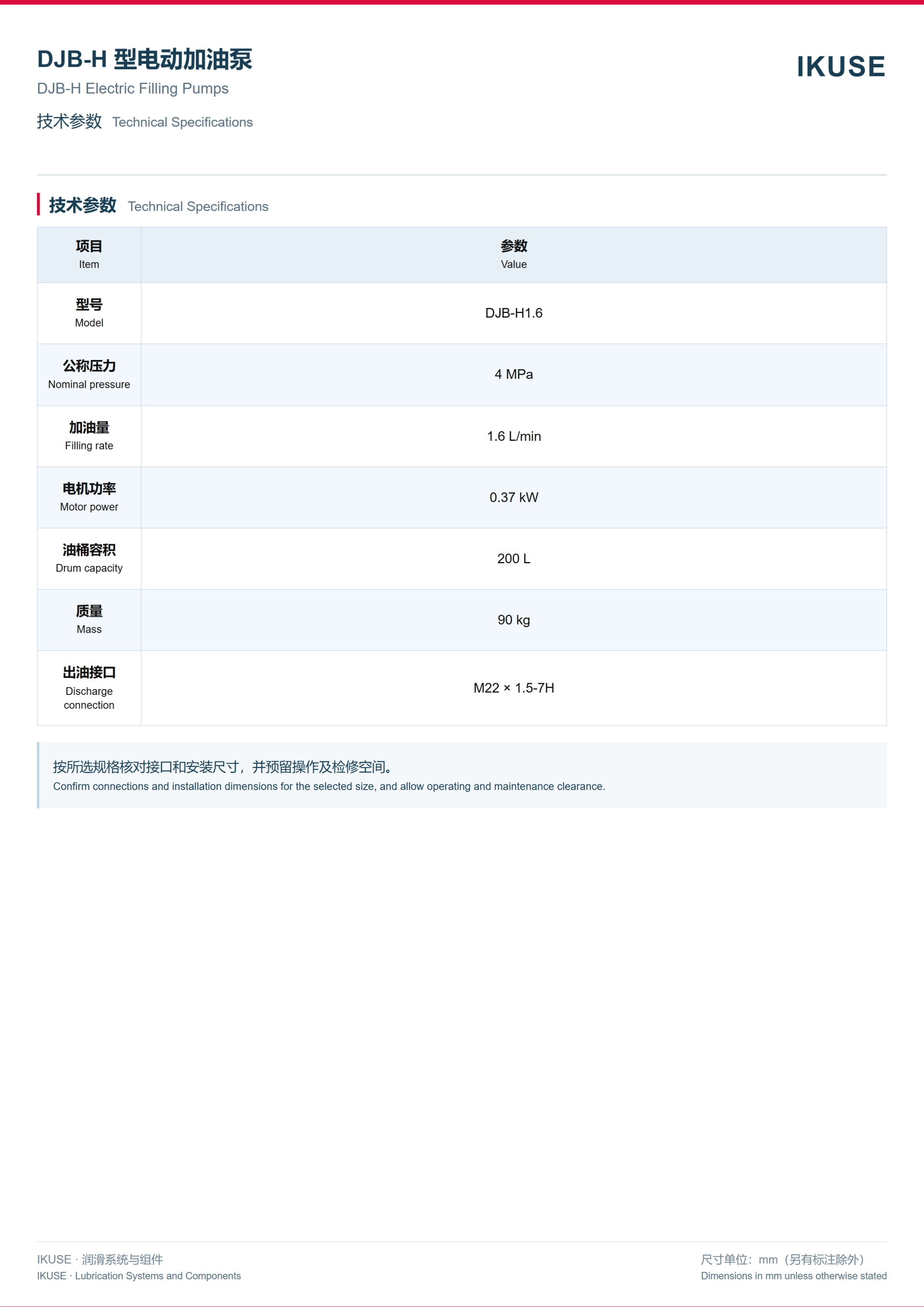

技术图表列出对应系列的规格与结构。按选定型号核对接口及安装尺寸，预留检修空间。产品展示图为示意。
Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
