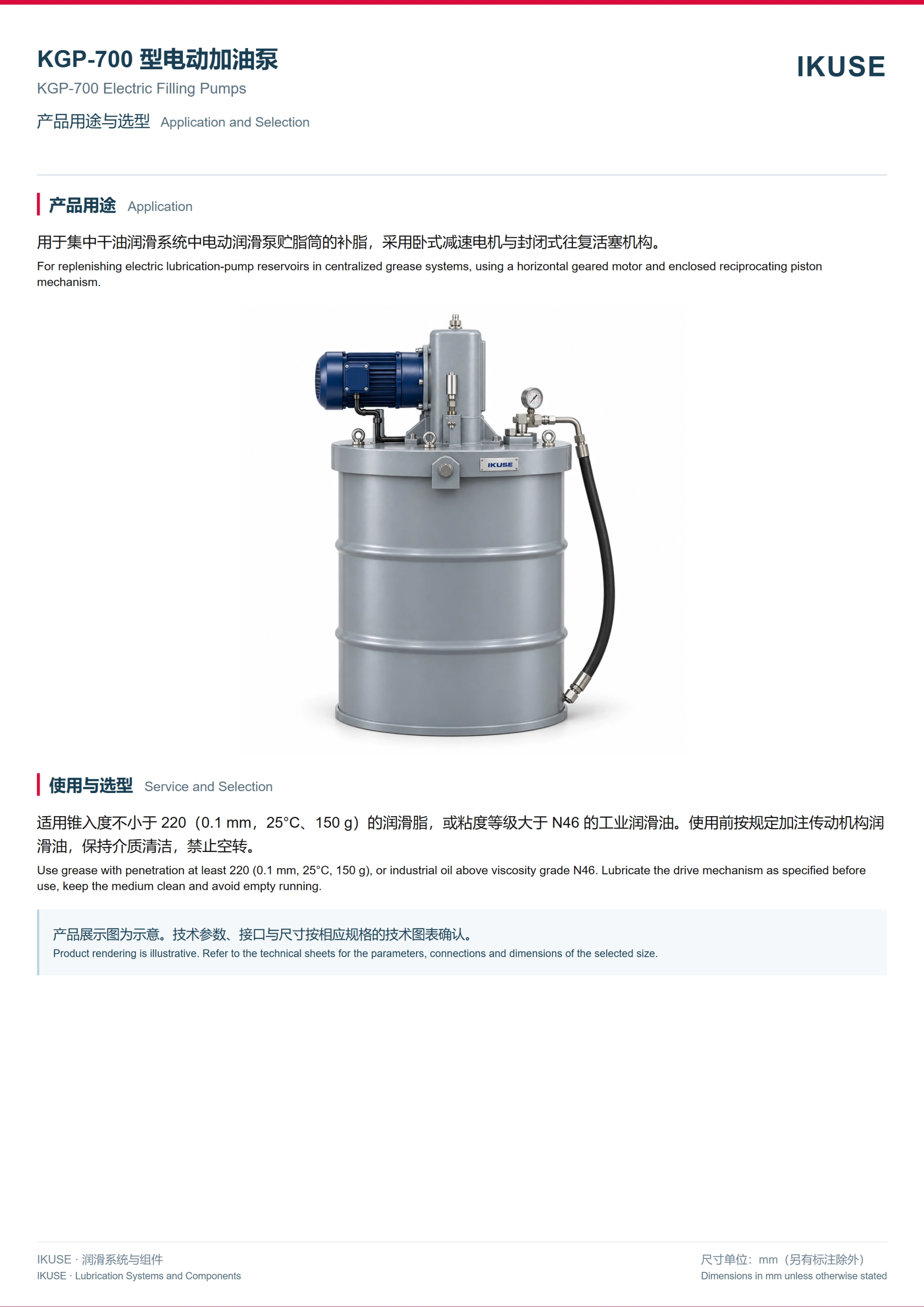

产品概述 / Overview
用于集中干油润滑系统中电动润滑泵贮脂筒的补脂，采用卧式减速电机与封闭式往复活塞机构。
For replenishing electric lubrication-pump reservoirs in centralized grease systems, using a horizontal geared motor and enclosed reciprocating piston mechanism.
For replenishing electric lubrication-pump reservoirs in centralized grease systems, using a horizontal geared motor and enclosed reciprocating piston mechanism.
使用与选型 / Service and Selection
适用锥入度不小于 220（0.1 mm，25°C、150 g）的润滑脂，或粘度等级大于 N46 的工业润滑油。使用前按规定加注传动机构润滑油，保持介质清洁，禁止空转。
Use grease with penetration at least 220 (0.1 mm, 25°C, 150 g), or industrial oil above viscosity grade N46. Lubricate the drive mechanism as specified before use, keep the medium clean and avoid empty running.
Use grease with penetration at least 220 (0.1 mm, 25°C, 150 g), or industrial oil above viscosity grade N46. Lubricate the drive mechanism as specified before use, keep the medium clean and avoid empty running.

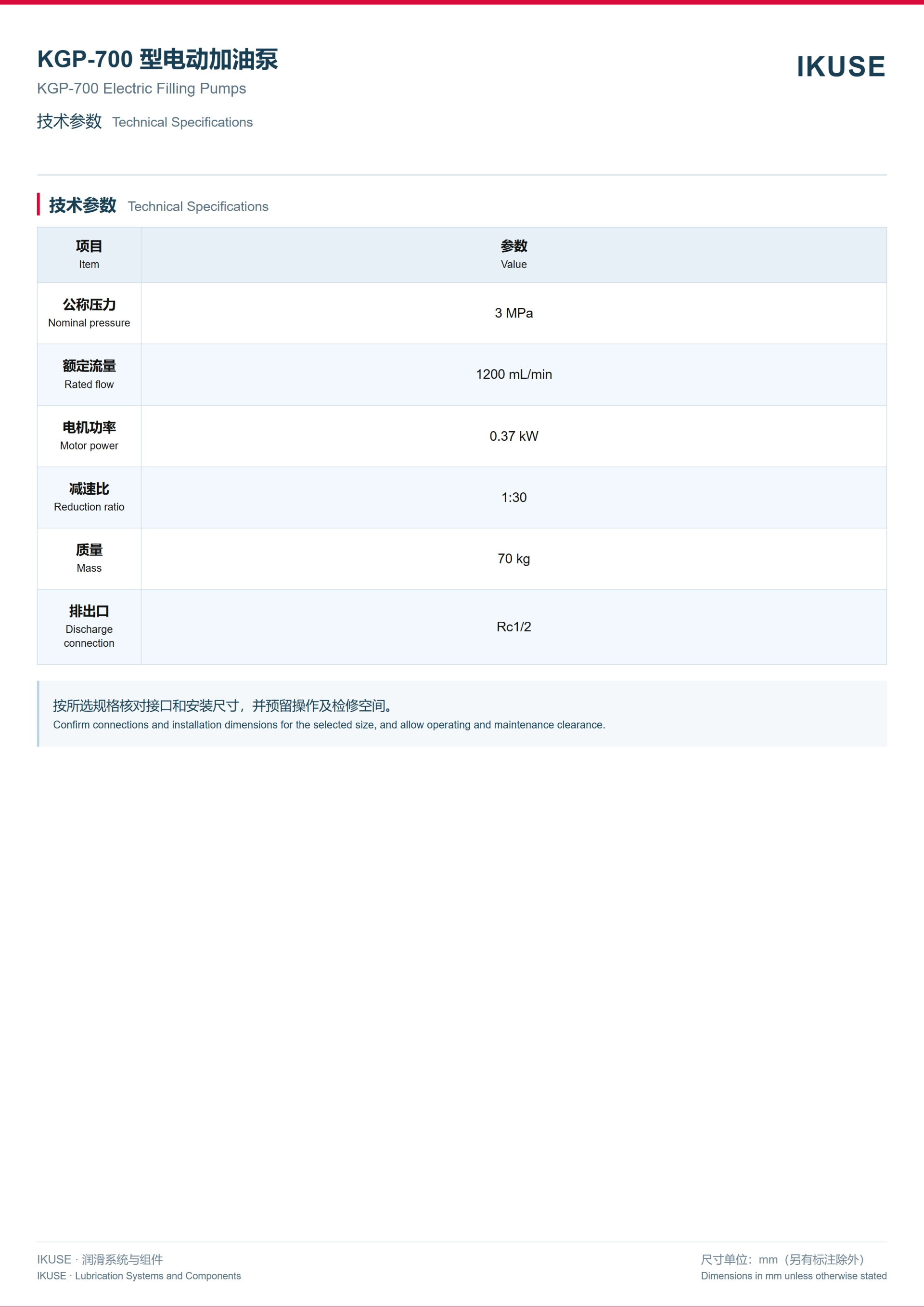

技术资料 / Technical Data

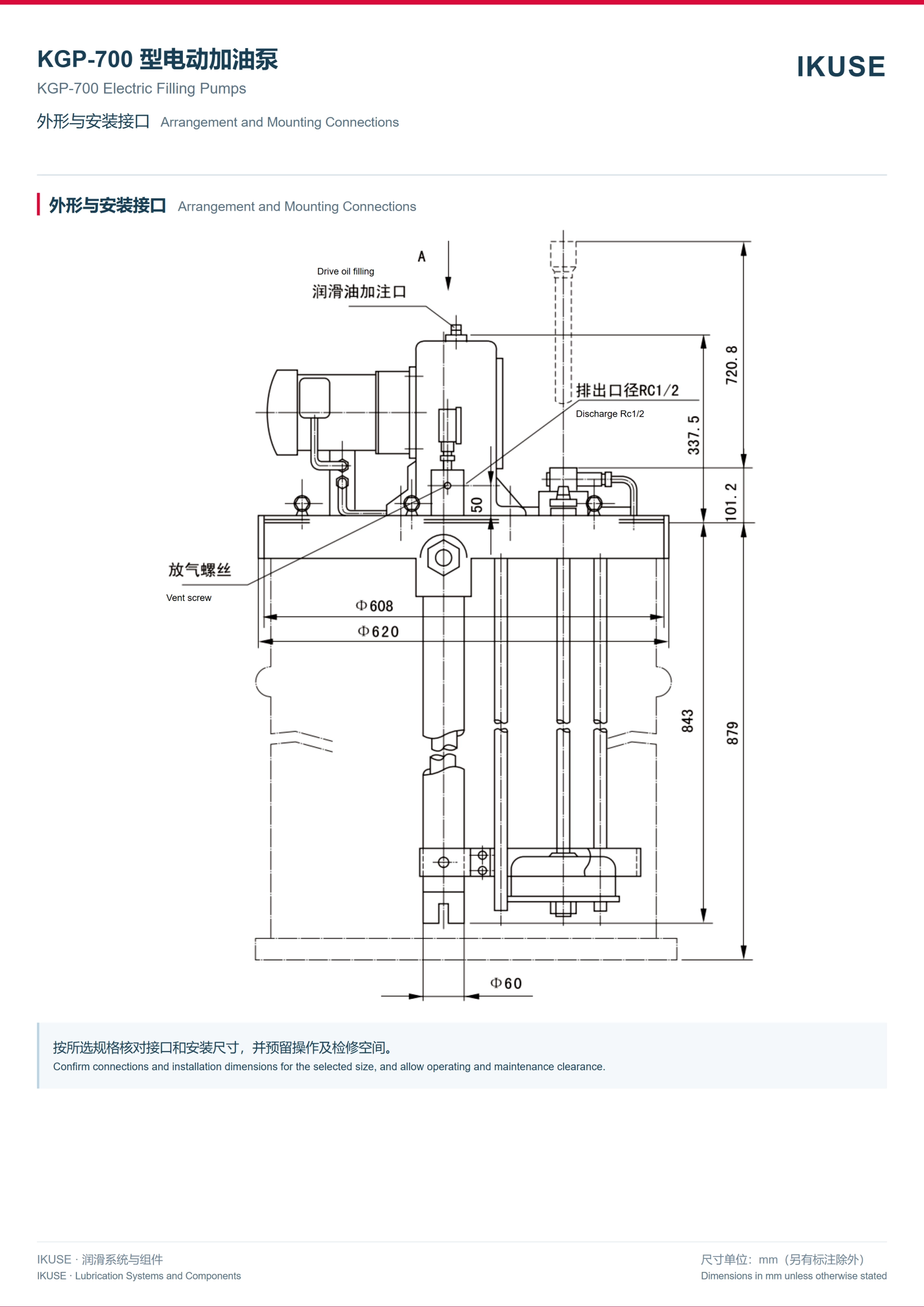

技术图表列出对应系列的规格与结构。按选定型号核对接口及安装尺寸，预留检修空间。产品展示图为示意。

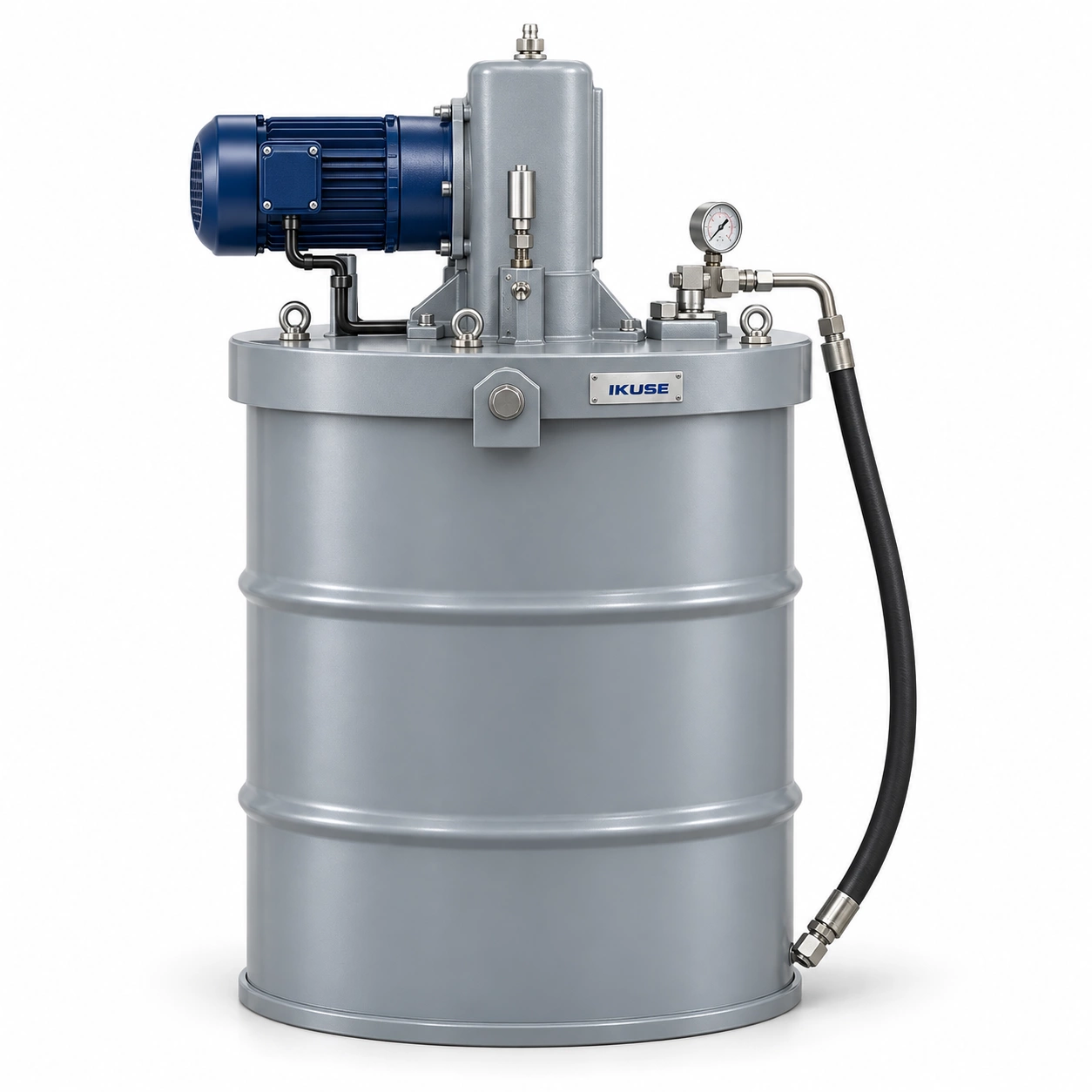

Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
