产品概述 / Overview

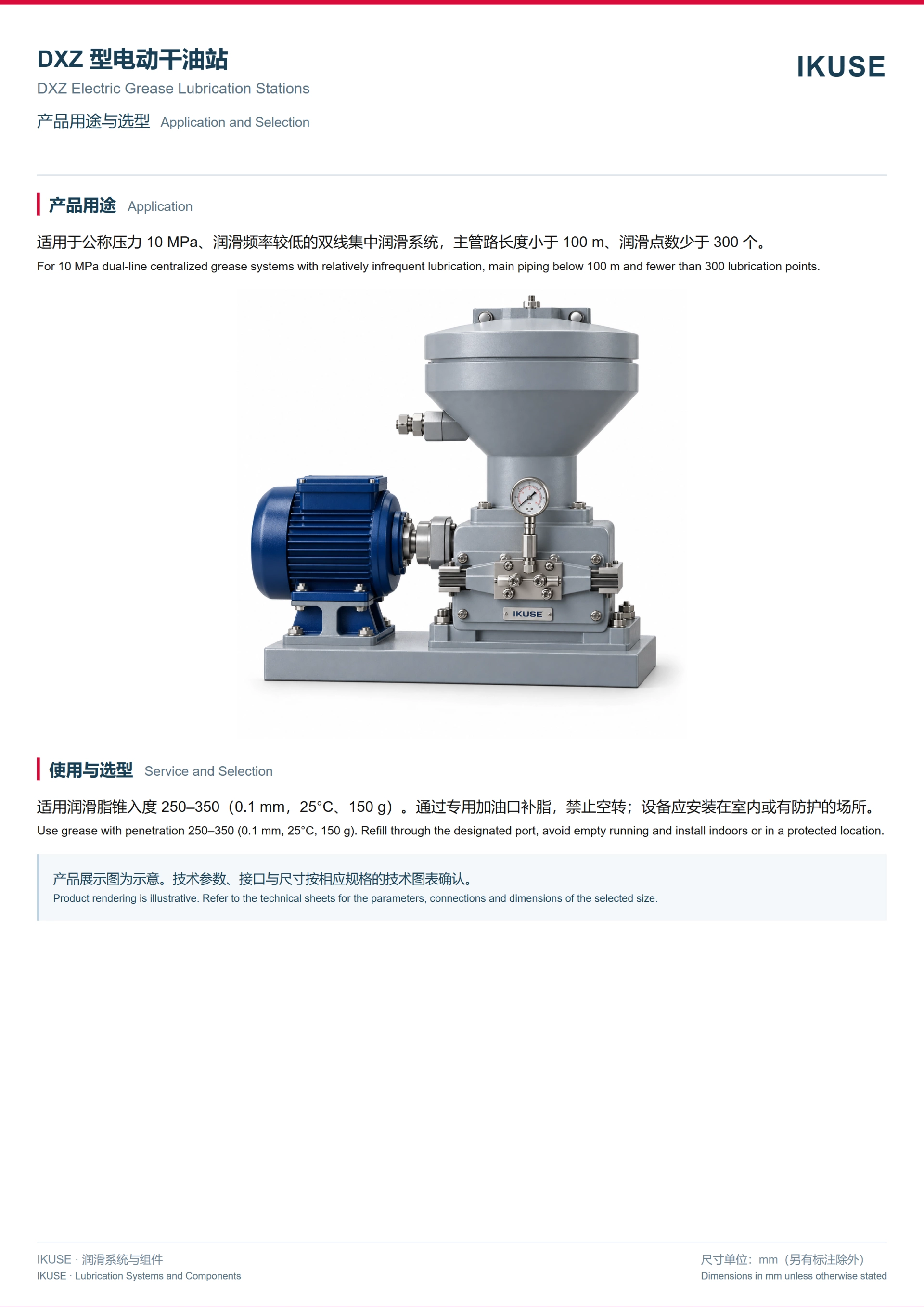

适用于公称压力 10 MPa、润滑频率较低的双线集中润滑系统，主管路长度小于 100 m、润滑点数少于 300 个。
For 10 MPa dual-line centralized grease systems with relatively infrequent lubrication, main piping below 100 m and fewer than 300 lubrication points.
For 10 MPa dual-line centralized grease systems with relatively infrequent lubrication, main piping below 100 m and fewer than 300 lubrication points.
使用与选型 / Service and Selection
适用润滑脂锥入度 250–350（0.1 mm，25°C、150 g）。通过专用加油口补脂，禁止空转；设备应安装在室内或有防护的场所。
Use grease with penetration 250–350 (0.1 mm, 25°C, 150 g). Refill through the designated port, avoid empty running and install indoors or in a protected location.
Use grease with penetration 250–350 (0.1 mm, 25°C, 150 g). Refill through the designated port, avoid empty running and install indoors or in a protected location.
技术资料 / Technical Data

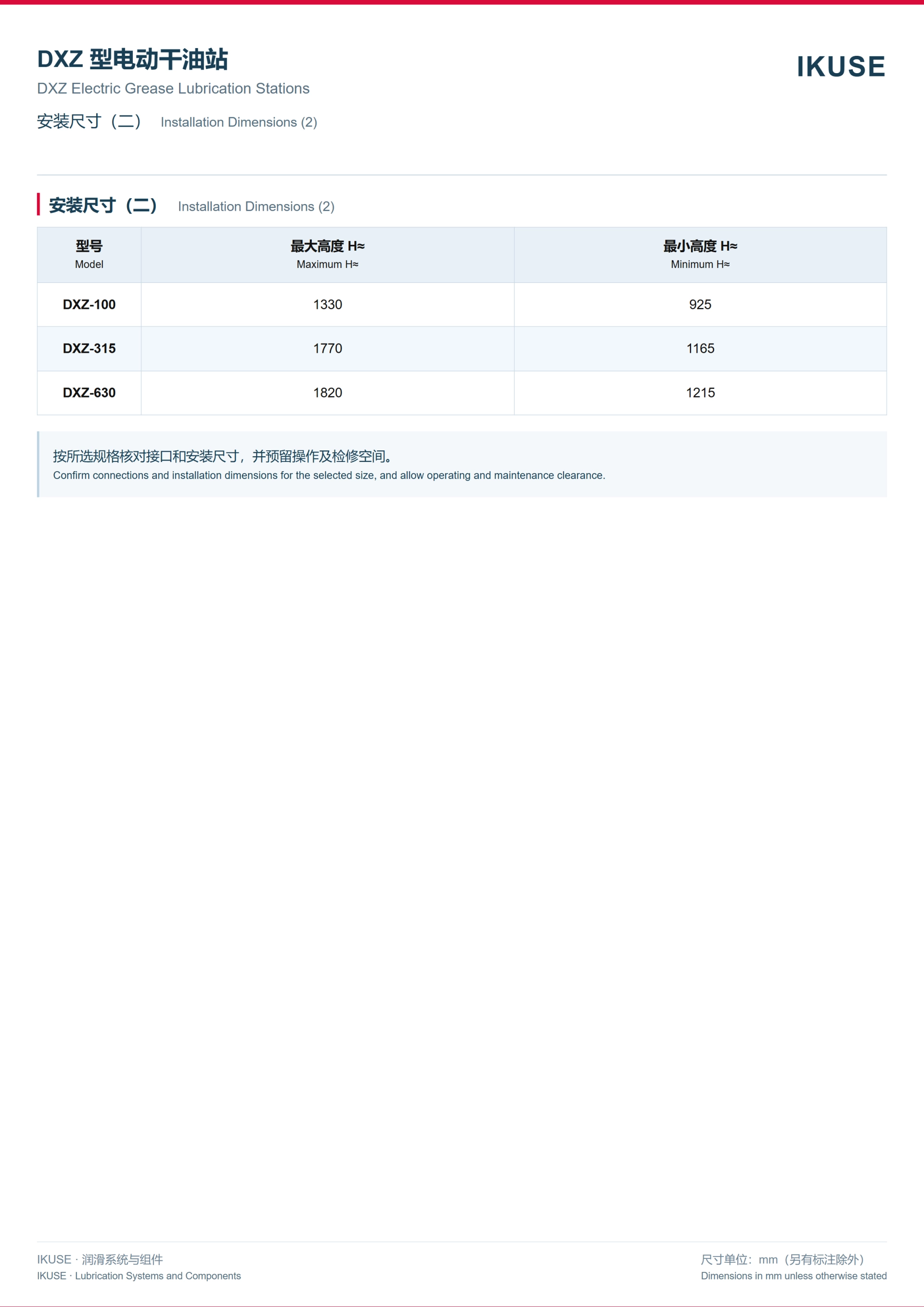

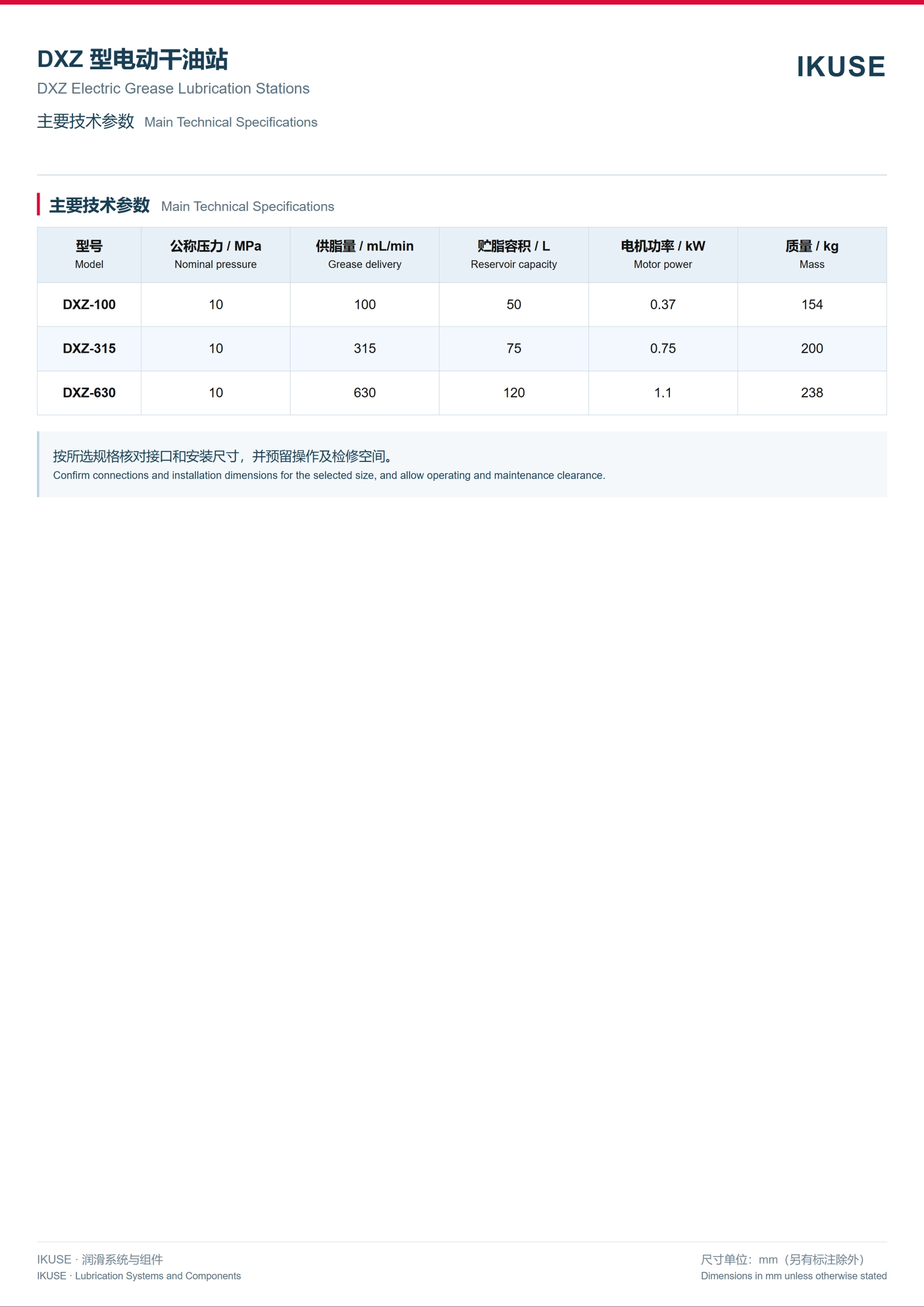

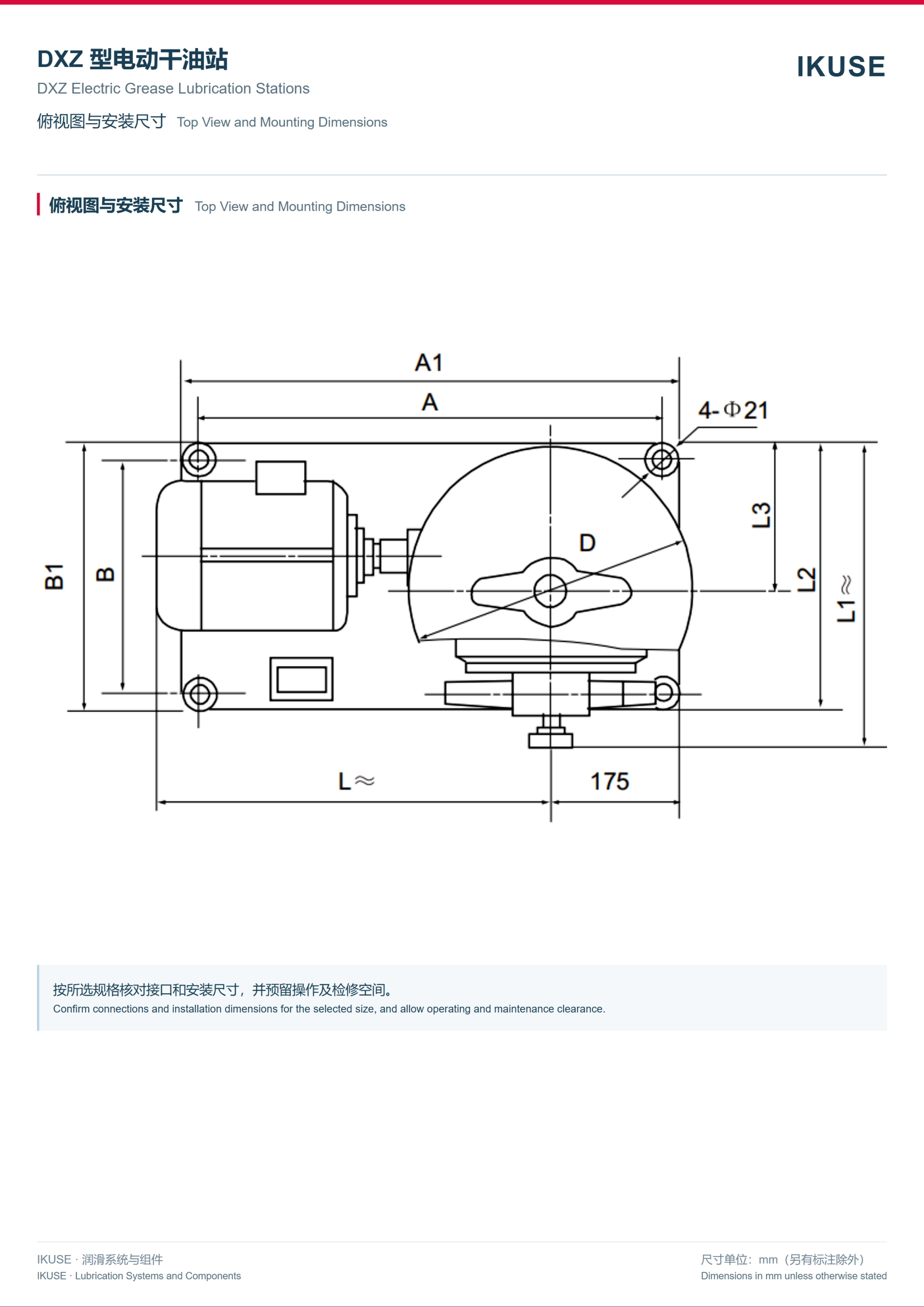

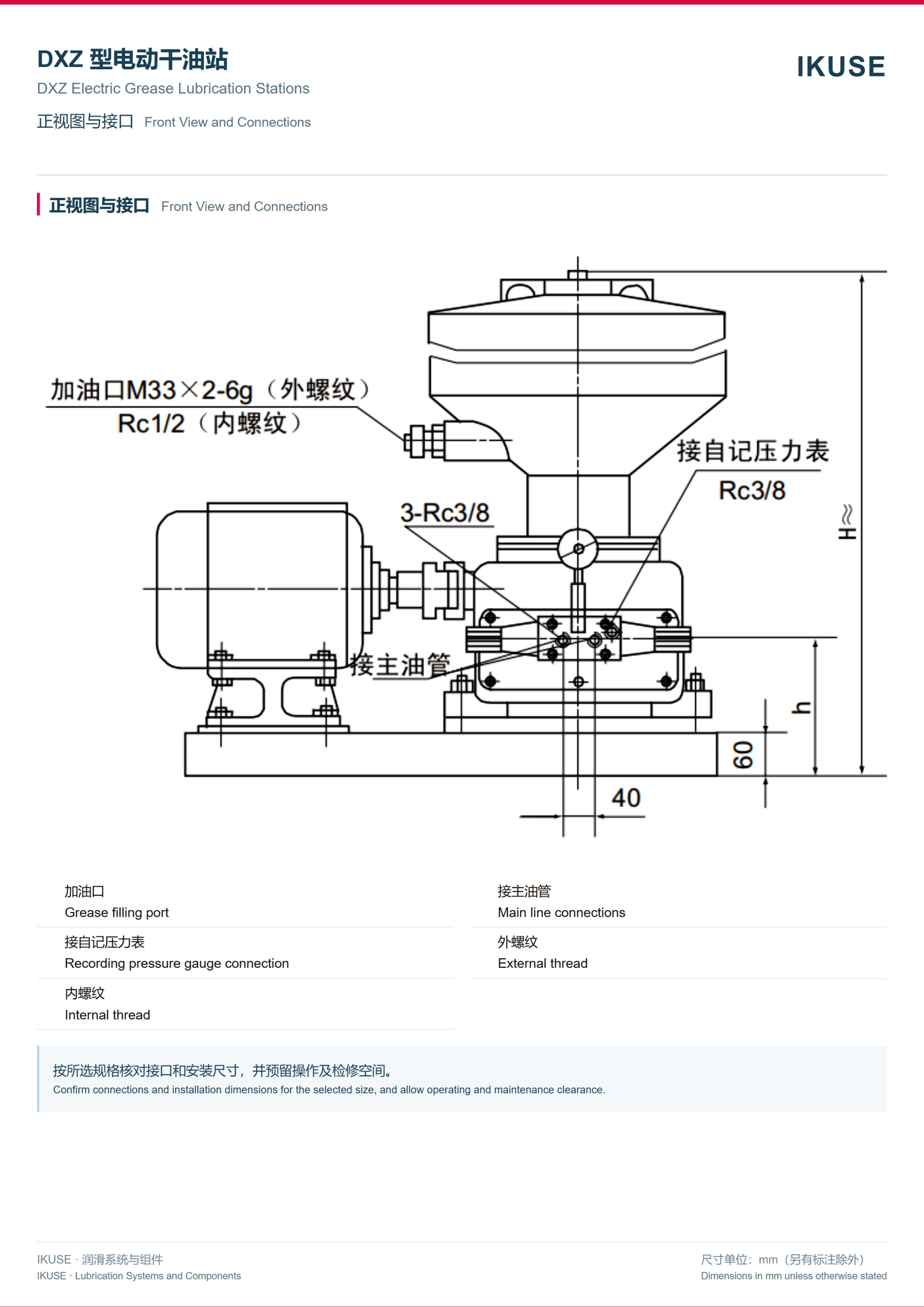

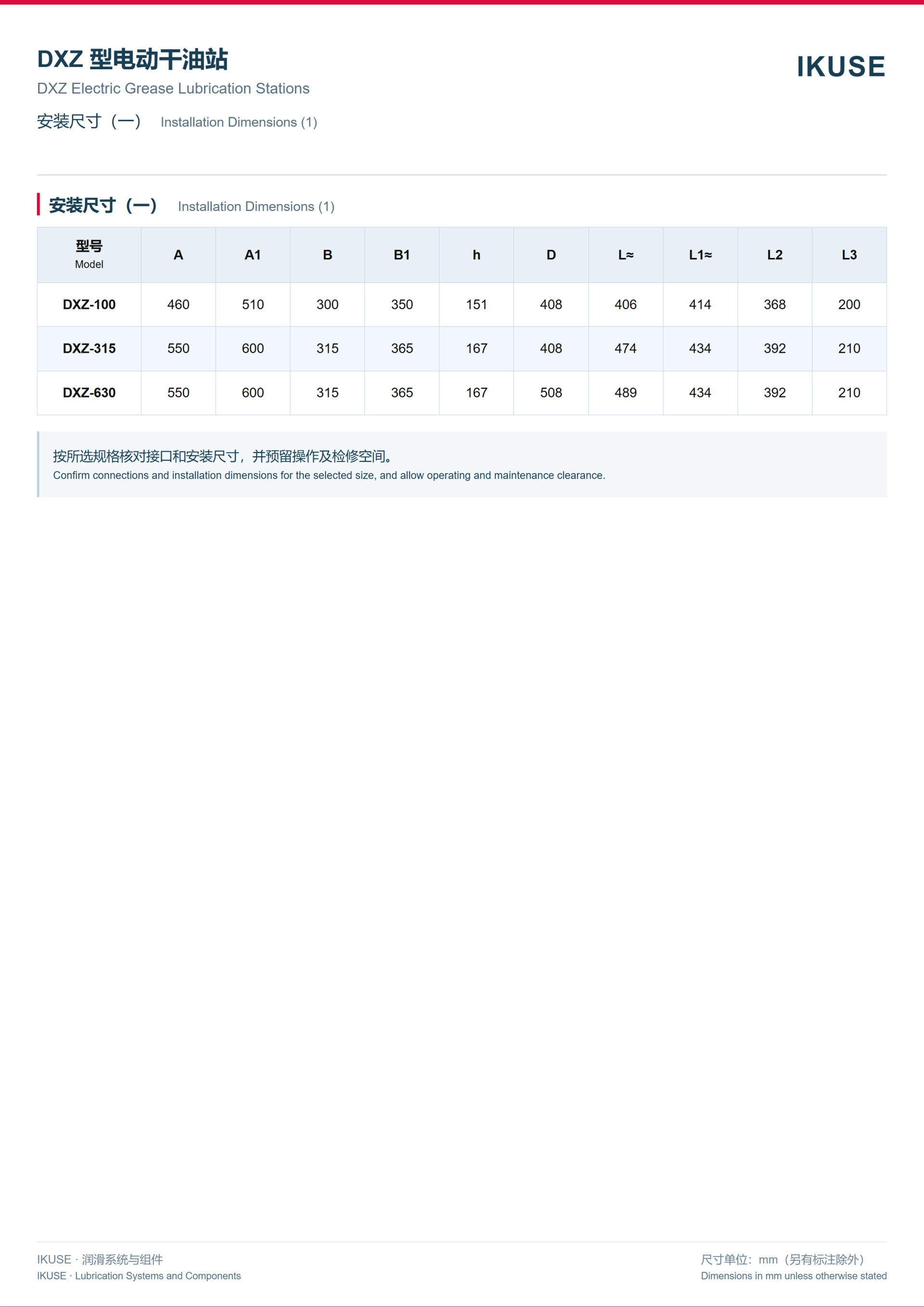

技术图表列出对应系列的规格与结构。按选定型号核对接口及安装尺寸，预留检修空间。产品展示图为示意。

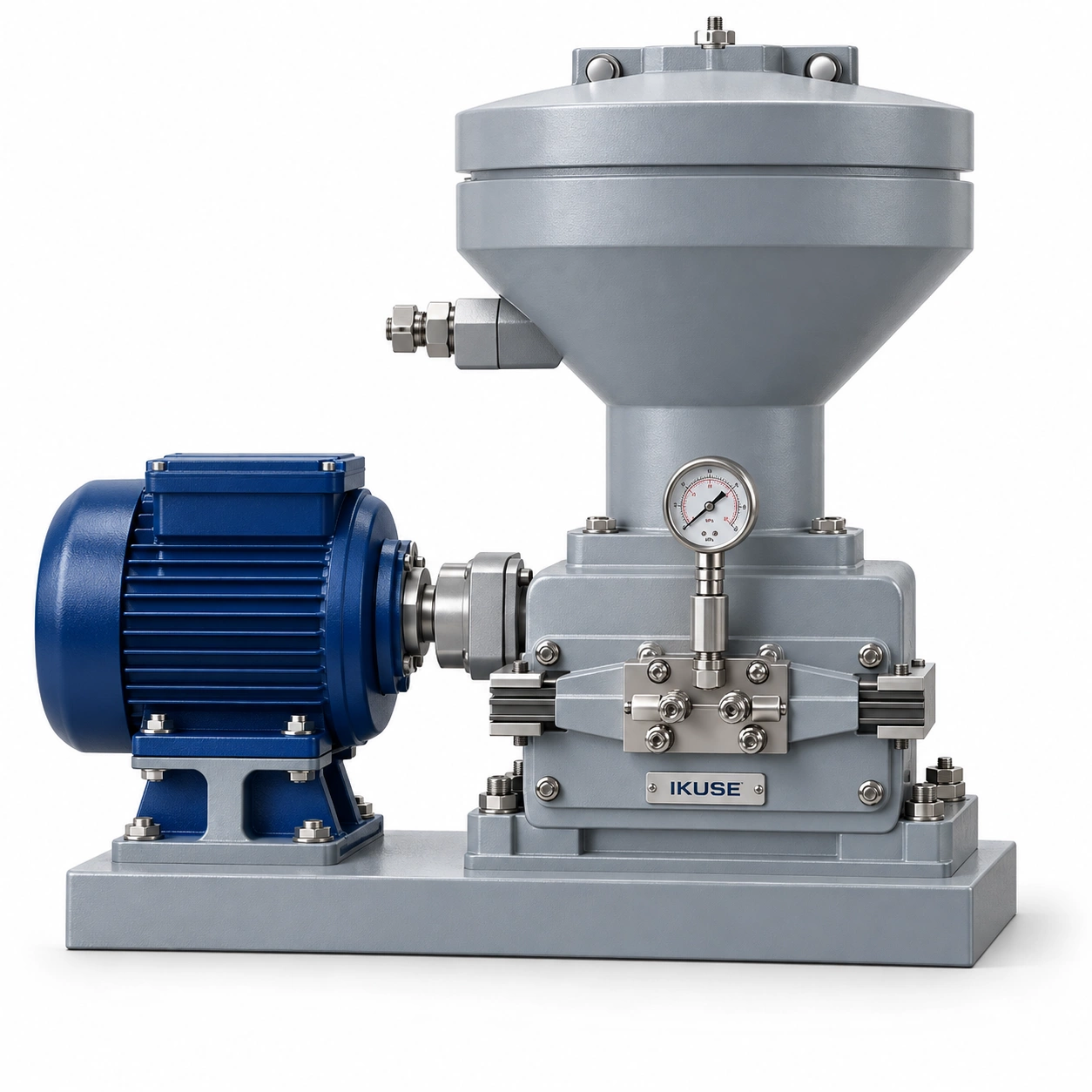

Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
