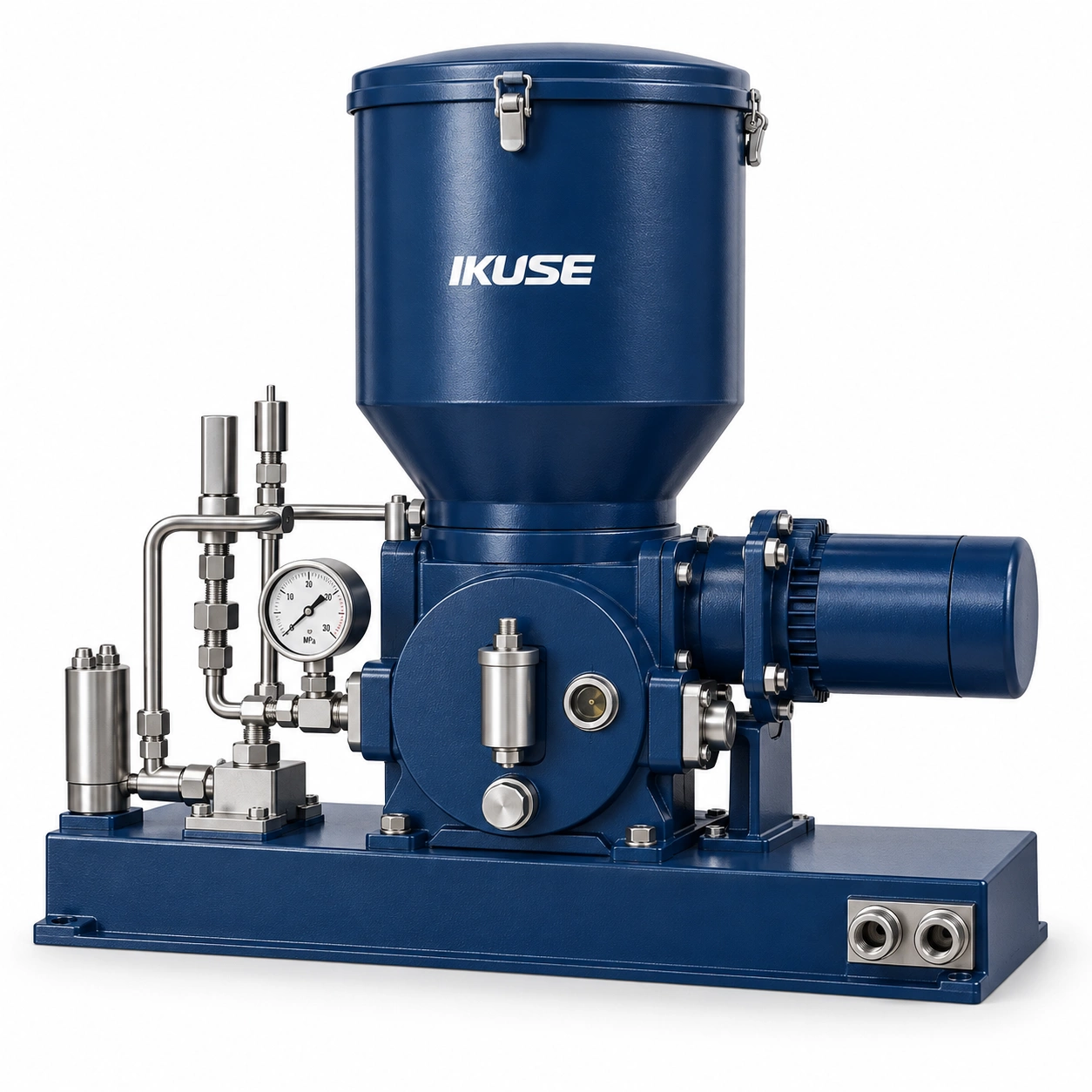

产品概述 / Overview
用于润滑点较多、管线较长的单线或双线集中润滑系统，P 型为 40 MPa，L 型为 20 MPa。
For single- or dual-line systems with numerous points and long lines; P versions are rated 40 MPa and L versions 20 MPa.
For single- or dual-line systems with numerous points and long lines; P versions are rated 40 MPa and L versions 20 MPa.

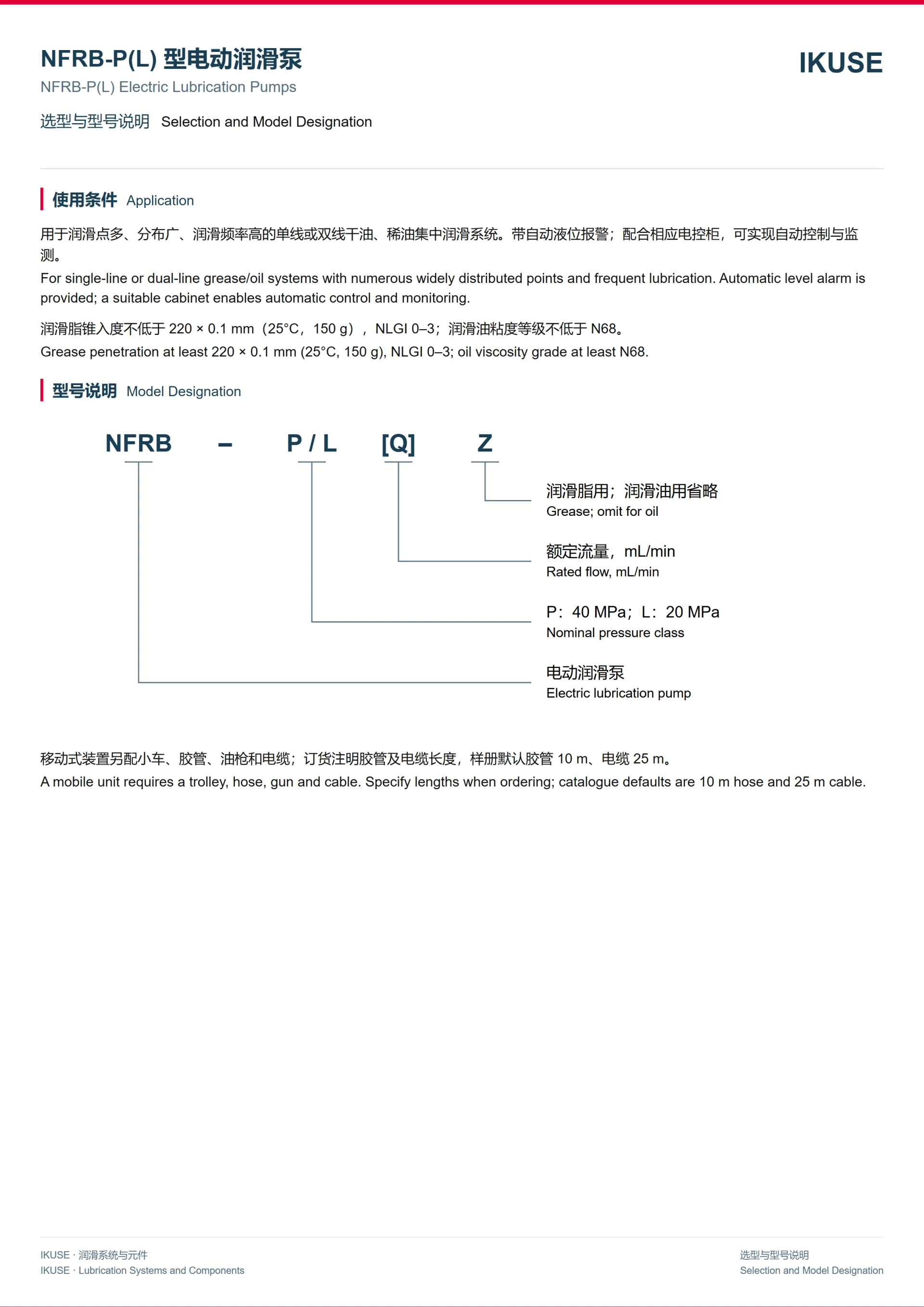

选型与使用 / Selection and Service
可配置液位报警及自动控制；移动式配置需确定软管和电缆长度。
Level alarms and automatic controls can be provided. Specify hose and cable lengths for mobile configurations.
Level alarms and automatic controls can be provided. Specify hose and cable lengths for mobile configurations.

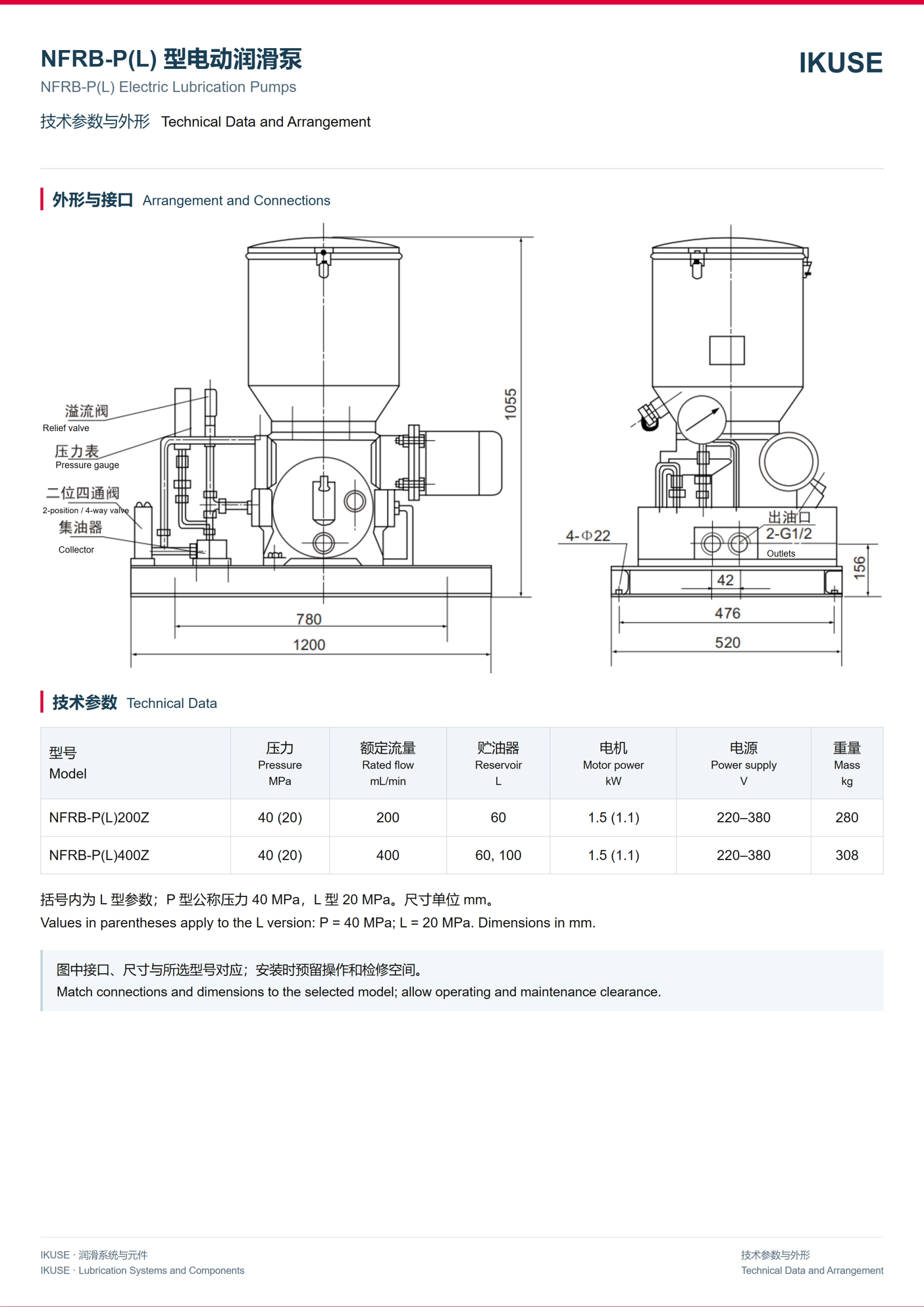

技术资料 / Technical Data
技术图表及安装尺寸按所选型号对应。接口形式、压力等级、适用介质及安装空间请结合对应规格确认。
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
