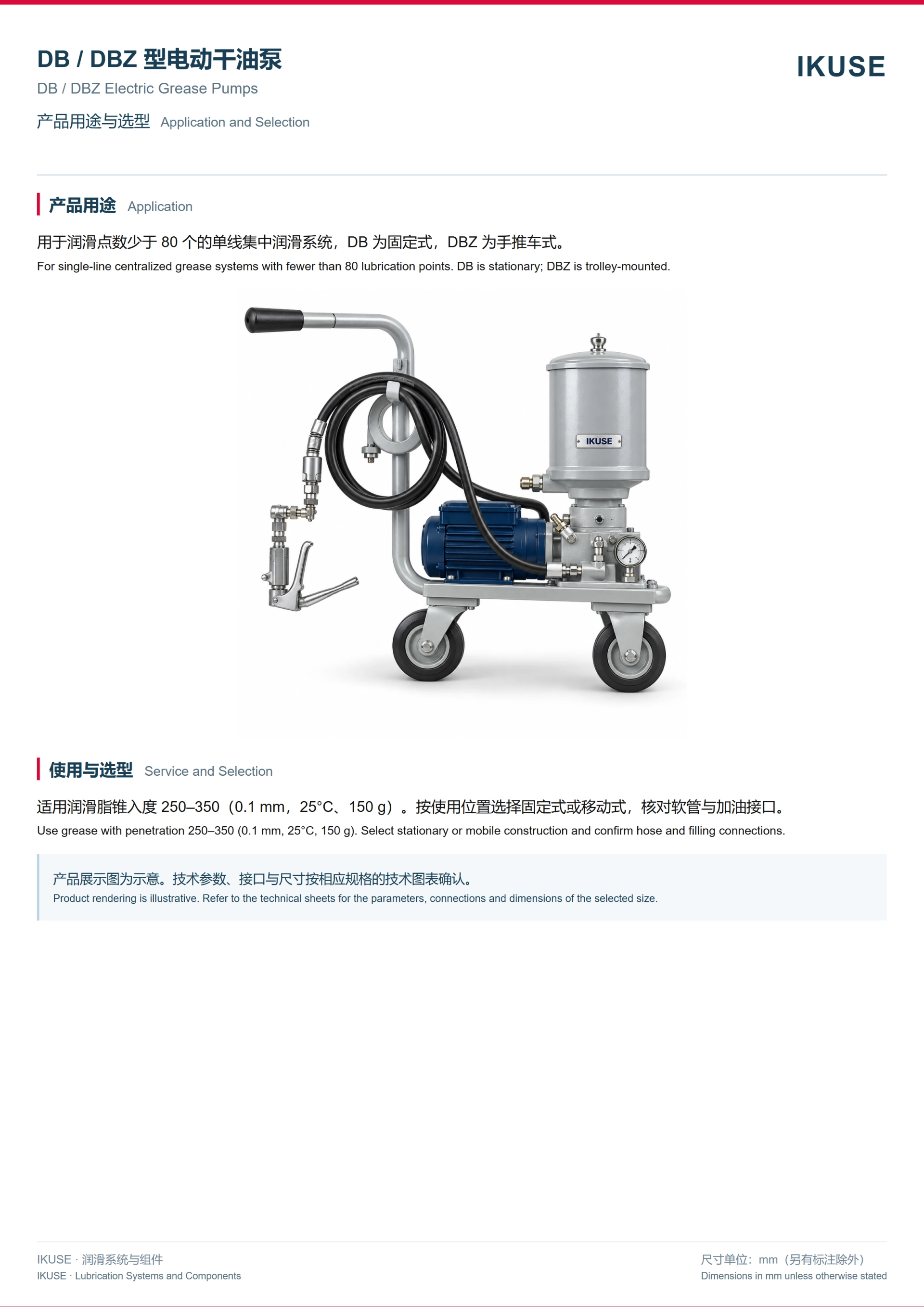

产品概述 / Overview
用于润滑点数少于 80 个的单线集中润滑系统，DB 为固定式，DBZ 为手推车式。
For single-line centralized grease systems with fewer than 80 lubrication points. DB is stationary; DBZ is trolley-mounted.
For single-line centralized grease systems with fewer than 80 lubrication points. DB is stationary; DBZ is trolley-mounted.
使用与选型 / Service and Selection
适用润滑脂锥入度 250–350（0.1 mm，25°C、150 g）。按使用位置选择固定式或移动式，核对软管与加油接口。
Use grease with penetration 250–350 (0.1 mm, 25°C, 150 g). Select stationary or mobile construction and confirm hose and filling connections.
Use grease with penetration 250–350 (0.1 mm, 25°C, 150 g). Select stationary or mobile construction and confirm hose and filling connections.
技术资料 / Technical Data

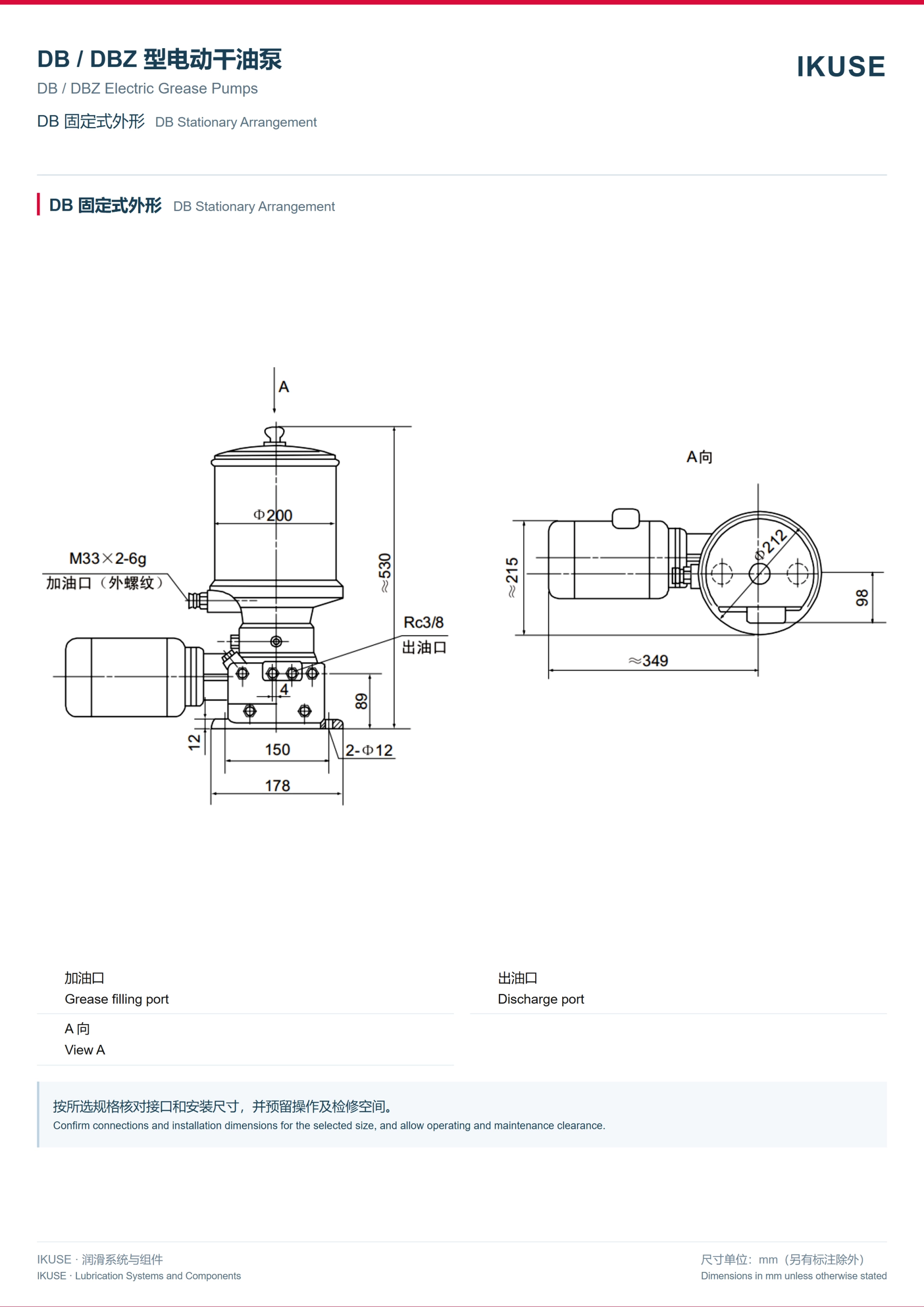

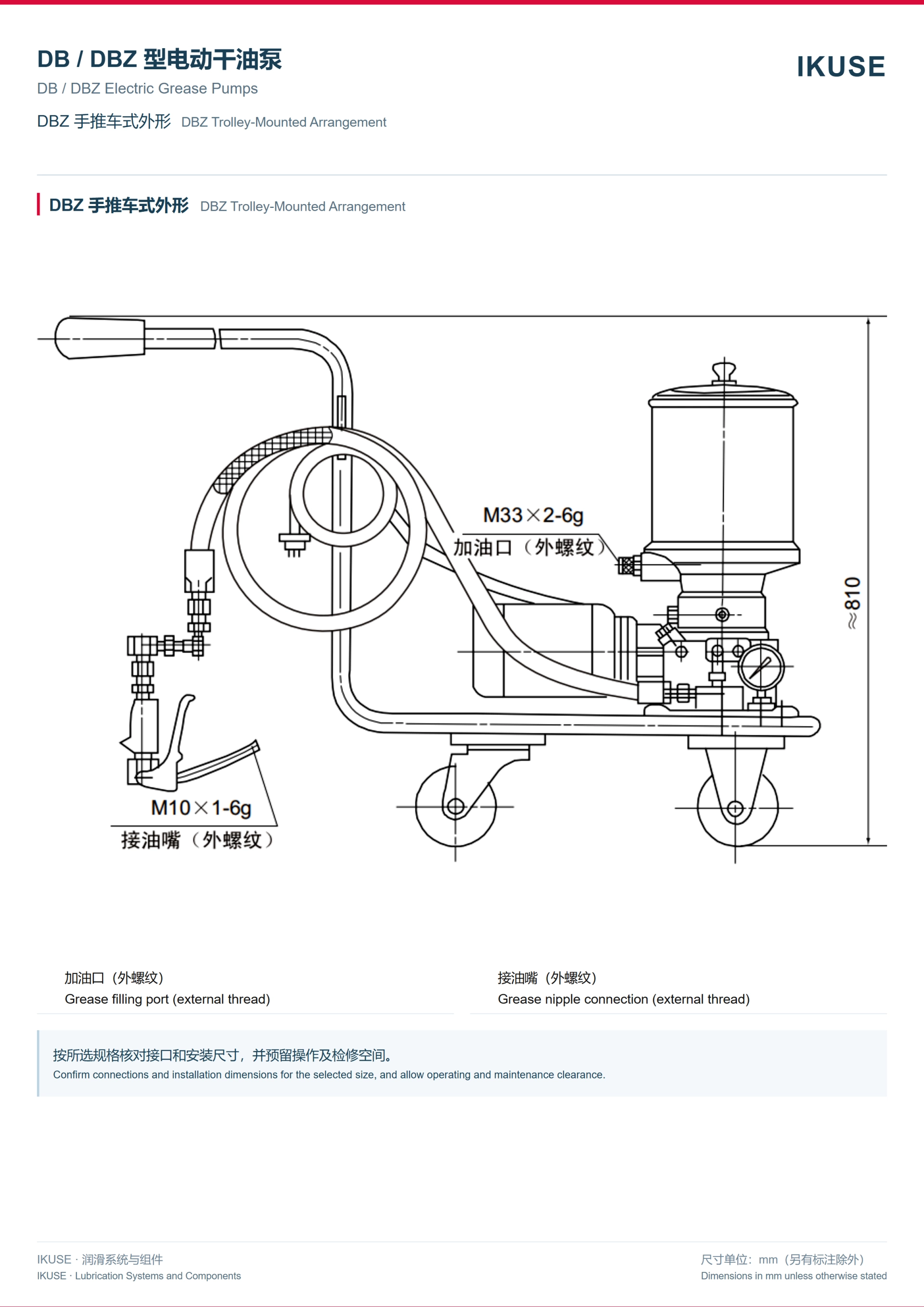

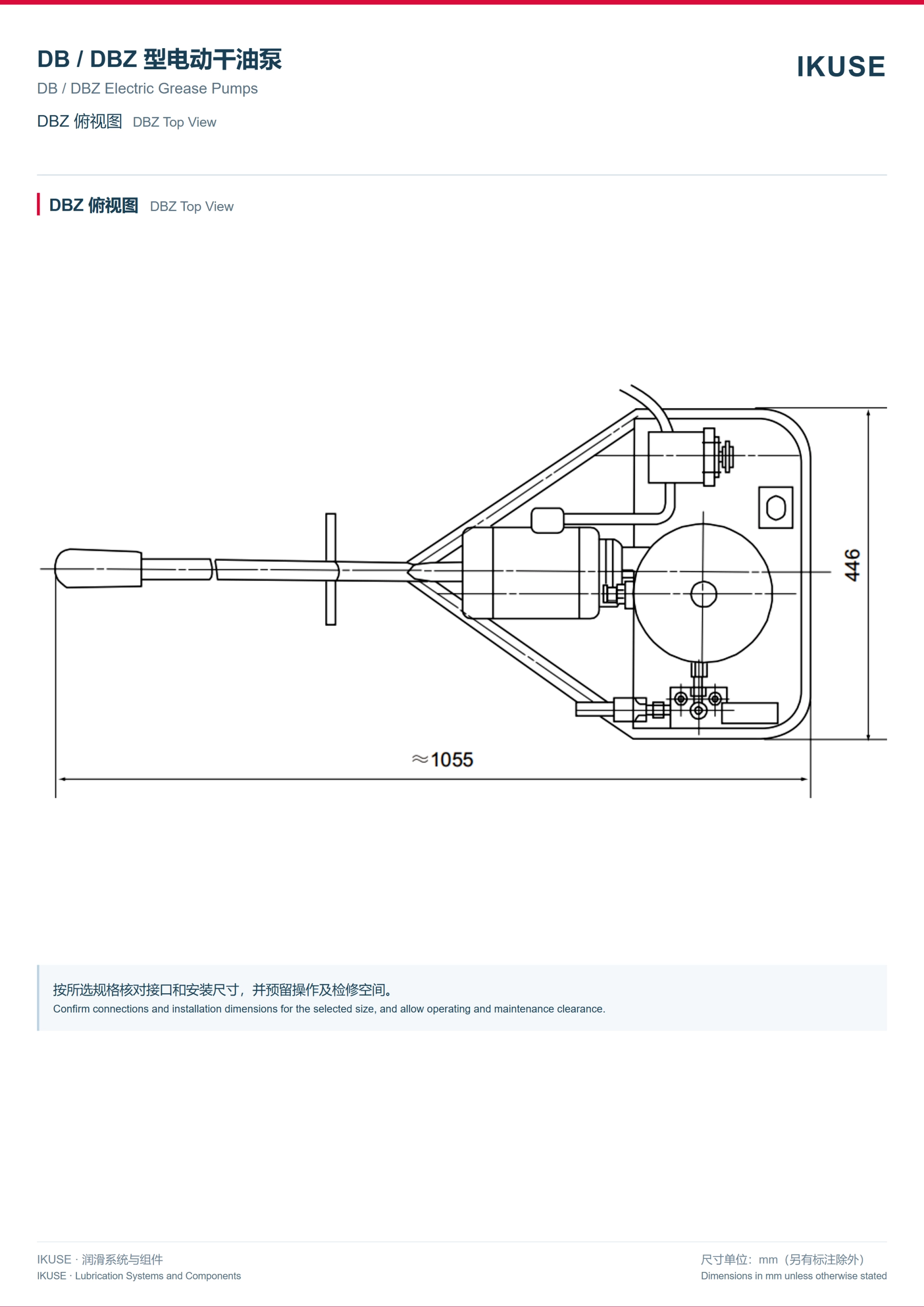

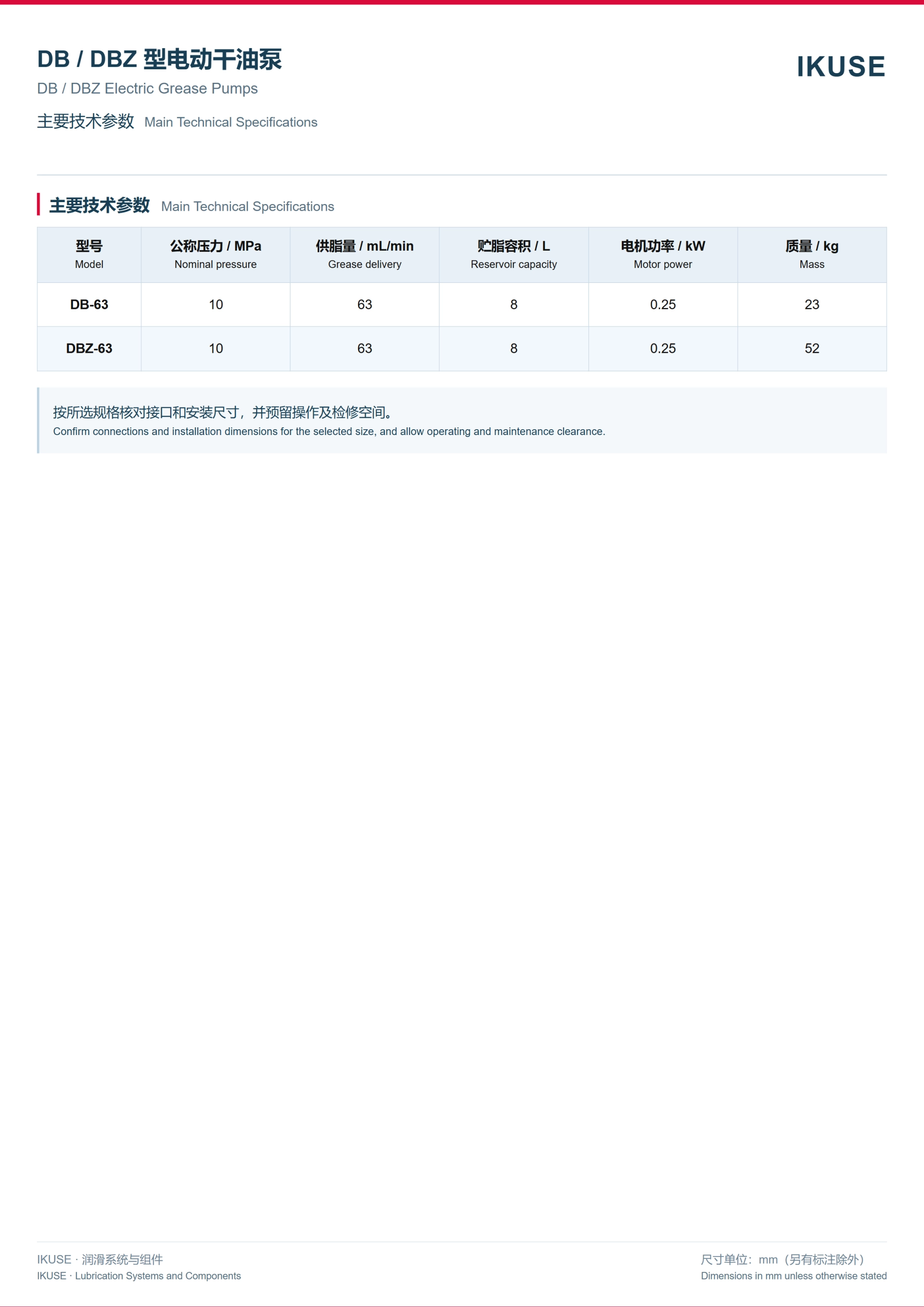

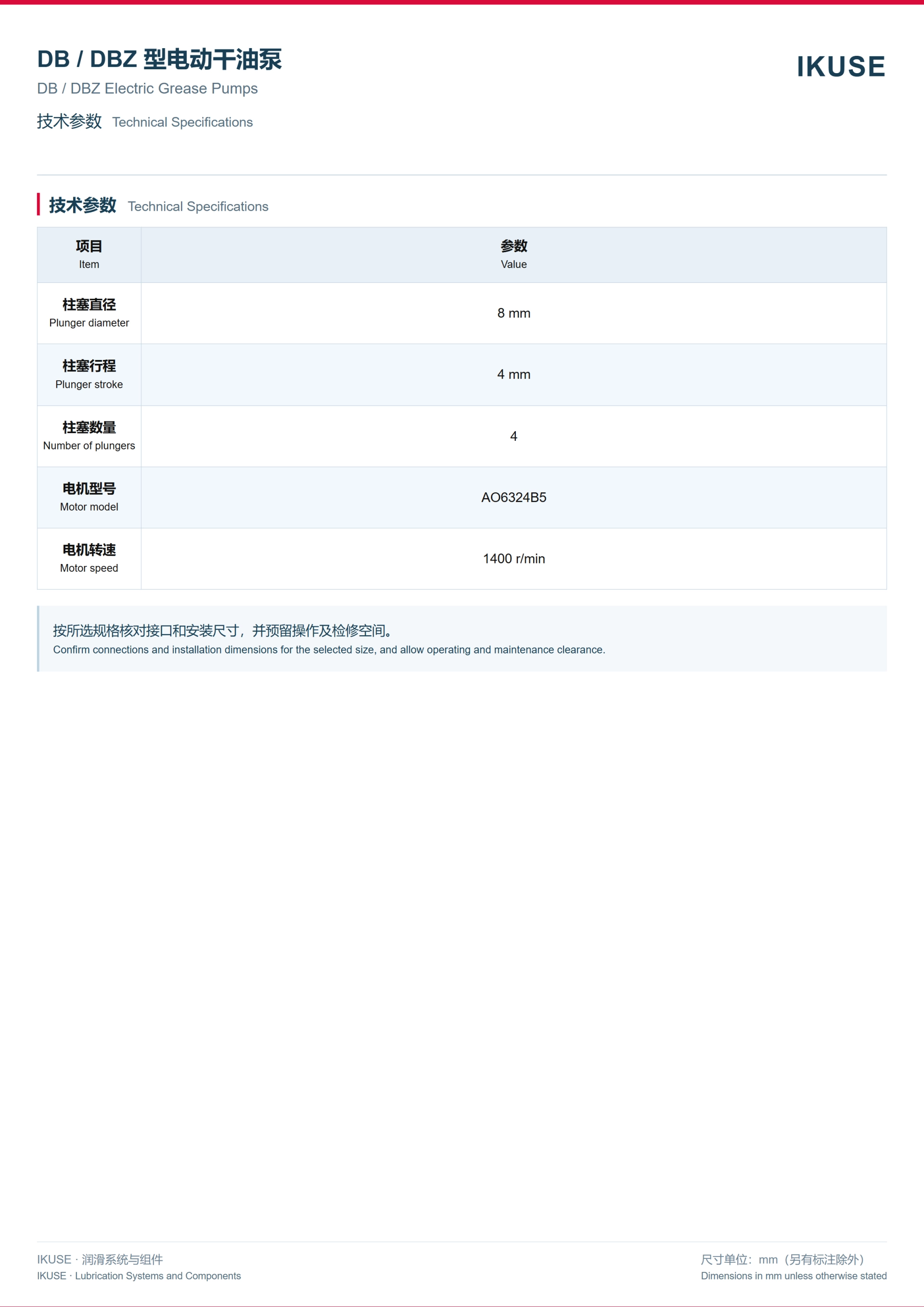

技术图表列出对应系列的规格与结构。按选定型号核对接口及安装尺寸，预留检修空间。产品展示图为示意。
Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
