产品概述 / Overview

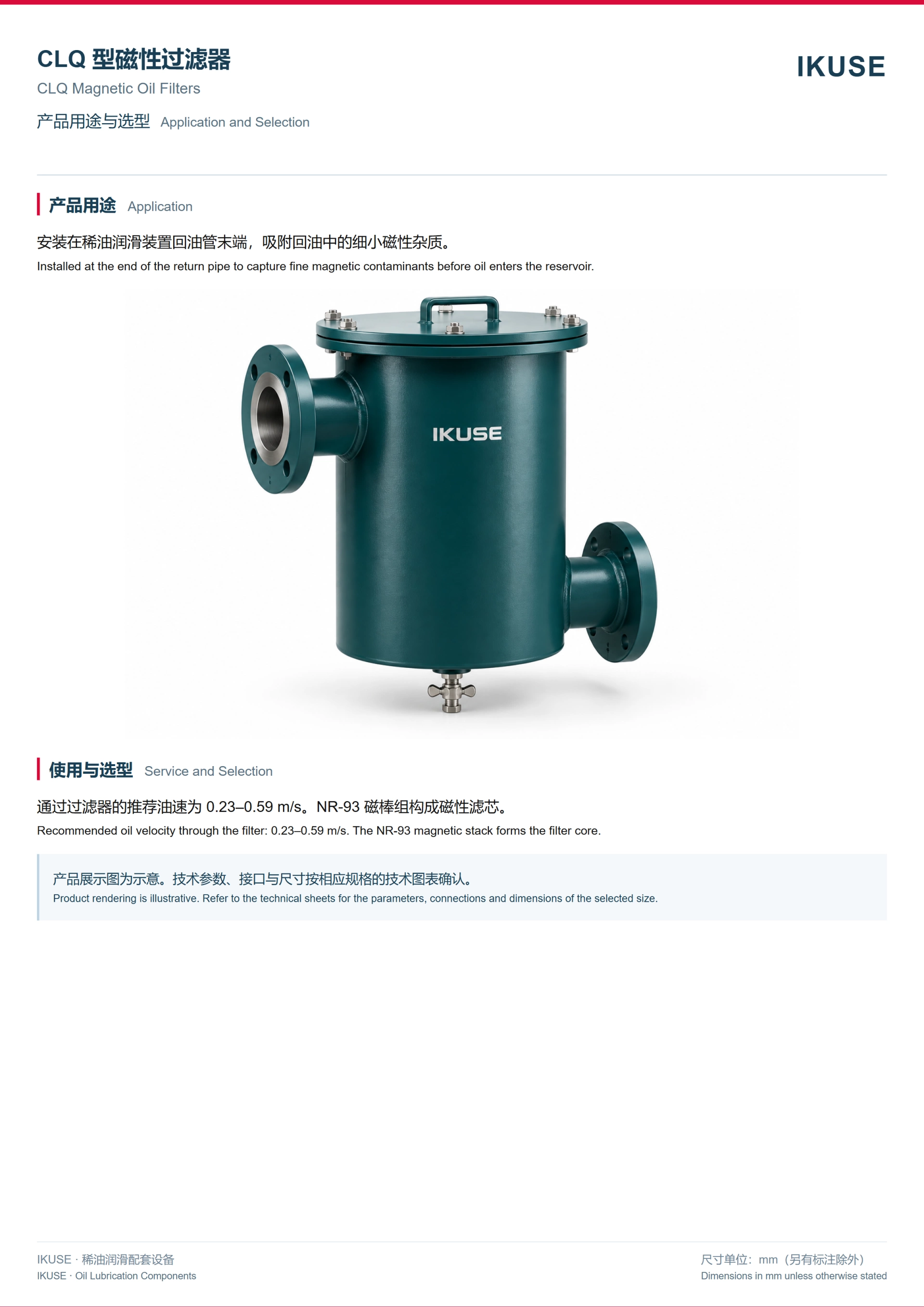

安装在稀油润滑装置回油管末端，吸附回油中的细小磁性杂质。
Installed at the end of the return pipe to capture fine magnetic contaminants before oil enters the reservoir.
Installed at the end of the return pipe to capture fine magnetic contaminants before oil enters the reservoir.
使用与选型 / Service and Selection
通过过滤器的推荐油速为 0.23–0.59 m/s。NR-93 磁棒组构成磁性滤芯。
Recommended oil velocity through the filter: 0.23–0.59 m/s. The NR-93 magnetic stack forms the filter core.
Recommended oil velocity through the filter: 0.23–0.59 m/s. The NR-93 magnetic stack forms the filter core.
技术资料 / Technical Data

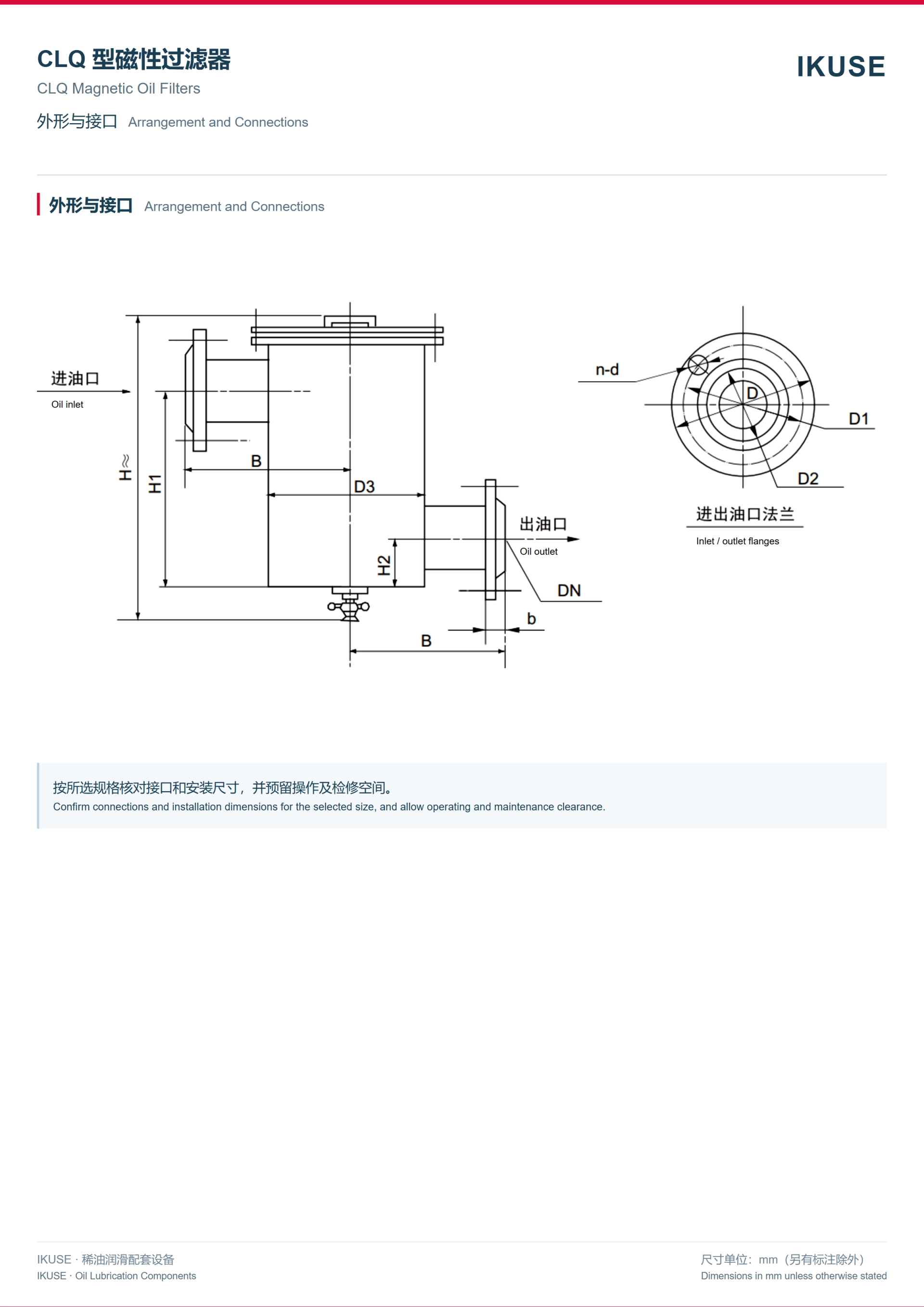

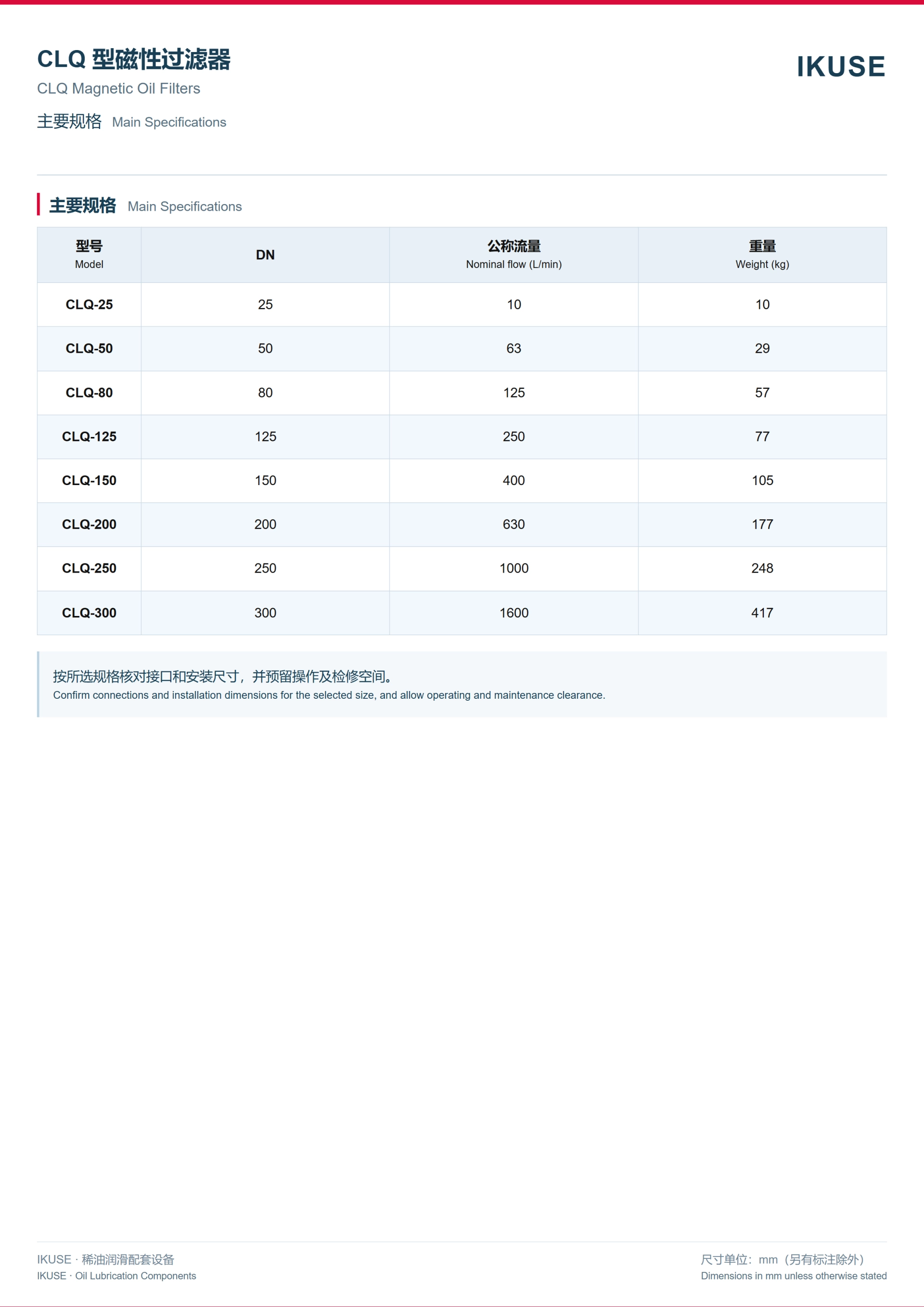

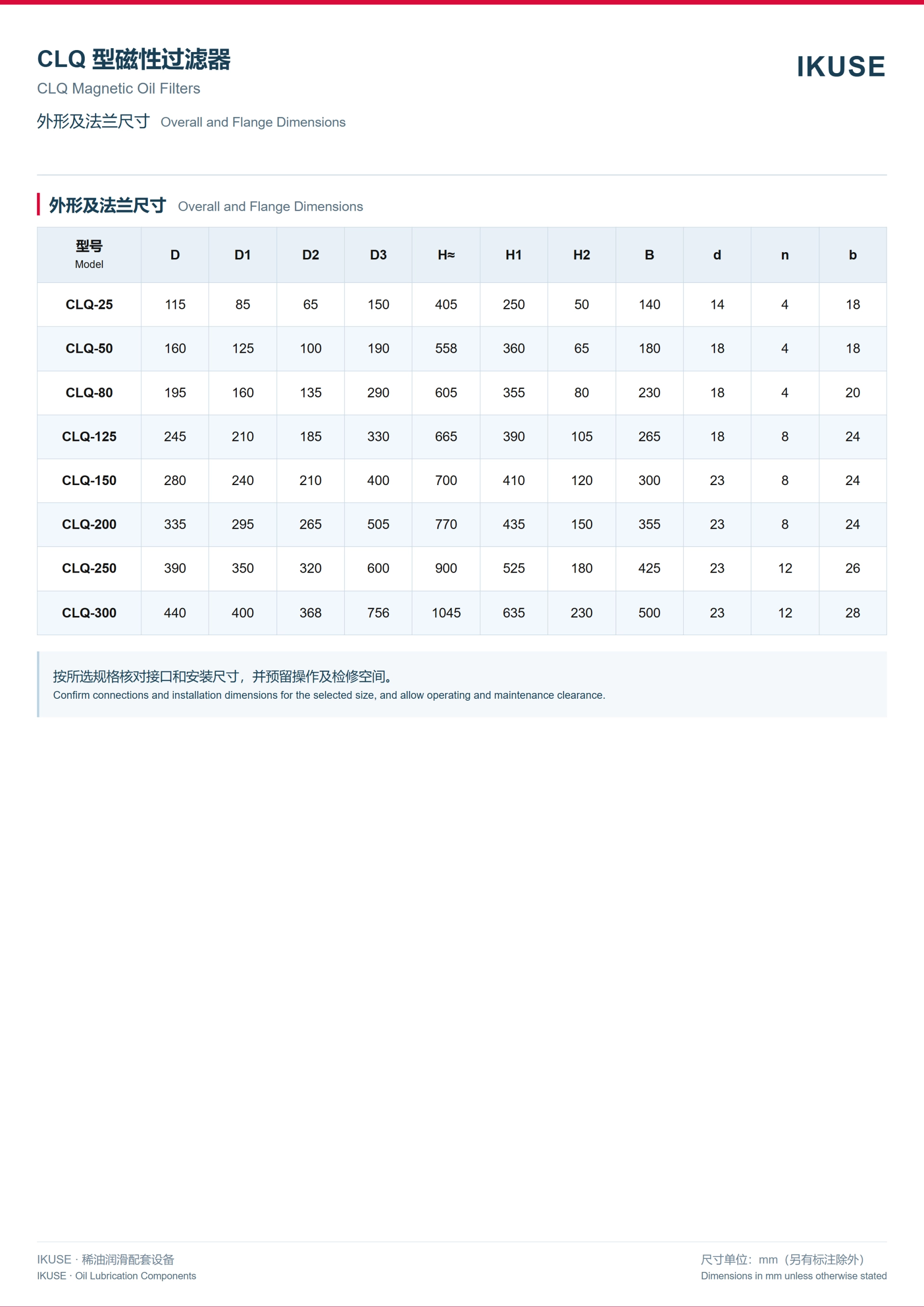

技术图表列出对应系列的规格与结构。按选定型号核对接口及安装尺寸，预留检修空间。产品展示图为示意。
Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
