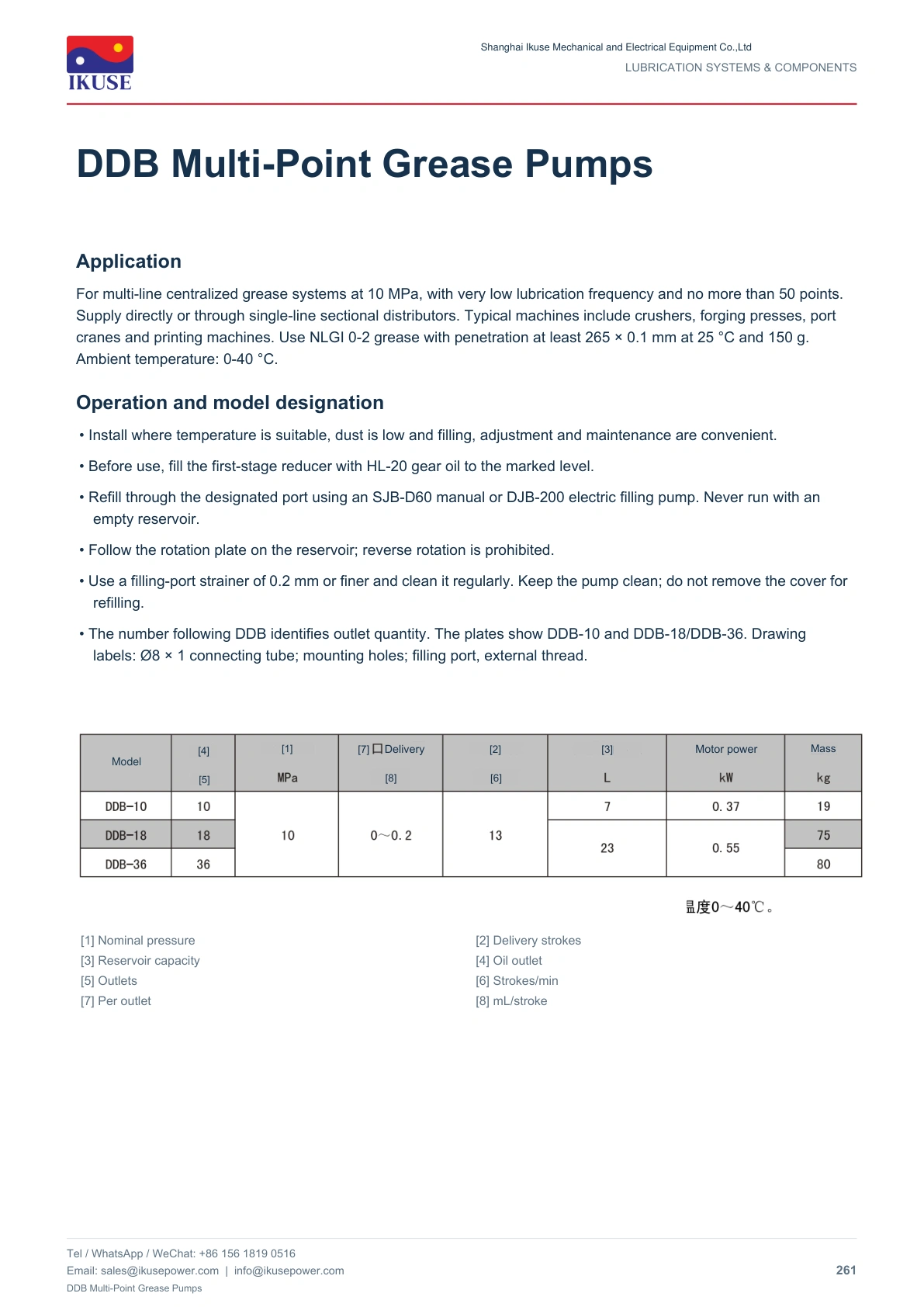

Overview
For multi-line centralized grease systems at 10 MPa, with very low lubrication frequency and no more than 50 points. Supply directly or through single-line sectional distributors. Typical machines include crushers, forging presses, port cranes and printing machines. Use NLGI 0-2 grease with penetration at least 265 × 0.1 mm at 25 °C and 150 g. Ambient temperature: 0-40 °C.
Selection and operation
Ambient temperature: 0–40°C. Use grease with a penetration of at least 265 (0.1 mm, 25°C, 150 g). Refill through the designated connection with the pump stopped.
Technical documentation

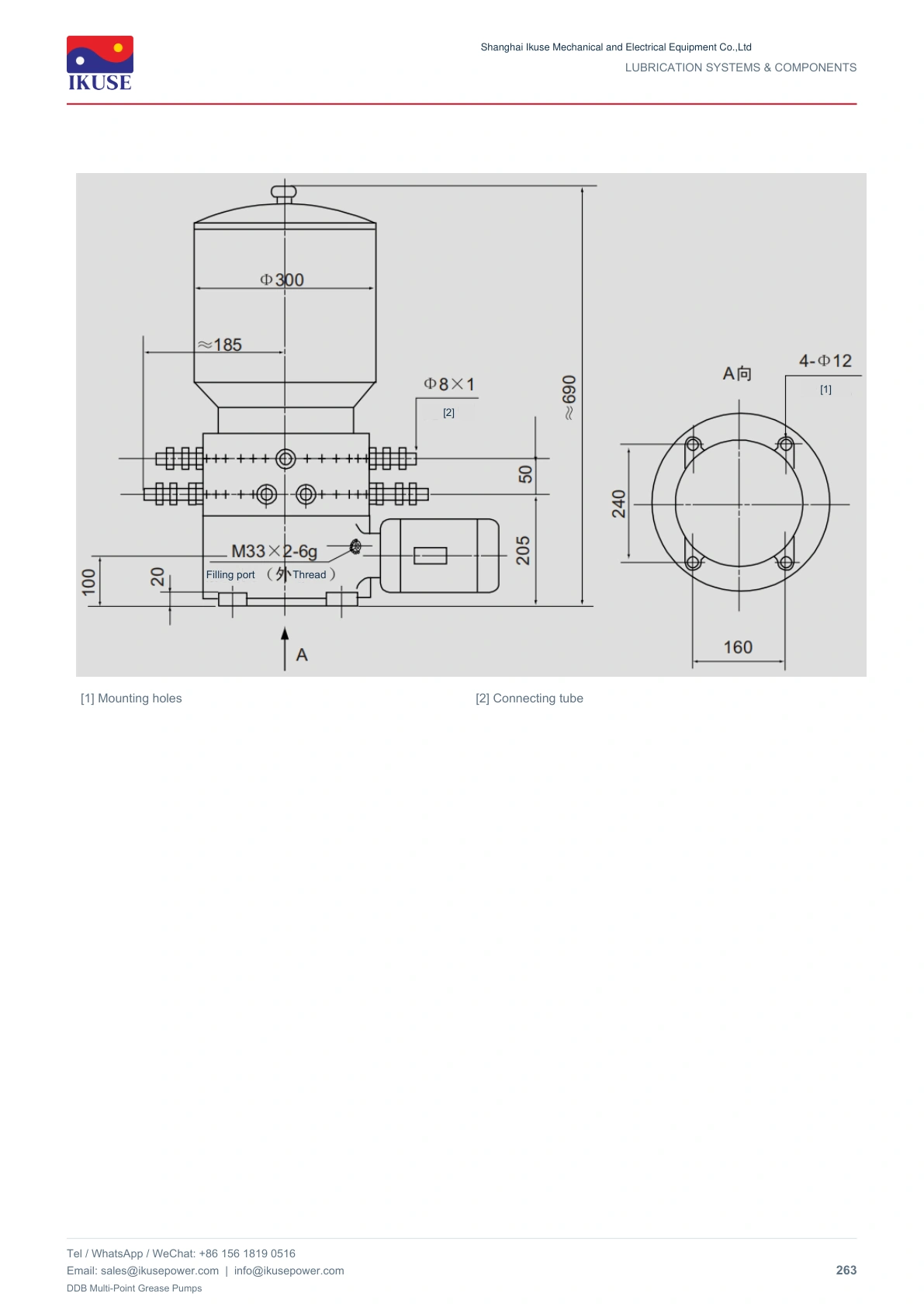

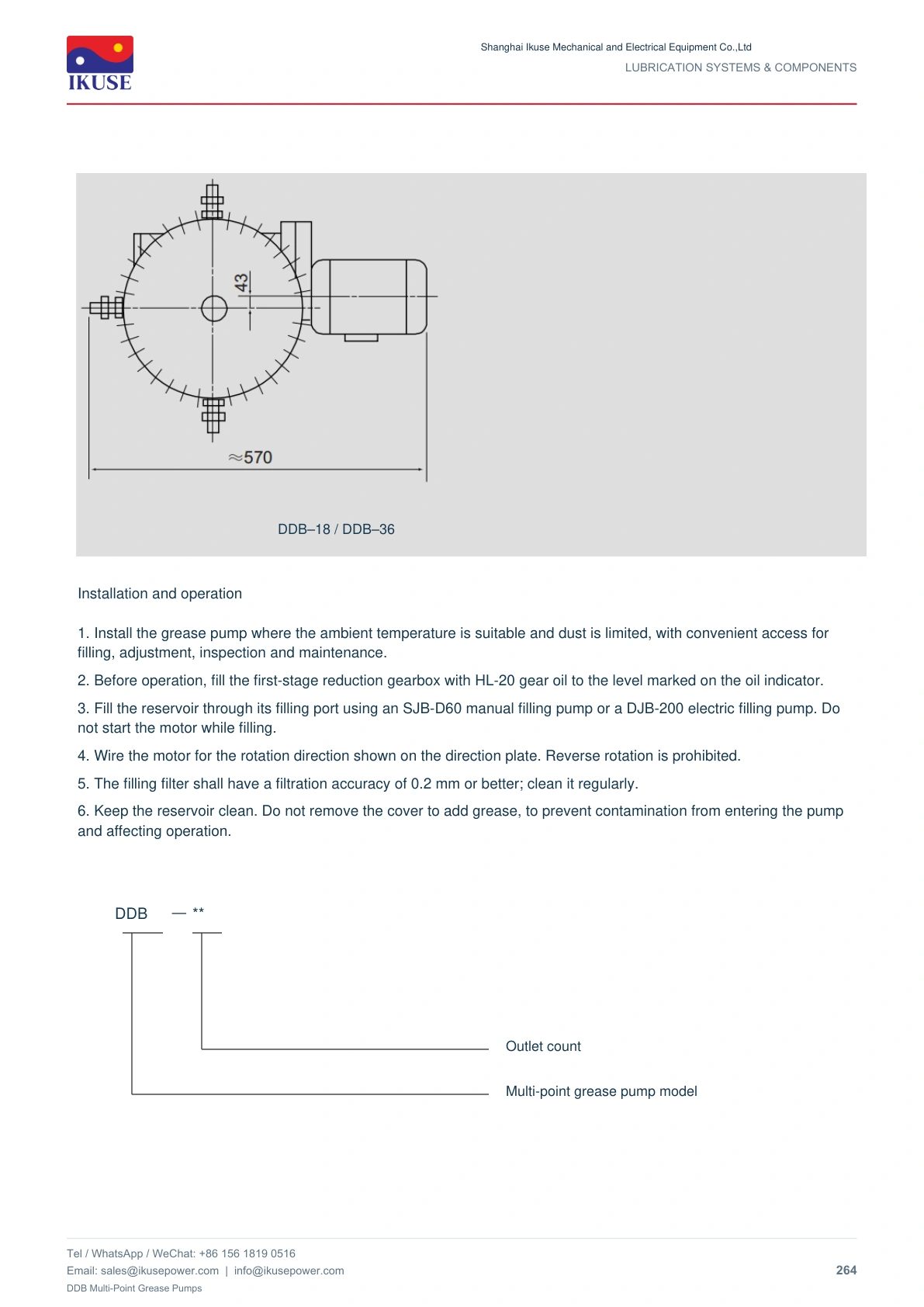

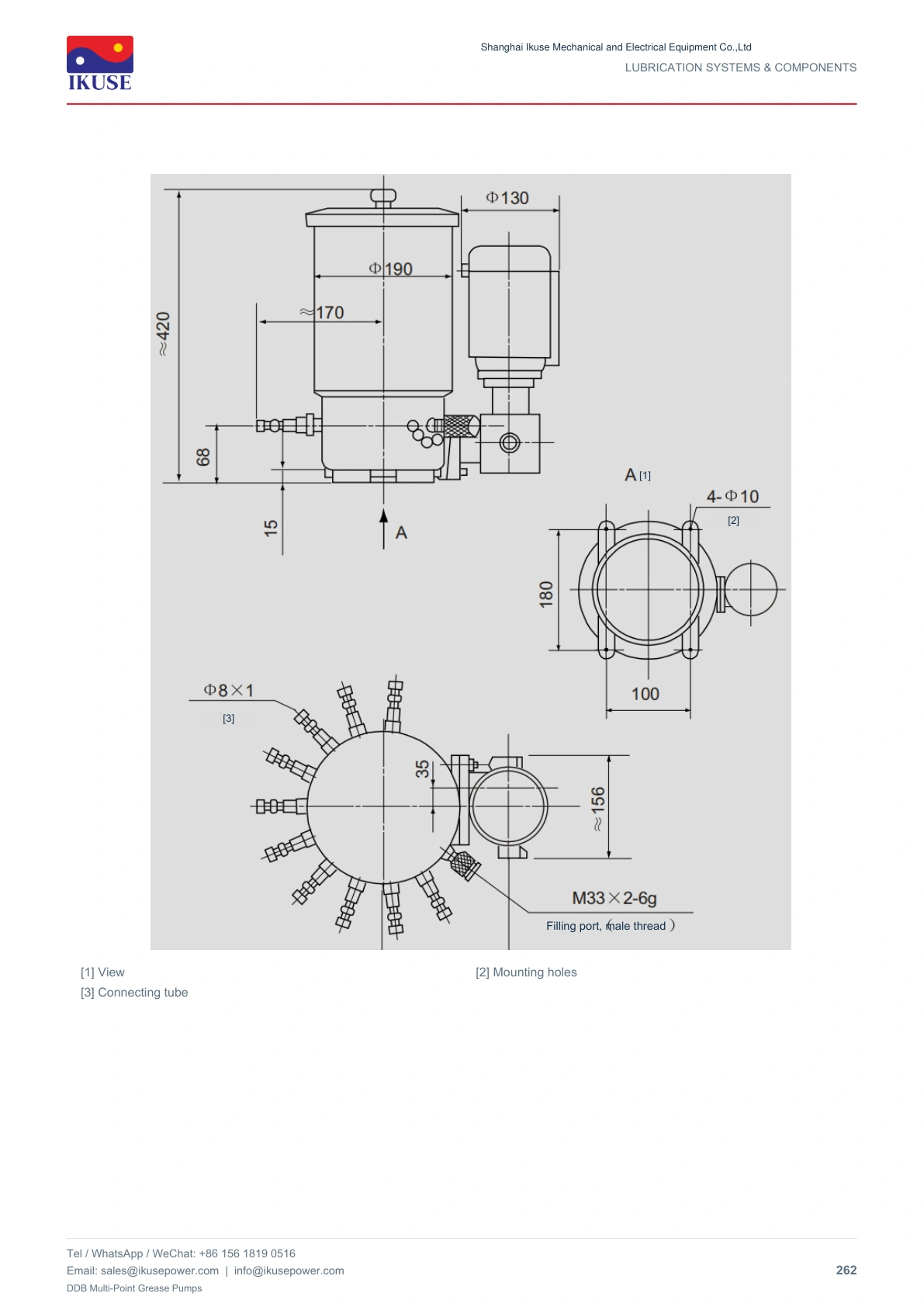

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
