Overview

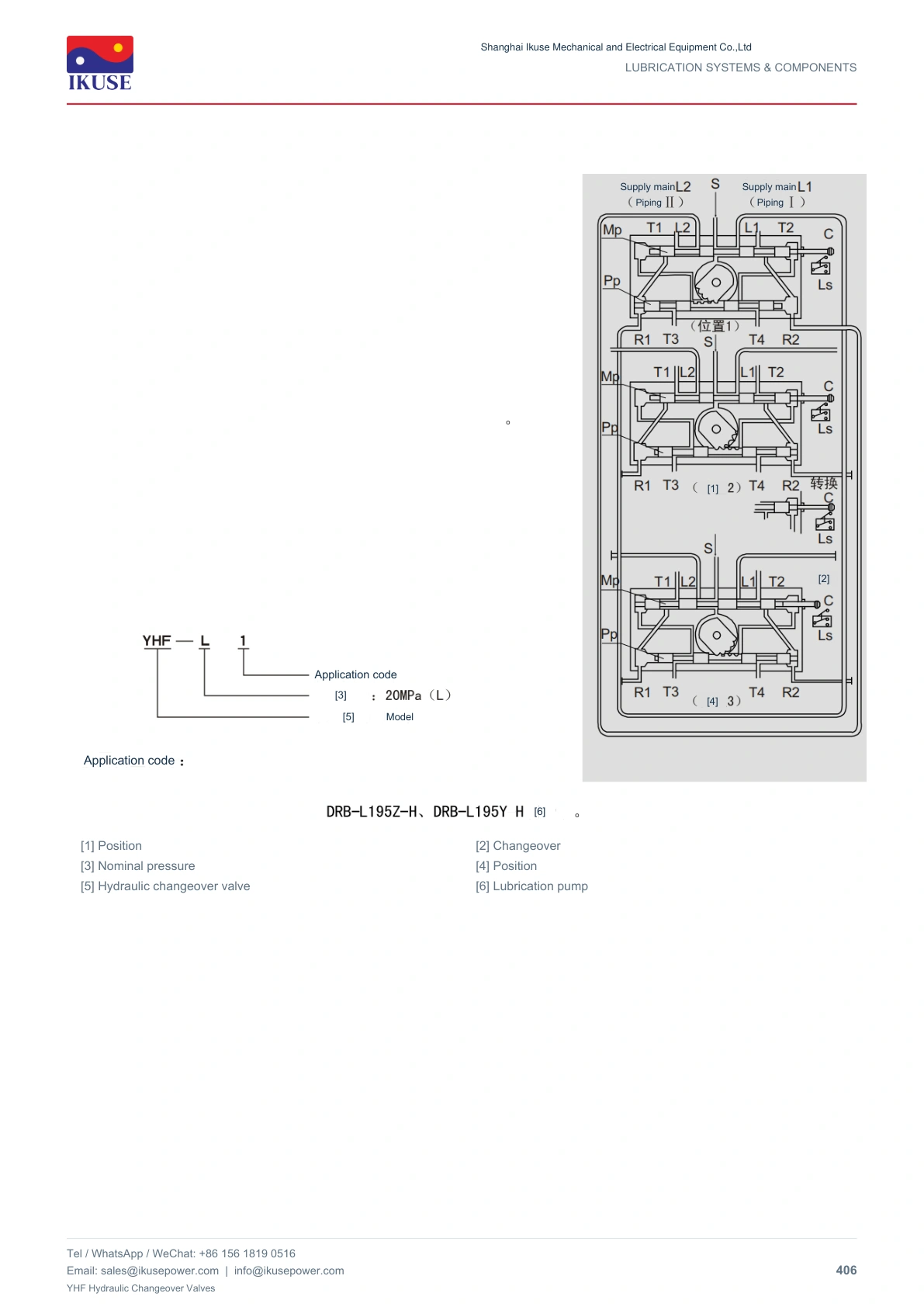

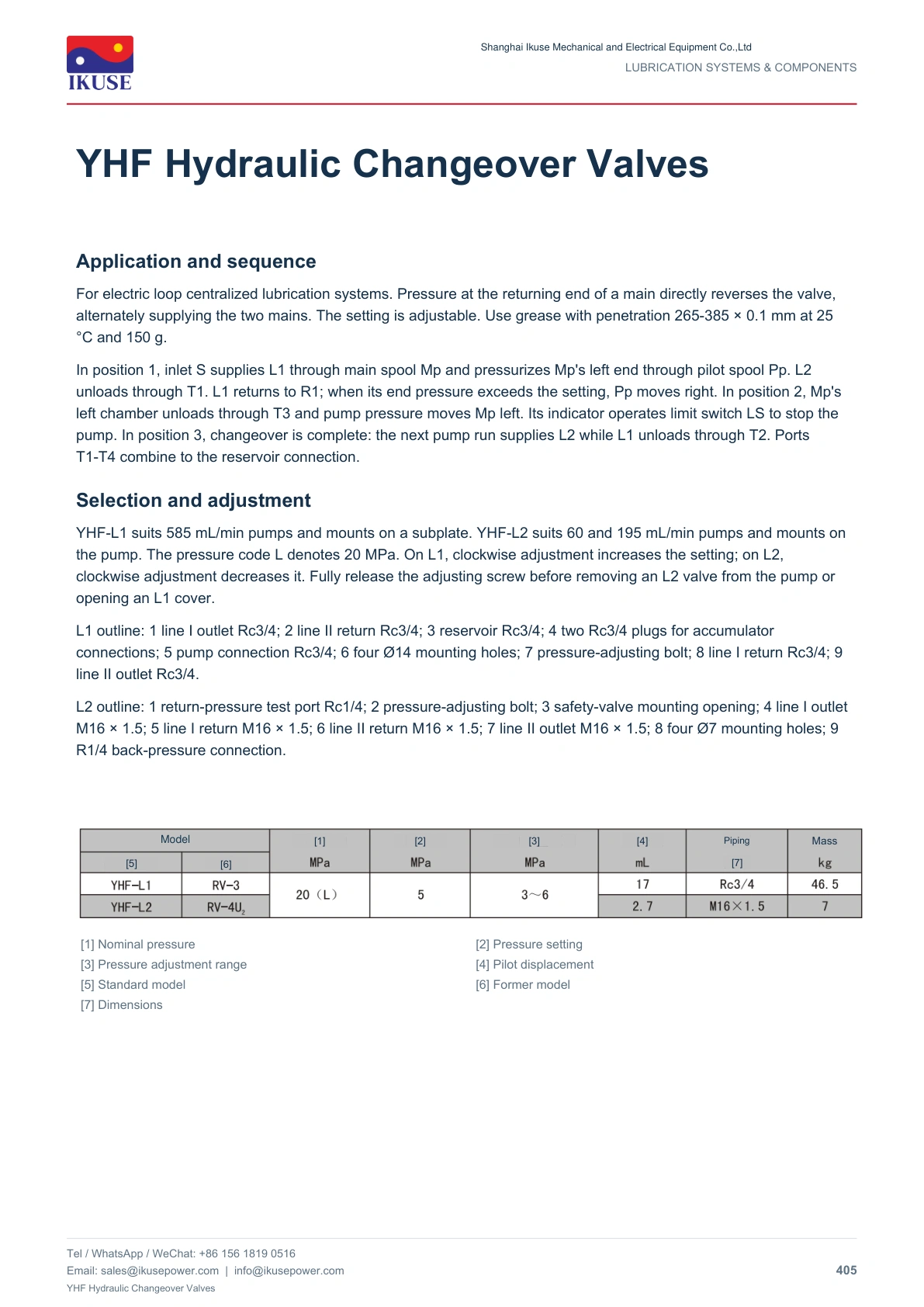

For electric loop centralized lubrication systems. Pressure at the returning end of a main directly reverses the valve, alternately supplying the two mains. The setting is adjustable. Use grease with penetration 265-385 × 0.1 mm at 25 °C and 150 g.
Selection and operation
L1 is plate-mounted and used with a 585 mL/min pump. L2 is mounted on a pump delivering 60 or 195 mL/min.
Technical documentation

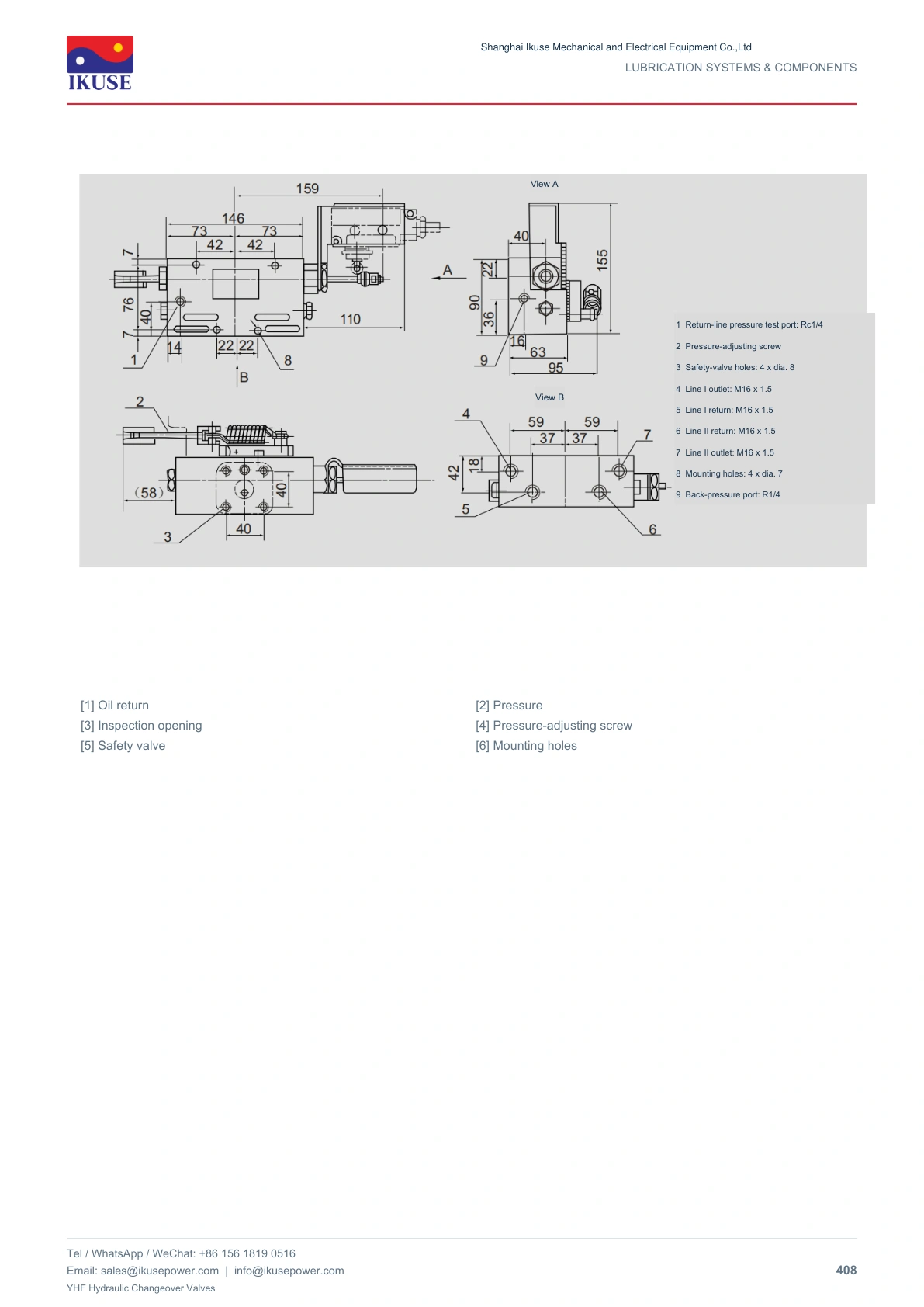

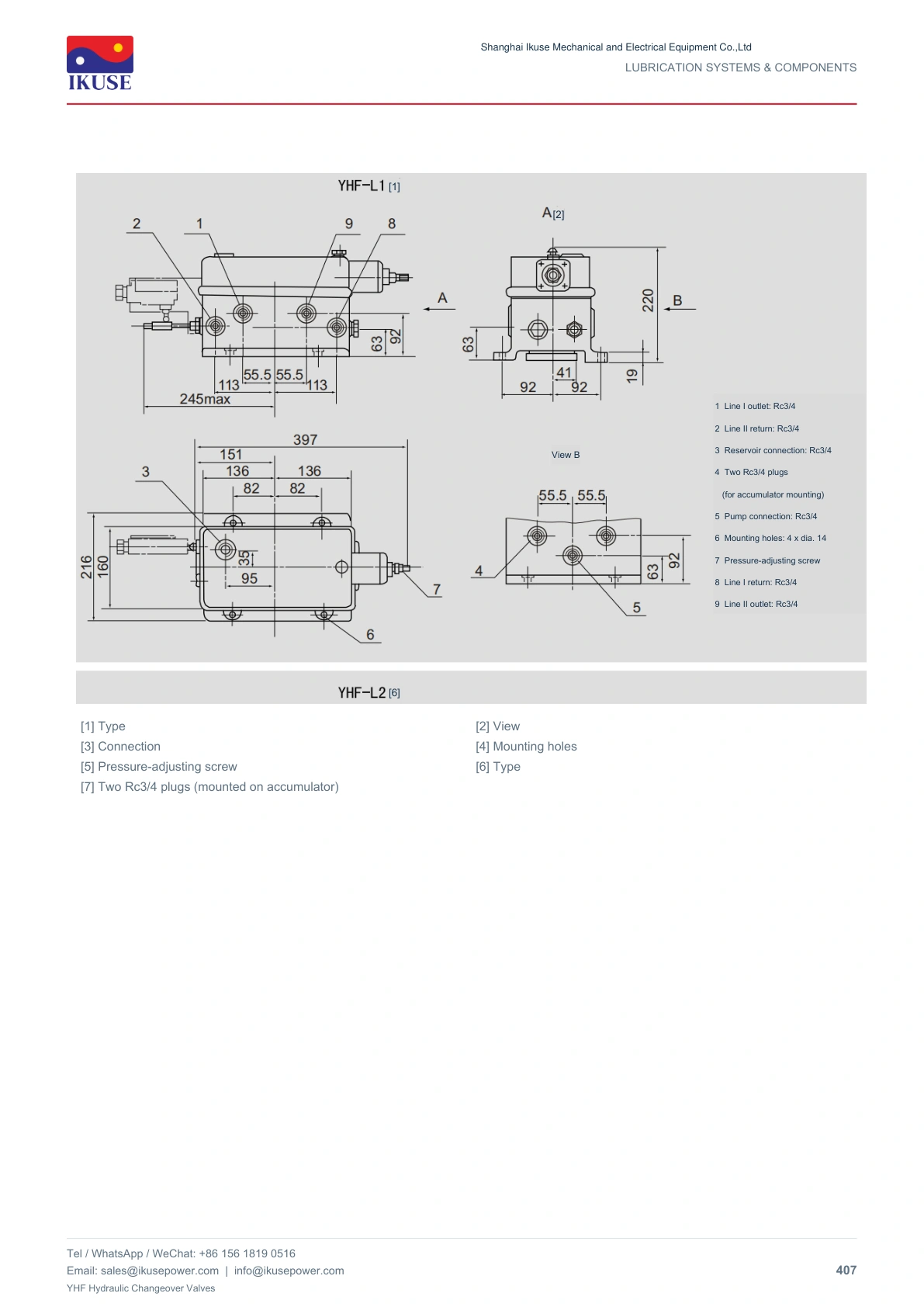

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
