Overview

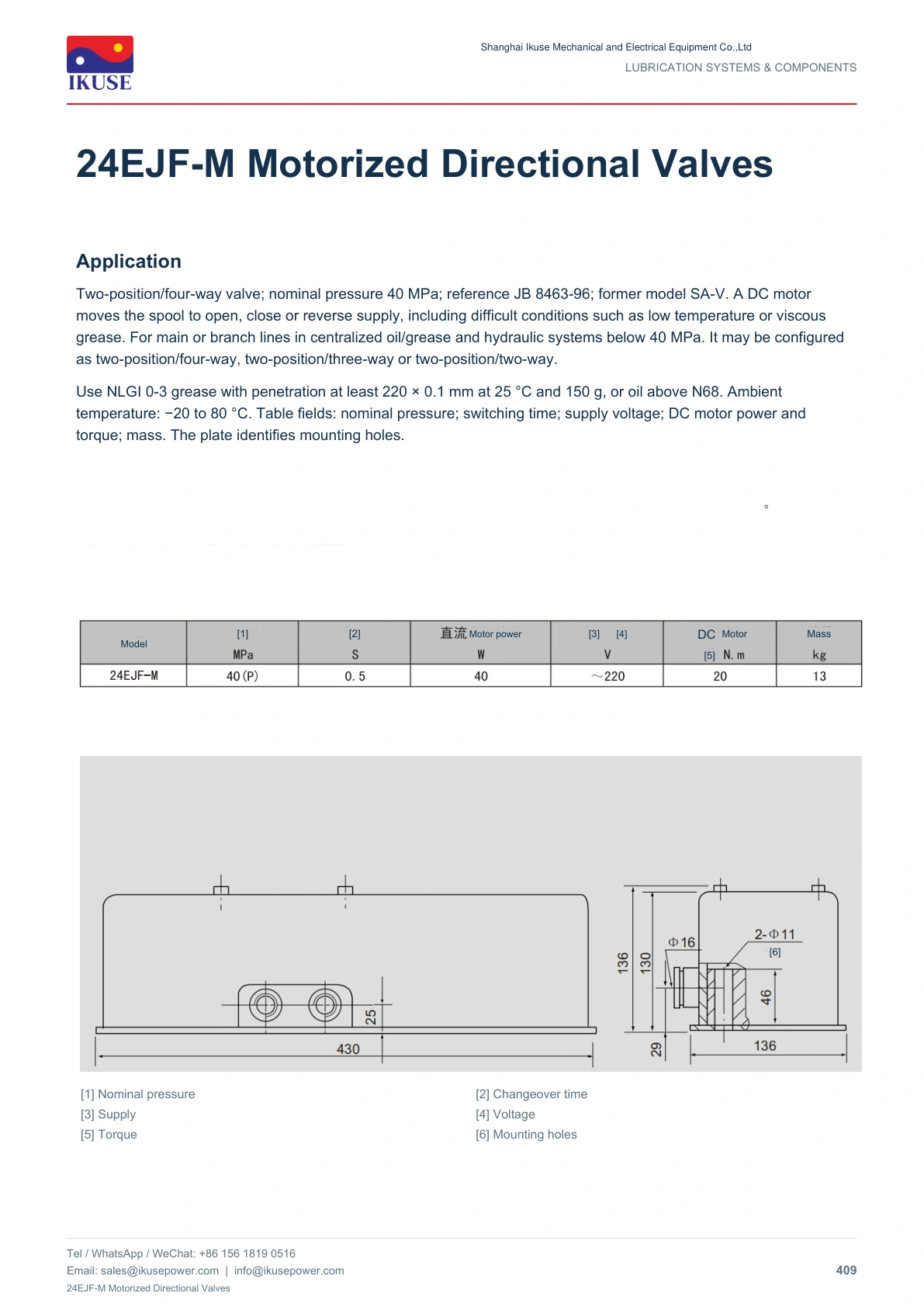

Two-position/four-way valve; nominal pressure 40 MPa; reference JB 8463-96; former model SA-V. A DC motor moves the spool to open, close or reverse supply, including difficult conditions such as low temperature or viscous grease. For main or branch lines in centralized oil/grease and hydraulic systems below 40 MPa. It may be configured as two-position/four-way, two-position/three-way or two-position/two-way.
Selection and operation
Select a two-position version with four, three or two ports to suit the circuit. Check the power supply and switching time against the technical table.
Technical documentation

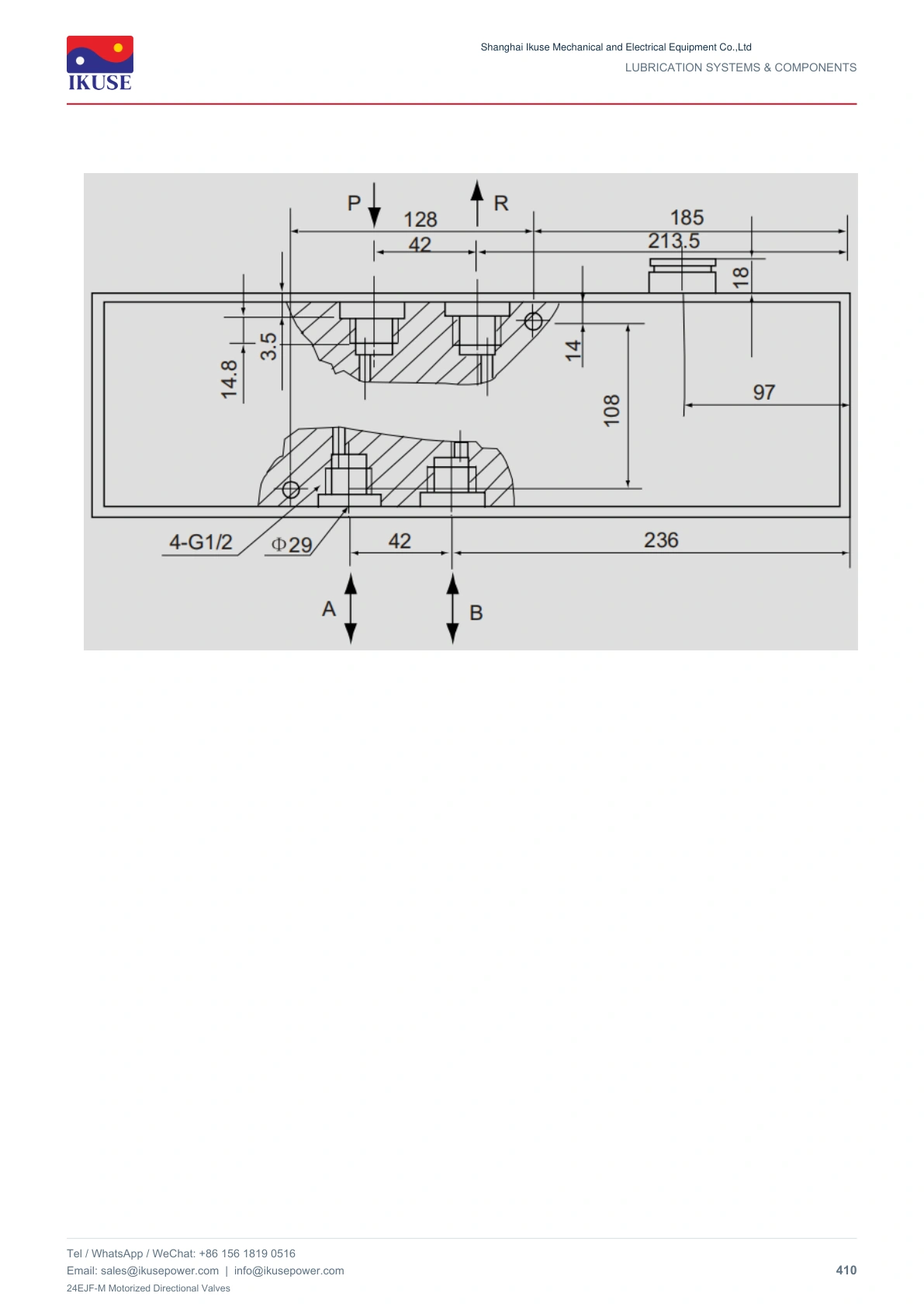

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
