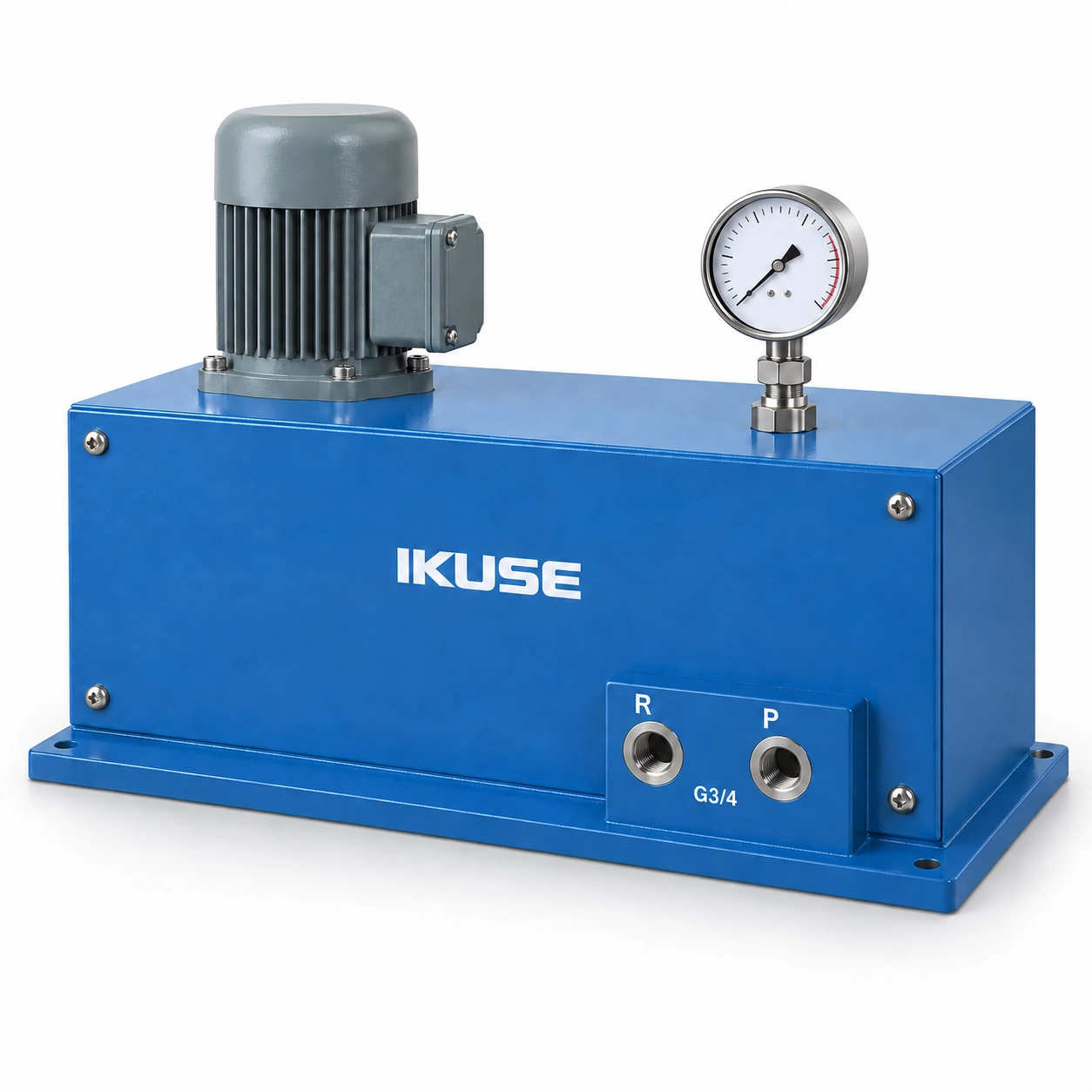

Overview

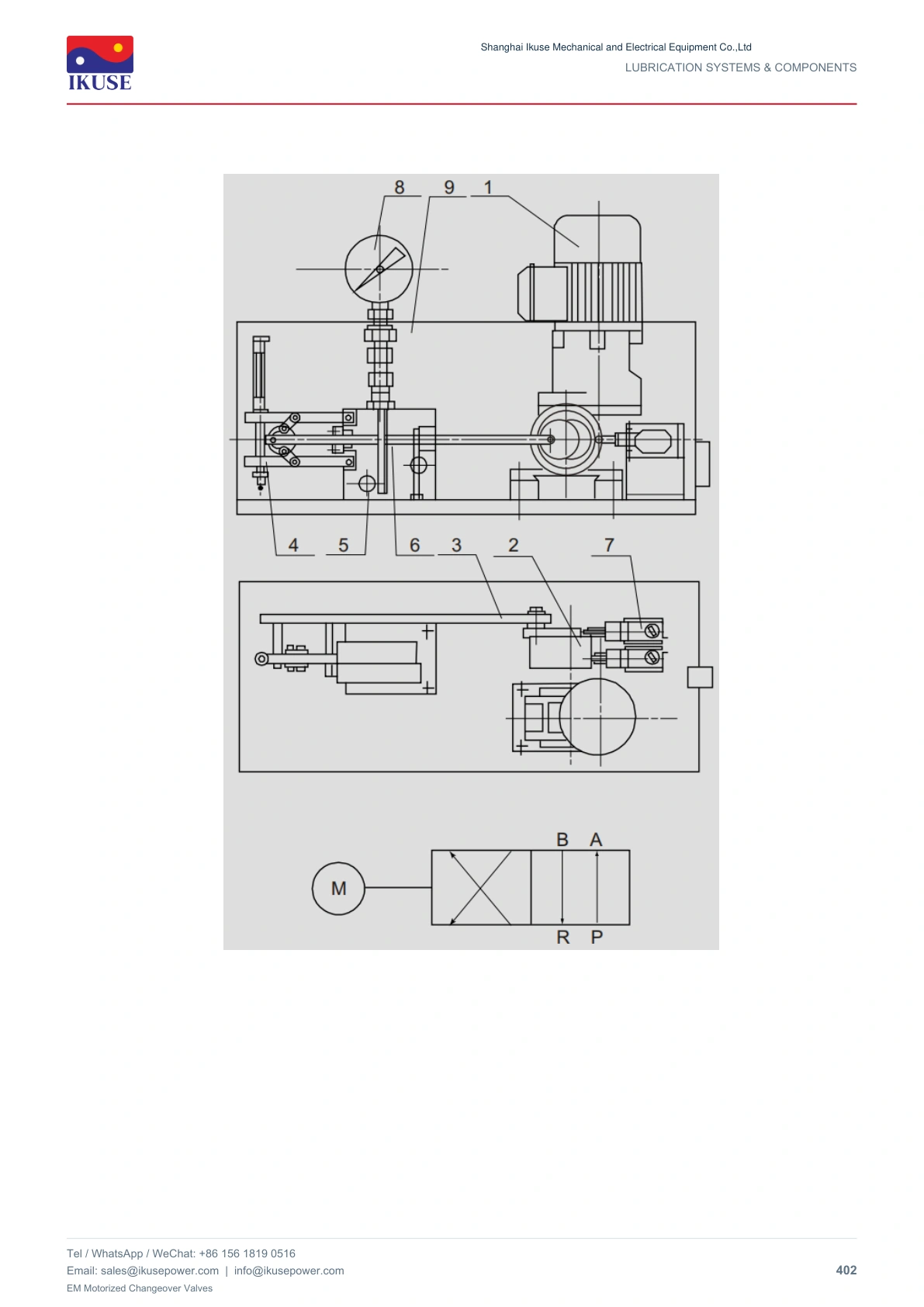

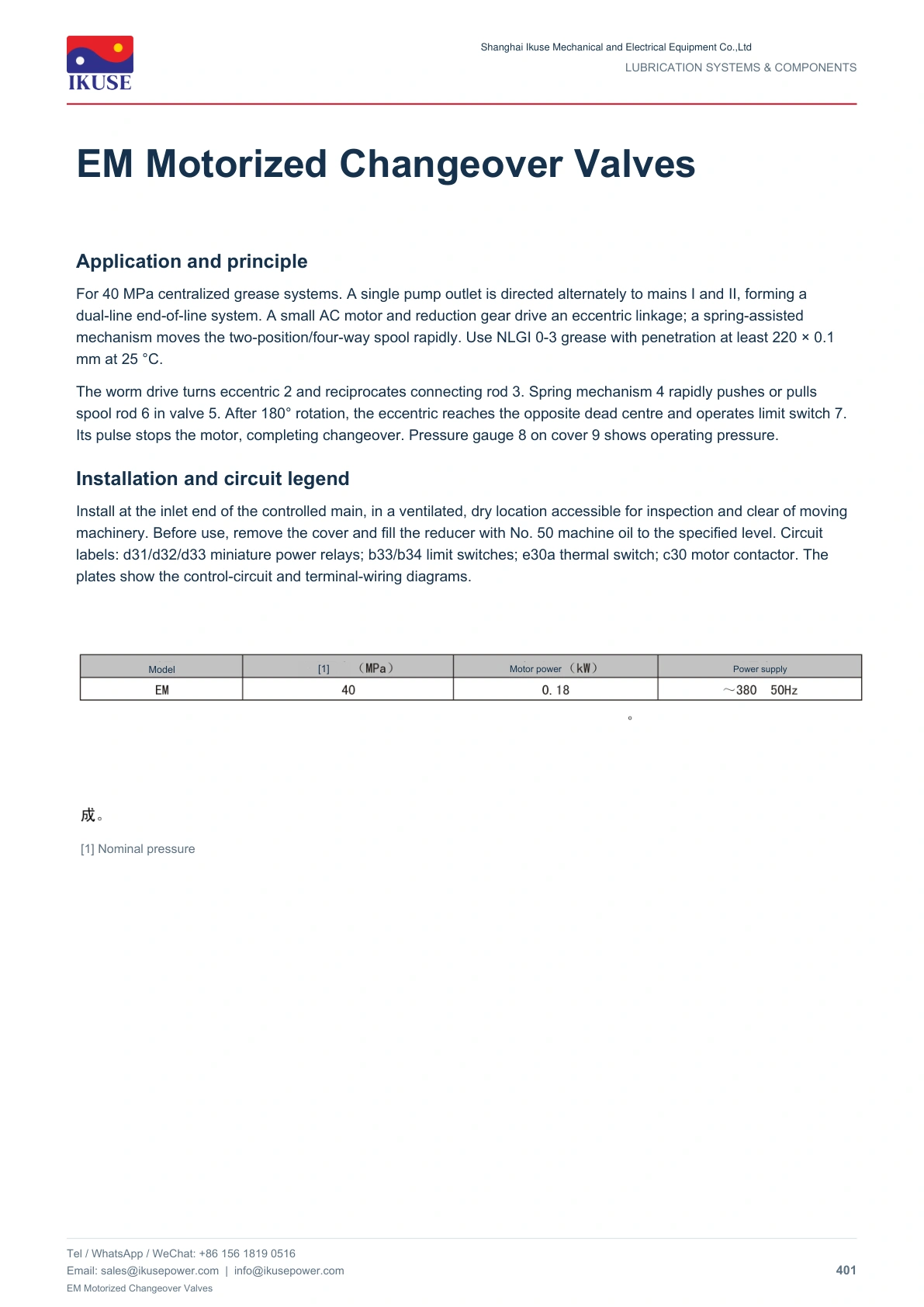

For 40 MPa centralized grease systems. A single pump outlet is directed alternately to mains I and II, forming a dual-line end-of-line system. A small AC motor and reduction gear drive an eccentric linkage; a spring-assisted mechanism moves the two-position/four-way spool rapidly. Use NLGI 0-3 grease with penetration at least 220 × 0.1 mm at 25 °C.
Selection and operation

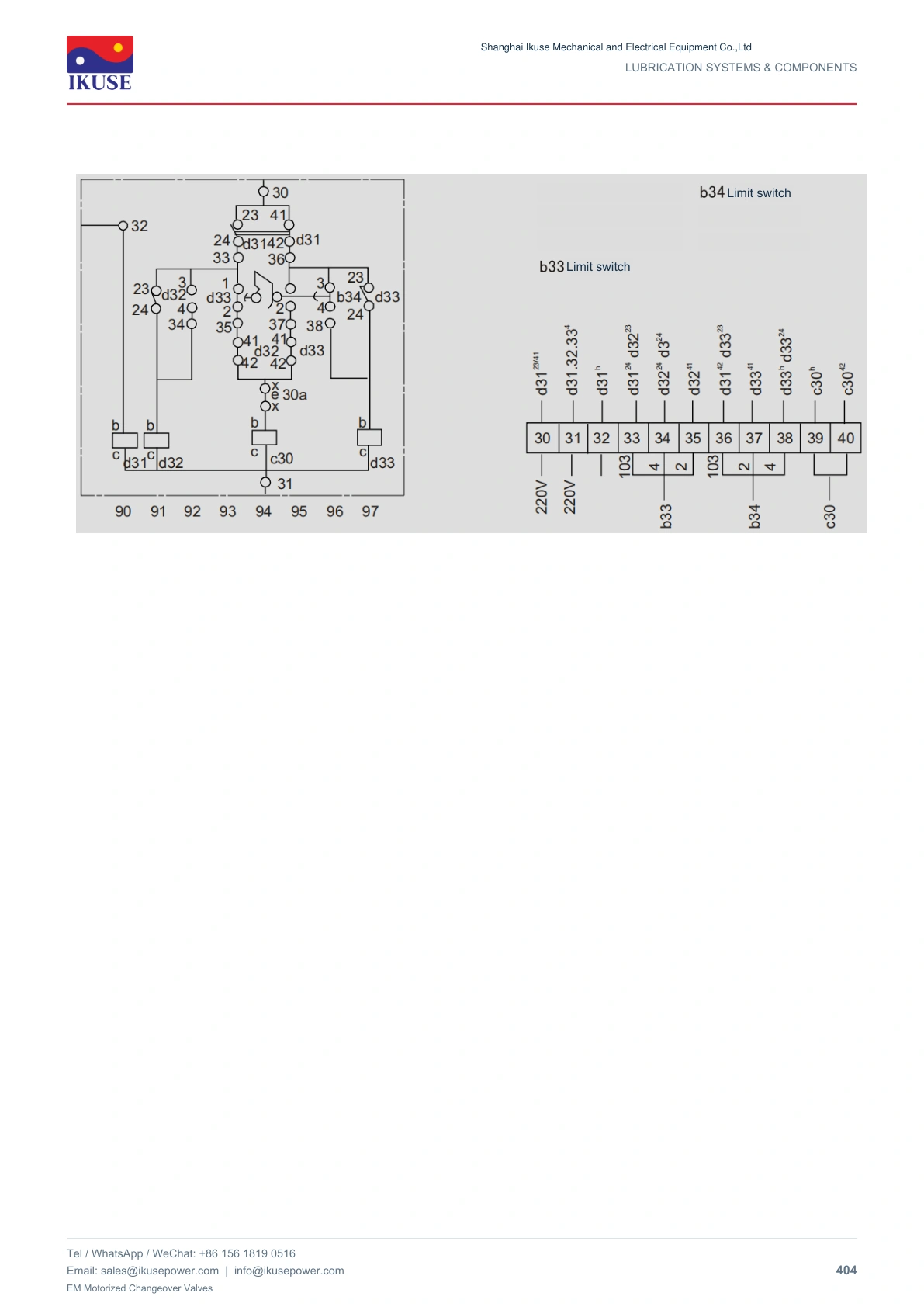

A limit switch indicates valve position. Install in a dry, ventilated location with access for maintenance.
Technical documentation

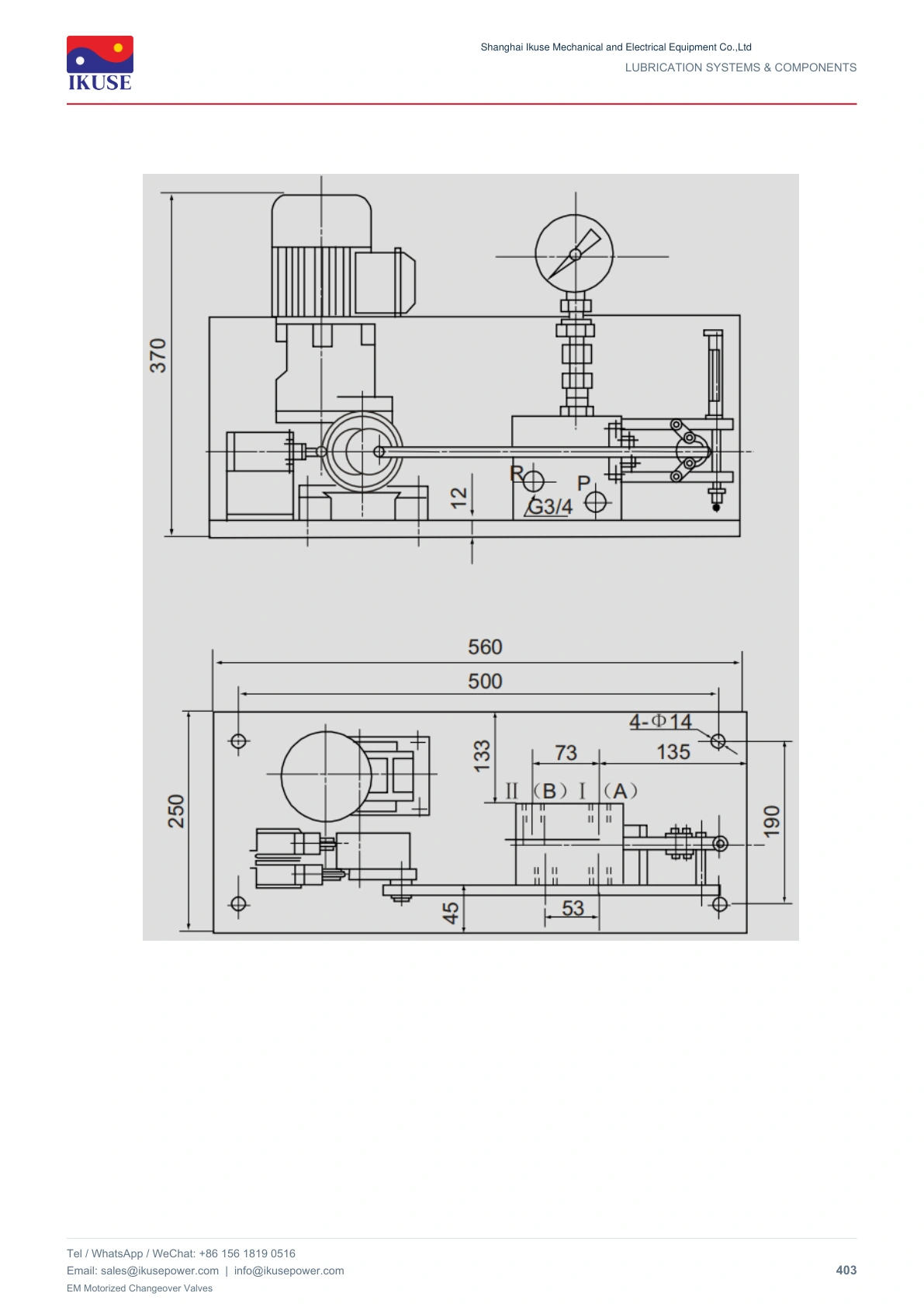

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
