Overview
Former model SG-A. For 40 MPa dual-line centralized systems, normally at the ends of both mains. A 5 MPa differential generates an electrical signal for changeover or monitoring. Use NLGI 0-3 grease with penetration at least 220 × 0.1 mm, or oil above N68. Ambient temperature: −20 to 80 °C.
Selection and operation
Install in a dry, ventilated location that is accessible for observation. Connect a dual-line distributor downstream of the controller so that the grease inside the device is renewed.
Technical documentation

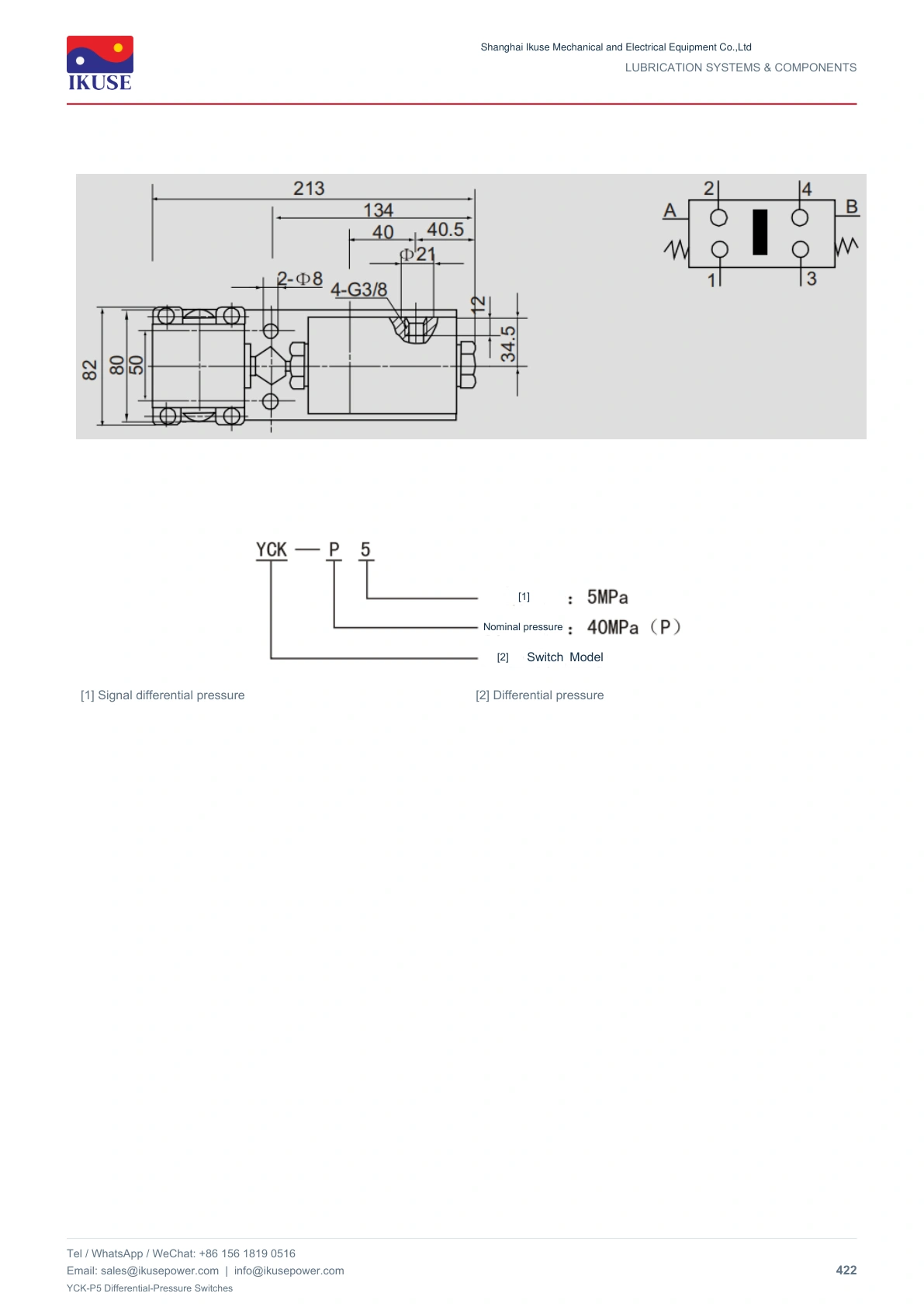

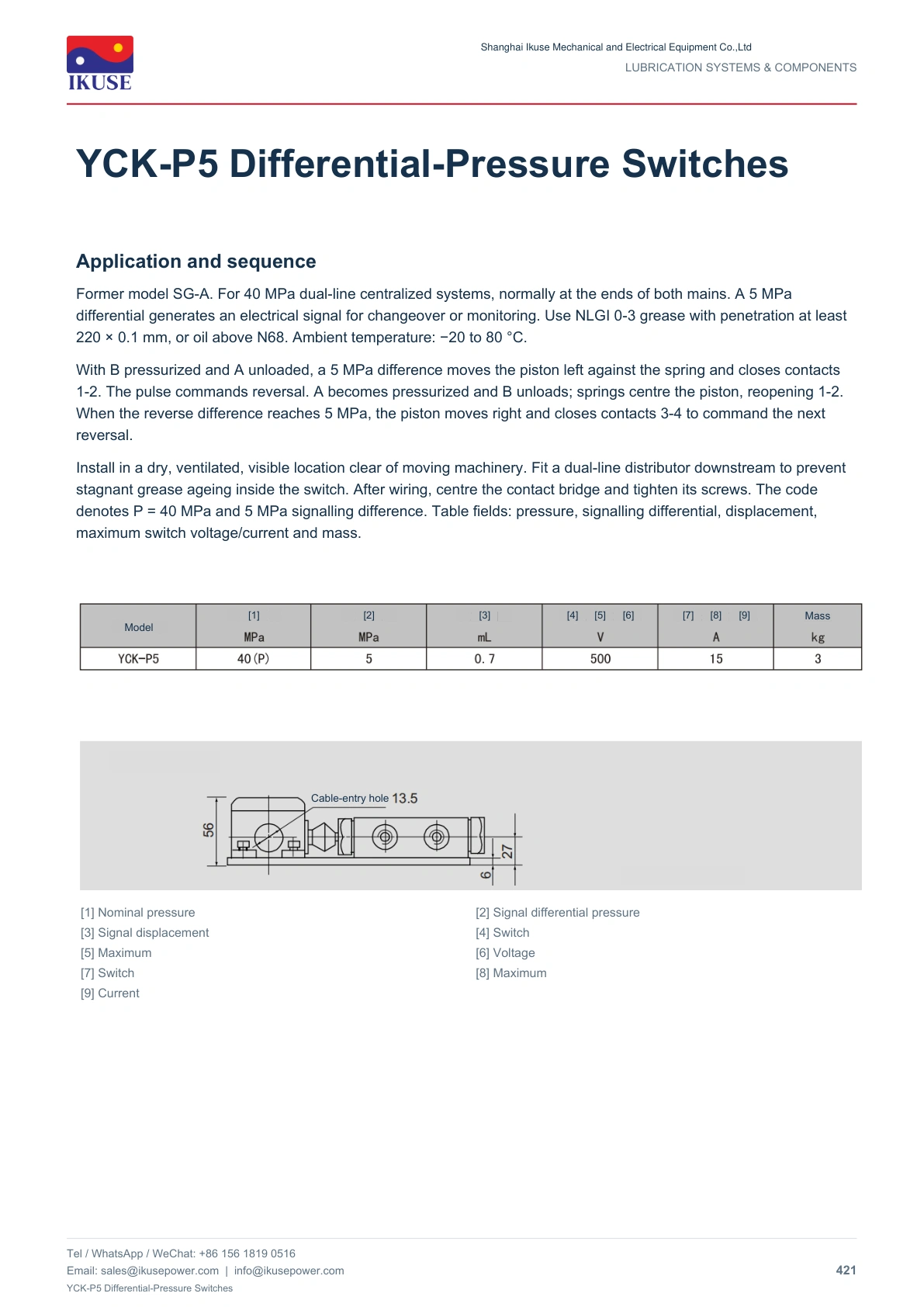

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
